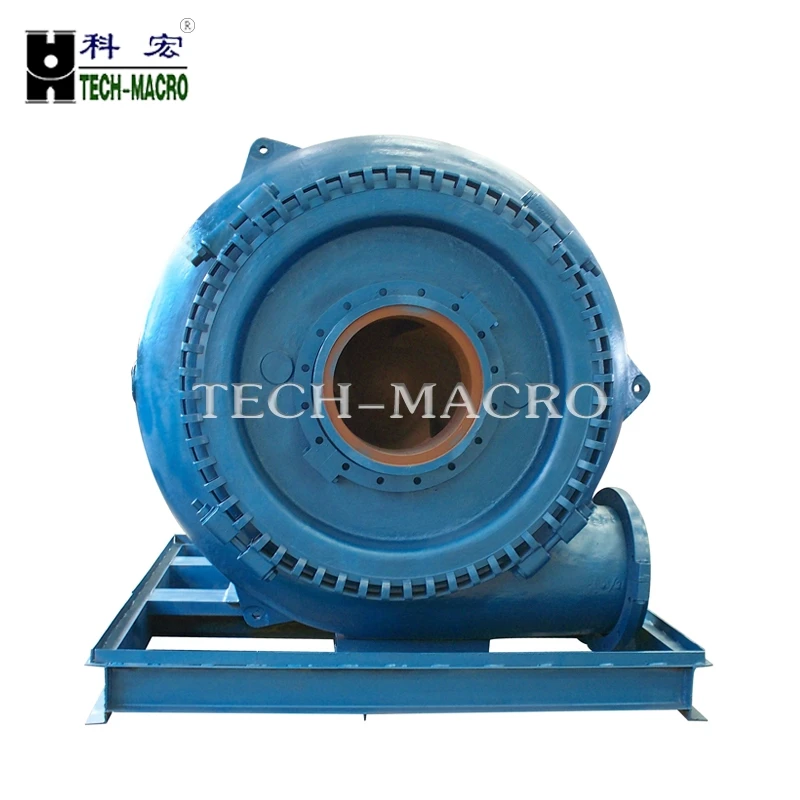

High chrome 05A electric sand dredger pump with diesel engine cutter suction centrifugal sand pumping

Product Overview

Description



High chrome 05A electric sand dredger pump with diesel engine cutter suction centrifugal sand pumping



Application:

KS(H) series gravel pump is designed for continuously handling the strong abrasive slurry which contains very big sludge too difficult to be pumped by a common pump. They are suitable for delivering slurry in mining, explosive sludge in metal melting, dredging in dredger and course of rivers, and other fields.



Technological Characteristic :

A horizontal, single-shell structure pump, flow components hardware nickel, chromium high abrasion resistant material and has good wear resistance, corrosion resistance and high reliability.



Pump and drive straight for the choice of the drive, V-belt drive, hydraulic coupling drive, drive reducer.



The discharge direction of pump can be oriented in any direction of 360°.



Pump in the direction of the export of a 360-degree rotation installation location to accommodate different installation conditions at the scene.



SEALING FORMS:

   1 Packing gland  For the suction or gravity condition. The pressure of sealing liquid should be 35Kpa higher than the discharge pressure of the seen in following table.

   2 Expeller seal  In general for gravity condition the gravity head should not be exceeded to 10% of the total head of the pump and the shaft power increase by 5% about.







Reliable Product Quality:

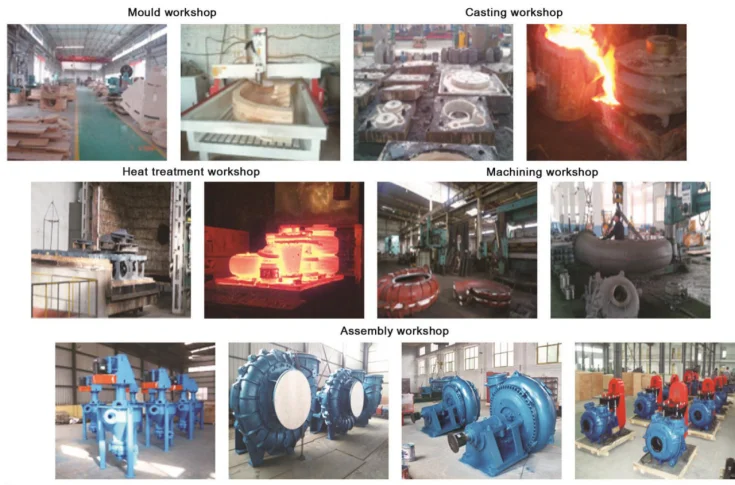

Over the years, Tech-macro has formed the whole normative quality management system, and intensify supervision, inspection and control to ensure quality level of brand-name products. With the advanced test equipments, perfect test process, strict quality standard, and professional testing personnel, to ensure the super quality of products. According to the industrial standard, Tech-macro carry out a series of tests, such as materials test, impeller balance experiment, pressure test, performance test and so on.

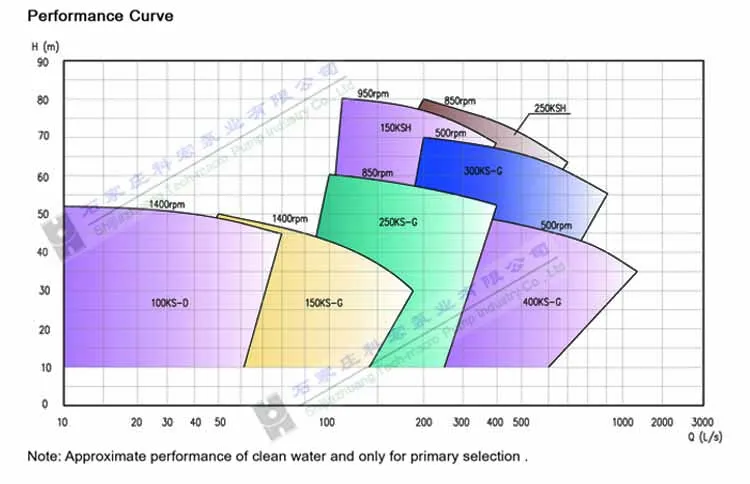

Performance table:

Pump Model	Allowable	Clear Water Performance
	Max. Power	Capacity Q	Head	Speed	Max.Eff.	Impeller. Dia. (mm)
	(kw)	m3/h	H (m)	n(r/min)	(%)
6/4D-G	60	36-250	5-52	600-1400	58	378
8/6E-G	120	126-576	6-45	800-1400	60	378
10/8S-G	560	216-936	8-52	500-1000	65	533
10/8F-G	260	216-936	8-52	500-1000	65	533
10/8S-GH	560	180-1440	24-80	500-950	72	711
12/10F-G	260	360-1440	10-60	400-850	65	667
12/10G-G	600	360-1440	10-60	400-850	65	667
12/10G-GH	600	288-2808	16-80	350-700	73	950

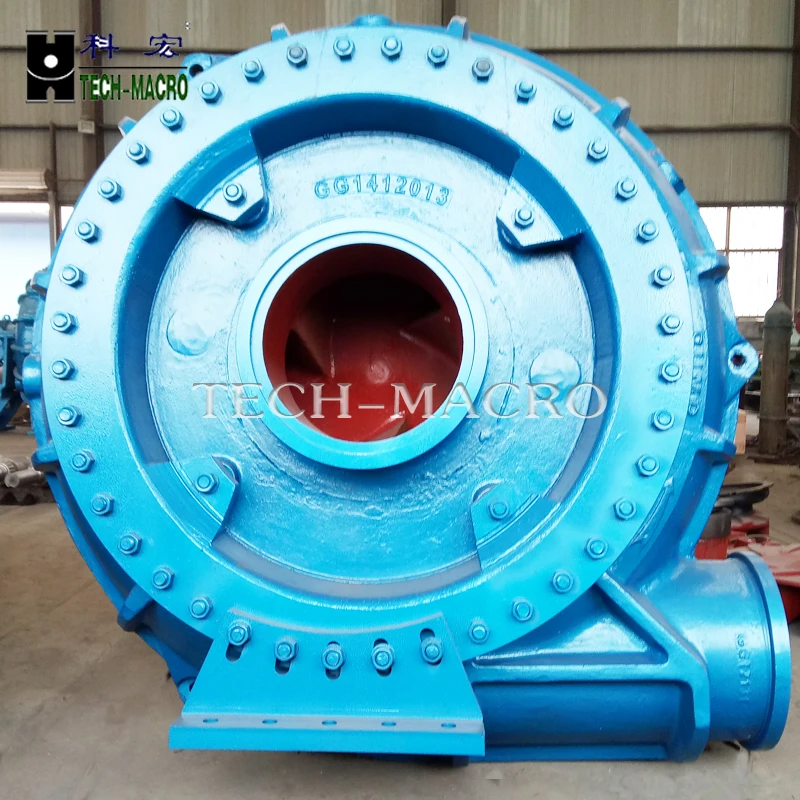

14/12G-G	600	576-3024	8-70	300-700	68	864
16/14G-G	600	720-3600	18-44	300-500	70	1016
16/14TU-G	1200	324-3600	26-70	300-500	72	1270
18/16G-G	600	720-4320	12-48	250-500	72	1067
18/16TU-G	1200	720-4320	12-48	250-500	72	1067
