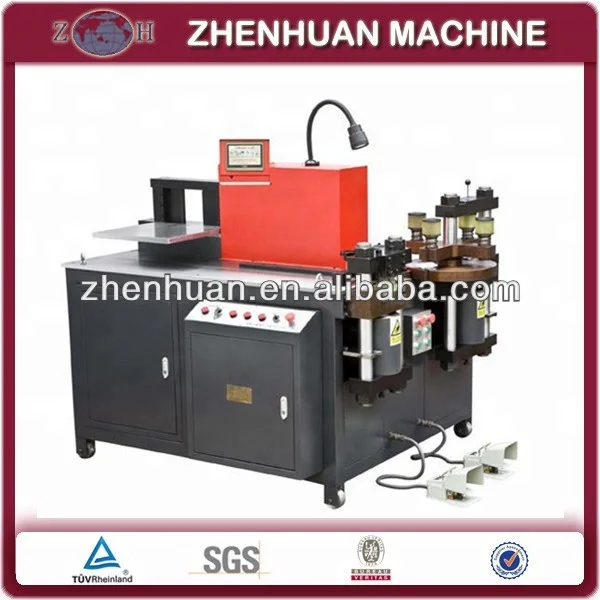

3 in 1 NC BUSBAR PROCESSING MACHINE
- Category: Busbar Machine >>>
- Supplier: Nantong Zhenhuan Trade Co. Ltd.
Share on (1668118718):
Product Overview
Description
MACHINE DESCRIPTION
This machine is special for processing aluminum and copper busbars used in electric
power, high/low voltage electric apparatus and busway industries. It combines punching,
cutting and bending functions together as well as some other functions such as
embossing, twisting, flatting, pressing tie-in, etc.
power, high/low voltage electric apparatus and busway industries. It combines punching,
cutting and bending functions together as well as some other functions such as
embossing, twisting, flatting, pressing tie-in, etc.
MAIN FEATURES
Title goes here.
-Angle bending accuracy: +/- 1°
-Special punching mould, no pressing marks to the workpiece surface
-Special turret punch structure, with 6 punching heads, one time can punch 6 kind of holes without stopping machine to change tools

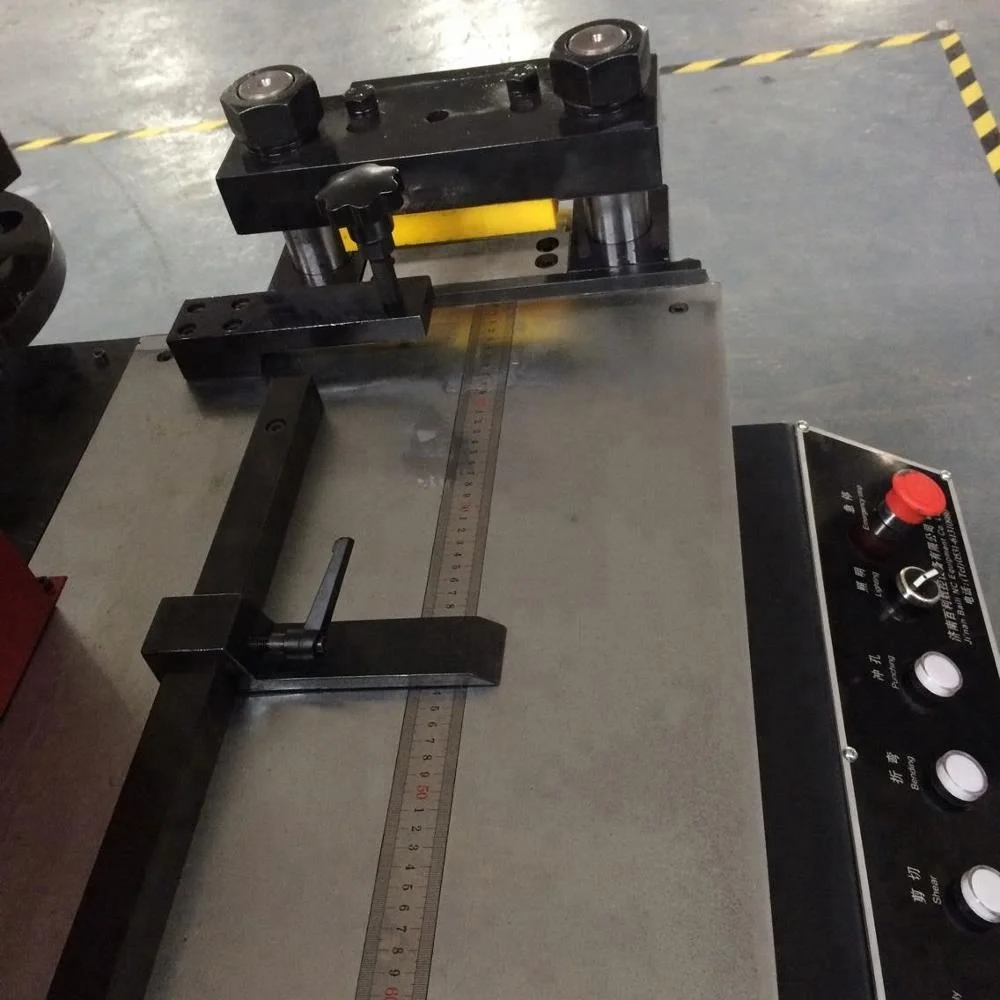

-Cutting device adopts patent double-column structure, smooth cut, no waste, no burr
Double worktable for bending station, real separate working
-PLC control bending, bending angle can be pre-set and saved
-Special punching mould, no pressing marks to the workpiece surface
-Special turret punch structure, with 6 punching heads, one time can punch 6 kind of holes without stopping machine to change tools
-Cutting device adopts patent double-column structure, smooth cut, no waste, no burr
Double worktable for bending station, real separate working
-PLC control bending, bending angle can be pre-set and saved
MACHINE SPECIFICATION
MACHINE CONFIGURATION
Main technical data of bus bar punching bending cutting machine
* For punching:
Max. punching pressure: 500kN
Hole diameter: 4.3-34mm
Max. thickness: 16mm
Max. width: 200mm
Punching heads:6 sets mounted on the machine (from 4.3~34mm)
* For cutting:
Max. cutting thickness: 16mm
Max. cutting width:200mm
* For bending:
Max. bending pressure:500KN
Max. bending width:200mm
Max. bending thickness: 16mm
Equipped with two bending tools: R5 and R10
* For vertical bending:
Max. bending width: 120mm (12mm thick copper)
Min. bending angle: 90°
* Dimension: 1900 x 1500 x 1600mm
* Weight: about 2130kg
* Main driving motor power: 5.5kW x 3
* Main configuration of bus bar punching bending cutting machine
- Main driving motors: from Taiwan
-Oil pumps: from Taiwan
-Electromagnetic valves and overflow valves: from Taiwan
- Relays: Schneider
- Contactors: Schneider
-Other electric parts: from China
-PLC: Panasonic from Japan
-Touch screen: 7” big size from Taiwan
Accessories of bus bar punching bending cutting machine

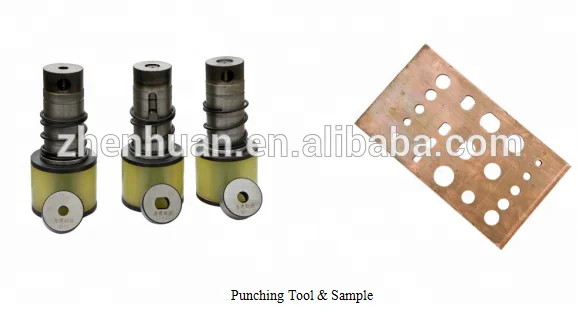

* Punching moulds: 8 sets (sizes can be selected)
* Cutting blade: one piece

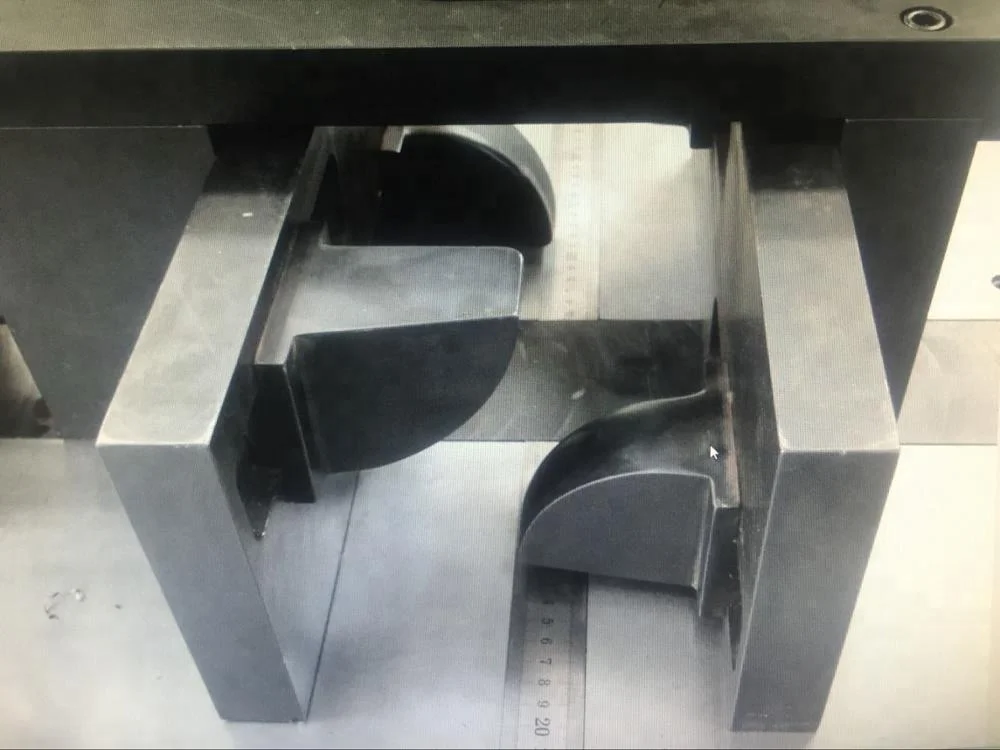

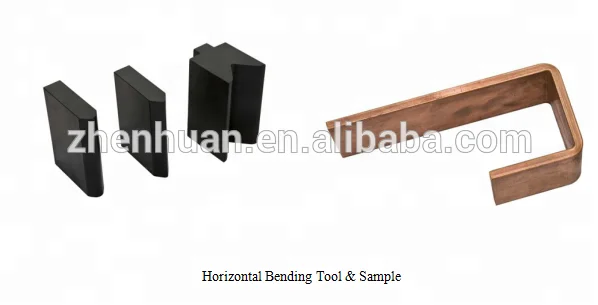

* Horizontal bending moulds: two sets

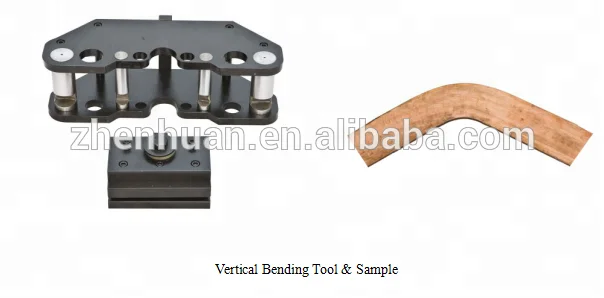

* Vertical bending moulds: two sets

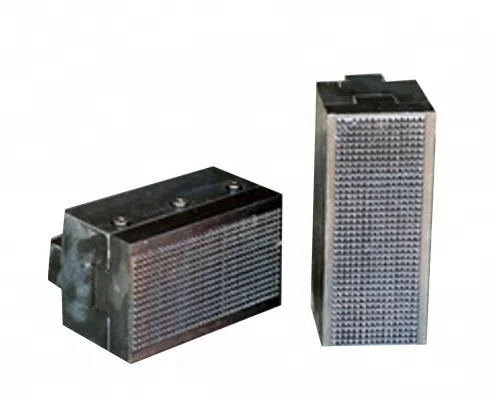

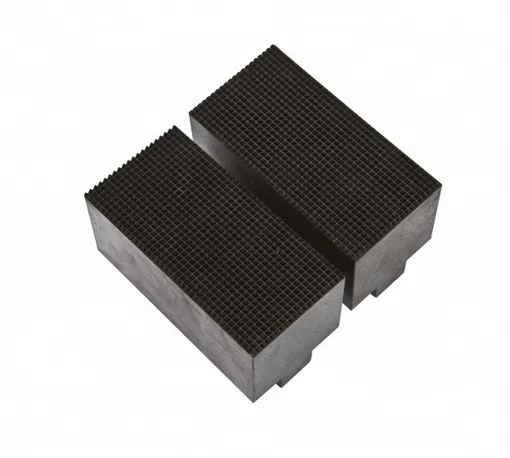

* Embossing mould: one set
* Tool kit: one
* Foot switches: 3 pieces
* For punching:
Max. punching pressure: 500kN
Hole diameter: 4.3-34mm
Max. thickness: 16mm
Max. width: 200mm
Punching heads:6 sets mounted on the machine (from 4.3~34mm)
* For cutting:
Max. cutting thickness: 16mm
Max. cutting width:200mm
* For bending:
Max. bending pressure:500KN
Max. bending width:200mm
Max. bending thickness: 16mm
Equipped with two bending tools: R5 and R10
* For vertical bending:
Max. bending width: 120mm (12mm thick copper)
Min. bending angle: 90°
* Dimension: 1900 x 1500 x 1600mm
* Weight: about 2130kg
* Main driving motor power: 5.5kW x 3
* Main configuration of bus bar punching bending cutting machine
- Main driving motors: from Taiwan
-Oil pumps: from Taiwan
-Electromagnetic valves and overflow valves: from Taiwan
- Relays: Schneider
- Contactors: Schneider
-Other electric parts: from China
-PLC: Panasonic from Japan
-Touch screen: 7” big size from Taiwan
Accessories of bus bar punching bending cutting machine
* Punching moulds: 8 sets (sizes can be selected)
* Cutting blade: one piece
* Horizontal bending moulds: two sets
* Vertical bending moulds: two sets
* Embossing mould: one set
* Tool kit: one
* Foot switches: 3 pieces
