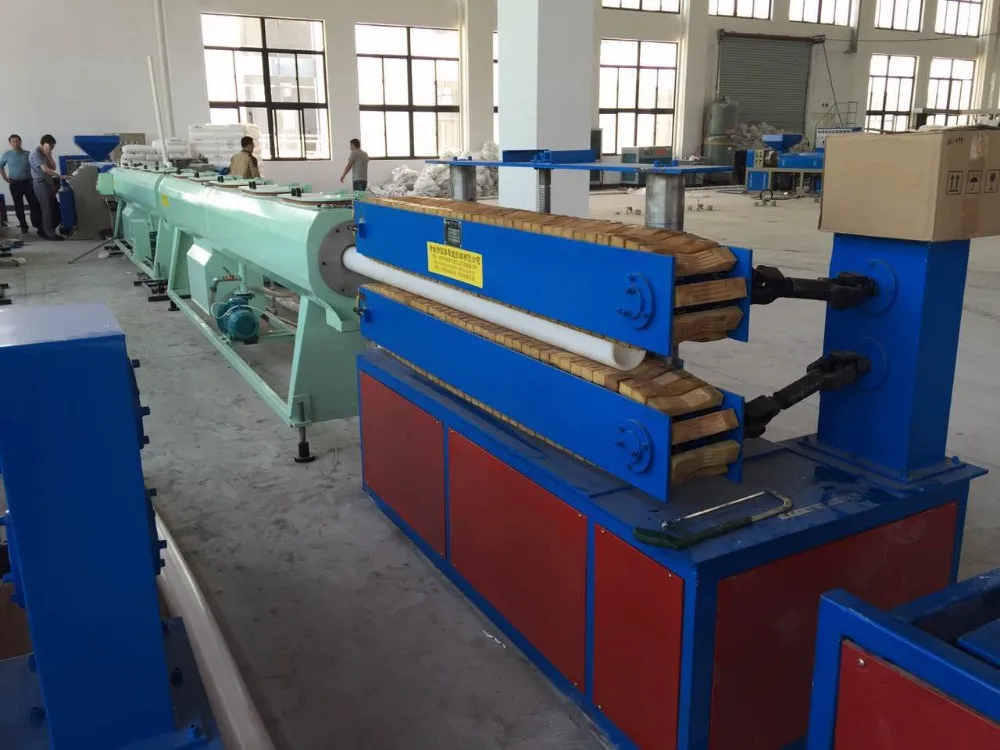

factory price HDPE/PPR/PVC water plastic Pipe making Manufacturing machine

Product Overview

Description



Application:

Pipe Machine line can produce anti high anti high strength, anti high temperature, anti-aging, anti-     chemical, good insulation PVC pipe. The quality of this pipe is up to B/T2479-2000 and Q/ysth-1999 standard and according to Germany standard DIN 8061- 8062.It is the first choice for the high voltage cable protection.

Main Charaters:

This line can solve the problems of high temperature melting, high viscosity, easy-decomposition. The special designed screw, gearbox, tooling, and HMI system make the line reliable and easy     operation.



model			uPVC63		uPVC160
pipe range(mm)			20-110		110-160
capacity(kg/h)			100		150-200
center height(mm)			1000		1000
single screw extruder	extruder model	SJ65		SJ90
	screw diameter(mm)	65		90
	L/D	25:1		25:1
	Screw rotation speed(rmp)	80		100
	motor power(kw)	22		37
	heating power(kw)	16		36
	cooling blower power(kw)	0.75		0.75

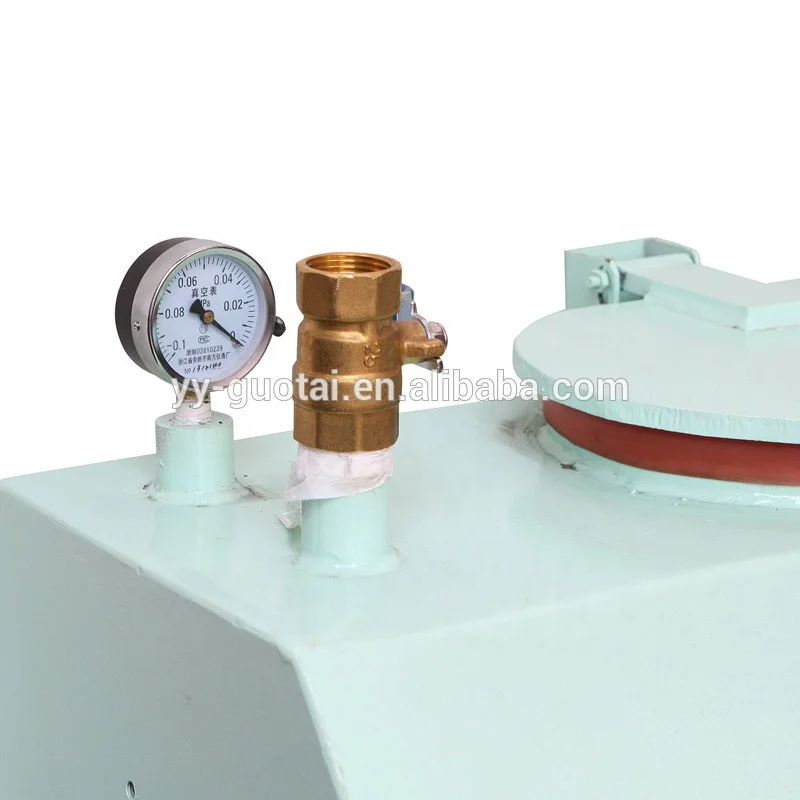

vacuum calibration tank	length of calibration case(mm)	6000		6000*2
	vacuum degree(mpa)	0-0.1		0-0.1
	absorbing gas speed(m3/h)	60		60*2
	water pump power(kw)	4		4
	longitudinal moving motor power(kw)	1.1		1.1

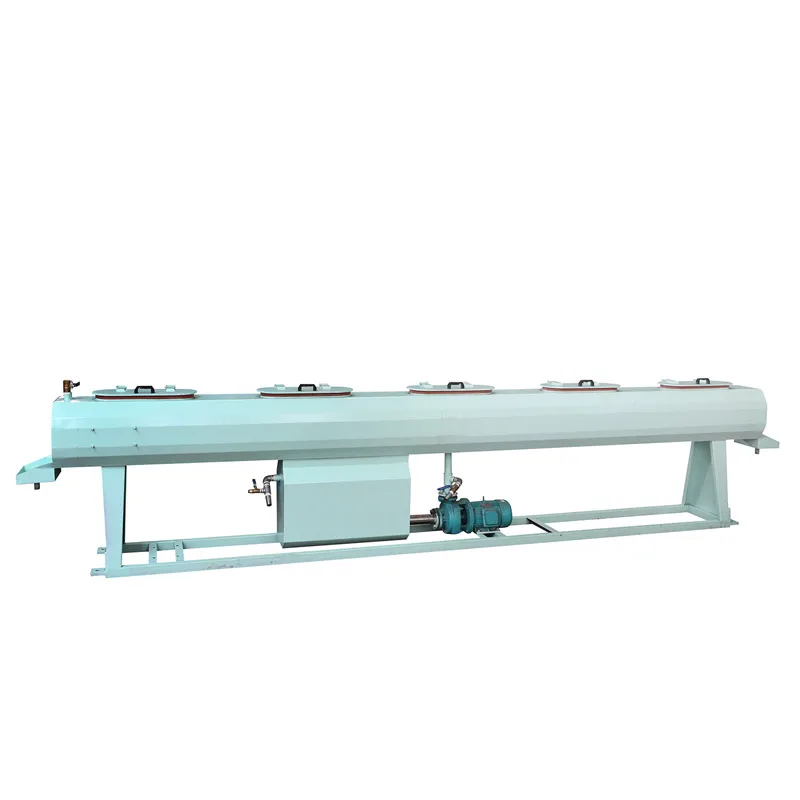

Spray cooling tank	length of spraying tank(mm)	4000-6000		6000-8000
	water pump power(kw)	4		5.5*2

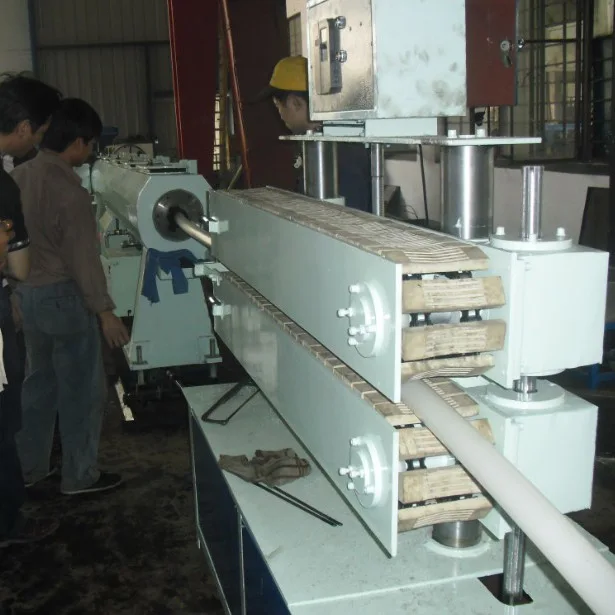

haul off machine	driving power(kw)	2.2		4
	max pull(N)	7000		12000
	effctive haul off length(mm)	1500		2000
Pneumatic blade type cutter	blade diameter(mm)	350		500
	driving power(kw)	1.1		1.1
	working air pressure(mpa)	0.7-0.7		0.7-0.7
stacker	length(mm)	6000		6000



Performance features:

Low electric consumption

Minimum labor force required

Entire set-up is compact

Water required only for circulation

Virtually maintenance free designing of all the components

Round the clock services even for international clients

Equipment foundation not required

Round the clock after sales service

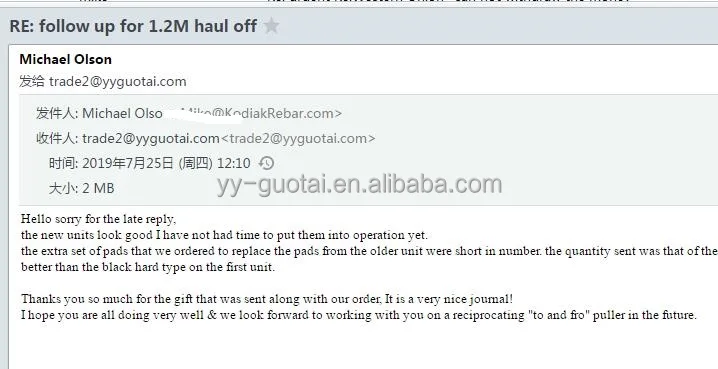

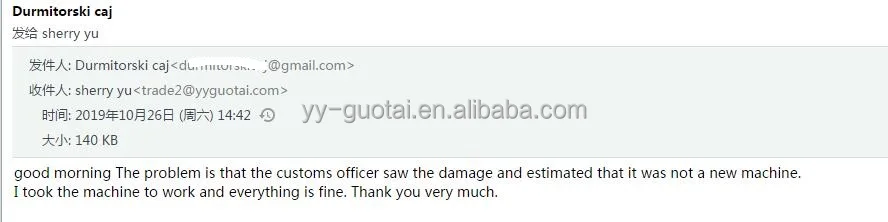

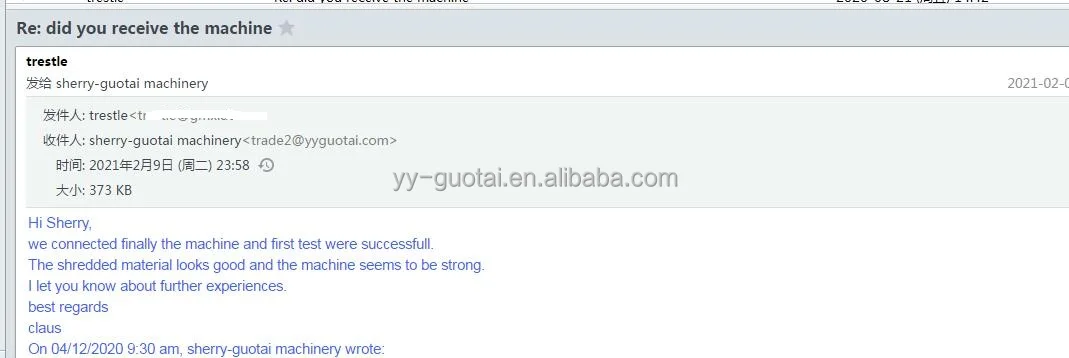

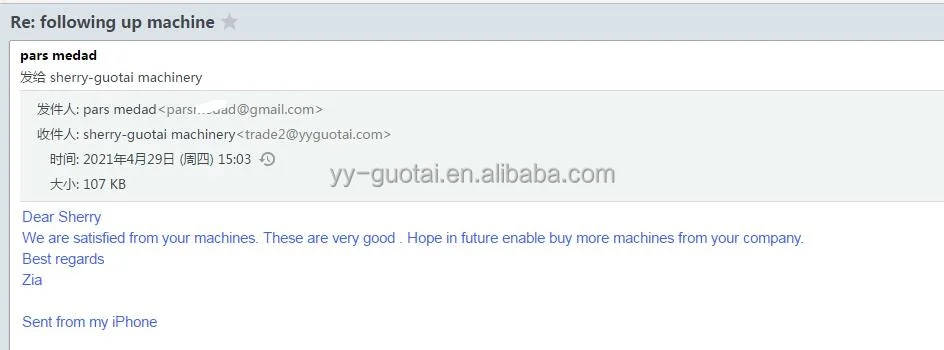

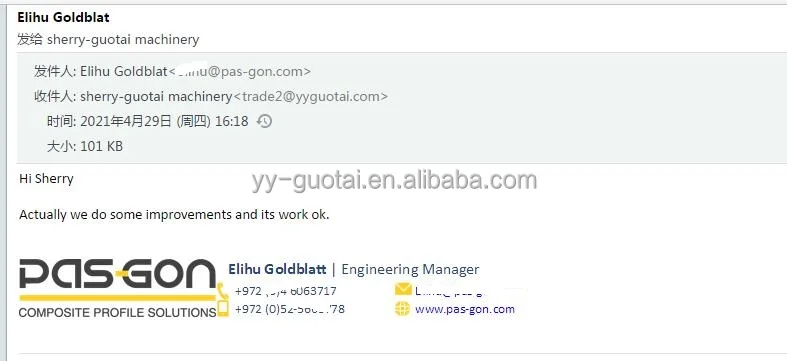

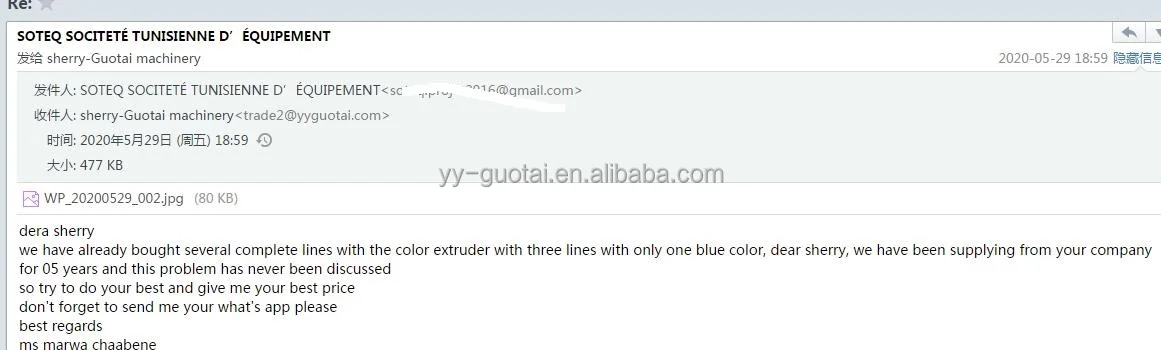

Good comments from our customer:
