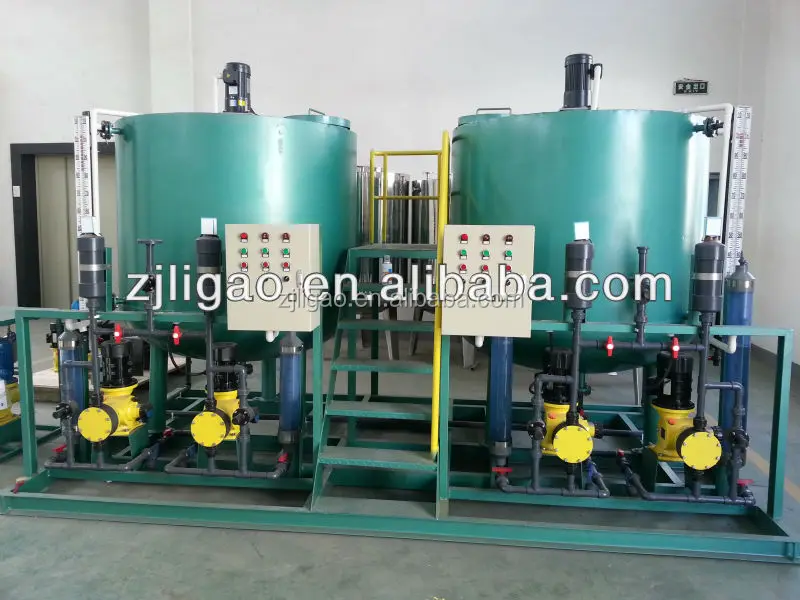

One Tank & One Pump Sodium Sulphate Dosing Device
- Category: >>>
- Supplier: Zhejiang Ligao Pump Technology Co. Ltd.
Share on (1671237639):
Product Overview
Description
| One Tank & One Pump Sodium Sulphate Dosing Device | ||||||
| No. | Item | Specification/data | Quantity | Price | Total | Remark |
| 1 | Dosing Tank | Capacity:300L | 1 | |||
| Size:Φ700*800mm | ||||||
| Inlet&outlet&drain:DN25 flange | ||||||
| Material:SS304 | ||||||
| 2 | Integral Pipe Unit | Y-type strainer DN15 | 1 | SS304 | ||
| Manual ball valve DN15 | 5 | |||||
| Manual ball valve DN25 | 2 | |||||
| Pressure gauge:0-16MPa | 1 | |||||
| Non return valve DN15 | 1 | |||||
| Safety valve: DN15,51-155Bar | 1 | |||||
| Pulse damper DN15 | 1 | |||||
| SS304 pipe DN15,auxiliaries, loose joint,water inlet valve,etc | 1 | |||||
| 3 | Plunger metering pump | Model:J-X12/6.0 Flow:0-12L/H Pressure:0-6.0MPa Motor power:415V/0.37KW Head material:SS304 Body material:Cast iron Adjustment form:with Manual regulation knob Insultaion Class:F | 1 | IP55 | ||
| 4 | Magnetic flap liquid level indicator | Alarming for High&low Liquid level | 1 | |||
| 5 | Control cabinet | Electric power distribution cabinet :220V,50Hz | 1 | IP55 | ||
| Circuit breaker, AC contactor | ||||||
| Contact button,run,stop,alarm | ||||||
| Wire,and other accessories | ||||||
| 6 | Integrated bracket | Carbon steel material base | 1 | |||
| Skid & pump pedestal | ||||||
| Staircase platform | ||||||
| Painting:Anticorrosive + Green resin paint | ||||||
| 7 | Export packing | 1 | ||||
| Total | ||||||
| Estimated Size: 150*130*160CM Estimated N.W. 290KG Estimated G.W. 310 KG Service factor:≥95% | ||||||
