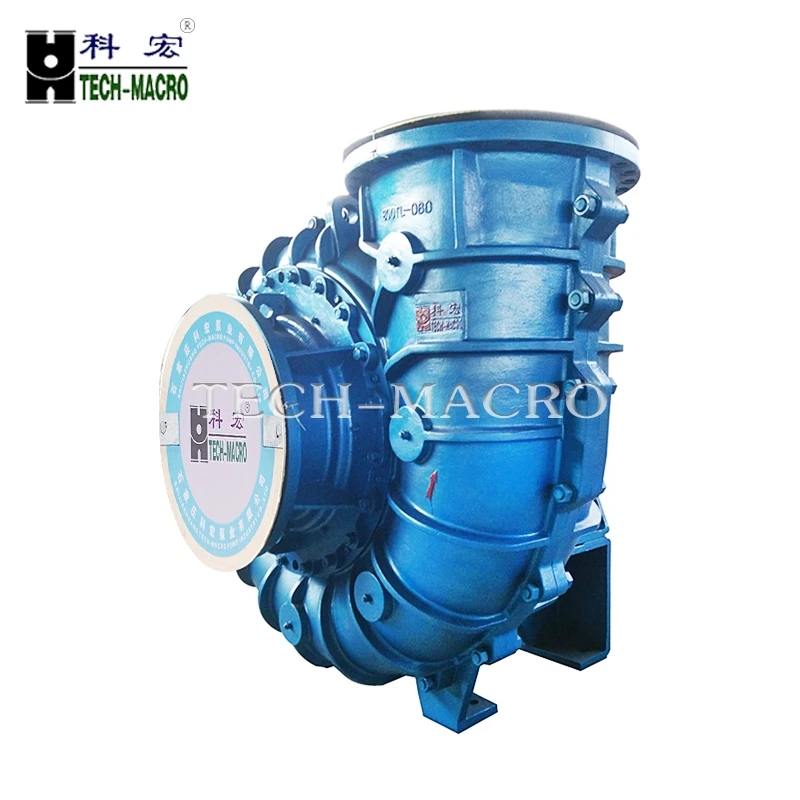

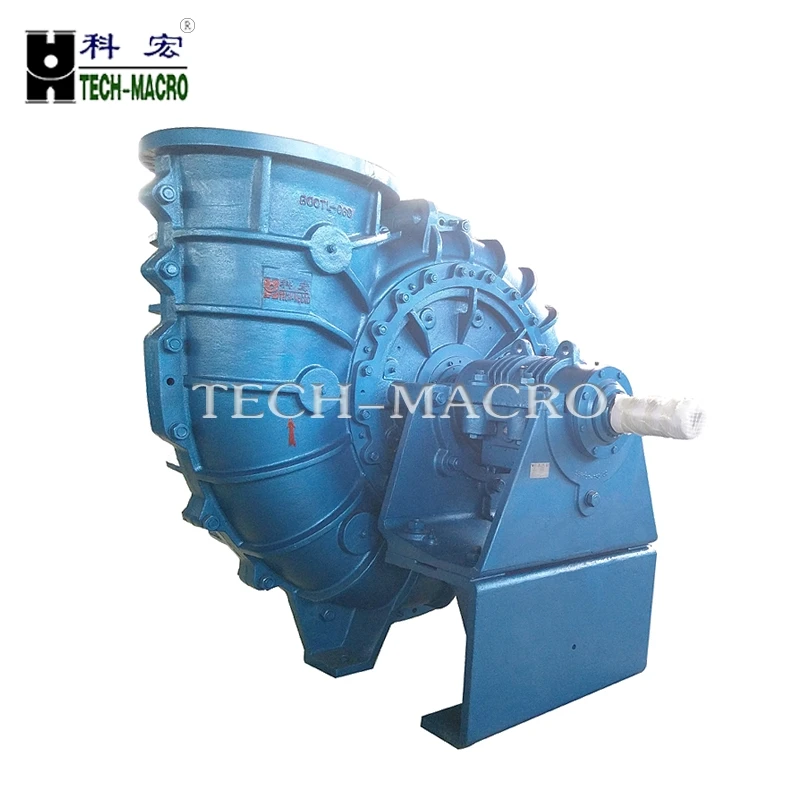

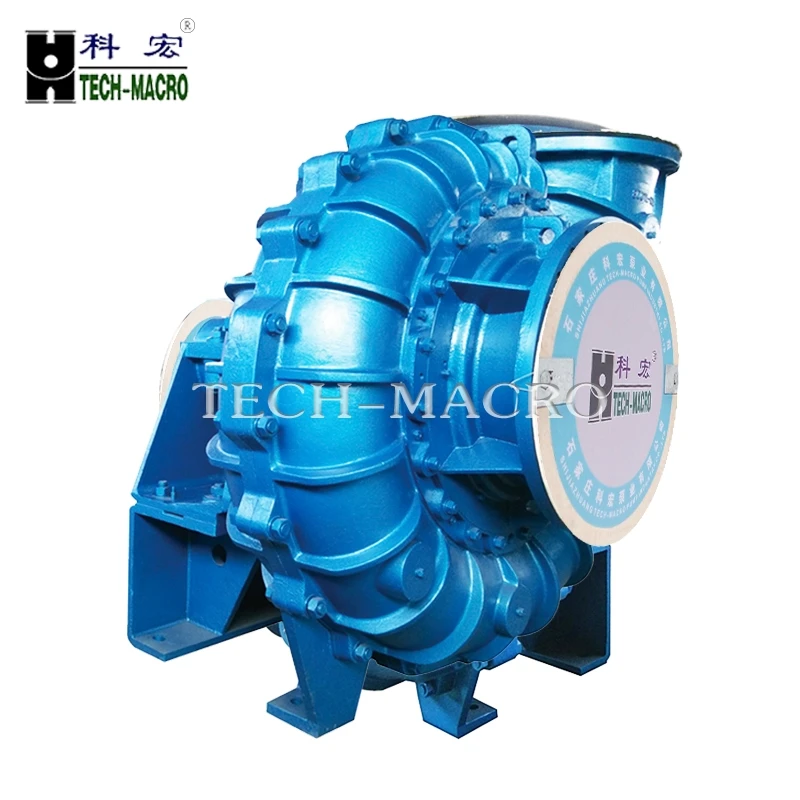

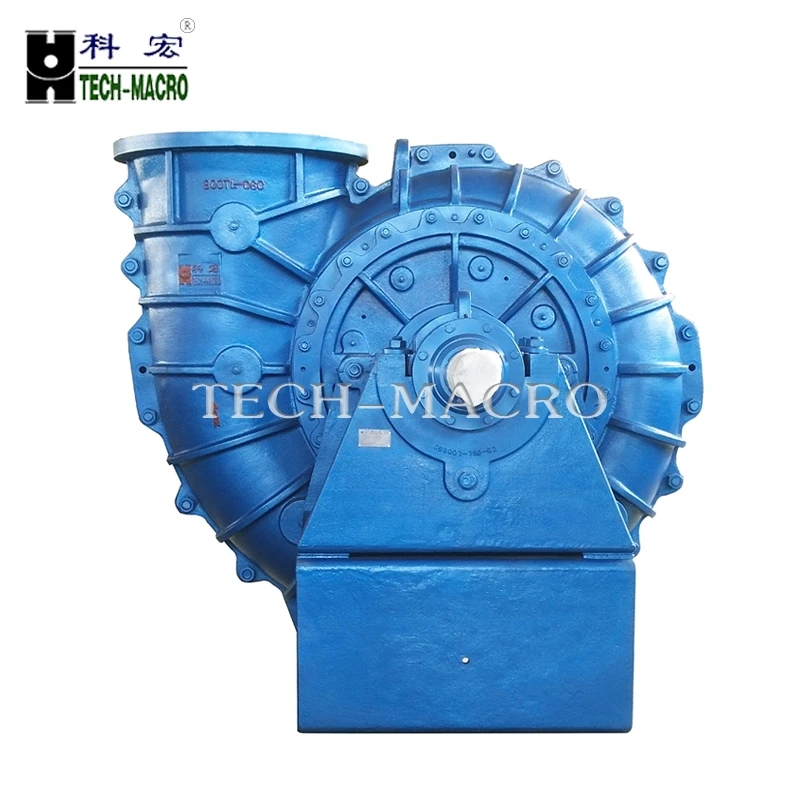

600mm discharge diameter heavy duty absorber recirculation desulfurization pump

Product Overview

Description



600mm discharge diameter heavy duty absorber recirculation desulfurization pump, engineering FGD pump 49A impeller



Description:
Pump wet parts adopt advanced CFD technoloy so as to obtain reliable operation and high efficiency performance. Abrasive, corrosive resistant metal and elastomer lined pumps fro operating in FGD Conditions could ensure longer service life provide by practice.



The position of the impeller can be changed by adjusting bearing assembly, so he pump is always running in an efficiency state.



Technology Features:

1. The pump wet parts are designed by advanced CFD Flowing simulating analysis Techniques to ensure its design reliable and its working effective.

2. It can change the impeller's position in pump casing by adjusting the bearing assembly to keep the pump working efficiency all the time.

3. This kind of pump adopts back pull-out structure, keeping it easy construction and easy maintenance, it does not need disassembly inlet and outlet pipeline.

4. Mechanical seal adopted with containers type mechanical seal to ensure reliable running.

5.  It is easy to maintain and repair and it is on need dismantling inlet and outlet water pipes.

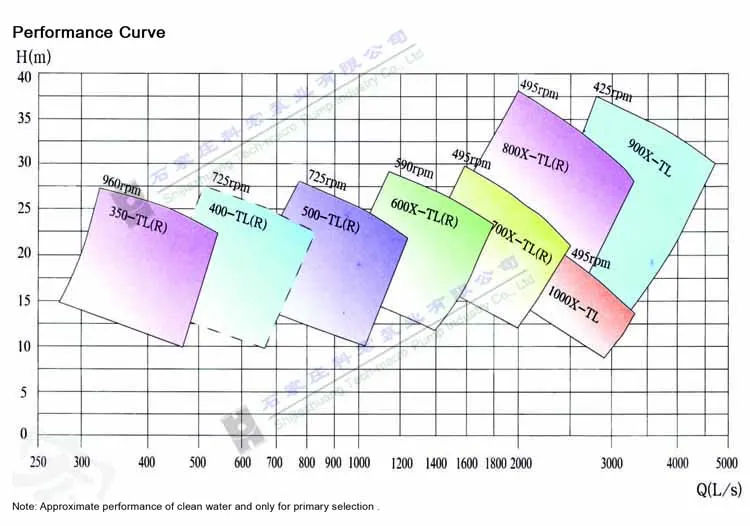

Performance Range



Discharge size: 350~1000 mm

Flow capacity: 930--17650 m³/h



Head: 10~40 m



Specifications of TLR FGD



Type	Q Capacity		Head(m)	Speed (r/min)	Efficiency (%)	NPSHr(m)	Discharge diameter/ Suction Diameter
	M3/h	L/S
350TL(R)	1600	444	25	960	82	4.5	350/400
400TL(R)	2500	694	25	725	83	5.0	400/450
500TL(R)	3750	1040	25	725	85	5.0	500/500
600TL(R)	6300	1750	25.5	620	88	5.5	600/700
700TL(R)	6840	1900	26	485	87	6.0	700/800
800TL(R)	9360	2600	31	485	90	7.0	800/900
900TL(R)	15000	4167	30	485	90	8.5	900/1000
1000TL(R)	10440	2900	15	485	89	7.0	1000/1200



FGD Peripheral Pump

Our company’s FGD peripheral pump mainly used the hydraulic model of type KH, KA(R), KM(R), and made of A49 metal and natural rubber to achieve the various performance of the pump.

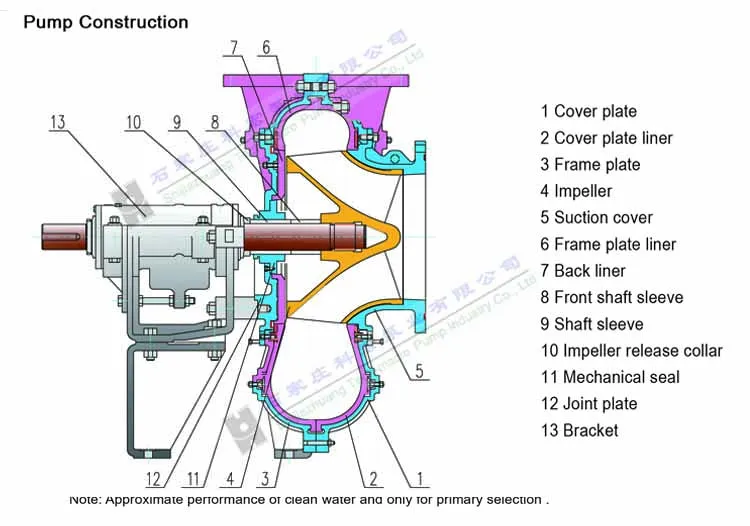

Materials:

  The pump adopts separable double structure (bearing layer and abrasion resistant layer), the bearing layer (frame plate, cover plate, joint plate) can adopt ductile cast iron;
  Impeller, suction cover/ front liner is 49A, which is abrasion & corrosion resistance material.
  Frame plate liner and cover plate liner, back liner adopt natural rubber
  Liner:Anti-abrasive, anti-corrosive rubber(natural rubber 26R, 38R, 66R........,synthetic neoprene rubber N22.....)
Ceramics
(Note: The materials could be changed according to the customer’s requirements. )
