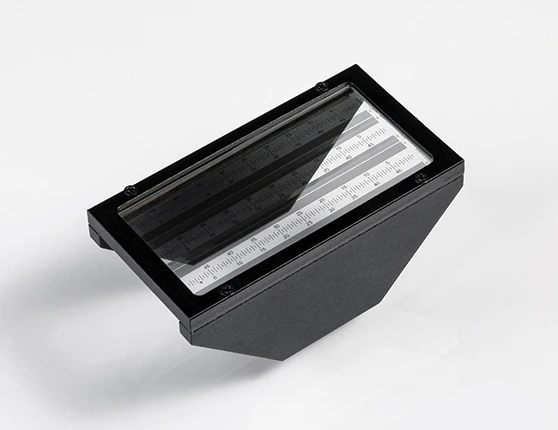

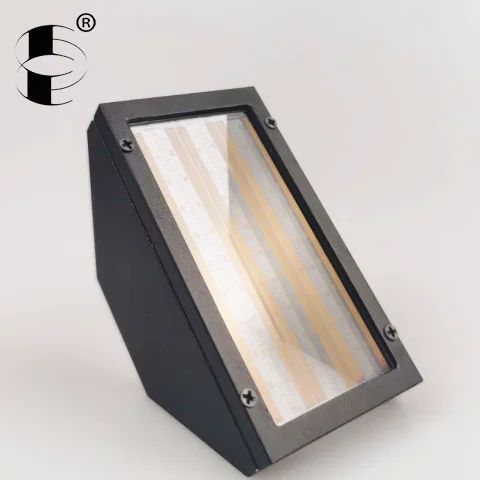

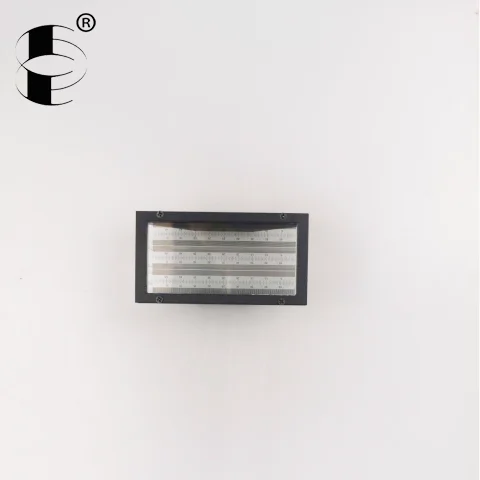

China Good Quality Optical Tools HCM01 JSB High Stability DOF Calibrated Plates for Machine Vision Camera
- Category: >>>
- Supplier: Dongguan Hongcheng Optical Products Co. ltd.
Share on (1672259821):
Product Overview
Description

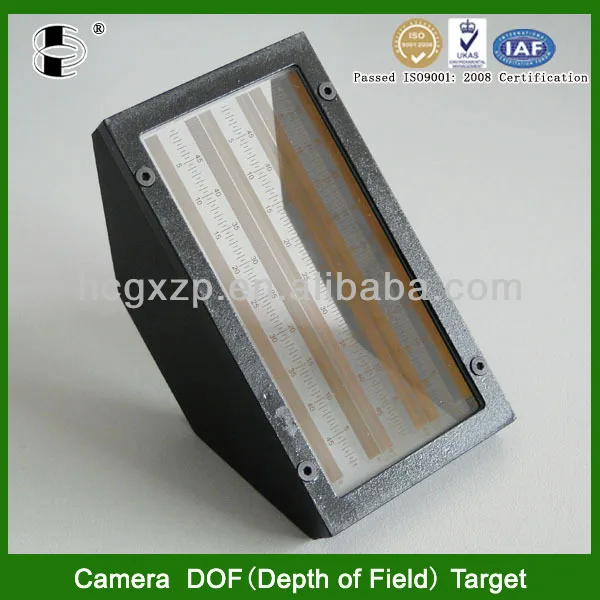

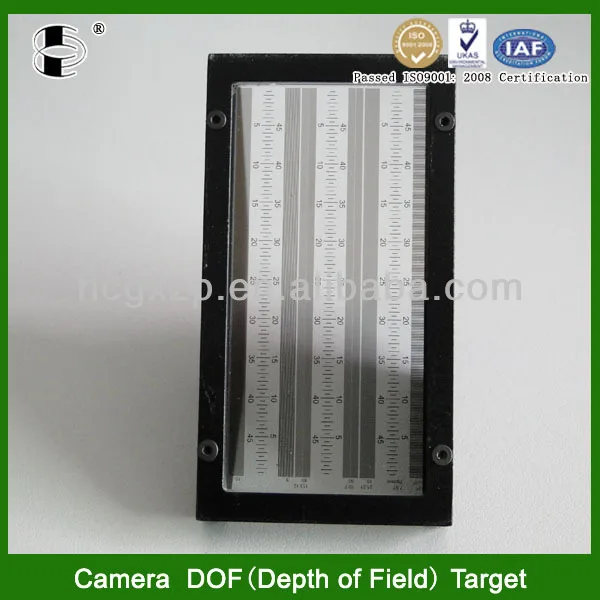

Industrial Camera DOF(Depth of Field) Calibration Target
We are specialized in the production of various specifications of optical components according to the customers' demand, And we are committed Industry Standard to offering our customers with excellent products, reasonable prices and high level of service.
Welcome to China and visit our factory. Hope that our cooperation ever lasting!
The Company Has Passed ISO9001: 2008 Quality Management System Certification
| • Product Description |
 Let we understand the depth of field: If you focus a lens on a subject, only that subject is theoretically 'perfectly' in focus. A black line painted on a white wall will be perfectly focused if the image projected on the back of your eye has no light striking on one area (the black part of the image), and the area immediately next to it will have white light striking it. As you look at other distances closer, or further away, they are slightly out of focus. Your eye's image will see black in one area, and white in another area, but there will be a blurry grey line between the two where the light goes from black to white. However, if the degree of fuzziness (circle of confusion) around a subject is smaller than your eye's ability to see (generally considered to be about 1 arc minute), your eye will think the subject is in focus. There is therefore actually a distance in front of and behind your subject which will appear to be in focus. Hence, 'perfect focus' for a lens is not really 1 precise theoretical distance, but a range, called your Depth of Field. Note in the picture above, the focal point is on the word 'depth', however the lines above and below it are still in good focus.
Test Depth of Field of Your Imaging System.
Effective Measurement Eliminates the Need for Calculations.
This unique target was developed to standardize an area of optical tolerancing that is most commonly determined theoretically. Our extensive experience in designing optical systems has shown that depth of field calculations can often yield very misleading results. This target solves the problem and very accurately determines the amount of shift an object can undertake before producing an unacceptable image. The definition of what constitutes an acceptable image is determined by the user and the application.

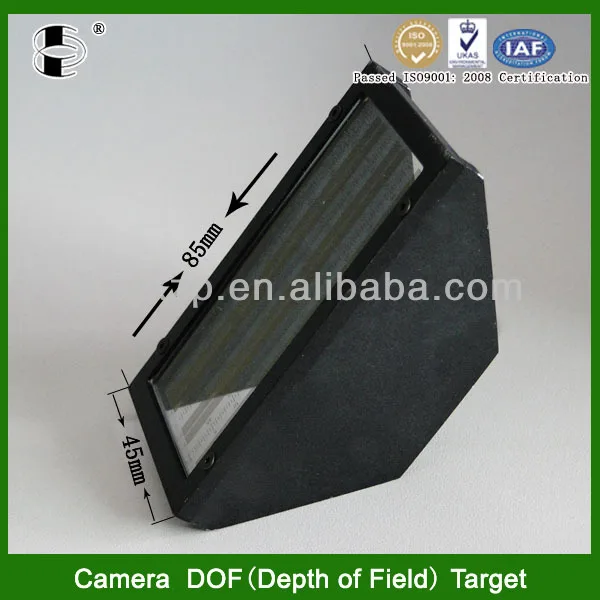

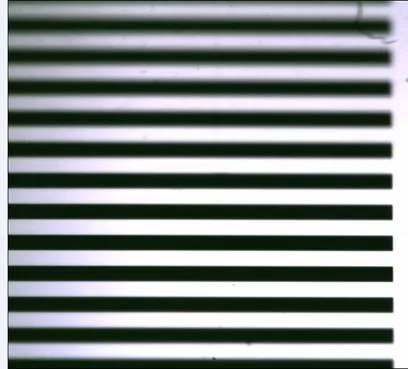

The Depth of Field 5-15 is made up of two sets of scales. Each, when viewed at 45°, consists of horizontal and vertical lines at a frequency of 5 and 15 line pairs per mm.

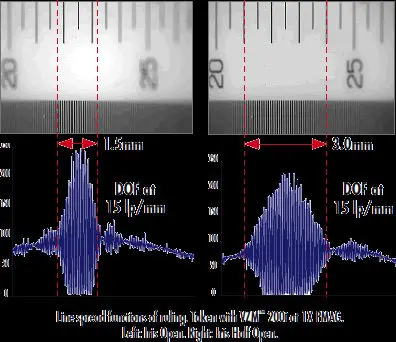

The depth of field plate method of use:
  |

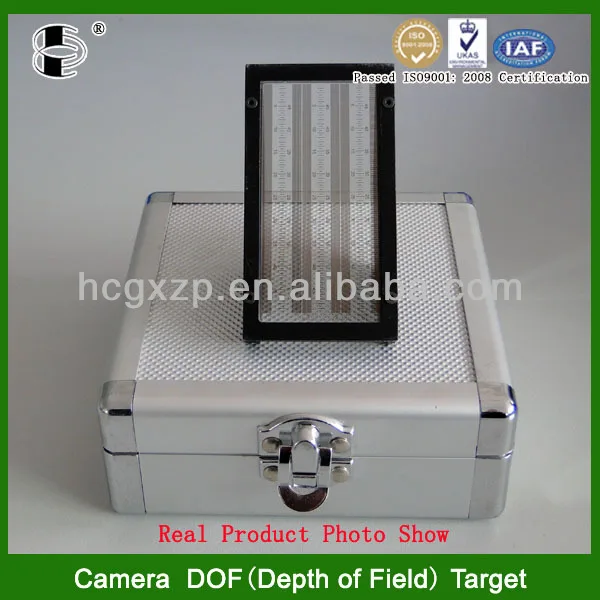

| • Product Picture |
|
| •About Picture |
Product pictures are taken in kind, pictures required in the process as much as possible without distortion, but the shooting lights, or display color deviation and personal understanding of color in varying degrees, there will be a certain degree of physical and photos of color, this case real is inevitable, the final color of goods in kind prevail! |
| •Payment Metho |
| T/T |
| •About shipping |
Default random hair EMS,UPS courier,the buyer remarks other courier invalid,if necessary other courier, please contact customer service make up the difference,and contact customer service Remark! |
| •Return Policy |
Commitment if the product quality problems,product sold by the day ( to the actual delivery date) within 7 days can exchange a purchase (not including the customer personal reasons ),but the goods and packaging should be sold intact and complete accessories,you can contact online with customer service personnel for return policy matters,we will be happy service for you. |
| •About Us |
Dong Guan Hong Cheng Optical Products CO., LTD mainly engaged in optical products research and development, manufacturing. our company has passed ISO9001:2008 quality management system certification, in work to strengthen staff awareness of learning and enterprising spirit, and strive to improve the quality of the product and service quality, make the management more standardized, scientific, institutionalized. we produce the following products: zoom lens, grating ruler and DRO, stage micrometer, Standard Glass Scale, Machine Vision Calibration Target, Standard Glass , spherical glass lens, optical prism, Glass Reticle, Optical resolution test board, Workbench Glass, Optical Flat, Film ruler, etc. , Hong Cheng optical always adhere to the principle of "pursuit of quality, honesty and realism". Except the pursuit of business development, at the same time , we pay much attention to enterprise management and after -sale services. And with good quality and service we have won many clients of home and abroad.
Our company is China metrology institute standard glass scale cooperation enterprises, executive director of the association of Dong Guan measurement, and successively obtain the China metrology institute, south China metrology institute, and Chang Chun Institute of optics and fine Mechanics etc. a number of cooperation organization. Our company always keep "quality first, customer first, take honestly as this". In the end to the "product formation series , famous brand product , enterprise collectivization"of the road. |
| •Corporate Culture |
1.Our Business Philosophy:The Pursuit Of Quality,Integrity Pragmatic 2.Our Corporate Purposes:Quality First,customer First,Honesty 3.Our Quality Qolicy:Quality First,Customer First,Innovation, Continuous Improvement. 4.Our Development Direction:Production Series, Brand-Name Products, Enterprise Group, Trade Internationalization |
| •Enterprise Honor |
|
If there`s anything i can do for you , feel free to contact me ,we are glad to help
CONTACT US
Contact Person: Linda Chen (Foreign Trade Manager)
Tel / Wechat / Whatsapp / Line / Skype +86 13580812583
Fax: +86-0769-23064224
Website:www.hongchengot.com
