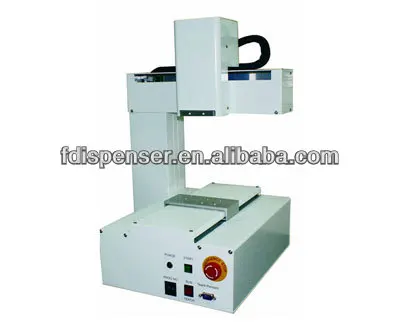

China new product FD 200F Automatic benchtop 3 axis paint liquid dispensing machine
- Category: >>>
- Supplier: Dongguan Chunlin Electronic Co. Ltd.
Share on (1672365636):
Product Overview
Description
FD-300F Automatic benchtop 3 axis paint liquid dispensing machine
PC control dispenser robot to make program by PC directly, 8 years specialized in glue dispensing machine in dispenser robot.
Product Description
FD series robot dispenser many year for leading dispenser supplier from US. easy operation and stable controll system
Features
*The popular robot in FD series robots
*Dispensing Area 200 X 200 X 50 ,300 X 300 X 100 and 400x400x100 mm, 500*500*100mm
*Dot, Lines, Arc etc. and 3D dispensing path is available.
*100 programs, 4000 points per program

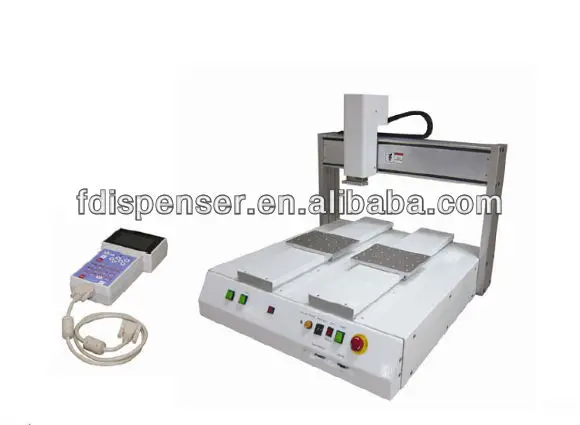

*A hand-held Teach Pendant is provided for simple and intuitive programming functions
*SRE software is available for CAD file input (optional)
*Apply adhesives, cyanoacrylates, silicone, RTV, anaerobic resin, epoxy, UV cure formulations and many more fluids.
*Every robot will be with one small dispenser controller TS9150,tips barrels etc as full unit
3 aixs and 4 aixs robot dispenser as customer demand.

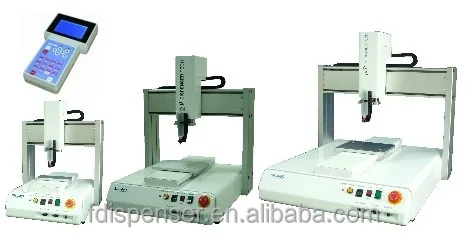

| Models | FD-200F | FD-300F | FD-400F | FD-500F |
| Working Range X/Y/Z(mm) | 200/200/50 | 300/300/100 | 400/400/100 | 500*500*100 |
| Load Y-AXIS / Z-AXIS | 5 kg / 3 kg | 10 kg / 5 kg | ||
| X&Y / Z (mm/sec) | 0.1-500/250 | 0.1-600/300 | ||
| Resolution | 0.001 mm/Axis | |||
| Repetitive Positioning Accuracy | +/- 0.01 mm/ Axis | |||
| Program Capacity | 100 Programs,4000 points/program | |||
| Program Display | Teach Pendant LCD | |||
| Motor System | Micro stepping motor | |||
| Control Method | PTP & CP | |||
| Interpolation Function | 3 axis ( 3D ) | |||
| Programming Method | Teach Pendant | |||
| I/O Signals Port | 8 Inputs / 8 Outputs | |||
| External Control Interface | RS232 | |||
| Power Supply | AC110 ~ 220V 300W | |||
| Working Temperature | 10 - 40 'C | |||
| Working Relative Humidity | 20 - 90% no condensation | |||
| Dimensions (WxDxH mm) | 385 x 370 x 500 | 485 x 500 x 600 | 585 x 600 x 600 | 685 x 700 x 600 |
| Robot Weight (kg) | 23 kg | 32 kg | 40 kg | 45 kg |

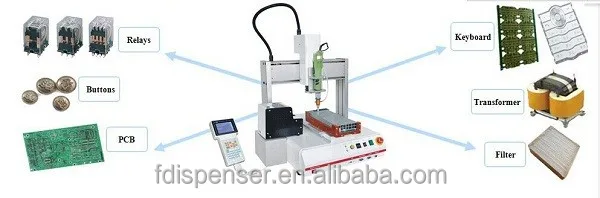

Product Uses
Applicable fluid
Silica gel, EMI conductive adhesive, UV glue, AB glue, fast dry glue, epoxy adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, cooling paste, prevent solder paste, transparent lacquer, screw fixation agent, etc.
Packaging & Shipping
Shipping: by sea, by air and by courier for your choosing
Company Information
FD Dispenser CO.,LTD is a Top leading dispenser manufacturer in the global market. the products line include dispenser,robot dispenser, dispenser tips,barrels adapter.valve.pressure tank,mixer tube and specialized dispenser accessories as every customer demand. we have very good global marketing net and self shipment way to bridge with all the customers as neighbor.
From Establish of the dispenser supplier in 2007. all the FD staff alway in the standard of the customer solution. Quality control and Credit service are basic rule and the life for every person of FD Dispenser company.to progress and make good brand of FD is the aim forever
If you are looking for professional supplier of liquid control and dispensing equipment with creativity, advanced technology and rich experiences. believe FD will be behind of your forever base on our motto "Good quality","reasonable price"and "credit service" .
Related products
| FD-200T | TS9150 |
 |  |
FAQ
1Q: Any discount possible if I place an order?
A:Yes.we have different price ranges (discounts) based on different order quantities.Please contact
our sales girl for detailed price information.
2Q: What is your MOQ?
A: Our MOQ is 1 set.
3Q: How soon can you make a shipment?
A: Delviery will be made with 7 days after order confirmation.
4Q: Do you provide product warranty?
A: Yes, we offer 12 month warranty.
