Ampoule Sealing Machine Liquid Injection

Product Overview

Description

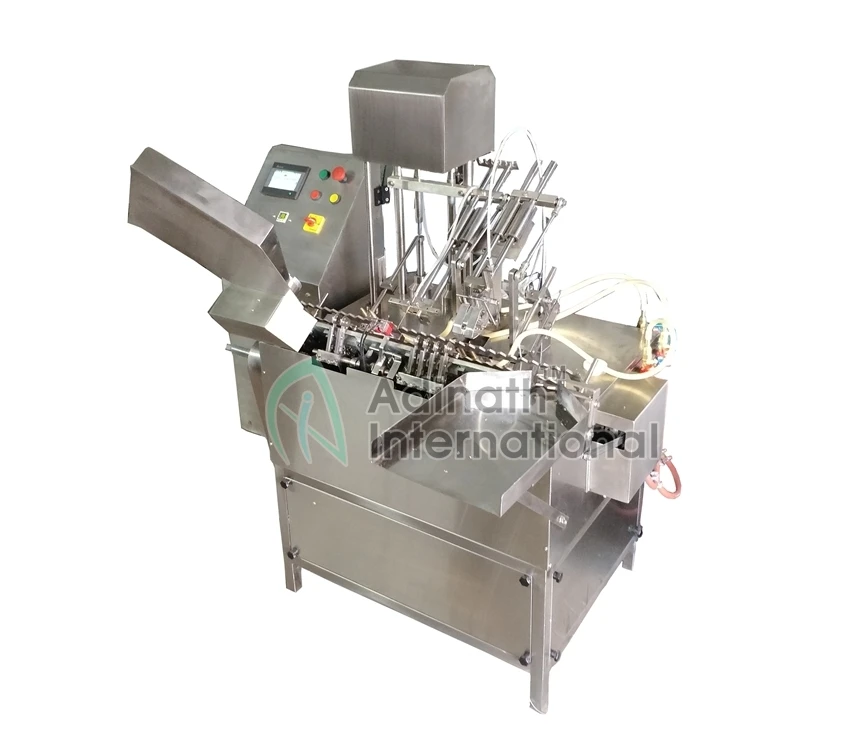

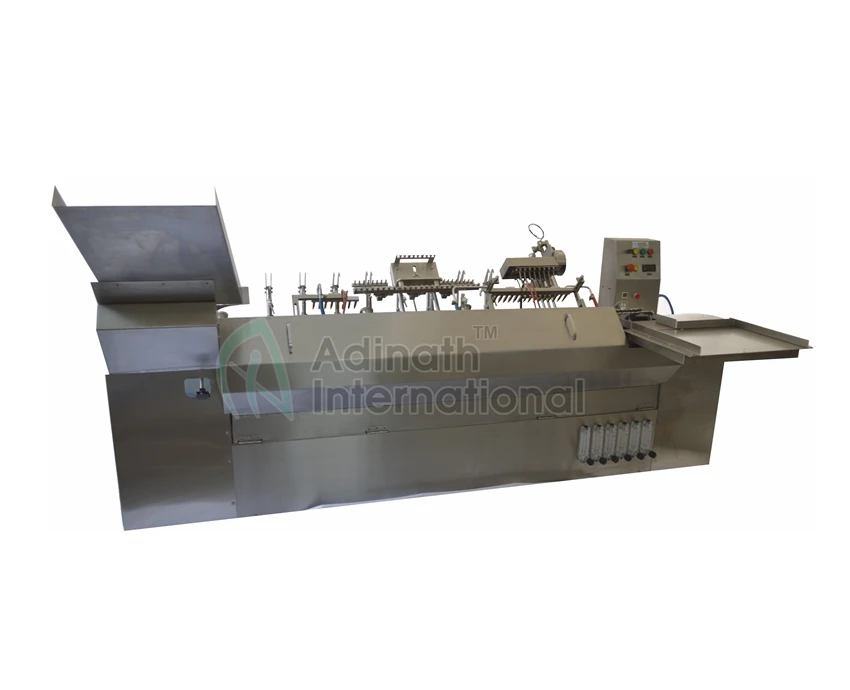

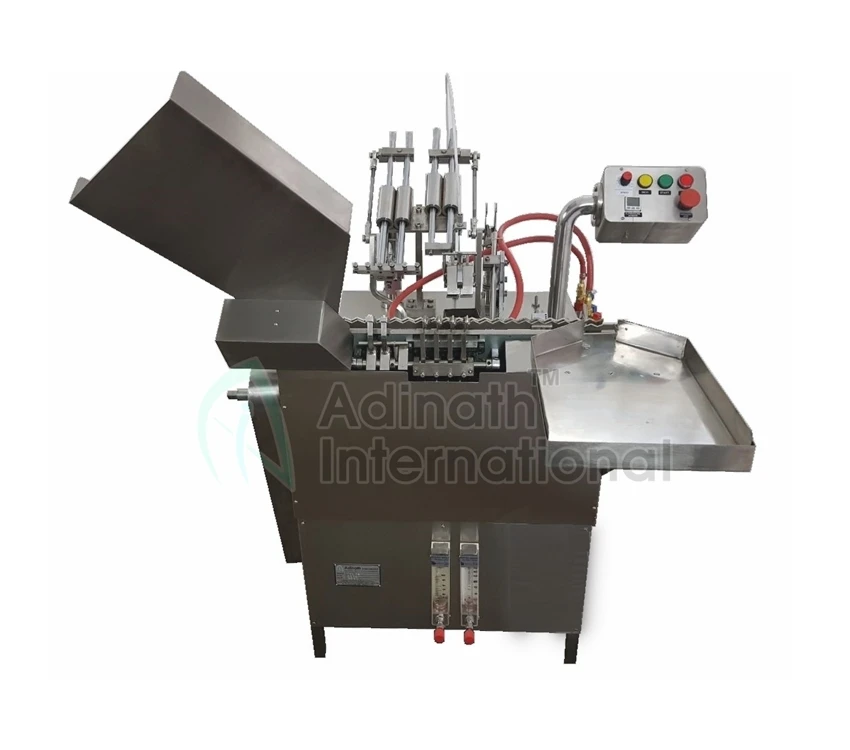

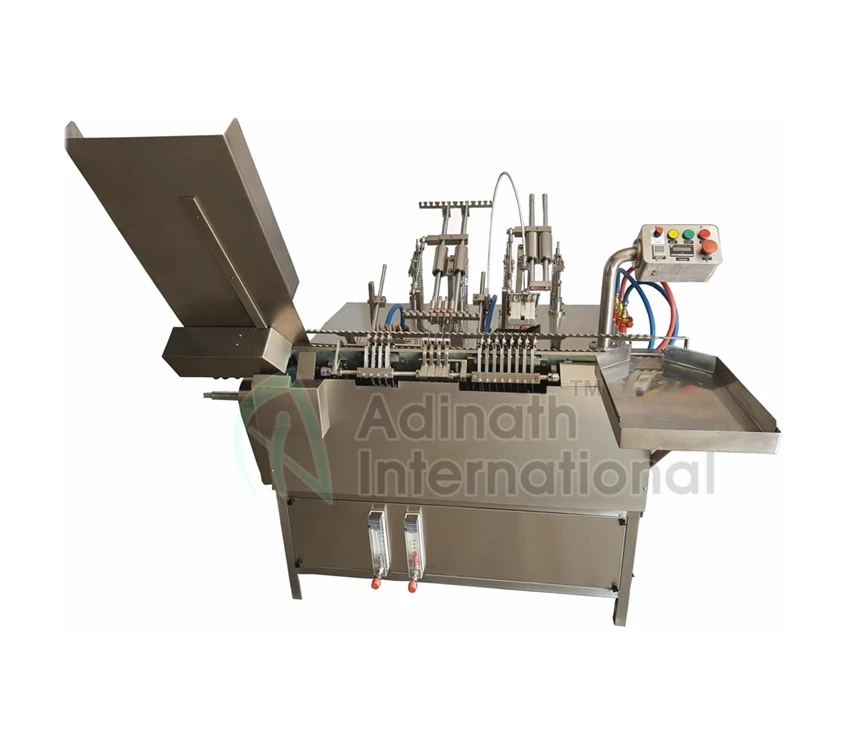

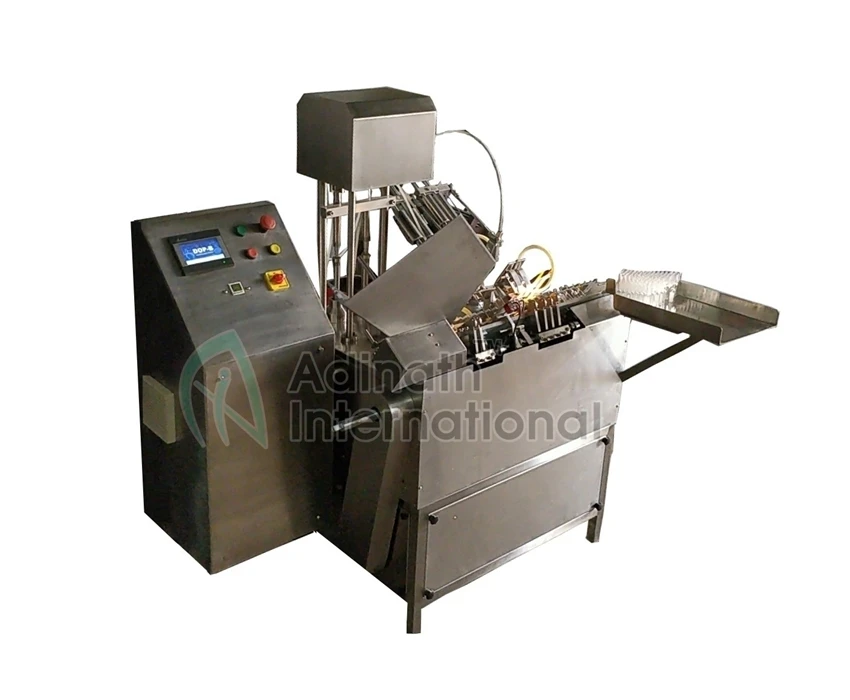

Ampoule Sealing Machine Liquid Injection



Ampoule Filling  Machine  is uses for the filling and sealing of glass ampoules. Ampoule Filling Machine uses to fill and seal 1ml, 2ml, 3ml, 5ml, 10ml, 20ml, 25ml & 30ml glass ampoules. This Automatic Ampoule Filling Sealing Machine is uses in pharmaceutical, cosmetic, chemical and agriculture industry for perfect filling of ampoules.



We are having machines to fill open mouth ampoules as well as closed mouth ampoules.



We are having different models of Ampoule Filling & Sealing Machine suitable as per need of small, medium & large volume injectable preparations. Our Automatic Six Head Ampoule Filling & Sealing Machine provides output up to 9000 ampoules/hour suitable for large batch production, Our Automatic Four Head Ampoule Filling & Sealing Machine provides output of 7200 ampoules/hour suitable for medium batch production and our Automatic Two Head Ampoule Filling & Sealing Machine provides output of 3300 ampoules/hour suitable for small & medium batch production.

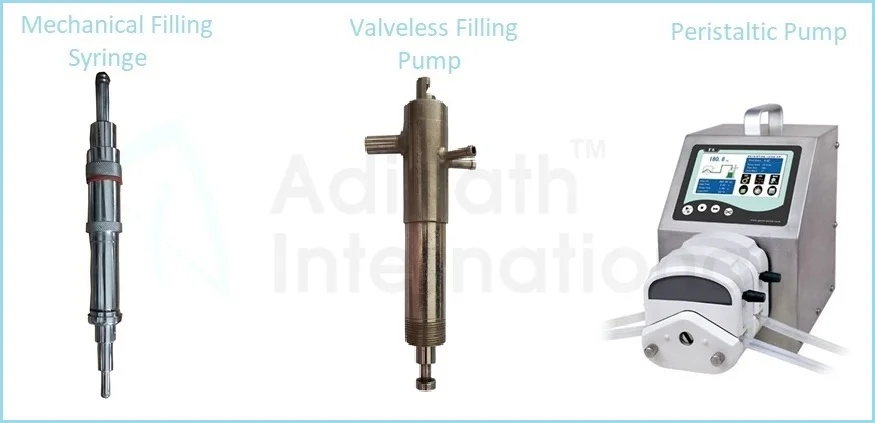

Types of Filling Mechisam options

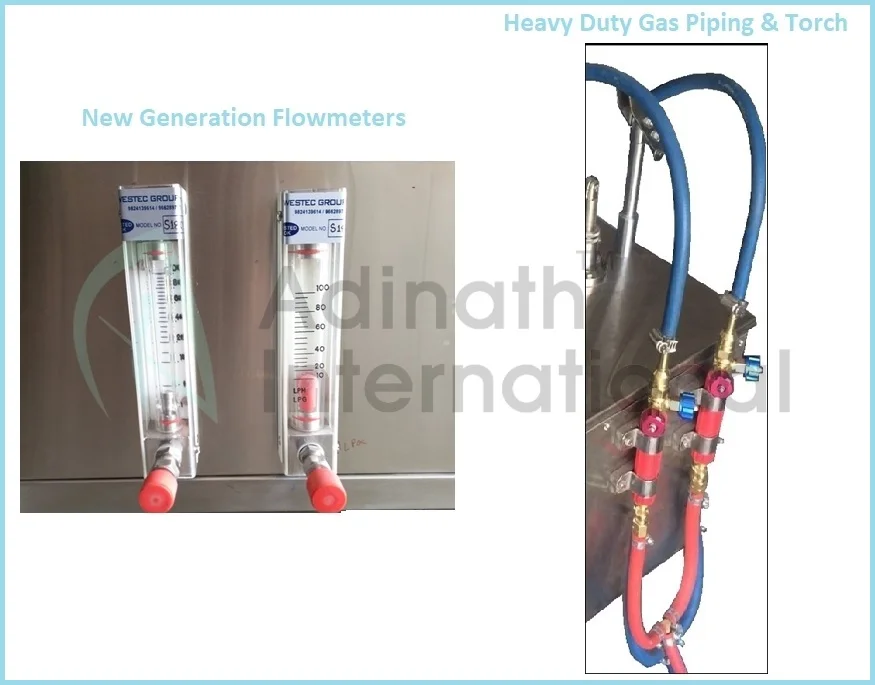

Heavy Duty accessories for Handling of Gas

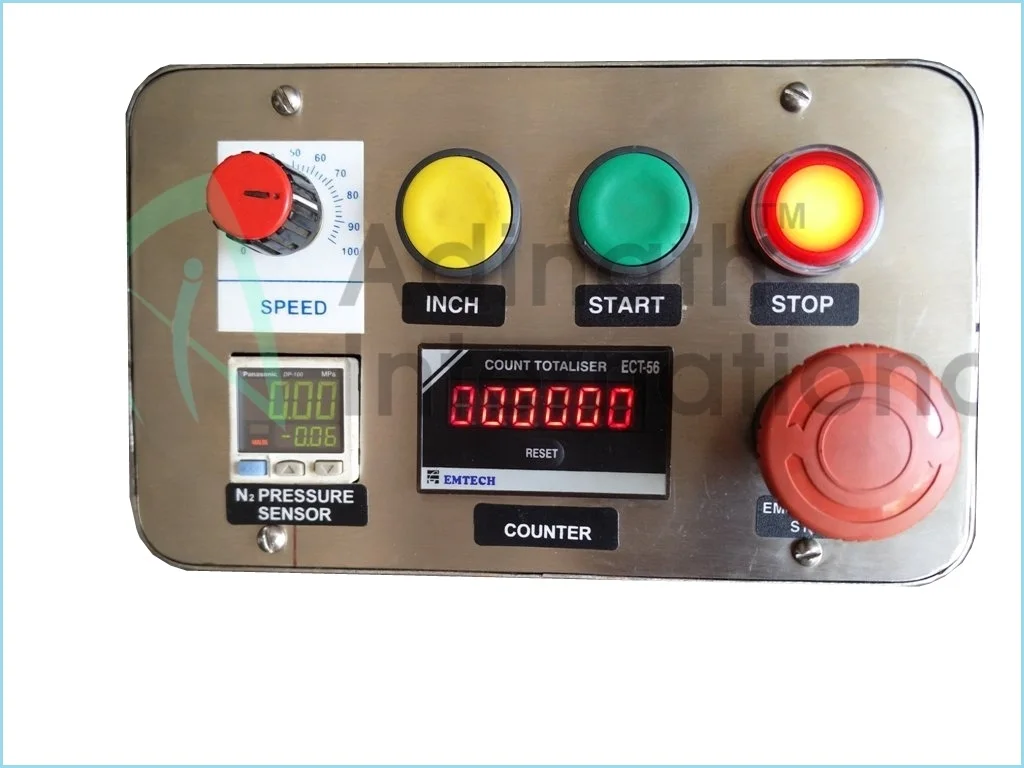

 State of Art Control Panel

• Compact cGMP filling machine.


• Different models available suitable as per individual customer's requirements.


• All contact parts made from High Quality Stainless Steel 316L & Non-contact parts made from Stainless Steel 304.


• Minimum change over parts from 1ml to 10ml ampoule size.


• “No Ampoule – No Filling” system.


• Ampoule neck centering during gas flushing and filling operations.


• Possibility of nitrogen gas flushing before and after filling.


• Full accessibility allows easy maintenance.


• Machine equipped with pre-warming station.


• Flow Meters for regulating flames easily.


•  Minimum change over time, little maintenance, easy cleaning.



Process Operation



Empty washed & sterilized ampoules receive automatically on wire mesh conveyor belt from outfeed of sterilizing tunnel. Ampoule fed automatically into in-feed hopper from the left hand side of the machine and feed to receiving rack through cassette. The moving rack which moves horizontally collect four ampoules from the receiving rack and transfer the ampoule to the machine in left to right in an inclined position through pre-gassing. Pre-gassing, Filling, Post Gassing, Pre-heating & sealing station.



Model	AFS-30	AFS-55	AFS-100
Production Output	Up to 25 Ampoules/Minute	Up to 50 Ampoules/Minute	Up to 100 Ampoules/Minute
No. of Filling & Sealing Heads	Single	Two	Four
Filling Range	1ml to 20ml	1ml to 25ml	1ml to 10ml
Input Specification	-	-	-
Ampoule Diameter	9mm to 18mm	9mm to 22.5mm	9mm to 17mm
Ampoule Height	50mm to 120mm	50mm to 130mm	50mm to 95mm
Filling Accuracy	± 0.5% - 1%	± 0.5% - 1%	± 0.5% - 1%
Power Supply	0.5 H.P.	0.5 H.P.	1 H.P.
Electrical Characteristics	220 Volts, Single Phase, 50 Hertz	220 Volts, Single Phase, 50 Hertz	220 Volts, Single Phase, 50 Hertz
Utility	-	-	-
Nitrogen Pressure	1kg/Cm²	1kg/Cm²	1kg/Cm²
Oxygen Pressure	1kg/Cm²	1kg/Cm²	1kg/Cm²
LPG Pressure	0.5 kg/Cm²	0.5 kg/Cm²	0.5 kg/Cm²
Overall Dimension	915mm (L) x 610mm (W) x 965mm (H) approx.	915mm (L) x 760mm (W) x 965mm (H) approx.	1200mm (L) x 1070mm (W) x 965mm (H) approx.
