Solar/wind powered PEM water electrolyzer hydrogen generator for customized product

Product Overview

Description

Solar/wind powered PEM water electrolyzer -customized product



Gas Flow: different type equipment has different gas output, from 0.3m³/h to 2m³/h.





Technical Characteristics


The series of products, producing highly pure hydrogen by utilizing SPE technology to electrolyze pure water (without adding alkali), are light, highly-effective, energy-saving, and environmental protection. They are advanced technology patented products.





Structural Features

1. Zero polar distance and highly active SPE catalytic electrodes are used.


2. Plural-electrode and multiunit electrolysis cell structure with excellent chemical technological process properties of the mass and heat transfer.

3. Best choice of materials for multi-electrode and pluralist electrolysis cell with excellent properties of electrochemistry, corrosion resistance and bearing deactivation.


4. Complete, mature and credible automatic control system.



Applied Area



This kind of products can be used in the fields needing hydrogen of high flow and purity.

The generator could be used in chemical industry hydrogenation, reduction protection, metal welding, smelting power station cooling, hydrogen station producing hydrogen, surface protection, spacecraft, submarine, heavy hydrogen, heavy oxygen water, etc.



The products with stable gas flow can absolutely replace hydrogen cylinder, can be safely and conveniently.  It can supply hydrogen for fuel cell or hydrid metal.



This hydrogen generator can be customized to be powered by solar/wind generator. The power from the solar/wind generator could be used directly to produce high-purity hydrogen, and the hydrogen could be used  directly or stored for other applications.



Customer could tell us the technical parameters of solar panel or wind turbine, we could recommend a suitable hydrogen generator. Or customer could tell us the hydrogen flow needed, we could recommend the key technical parameter of solar panel or wind turbine, then customer supplys the solar panel or wind turbine by themselves.



From model QL-5000 to model QL-34000, all can be design to be powered by solar panel or wind turbine.



If needing to collect oxygen, we can customize as per your requirements.





Safety Figures



1. H2 Leakage alarm

2. Short of water alarm

3. Over high pressure alarm

4. Over full water alarm

5. H2 in O2 detector alarm

6. H2 permeate in electrolysis cell alarm



When meet any problem, H2 generator will both have sound and light alarm. The generator automatically stops.



Technical Parameter

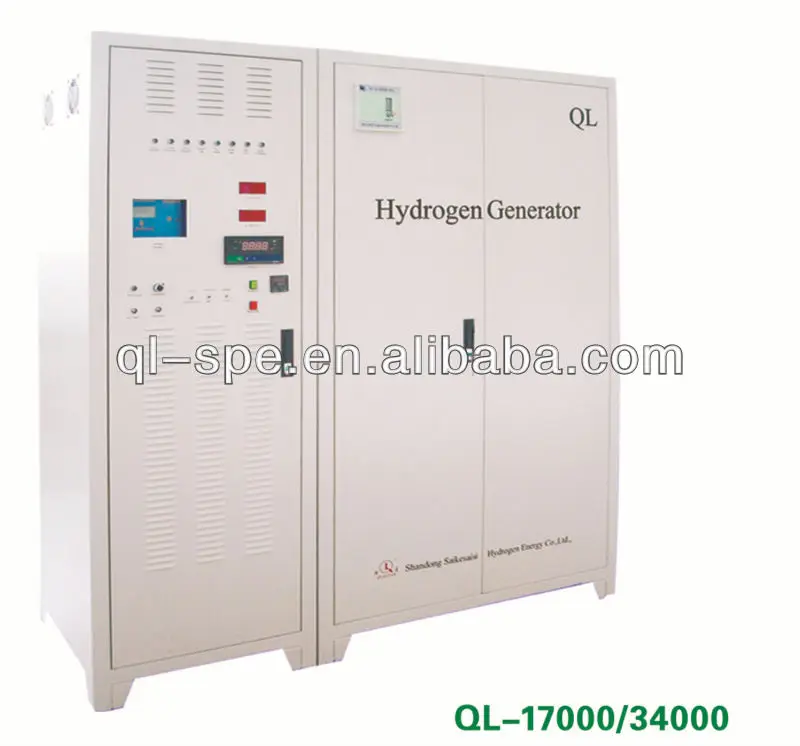

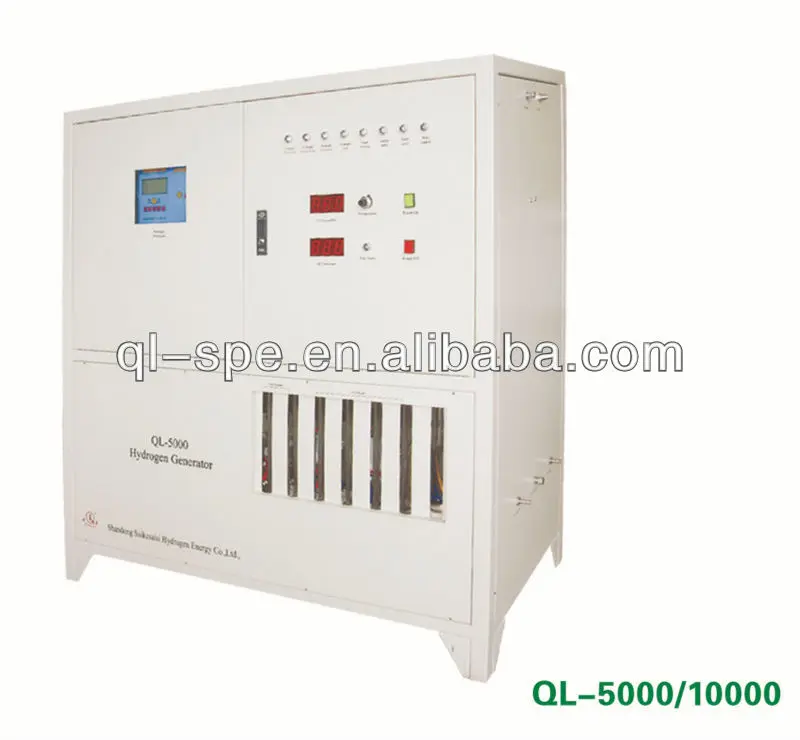

Type/ Specification	QL-5000	QL-10000	QL-17000	QL-34000
Output Flow (NM3/h)	0.3	0.6	1	2
Output Pressure (MPa)	0.4-1.5 (customized)
Fluctuation Rate of Output Pressure (%)	<0.2
H2 Purity (%)	99 or 99.999
Power Voltage (V)	380V/DC  50-60Hz
Input Power (KW)	<2.5	<5	<7.5	<14
Water Requirement	water electrical resistivity ≥1MΩ/cm
