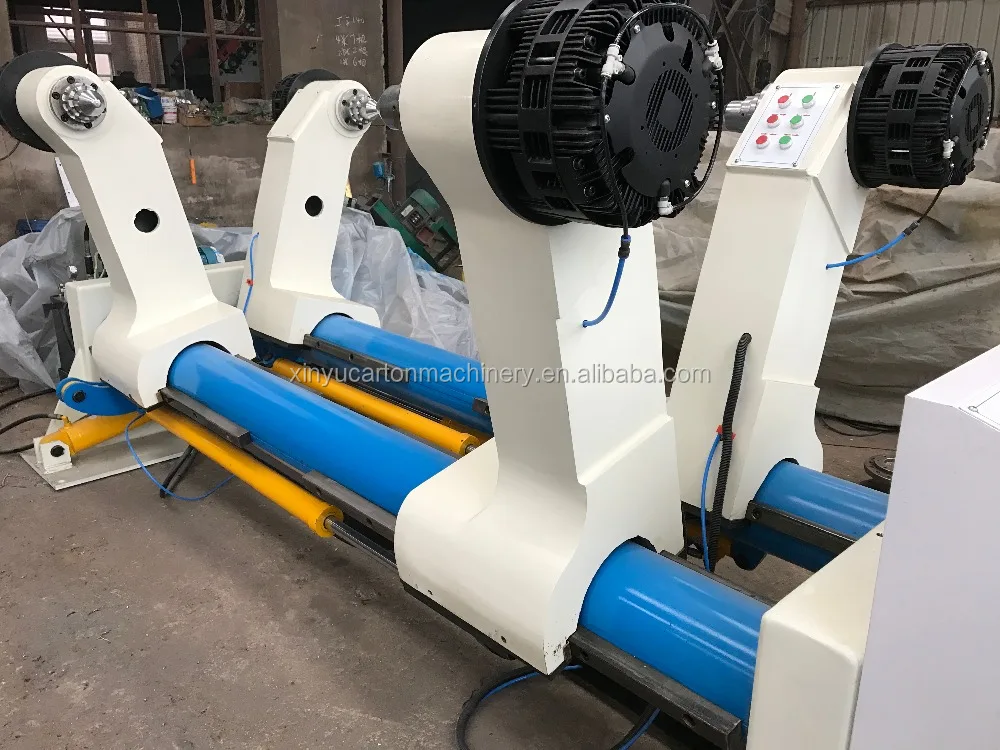

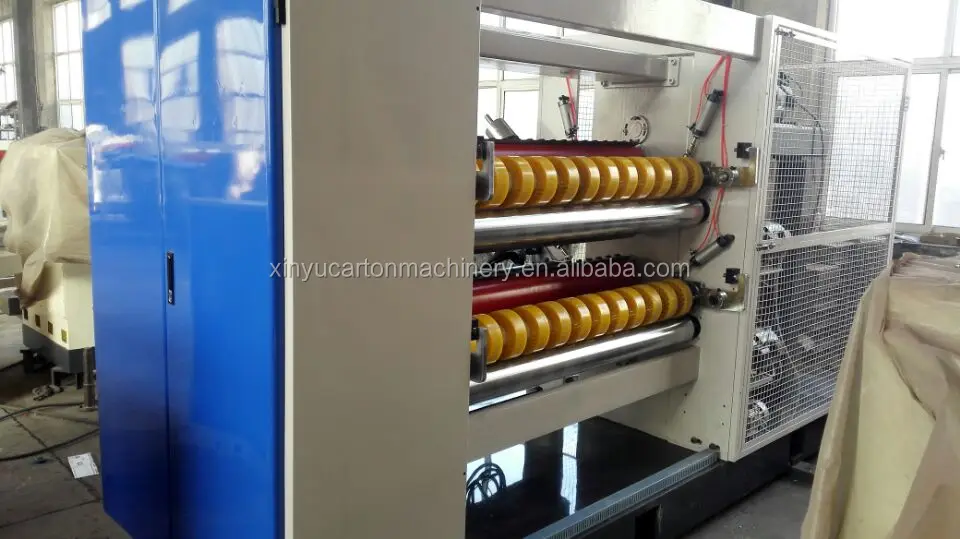

3 5 7 ply corrugated cardboard sheet making machine

Product Overview

Description

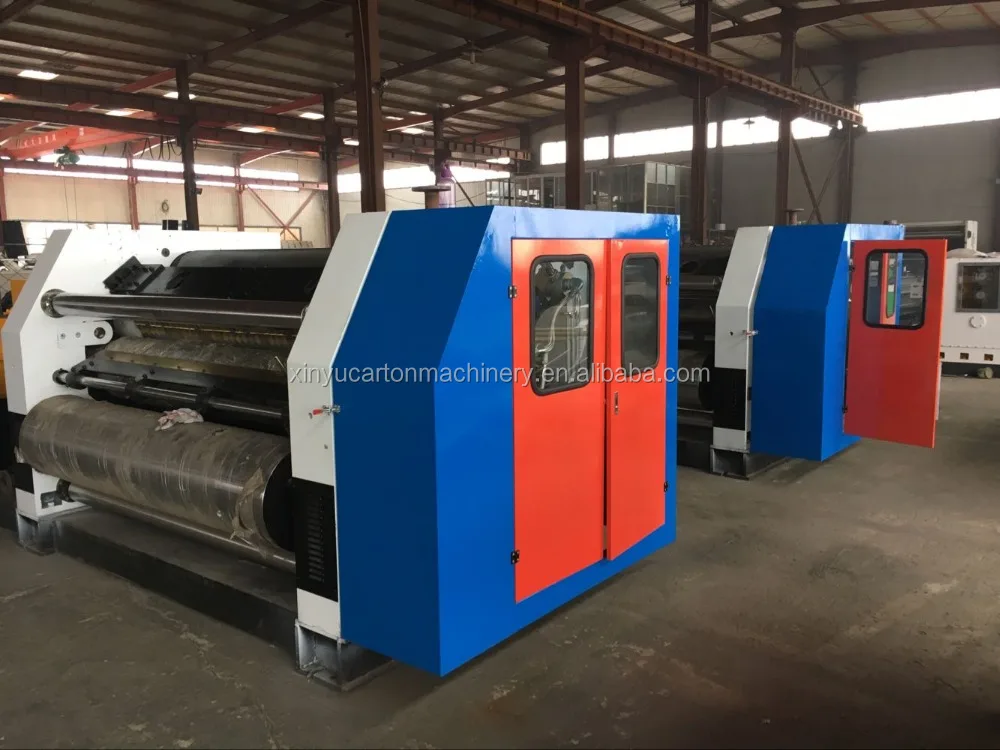

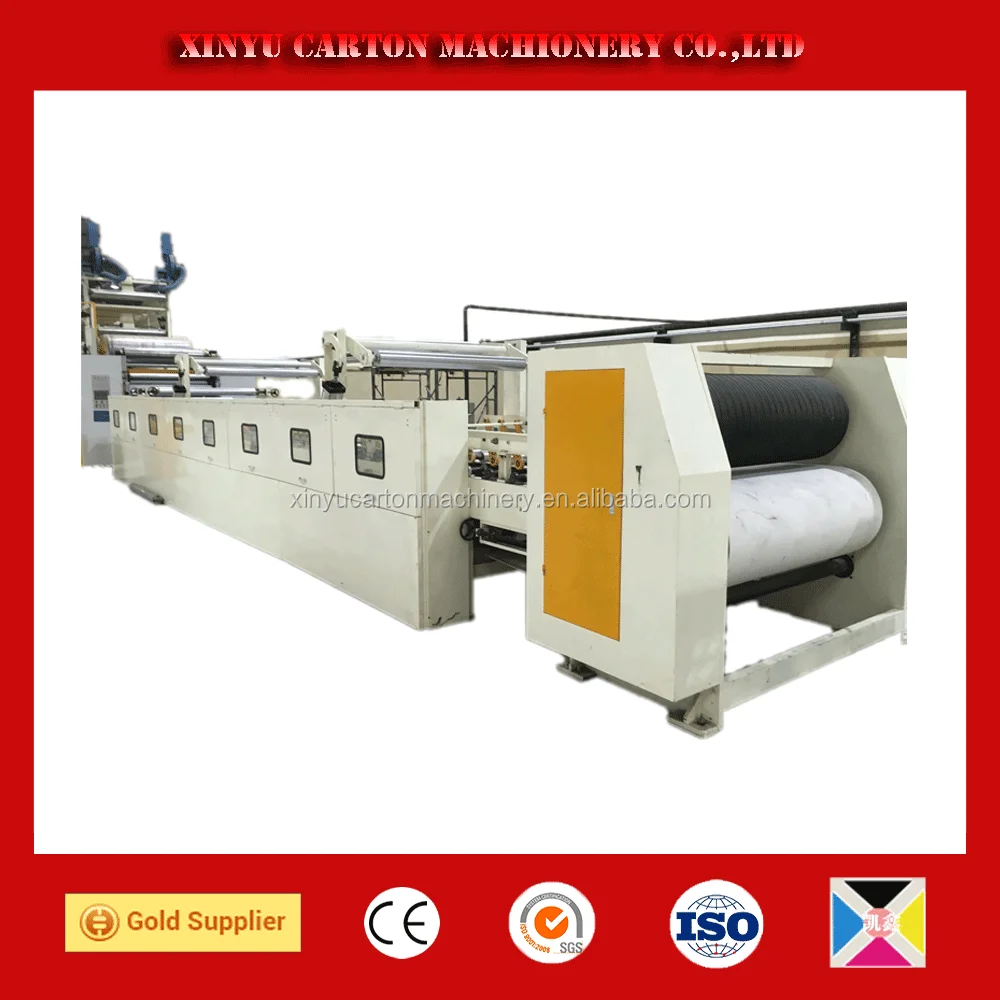

 3 5 7ply corrugated cardboard sheet making machine

(1)Uses and features:

1.Design speed: 200m/min

2.Economic speed:180m/min

3.Effective width :1400mm-2200mm

4.Main roller :Φ380mm(different roller type)

Pressure roller:Φ385mm

Pre-heating roller:Φ400mm

5.There are two groups of corrugated rollers on machine ,when working you can choose one of them ,the other one is to pre-heat to change corrugated type

6.It takes small space (other machine like this machine need two single facer machine and take large space )

7.This machine is controlled by PLC ,touch screen show the data and easy operation

8.Vacuum adsorption single facer machine .upper and lower roller adopts excellent alloy steel , by heat processing ,hardness is HRC58°-60°,surface is grinding and hard chrome plating or adopts Tungsten Carbon corrugated roll

9.Independent driving box , 5 shafts transmission . Hard gear , low noise , working stable and the gear has long life

10.The gluing thickness is adjusted by push rod electrically

11.Corrugated roller and pressure roller lift lower and upper by hydraulic control , stable working pressure

12.Corrugated paper be with wet device by steam adjust

13.This machine is suitable for single facer production line (with two type corrugated roller ), if 5-ply production line adopts two SF-380T , it equals 4 corrugated rollers and it has big market competition

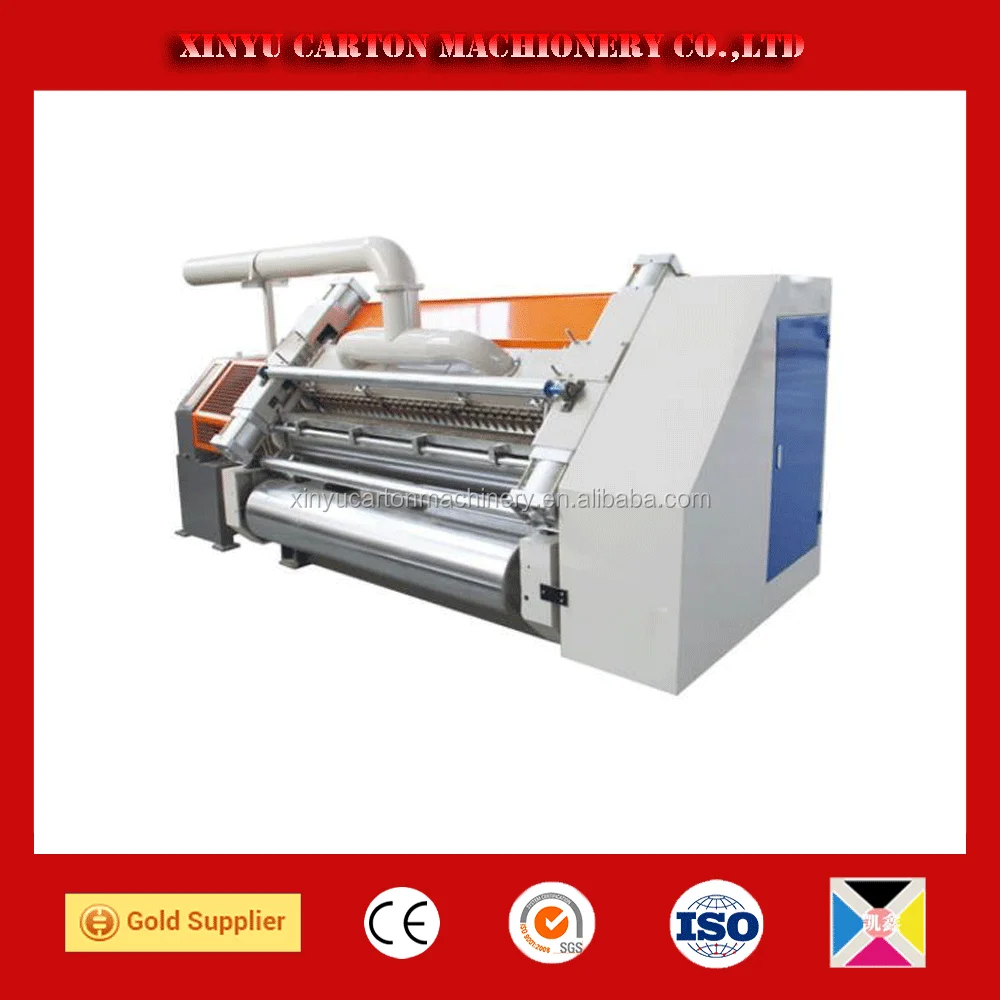

(2)SF-320S/ 360S vacuum adsorption single facer



Uses and features :

1.SF320S design speed:120m/min  economic speed: 100m/min

2.SF360S design speed: 150m/min economic speed: 120m/min

3.Effective width :1400mm-2200mm

4.Corrugated roller :φ320(φ360)mm

5.Driving speed-reduce box adopts immersion oil lubricating , low noise , gimbal transmission ,isolated power source

6.Upper roller ,pressure roller . Gluing roller lift can be controlled by pneumatically

7.Feeding paper adopts vacuum adsorption ,with air volume device and keep stable corrugated roller style when in high speed

8.Shaft of Corrugated roller and pressure roller adopts grease lubricating

9.Gluing part adopts automatically circulation applying glue

10.Upper and lower roller adopts 52CrMo excellent alloy steel and heat processing , hardness is HRC58o-60 degree after grinding

11.The surface of gluing roller is anilox engraving and chrome-plate

12.Compartment gluing device is manual or electrical

13.The gluing part can be moving independently or not when stop machine , main motor frequency control
