GOVO cable GYTA Singlemode and Multimode 12 core fiber optic cable
- Category: >>>
- Supplier: Shanghai Govo Telecom Co. Ltd.
Share on (1676287094):
Product Overview
Description

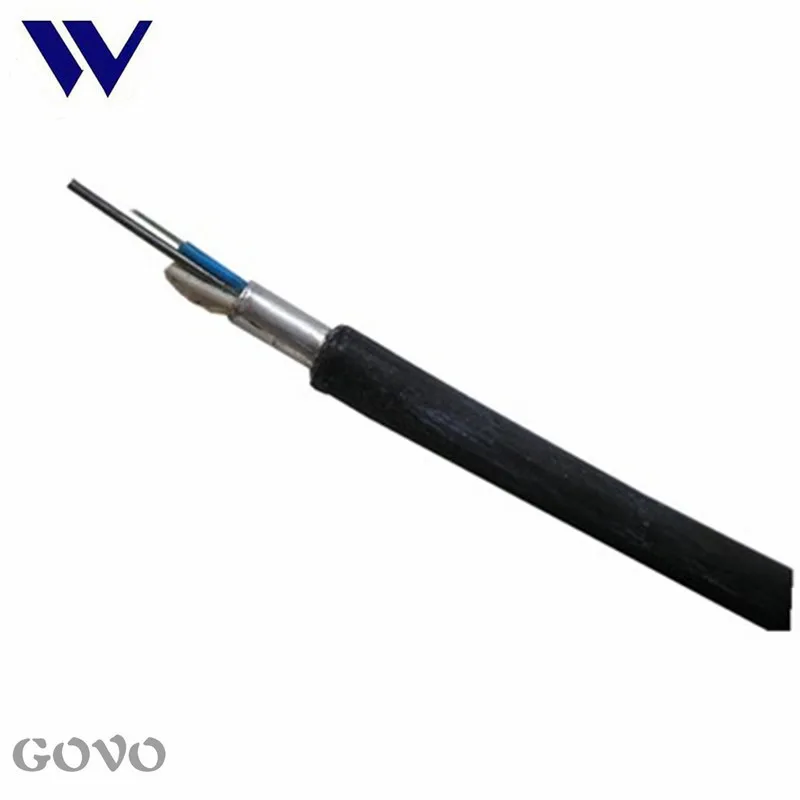

GOVO GYTA Singlemode and Multimode 12 core fiber optic cable
Product Description
A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers)are stranded around the strength member into a compact and circular cable core. An Alumimum Polyethylene Laminate (APL) is applied around the cable core,which is filled with the filling compound to protect it from water ingress.
The cable is completed with a PE sheath.

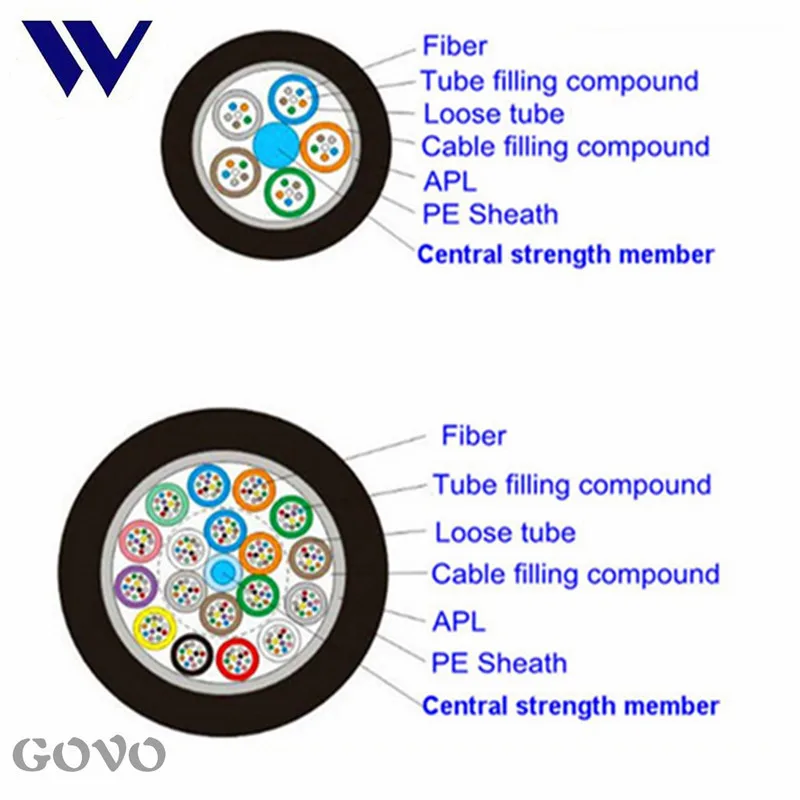

Cable Structure:
Features
1.Good mechanincal and temperature performance
2. High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensures a critical protection of fiber
4.Crush resistance and flexibility
5. PE sheath protects cable from ultroviolet radiation
6. The following measures are taken to ensure the cable watertight:
a. Steel wire used as the central strength member
b. Loose tube filling compound
c.100% cable core filling

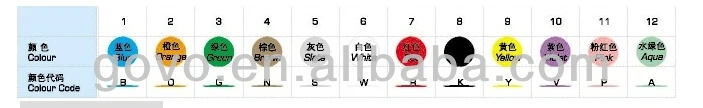

Standard Fiber Color Identification:
Specification
Cable Type (increase by 2 fibers) | Fiber Count | Tubes | Fillers | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N | Bending Radius Static/Dynamic (mm) |
GYTA-2~6Xn | 2~6 | 1 | 4 | 9.2 | 80 | 600/1500 | 300/1000 | 10D/20D |
GYTA-8~12Xn | 8~12 | 2 | 3 | 9.2 | 80 | 600/1500 | 300/1000 | 10D/20D |
GYTA-14~18Xn | 14~18 | 3 | 2 | 9.2 | 80 | 600/1500 | 300/1000 | 10D/20D |
GYTA-20~24Xn | 20~24 | 4 | 1 | 9.2 | 80 | 600/1500 | 300/1000 | 10D/20D |
GYTA-26~30Xn | 26~30 | 5 | 0 | 9.2 | 80 | 600/1500 | 300/1000 | 10D/20D |
GYTA-32~36Xn | 32~36 | 6 | 0 | 9.7 | 97 | 1000/3000 | 300/1000 | 10D/20D |
GYTA-38~48Xn | 38~48 | 4 | 1 | 10.5 | 109 | 1000/3000 | 300/1000 | 10D/20D |
GYTA-50~60Xn | 50~60 | 5 | 0 | 10.5 | 109 | 1000/3000 | 300/1000 | 10D/20D |
GYTA-62~72Xn | 62~72 | 6 | 0 | 11.5 | 126 | 1000/3000 | 300/1000 | 10D/20D |
GYTA-74~84Xn | 74~84 | 7 | 1 | 13.2 | 153 | 1000/3000 | 300/10000 | 10D/20D |
GYTA-86~96Xn | 86~96 | 8 | 0 | 13.2 | 153 | 1000/3000 | 300/1000 | 10D/20D |
GYTA-98~108Xn | 98~108 | 9 | 1 | 14.6 | 182 | 1000/3000 | 300/10000 | 10D/20D |
GYTA-110~120Xn | 110~120 | 10 | 0 | 14.6 | 182 | 1000/3000 | 300/1000 | 10D/20D |
GYTA-122~132Xn | 122~132 | 11 | 1 | 16.5 | 221 | 1000/3000 | 300/1000 | 10D/20D |
GYTA-134~144Xn | 134~144 | 12 | 0 | 16.5 | 221 | 1000/3000 | 300/1000 | 10D/20D |
GYTA-146~216Xn | 146~216 |
|
| 16.5 | 222 | 1000/3000 | 300/1000 | 10D/20D |

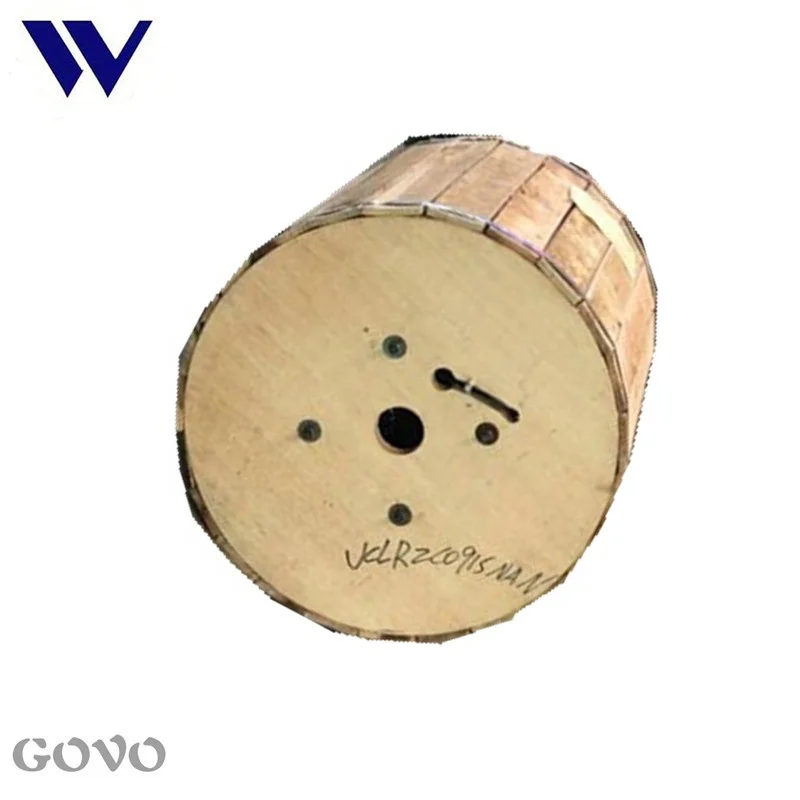

Pacakge:
Package by wooden drums , delivery time: 2km, 3km, 4km etc
