230v 12v ac transformer

Product Overview

Description

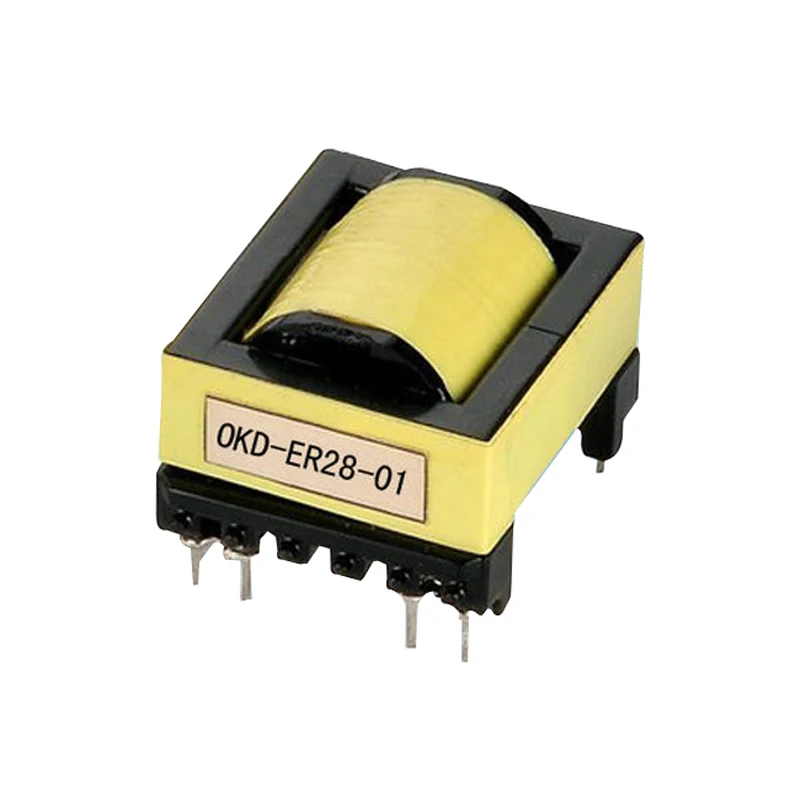

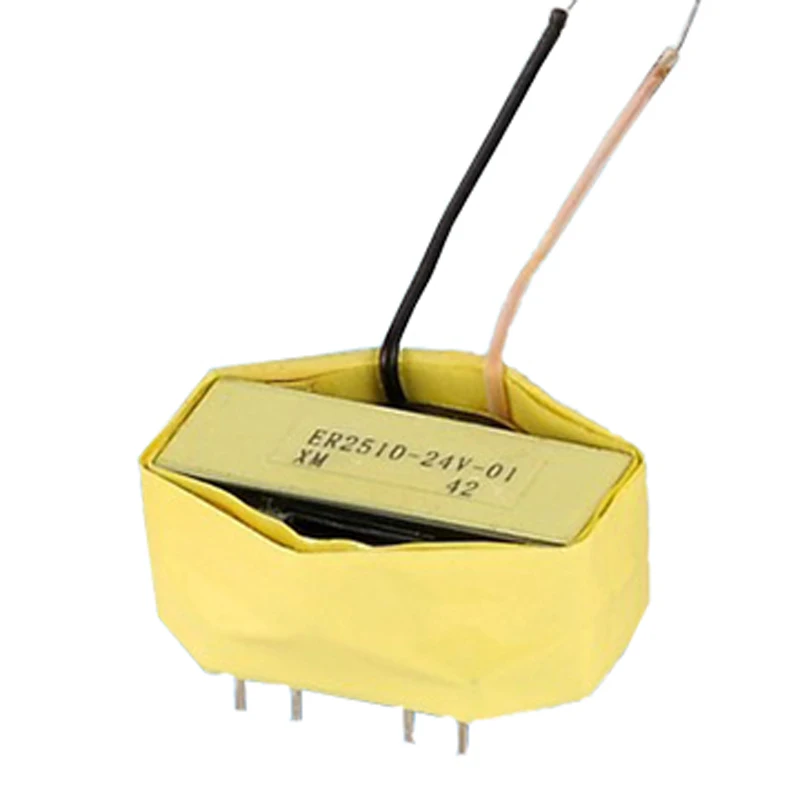

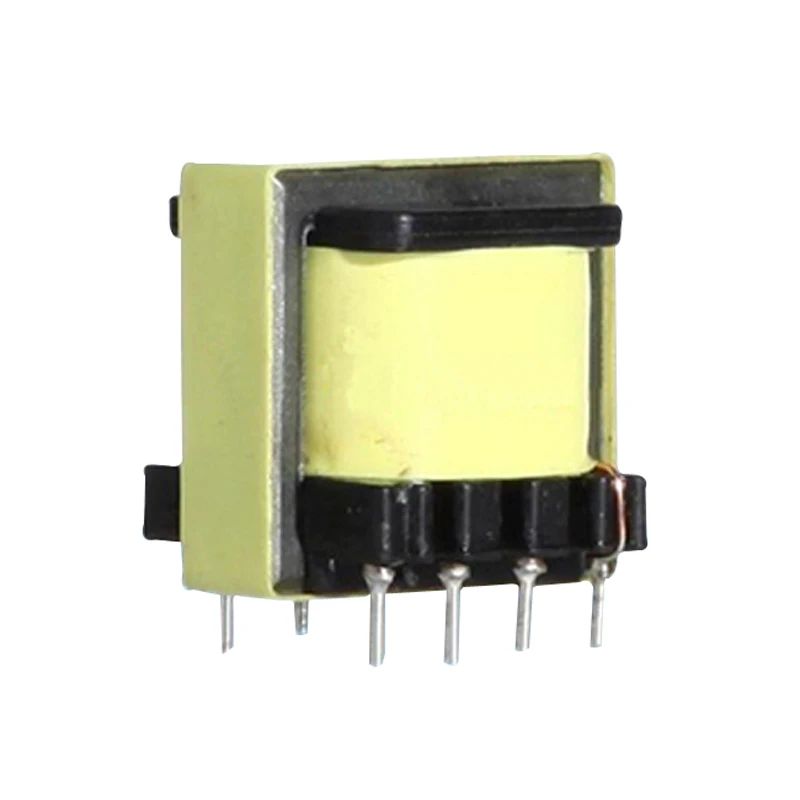

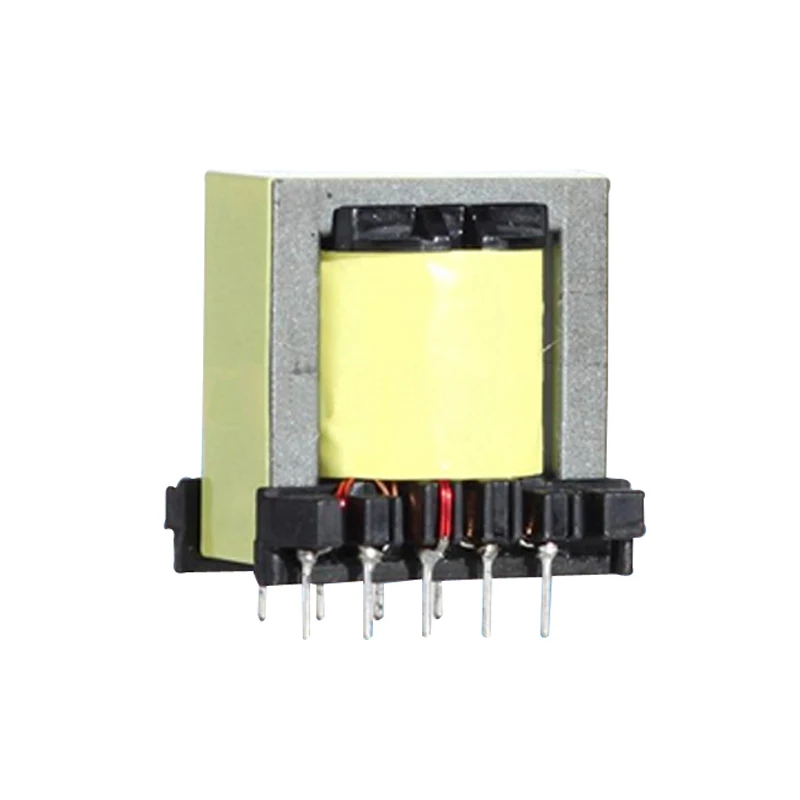

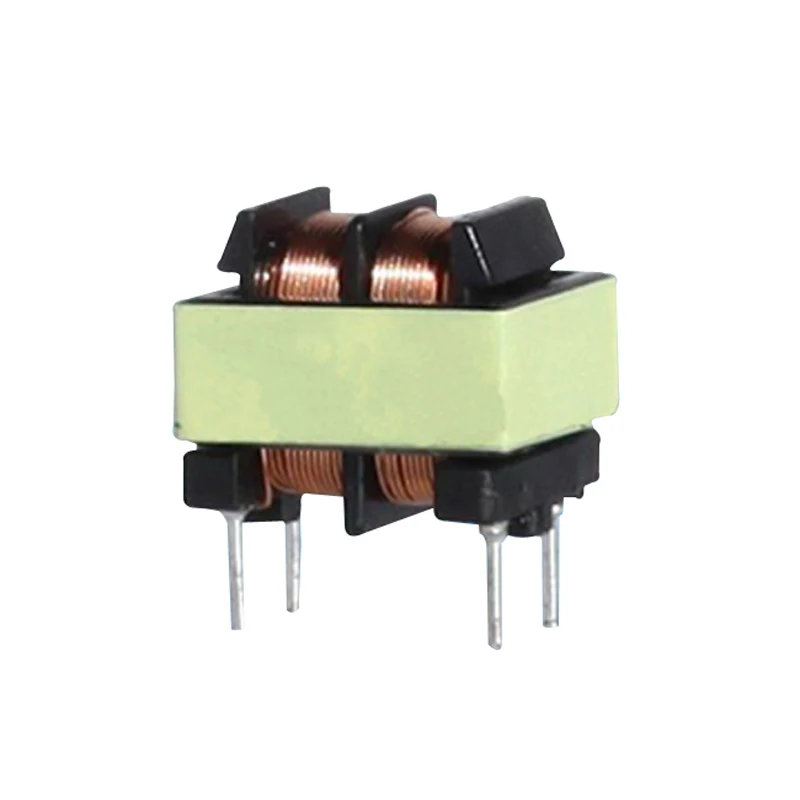

High frequency transformer,hf transformer features:

• Various types of transformers available, CI, UI, EFD,EP, ER, EPC, POT, RM, EE
• High Frequency transformer suitable for EL/CCFL Inverter or DC/DC converter
• Customer's designs are welcome

  Model Number	Specification	Needle Number Ratio	Length× Width× HEI ght
  EE8.3	Vertical	2/3	8.3×5.4×5.4
  EE10	Vertical	2/3	10×8×8
  EE13	Vertical	2/3	13×12×12
  EE13	Horizontal	2/2	13×12×12
  EE16	Vertical	4/6	16×13×15
  EE16	Horizontal	3/3	16×13×15
  EE19	Vertical	3/4	19×16.5×16.5
  EE19	Vertical	5/5	19×16.5×16.5
  EE19	Horizontal	4/4	19×16.5×16.5
  EE22	Vertical	5/5	22×16×19
  EE25	Vertical	2/2	25.5×17×21
  EE25	Horizontal	4/4	25.5×17×21
  EE28	Vertical	6/6	28×22×20.5
  EE 30	Horizontal	5/5	30×25×22
  EE 30	Vertical	6/6	30×25×22
  EE 33	Vertical	7/7	33×27×25
  EC28	Vertical	6/6	28×22×20.5
  EC28	Horizontal	6/6	28×22×20.5
  EC42	Vertical	7/7	42×30×44
  EC35	Horizontal	7/7	35×28×27
  UF9.8	Horizontal	2/2	16×11×16
  UF10.5	Horizontal	2/2	18.5×17×21.5
  UF16	Horizontal	2/2	22×19×27
  O-type	15×8.5×6	-	9×17
  O-type	36×23×115	-	45×28.5×43
  O-type	40×24×14.5	-	45×24×47

• Any custom-design is available
