1. Scope of application:
1)This silk screen printer series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries.

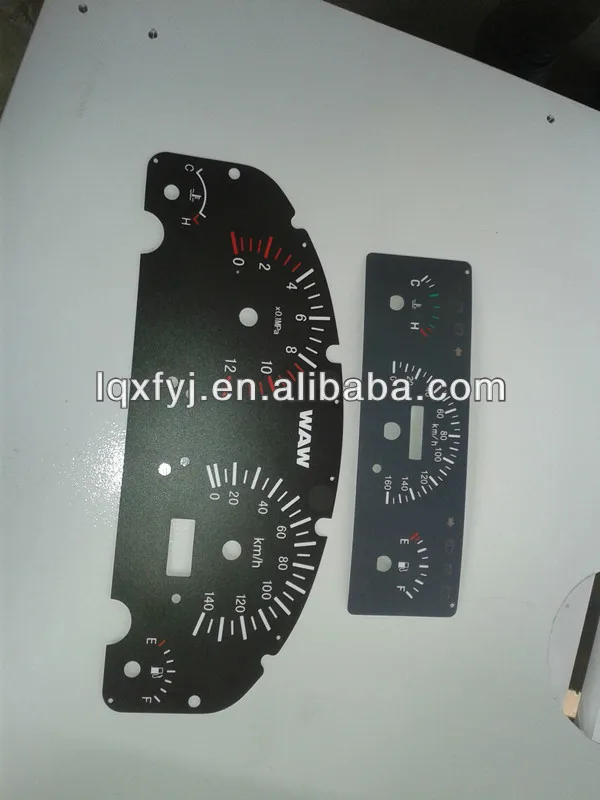

2)Suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics, membranes switch, PCB, PET,DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass,light guide plate,PET heating transfer film, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of PVC, which have high requirement in overprinting.
|
2. Feature:
1).The platform is adjustable and moveable, which make it convenient to take the material.

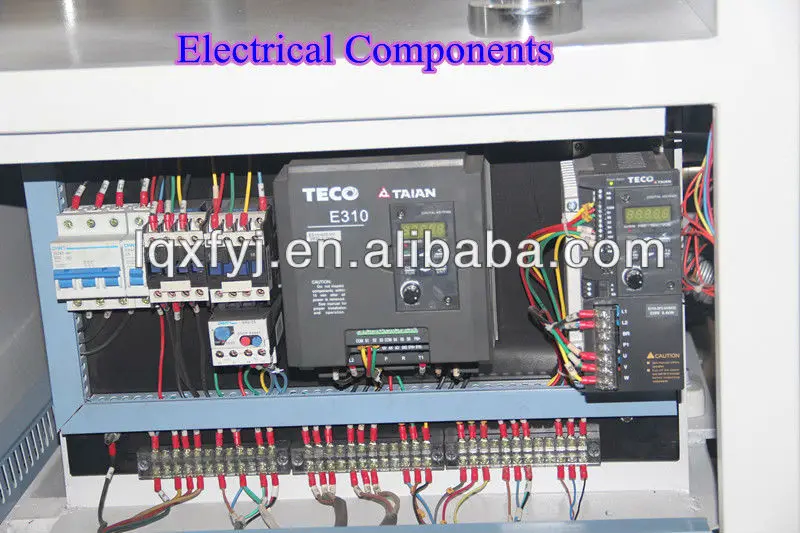

2).vertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components.

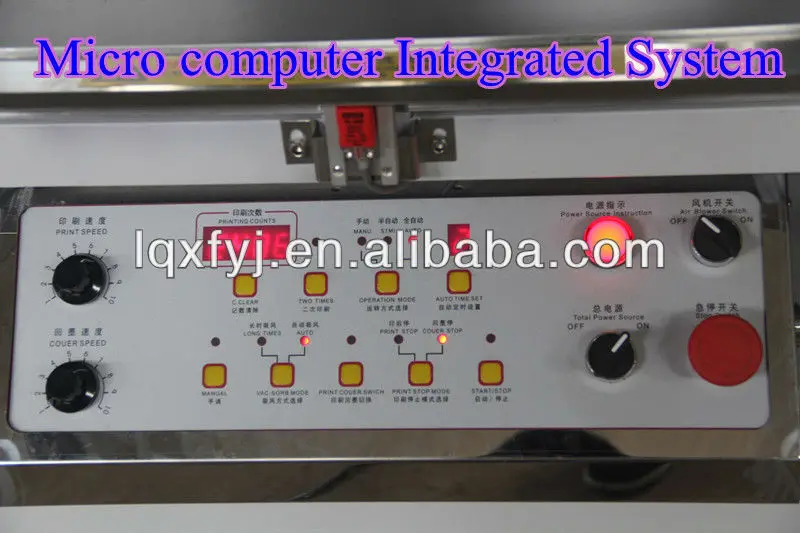

3).The screen printing machine adopts Japanese Mitsubishi PLC control circuit, printing and plate moving up &down are driven by independent Current Source.
4).Screen Printing blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.
5).Procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.

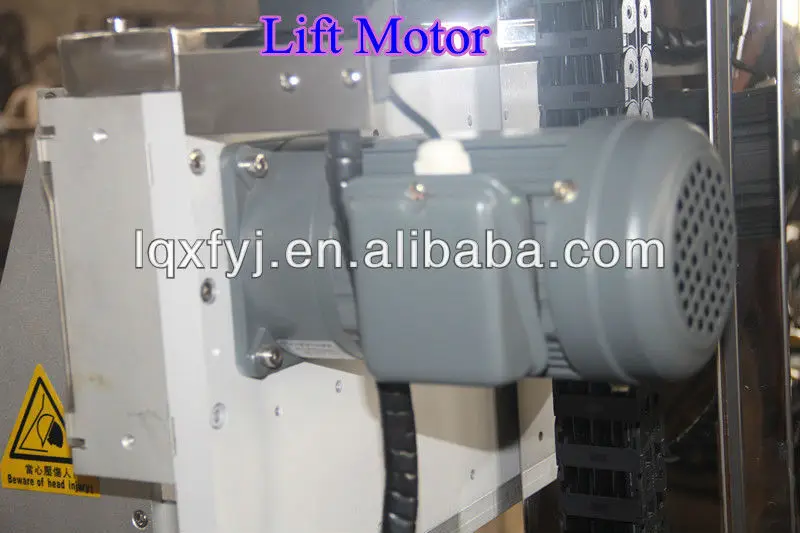

6).Independent designed machine head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.
7).Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.
|
3. Product details:
Product Name
|

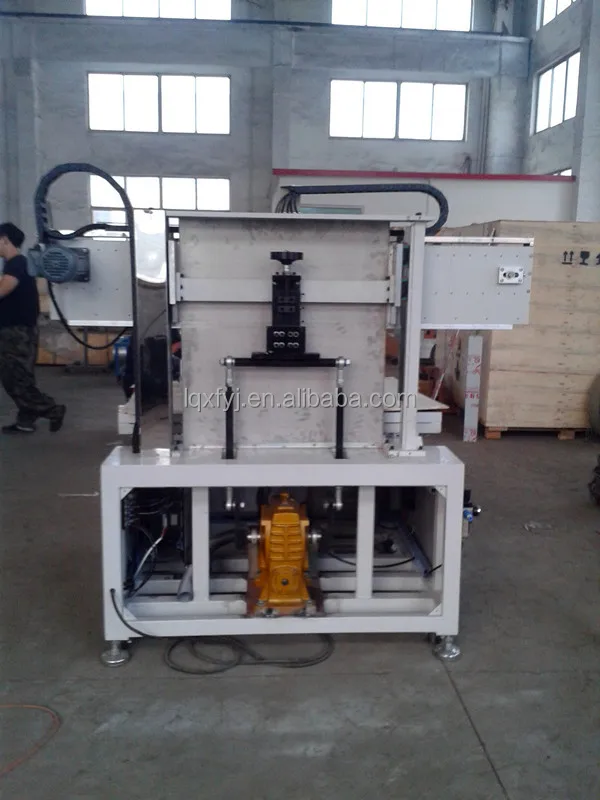

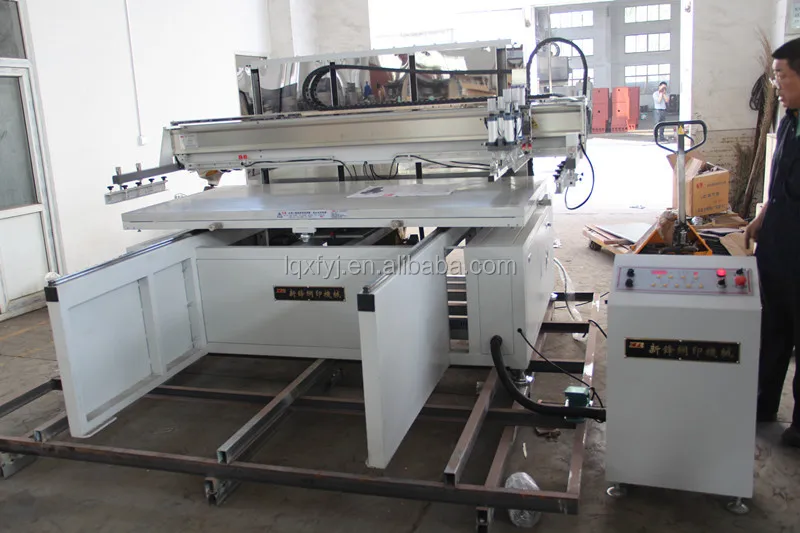

Semi auto flat silk screen printing machine
|
Model
|
XF-6090
|
Condition
|
New
|
Automatic Grade
|
Semi Automatic
|
Color & Page
|
Single Color
|
Voltage
|
380V
|
Gross Power
|
2.45 KW
|
Dimensions(L*W*H)
|
1500*1160*1620mm
|
Weight
|
500kg
|
Warranty
|
one year
|
Printing area
|
900*600mm
|
Maximal frame
|
850*1300mm
|
Printing thickness
|
30mm
|
Flat Size
|
900*700mm
|
Printing frequency
|
950Hr
|
Overprint accuracy
|
0.01mm
|
Flat precision
|
+-0.05mm
|
Printing pressure
|
0.6-0.8kg/square cm
|
Payment & shipping terms
Minimum Order Quantity:
|
1 Set/Sets
|
Port:
|
Qingdao
|
Packaging Details:
|
wooden case,Dimension 1700*1360*1820mm,Weight:520kg,it is suitble by sea.
|
Delivery Time:
|
one week
|
Payment Terms:
|
L/C,T/T,
|
Supply Ability:
|
100 Set/Sets per Month
|
After-sale service:
1) According to the requests of the consumers,install & debug product.
2) According to the requests of the consumers, the use and other aspects of technical guidance.
3) To ensure the supply of repair parts.
4) Responsible for the repair service.
5) On the product of "Three Guarantees".
|
|
