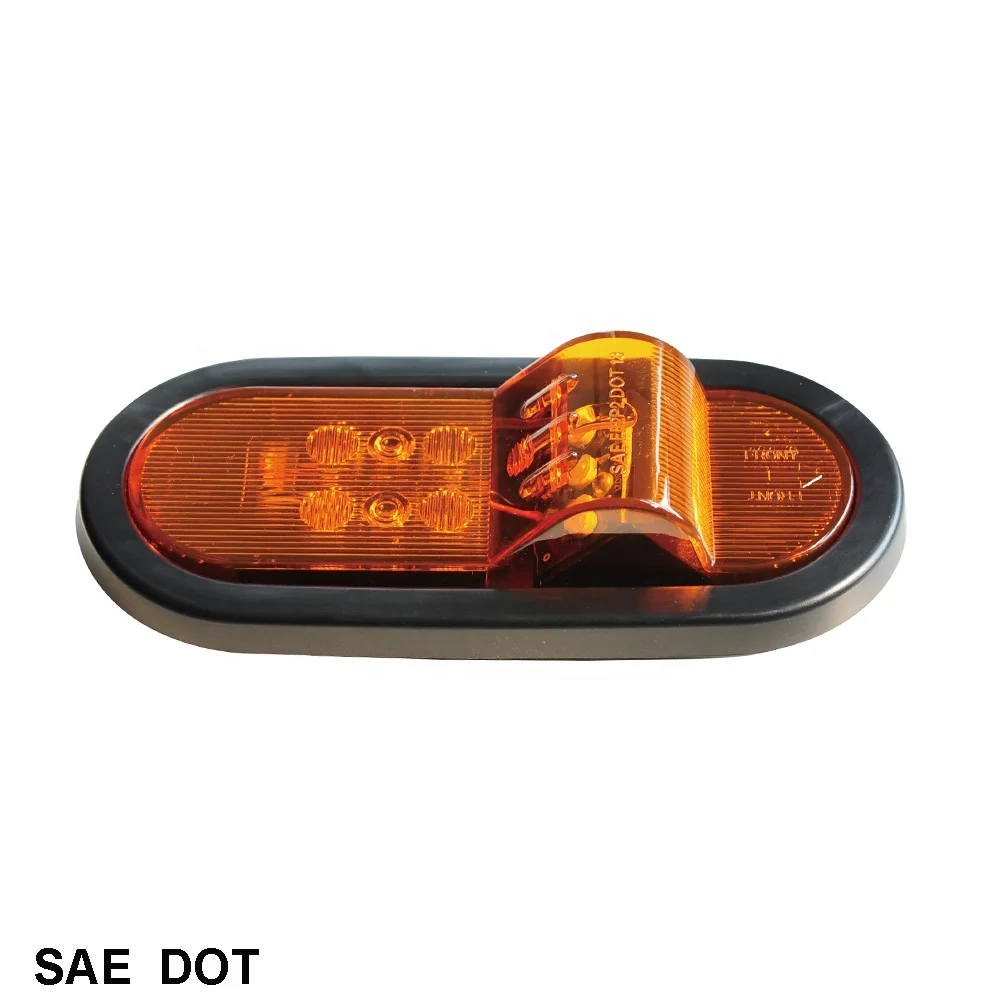

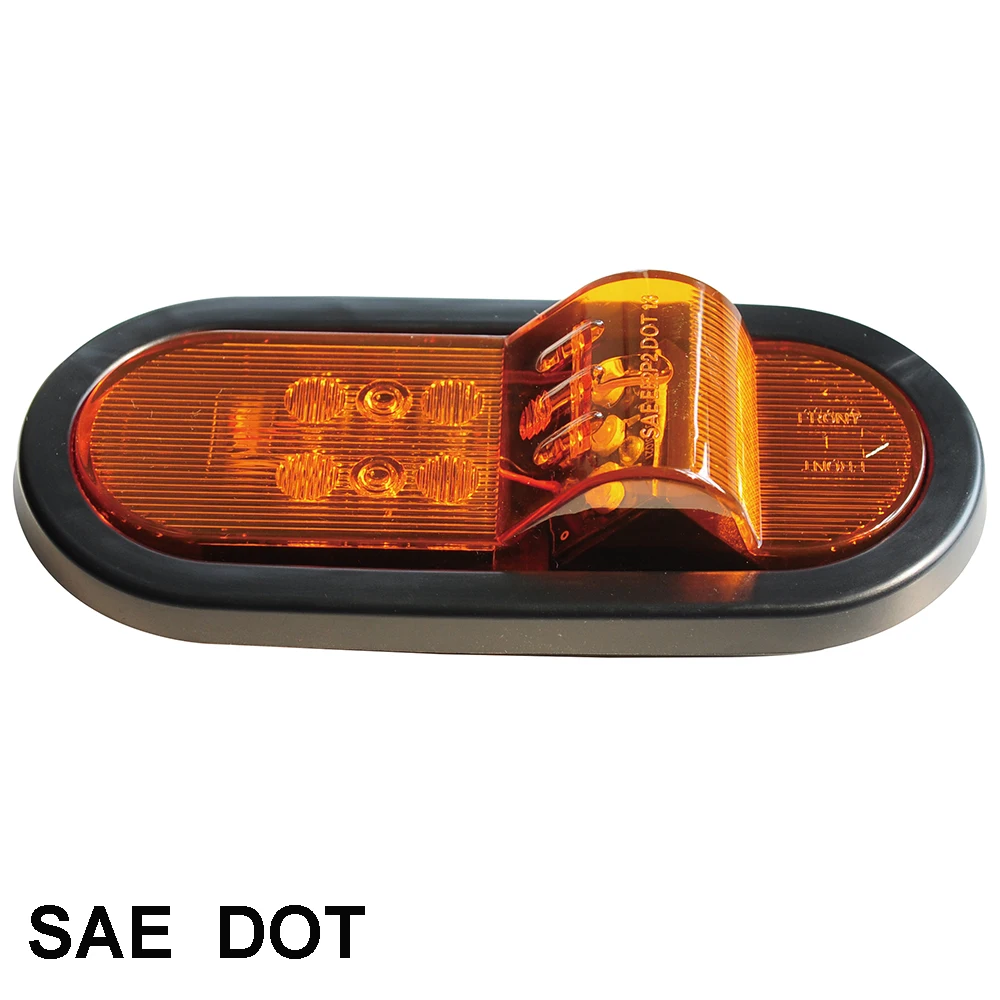

6 inch Mid Turn Light LED, Flange Mount & Grommet Mount mid ship LED turn signal light DOT SAE for truck

Product Overview

Description

6 inch Mid Turn Light LED, Flange Mount & Grommet Mount mid turn LED truck trailer light







Features:



Ÿ       Innovative new design using 3 of hi-power LEDs with engineered lens optics to comply with tough SAE requirements.

Ÿ      Mid Turn function, Hi Mode=Turn Signal, Low Mode=Side Marker, applicable for long vehicle

Ÿ      PC lens and housing welded and potted together on the back to ensure a permanent and water proof seal.

Ÿ      Flange mount, anti-theft, with built-in TYCO type 3-pin female socket

Ÿ      Super long life span 50,000 hours

Ÿ      Meets DOT FMVSS 108/SAE J2039 (E) & J914 (E2) requirements on the Hi Mode, lens marking: “EE2P2”

Ÿ      Rated for 12V, tested to 13.8V

Ÿ      Also available in multi-voltage 10~30V operating range, or 24V by special order.



Specification:

Part No.	Description	Input Voltage	Lighting Color	Nos. of LEDs	LED Type	Current Draw (mA) at 13.8V
106363A	6” Mid Turn Light LED, Flange Mount	12 V	Amber	3+6	1 Watt +P4	350/50 mA
106363AM	6” Mid Turn Light LED, Flange Mount, Multivolt	10~30V	Amber	3+6	1 Watt +P4	350/50 mA
