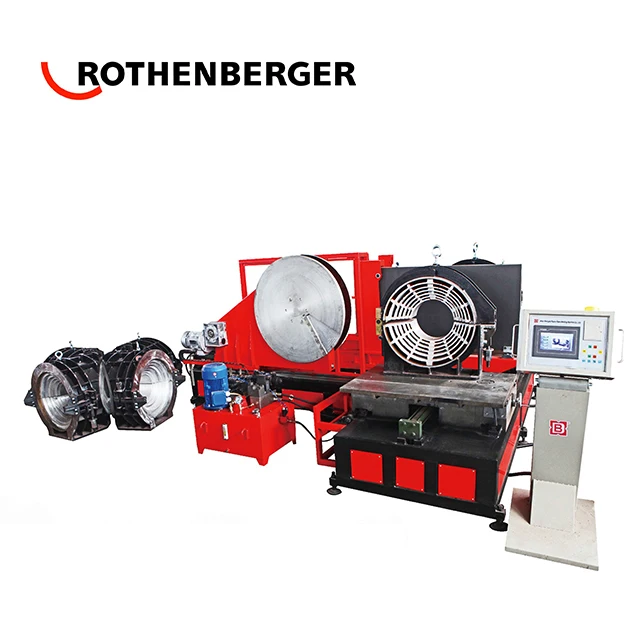

SHG630 PE pipe fitting butt fusion welding machine

Product Overview

Description

SHG630 workshop PE pipe fitting fusion welding machine











Application and features :

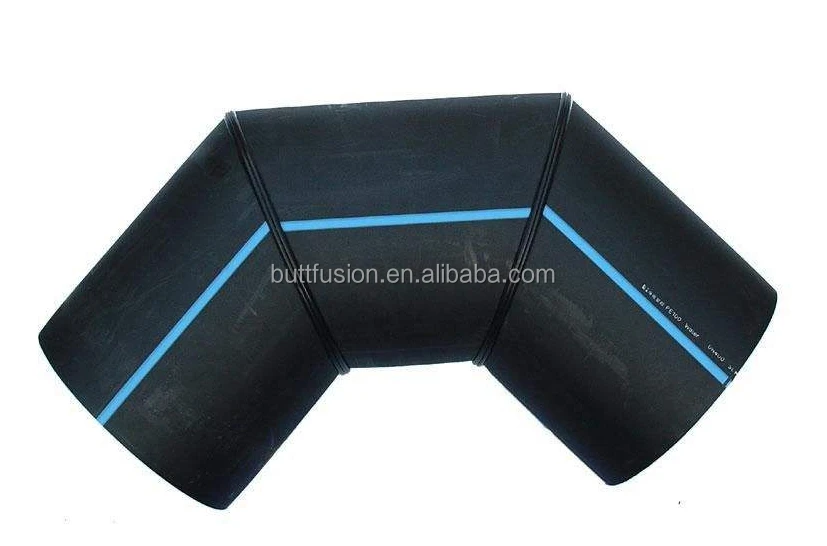

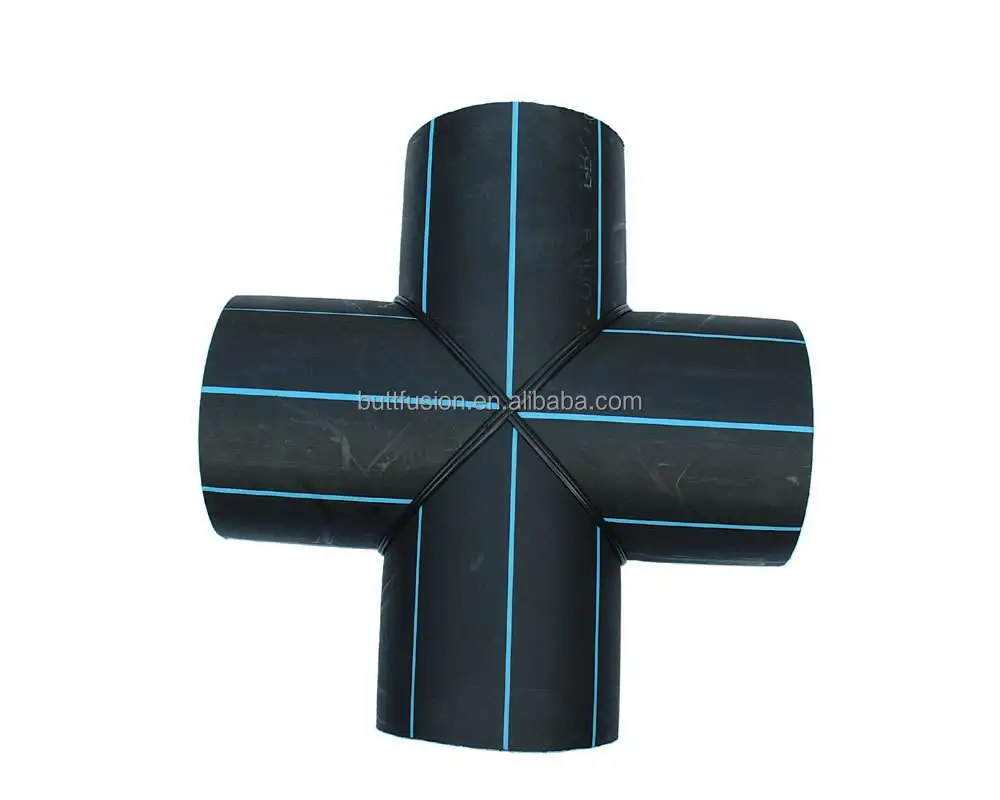

♦ Suitable for fabricating elbow, tee, cross and Y shape (45° and 60 °) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
♦ Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
♦ Removable PTFE coated heating plate
♦ Electric planing tool with safety limit switch
♦ Low starting pressure and high reliable seal structure
♦ Separate two-channel timer records times in soaking and cooling phases





.







Model		SHG630
Pipe sizes (mm)		315,355,400,450,500,560,630
Application		0~90°Elbow, tee, cross, 45° and 60° wyes(optional parts should be used)
Heating plate Max. Temp.		270°C
Temp. deviation in surface(170~250°C)		<±7°C
Pressure adjustable ranges		0~14MPa
Working voltage		380V,50Hz
Heating plate power		22.25KW
Hydraulic unit power		3KW
Planing tool power		4.0 KW
Total power		29.25KW
Weight		3510KG(Don`t include optional parts )
Packing	Cases	9 Plywood Cases
	Volume	22.7 CBM



Optional parts:

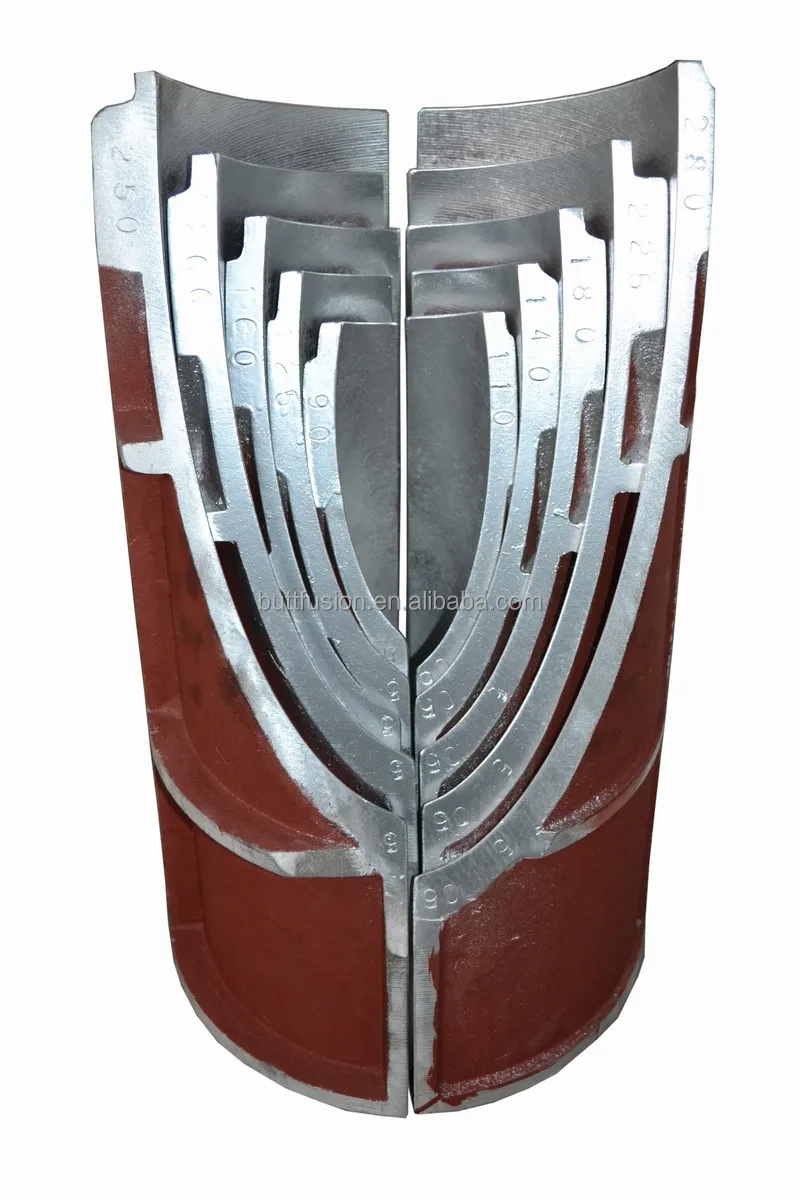

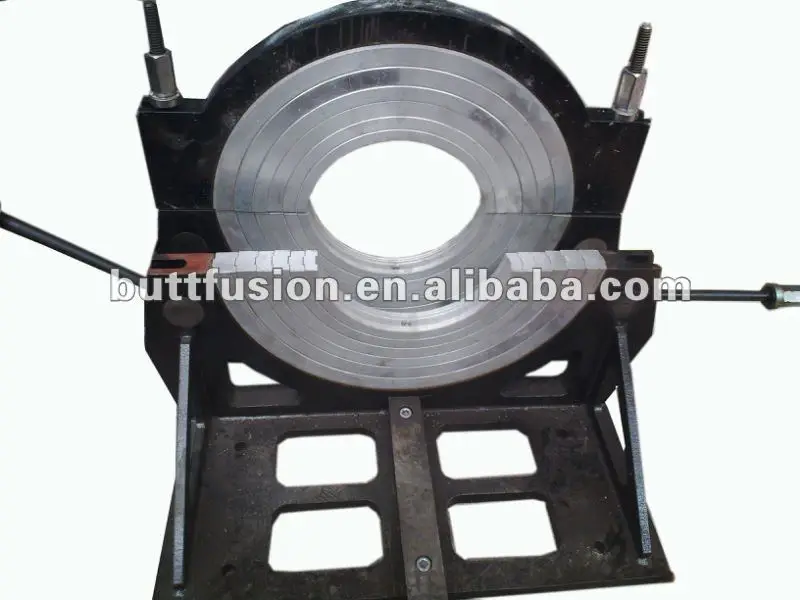

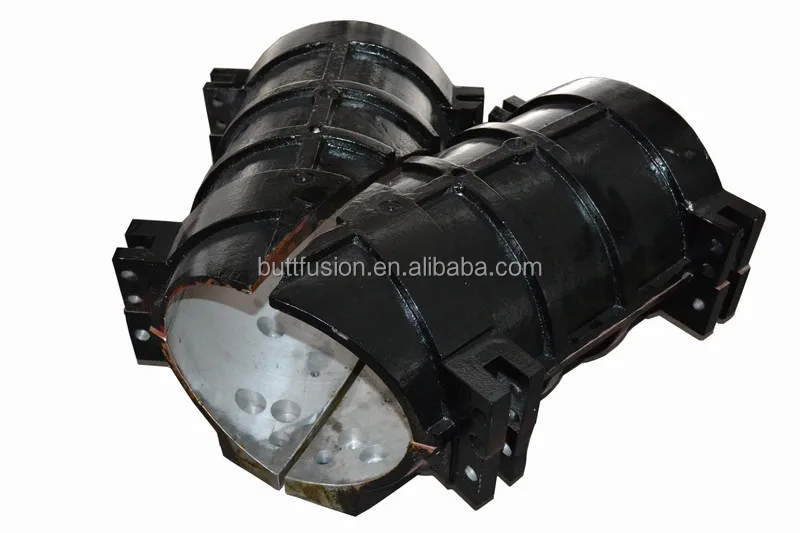

Special clamps for welding flange stub

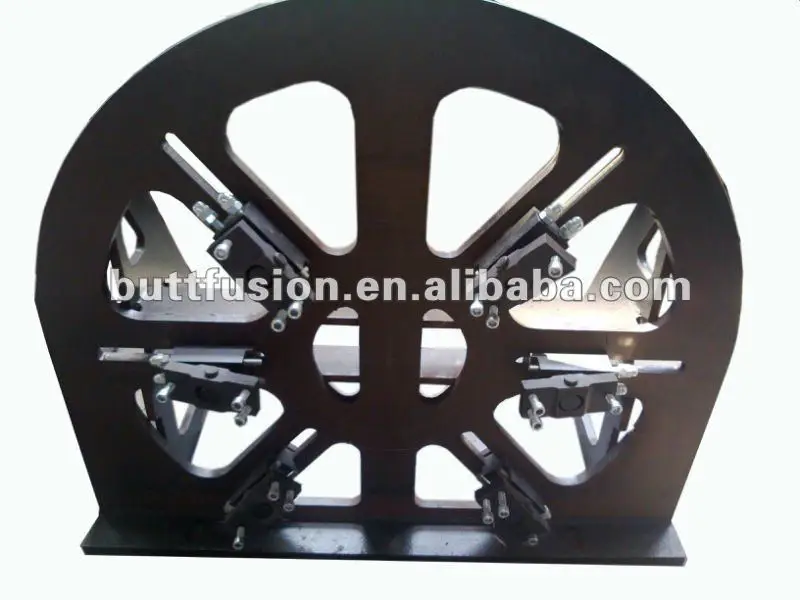

Special clamps for short spigot fitting

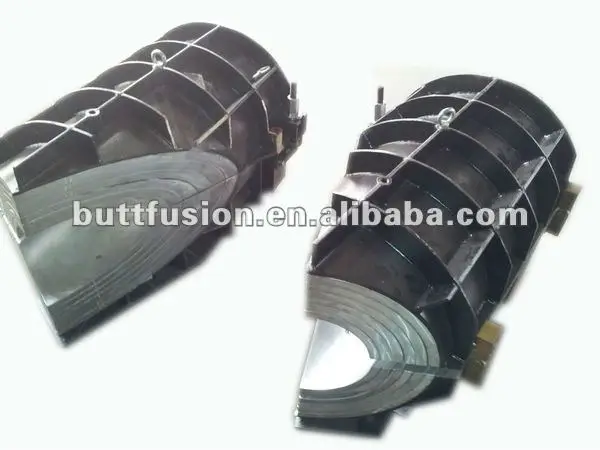

Special clamps for welding Y shape (45° and 60 °) fittings
