Manual aluminum foil container making machine

Product Overview

Description



  Manual aluminum foil container making machine







Auto-well---------Quality-The Key to Winning

(1) This production line can work automatically. Worker control and regulate this production line through electric control equipment.

(2) This machines is equipped with higher closed height and longer stroke length, so it can make biger aluminum foil tray

(3) The feeding system control feeding length and stepping by computer, which assure a high-precision steps.

(4) We can design and manufacture different machines on request.

(5) The press may be equipped with single cavity or multi-cavity moulds for wrinkle-wall or smooth-wall container production

(6) Manual aluminum foil container making machine





The Working Flow of Production Line

Aluminum foil roll ---decoiler---air output control equipment---pneumatic press---mould---conveyor--- collection desk---packing



The Machine & Raw Material Photos

Manual aluminum foil container making machine



The Technical Data

Manual aluminum foil container making machine composed of the followings:

1. Auto Feeder (with an auto-lubricator)

2. Electrical control panel

3. Air output control equipment

4.21-80ton pneumatic press

5. Mould

6. Auto-stacker or conveyor (including scrap collector)

7. Collection desk

8. Manual aluminum foil container making machine



Feeding Machine:

Max. Material Roll Diameter	650mm
Max. Material Roll Width	650mm
Feeding Speed	10-30M/min
Feeding Length	30-900mm
Feeding Tolerance	+/-0.3mm
Capacity	1Kw



Punching Machine:

Pressure	400KN
Whole Size of Collecting Table	300*300mm
Production Output	40-80times/min
Board Thickness of Collecting Table	50mm
Max. Height of Mould	290mm
Slide Board Size	220*400mm



The Optional Consists for the Food Container Machine

• High efficiency press /punching machine for aluminum foil container punching
• Automatic oil lubrication feeding machine for feeding foil
• Air compressor to supply air for mould and container blowing
• Manual forklift to load /unload the foil material and mould
• Foil wastage & scrap collecting system to keep clean and stacker machine working well
• Aluminum foil container auto stacker machine to collect the products automatically.
• Ideal receiving table for containers, easy to pick up by fewer operators.
• Manual aluminum foil container making machine

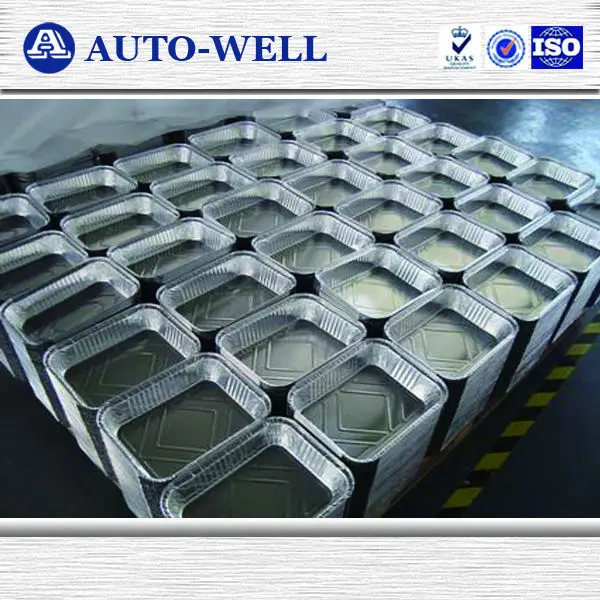

The Final Product Exhibition



The Factory and Packaging

The Trusted Certificates



  Manual aluminum foil container making machine



The Quality Guarantee and Service



1) Our own factory manufactures the aluminum foil related machine and provides the overall service

2) We concentrate on aluminum foil field several years. We have a body of engineers who have years of experience.

3) Warranty is 1 year since the machine is arrived in buyer’s place.

4) During the warranty time, if the wearing parts have been damaged by non-person or cannot use, seller will send the spare parts to buyer for free. But buyer has to bear the transportation charge.

5) Technical support supplied by seller forever.
