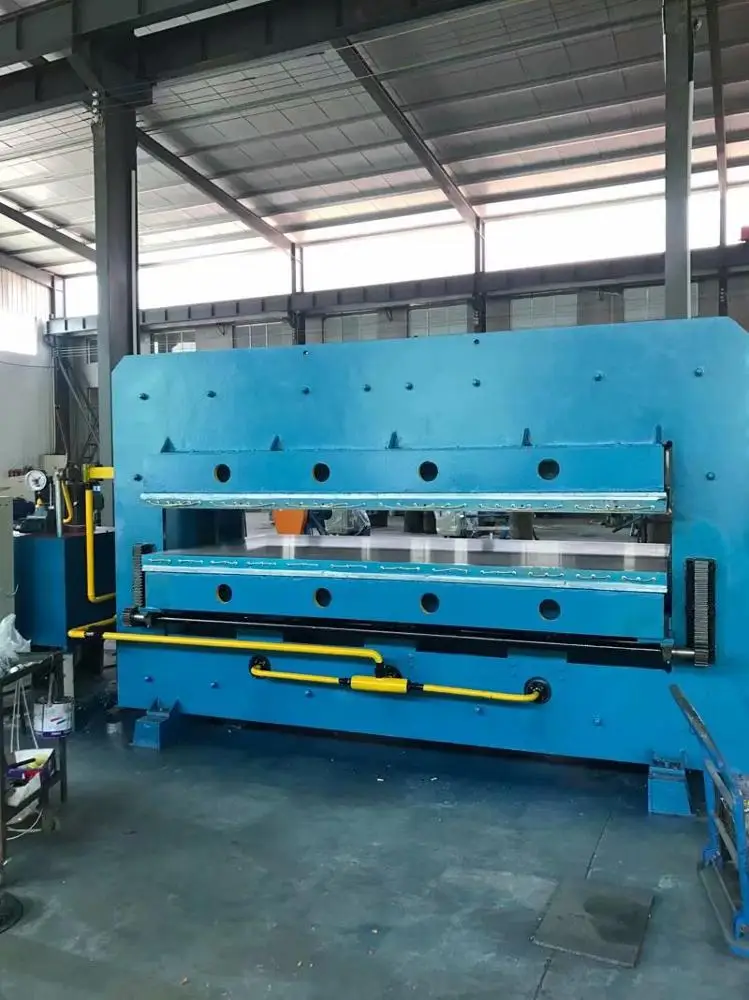

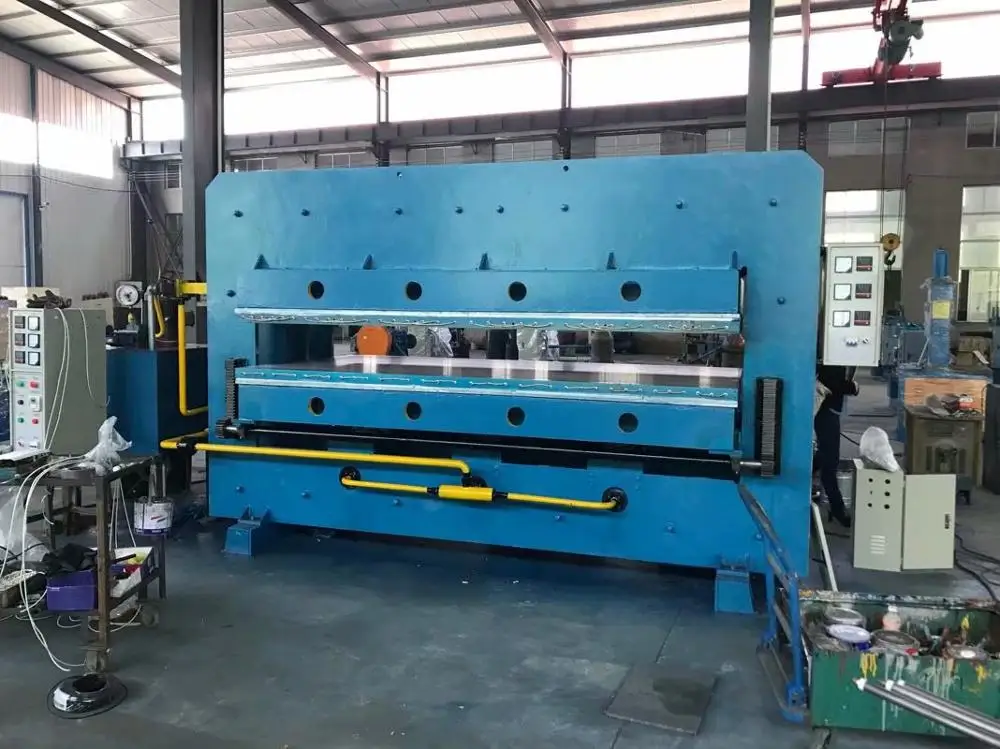

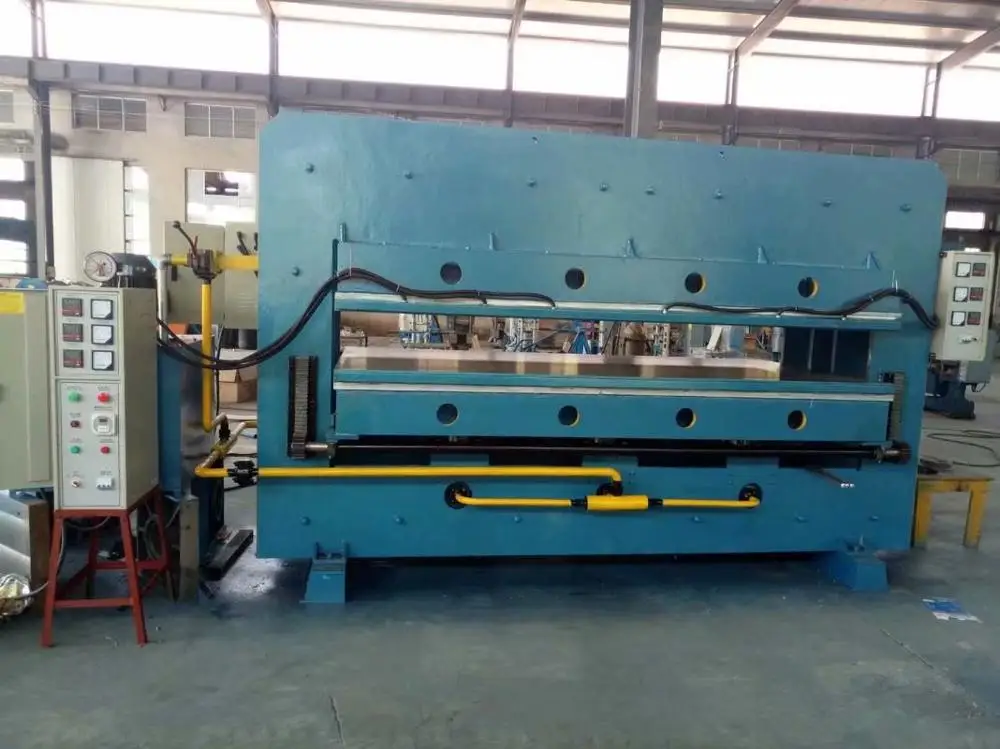

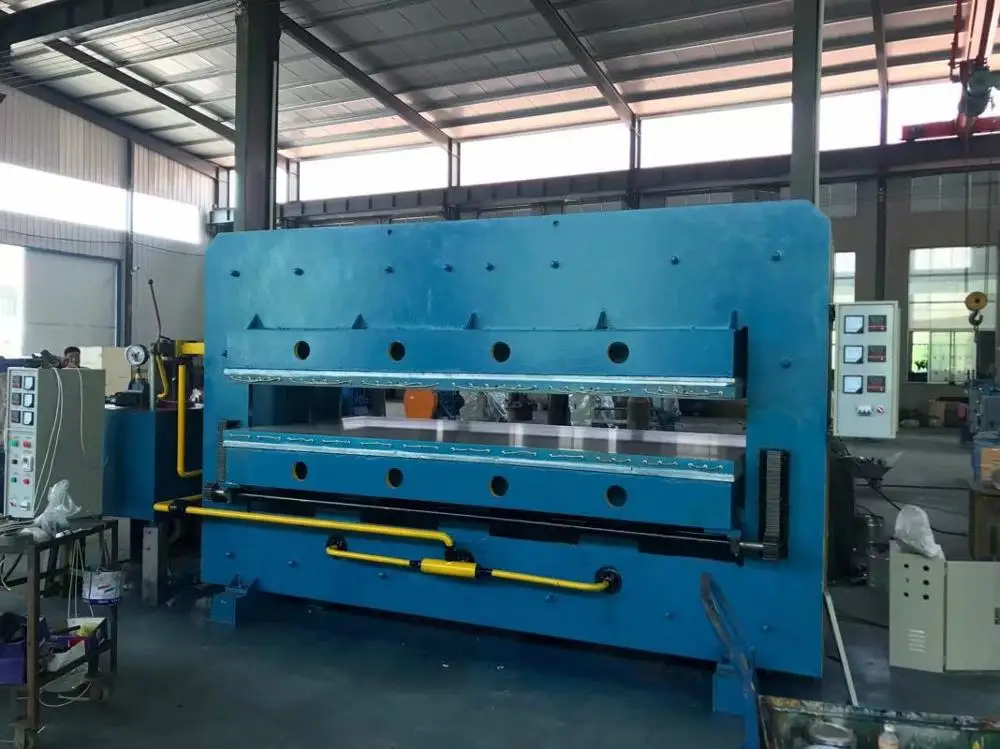

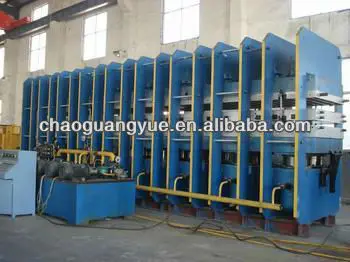

good quality conveyor belt curing press rubber vulcanizer

Product Overview

Description



                                          conveyor belt vulcanizing machine

1.Main uses



The Curing Press mainly works for the clampdown of rubber ,which can be used as normal hydraulic machine.



We have both column and framestructure .







2.Advantages:



1 Simple and convenient structure ,flexible operation,commodious space.The cylinder and plunger are made up of high –quality materials.



2 Hydraulic station and electric cabinet are Located in both sides of the main engine.



3 Conveniently operated.



4 Without oil spilling or off pressure.



5.Excellent reputation .



6 CE Standards





3. Technical Parameter as follows



Type	XLB350*350*2	XLB400*400*2	XLB500*500*2	XLB600*600*2/4	XLB750*850*2	XLB1000*1000*2
Total pressure(MN)	0.25	0.5	0.8	1.0	1.6	2.5
Daylight(mm)	125	125	125	125	125	200
Working layer number	2	2	2	2/4	2	2
Plate size(mm)	350*350	400*400	500*500	600*600	750*850	1000*1000
Plunger stroke	250	250	250	250/500	250	400
Heating way	Electricity/steam	Electricity/steam	Electricity/steam	Electricity/steam	Electricity/steam	Electricity/steam
Main motor power	2.2	2.2	2.2	2.2	3	5.5
Stucture form	Strain rod	Strain rod	Strain rod	Strain rod	Strain rod/strain plate	Strain plate

our products:100% factory manufacture



we can offer you different types rubber vulcanizer,including all kinds of standard and non-standard rubber machinery.

If you need our product,please contact with us.

our certificate
