DW89CNC автоматическая машина для гибки металлического профиля
- Category: Profile Bending Machine >>>
- Supplier: Zhangjiagang Telhoo Machinery Manufacturer Co. Ltd.
Share on (1679231252):
Product Overview
Description
DW89CNC automatic metal profile bending machine
Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe;
Recommended application industry:
automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.
Main specification
1. Automatic recognition of power in machine and work piece, the processing is both quick and good
2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.
3. The whole operation is in the computer, simple, quick and correct
4. Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
5. Rebound test: comparison test on the features of lots of pipe materials
6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
7. Automatic drawing of the graphics of dies-clear help to develop new products
8. Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production

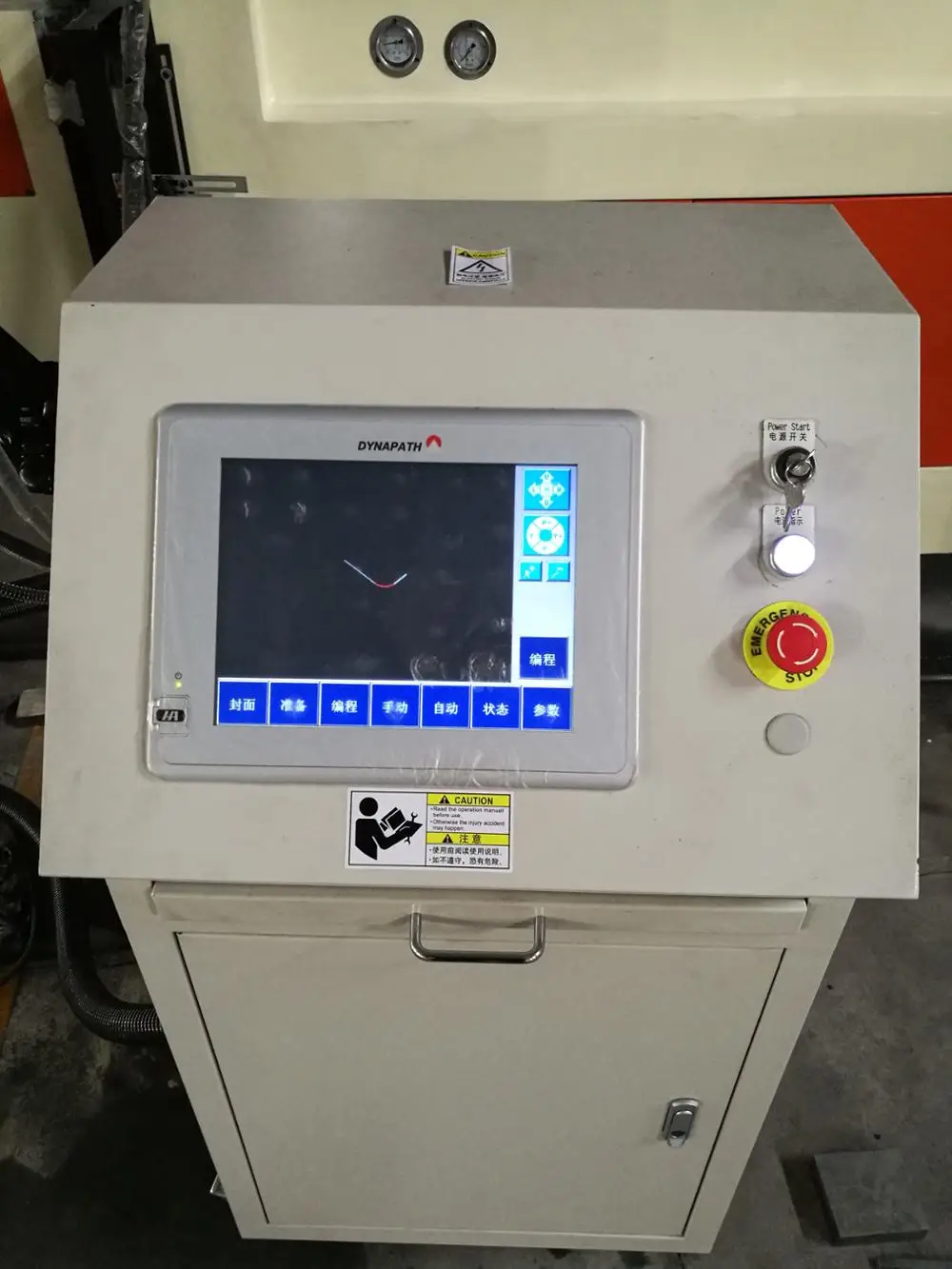

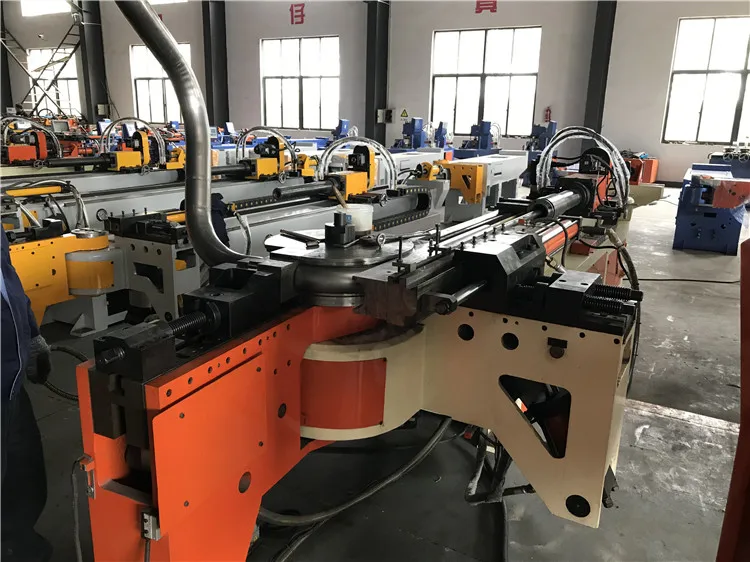

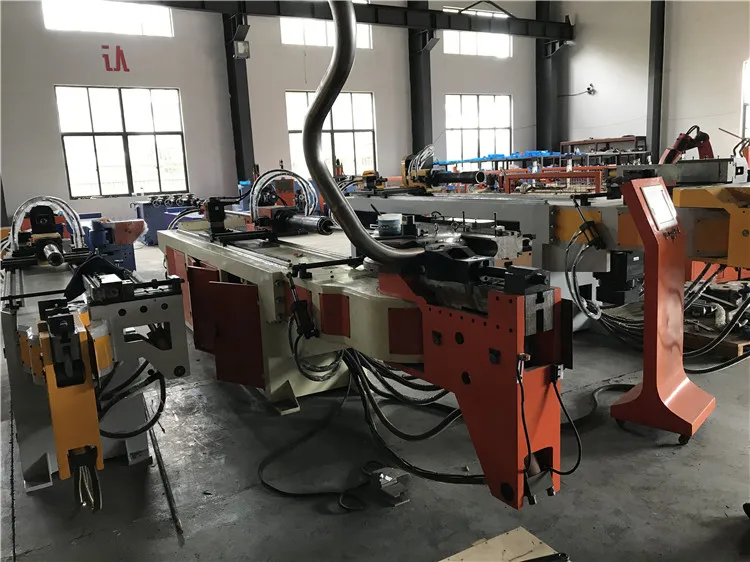

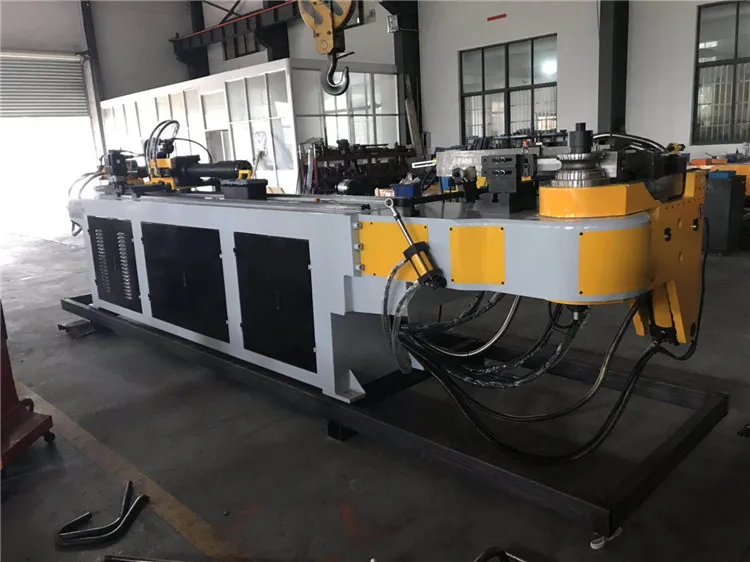

Machine photo
Technical parameter
Specification/Model | DW89CNC |
Max bending diameter of tube | 88.9mm |
Max bending wall thickness of tube | 2.0mm |
Max bending radius | 3000mm |
Min bending radius | depend on the tube diameter |
Max bending angle | 190° |
Max feeding length | 3000mm |
feeding method | direct feeding / clamping feeding |
Bending speed | Max 25°/s |
Rotary speed | Max 180°/s |
Feeding speed | Max 600mm/s |
Bending accuracy | ±0.1° |
Rotary accuracy | ±0.1° |
Feeding accuracy | ±0.1mm |

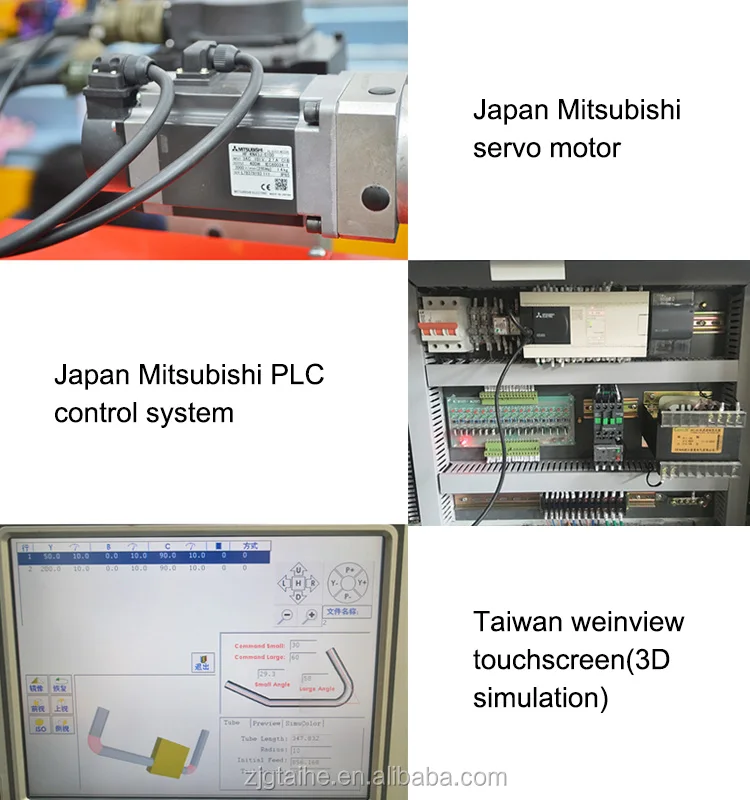

detail parts
sample pipes
Our Services
1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.
2.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service.
Packaging & Shipping

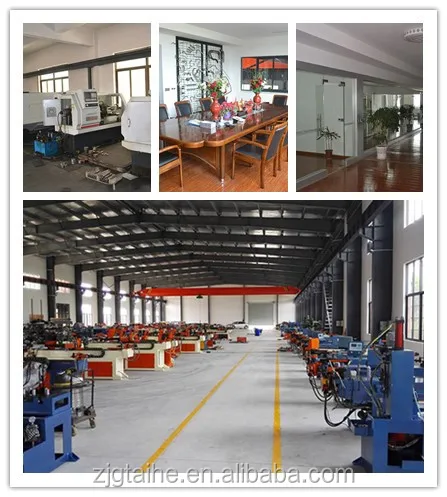

Company Information
1991 The Zhangjiagang government established Qinpeng machinery factory.
1995 Cooperate with Taiwan well-known pipe bending machine factory and set up a new company(Telhoo Machinery-“TLM”).
1999 Buy a series of high-precision processing equipment, and become a partner of a well-known airplane manufacturer.
2002 A famous Taiwan mold designer became the CTO of our company. Also our product Successfully enter China's shipbuilding industry.
Max processing capacity to 325mm tube.
2006 Become well-known car companies`s partner-Honda(china), Toyota(china), Volkswagen(china), changcheng(china).
2008 After many years of development and efforts, CNC pipe bending machine enter the market, Successfully as China's high-speed rail cooperation partner.
2010 Export to at least 65 countries around the world, including the United States, Russia, Poland, Mexico, Canada, Australia, England,southeast Asia,India and so on…
2013 In order to follow up 4.0 industrial trends,The technical department developed “full automatic Robot pipe bending machine”, “automatic loading and feeding pipe cutting machine” such as high efficiency pipe processing equipment.
2015 In order to better expand the overseas market,established “Telhoo holding limited” in Hong Kong.
2017 TLM with mission and responsibility will make our product better...
Our exhibition
2014 India exhibition
2015 Russia exhibition
Certifications
