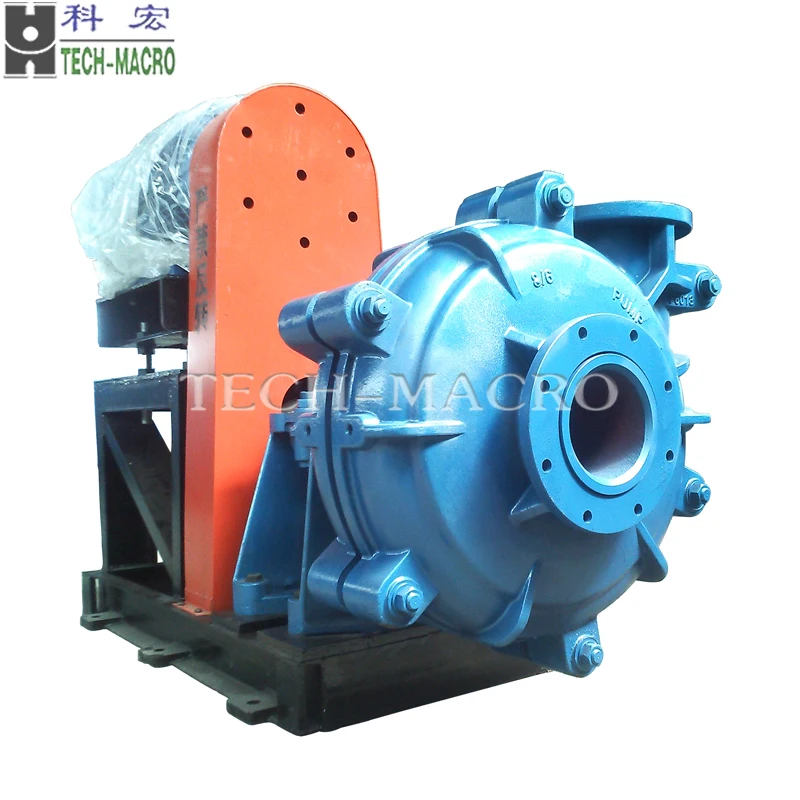

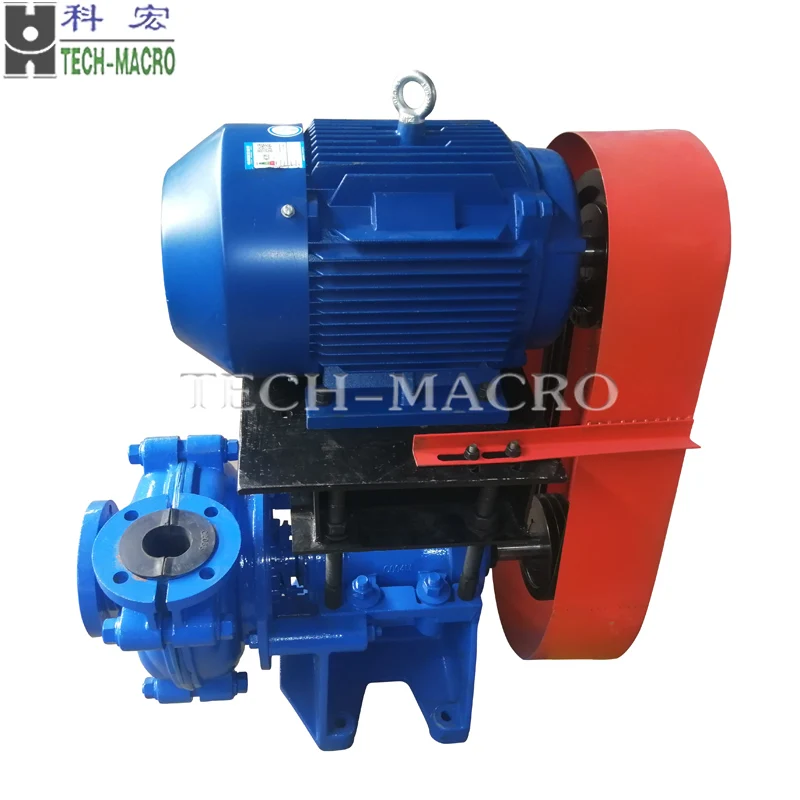

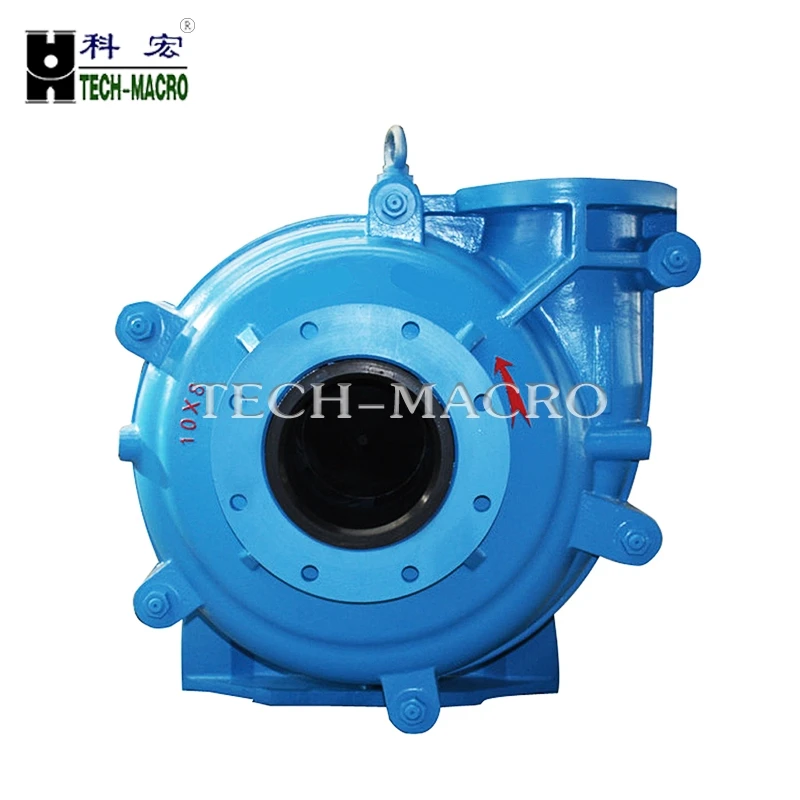

Diesel engine Shijiazhuang Industrial sludge pump for tailing delivery, mud pump

Product Overview

Description



Diesel engine Shijiazhuang Industrial sludge pump for tailing delivery, mud pump



Application:

KA, KH  pumps are used to pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc. in the industries of metallurgy, mining, coal, power, building materials and etc. The temperature of the pumped solid-liquid mixture should be <80°C, and the weight concentration should be <60.





The Features:

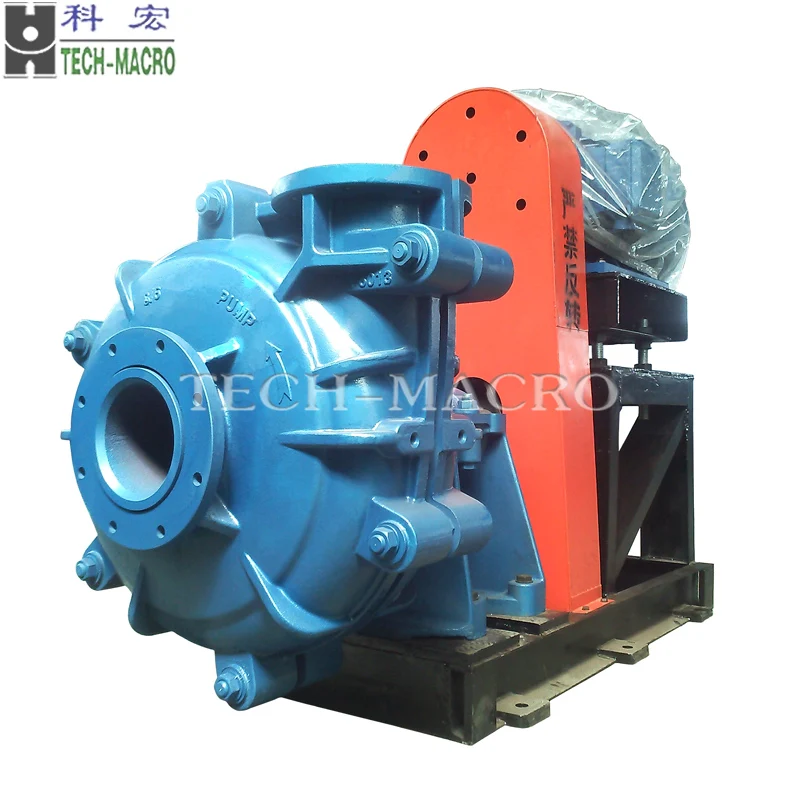

1. The frame plates for AH Pumps have replaceable wear-resistant metal liners or rubber liners, the impellers are made of wear-resistant metal or rubber. The frame plate liner and impeller for HH Pump are adoptable of hard metal only.

2. Bearing assembly use cylindrical structure,adjusting the space between impeller and front liner easily, being removed completely when being repaired. Bearing assembly use grease lubrication.

3. The shaft seal could use the packing seal, expeller seal and mechanical seal.

4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.

5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, frequency conversion drive devices.

6. Wide performance, good NPSH and high efficiency. The pump of this type may be installed in multistage series to meet the delivery for long distance.







High efficiency, wear resistant, stable performance, interchangeability of parts.



Driving Type:



The slurry pump drive type include CV, DC(Z), ZV(Z), CR(z), etc. Z Means it including common base. Whether the base should be adopted with depends on clients, smaller size pumps are suggested to adopt with base.



Slurry pump type	KA Series	KH  Series	KL  Series
Discharge Diameter	25~450mm	25~150mm	20~650mm
Flow Capacity	6.5~5000m3/h	7~900m3/h	3.6~10500m3/h
Head	5~55m	20~95m	5~55m
Material	A05,A31,A33,A49,Rubber	A05,A31,A33,A49	A05,A31,A33,Rubber



Our Advantages

• Factory direct price
• Professional knowledge and attentive service
• Strict quality inspection and timely delivery
• Highly value every order, no matter how small it is.
• offer confidentiality agreement "business secret contract"
• Product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to replace.

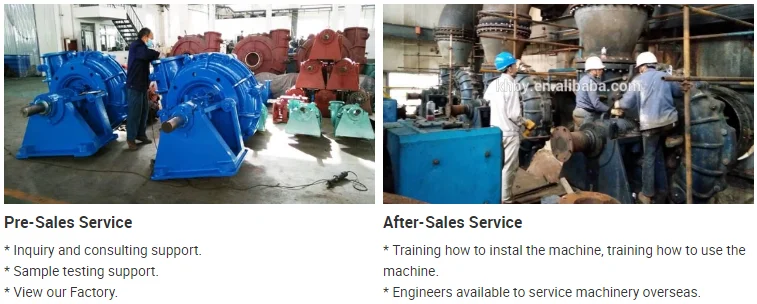

Pre-sales service

We provide you with the pro-phase plan, process flow design and manufacturer equipment according to your special demand.

After-sales service
   To establish long term friendship, we will regularly pay return visit to customers. Supplying technique for free.

interchangeable with other brands
   100% interchangeable,whatever the material ,working life and working etticiency.



FAQ

A: What kind of company you are?
Q: Shijiazhuang Tech-macro Pump Industry CO., Ltd is professional manufacturer in pumps. After accumulation and development of many years, we have formed a complete system of pump design, selection, application, manufacture, marketing and maintenance. Our customers are at home and abroad. Hope to coorperate with the worldwide friends.

Q: What's your MOQ?
A: Trial sample order is OK.

Q: What are your payment terms?
A: T/T, L/C, D/P, D/A or as customer required

Q: How about the warranty?
A: One year warranty for pumps, it depends on other pump working condition details.

Q: What is the delivery time?
A: 7-30 days according to customer quantities.

Q: Can you do OEM brand?
A: Yes, Welcome.
