The Hotest 5 Crystal Phoenix/Smartmouse Card Reader

Product Overview

Description

TBS3102 5 Crystal Phoenix/Smartmouse Card Reader



This is a simple and very powerful card reader in the world. The USB smartmouse/phoenix card reader has only 1 USB port, which is used for power and data transfer. The computer will look the card reader as COM interface after installing the driver. This card reader supports 5 Crystal frequencies(3.579MHz,6MHz,8MHz, 10MHz and 12MHz), both 3.3V and 5V card voltage and Phoenix/Smartmouse working mode. It?s ideal for reading most ISO 7816 smartcard.

Main Features:

• Dimension: 75x60x15mm


• Weight: 0.5kg


• Cable connection: USB for power and data transfer.


• Prog. Mode: Phoenix/Smartmouse


• Power Mode: DC 3.3V/5V shiftable


• Frequency: 3.579MHz / 6MHz / 8MHz / 10MHz /12MHz shiftable


• Led: 1 red light and 1 green light. The lights are flashing during the data transfer.

Please note: This programmer does not come with a driver CD, manual, or any other documentation. Please go to our download section for such documentation.

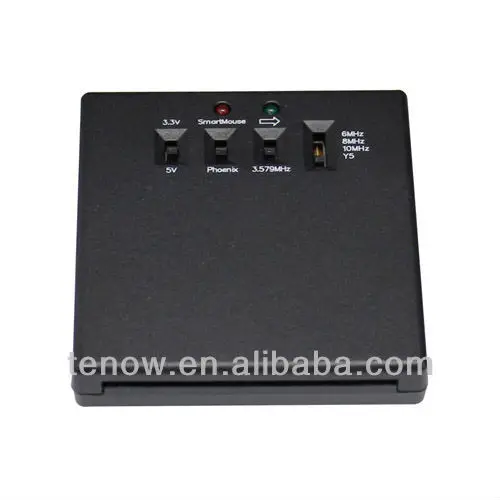

Pictures:
