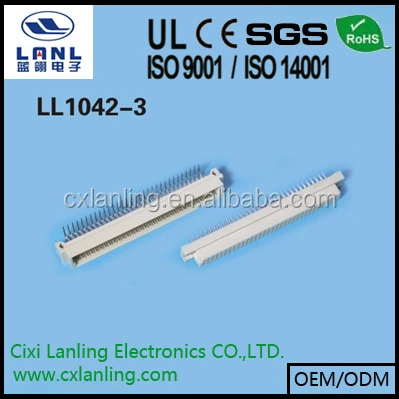

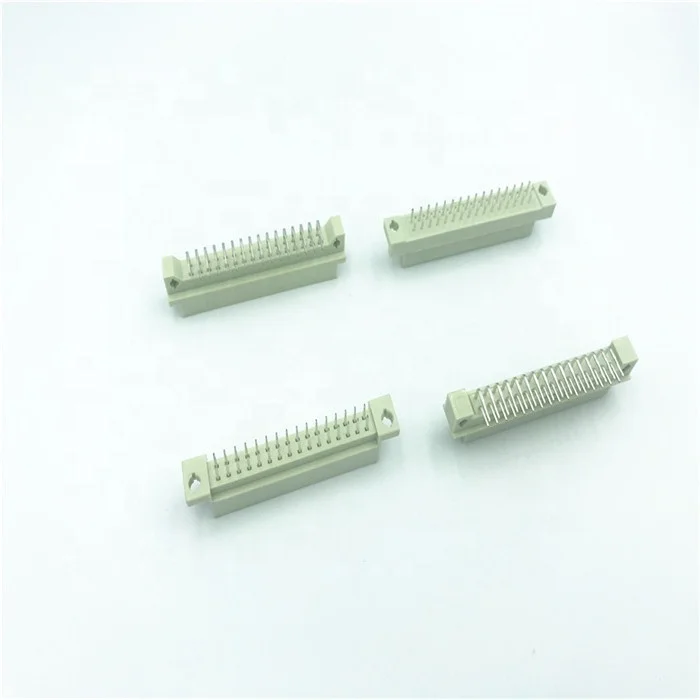

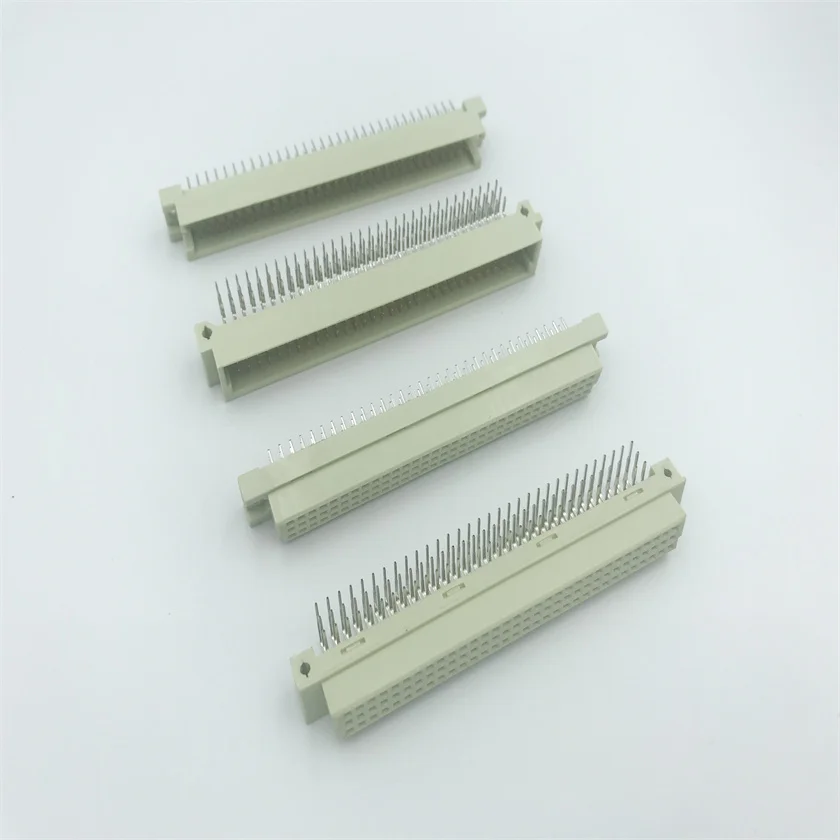

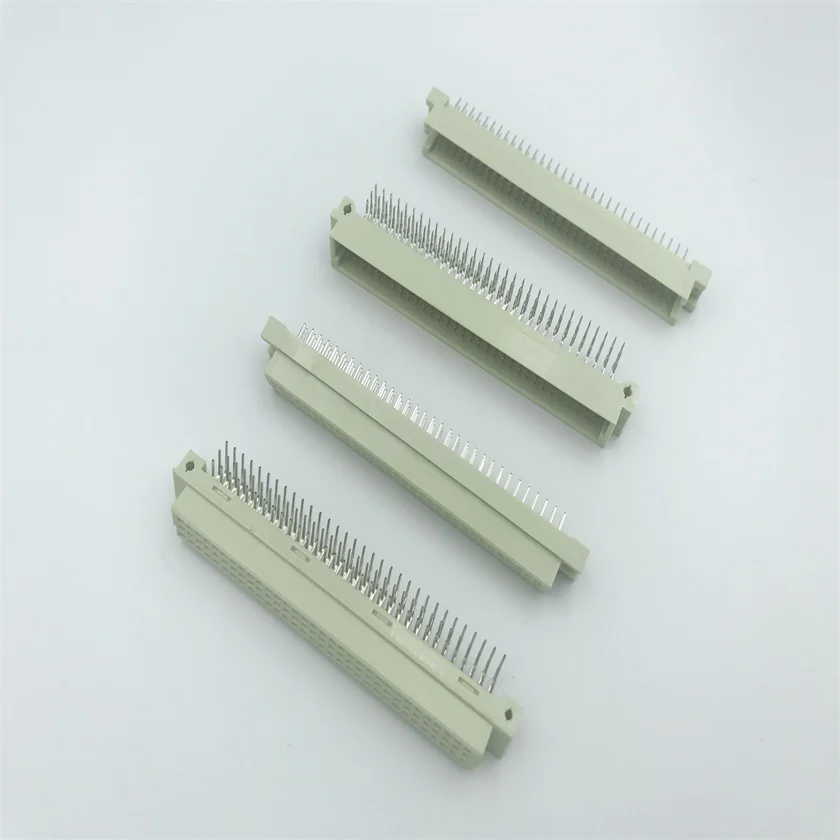

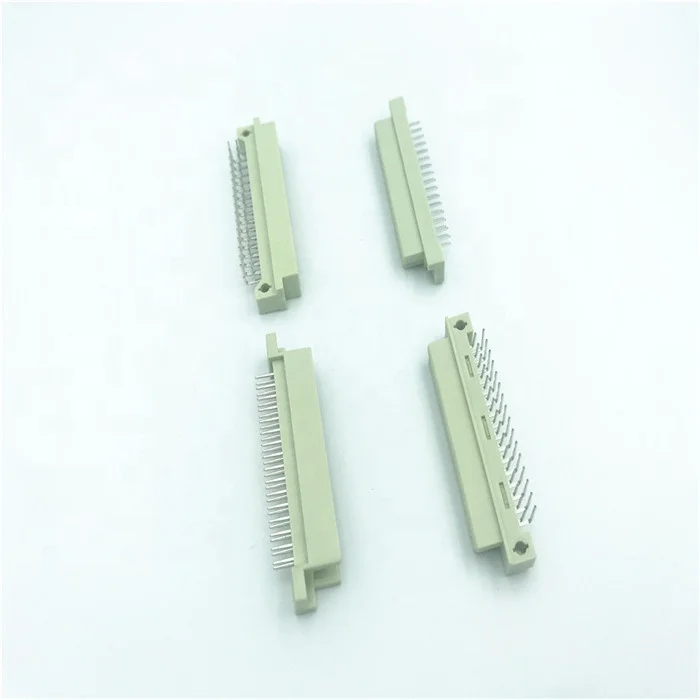

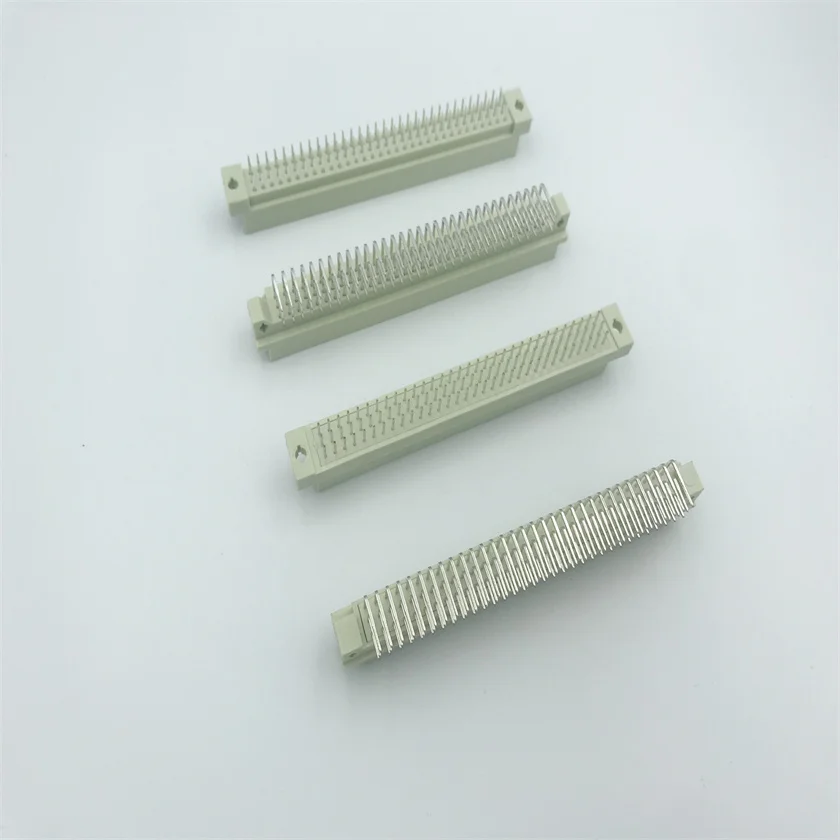

2.54mm 3*32P DIN 41612 connector EUROPEAN CONNECTOR 364 3 rows female straight and male right angle type

Product Overview

Description





 DIN connector



We are manufacture of:



Pin header,female header,terminal blocks,box header(DC3),

shrouded header  (DC2),zif socket,edge card connector, sip ic socket,dip strip adapter,strip connector,LED display signal pin,

ic socket,dip ic socket,machine pin header ic,idc socket,dip plug connector,s-lot,din type,mini jumper,scsi connector,d-sub connector,centronic connector, grey flat cable,multi colour flat cable,dip switch,PLCC,dust  cover,

micro jack connector,pcb jack,bread board,digital pantel meter enclosure,etc.









DIN TYPE 3 row
Material:
Insulator:	Glass-filled thermoplastic PBT UL94V-0 rate.
Contacts:	Male-Brass/Female-Phosphor Bronze.
Plating:	full gold or selected gold in mating area
	100u''min.tin-lead on termination area
	with entire contact under-plated 50u''min.Nicket.
Electrical:
Contact Resistance:	30 milliohms Max at 1 AMP DC.
Insulator Resistance:	1000 magohms at 500 VDC.
Dielectric Withstanding Voltage:	1000VAC/rms 60 Hz For 1 miniute.
Current Rating:	2 AMP.
Voltage Rating:	250 VAC/rms 60 Hz.
