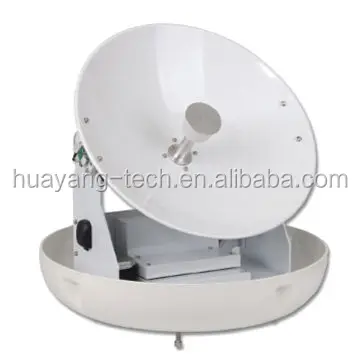

Морская спутниковая ТВ-антенна 33 см

General Description

The dependable EMA-V320/V320L auto tracking marine satellite TV system  enable high quality satellite TV watching onboard in all conditions.

Features

•Worldwide satellites database;quick lock signal with built-in GPS

•Automatic identifier with a superior satellite tracking performance

•High-performance antenna supported by a high precision gyro with 3-Axis movement.

•Offsets shocks and waves at high speed traveling for any marine vessel

•Easy installation and operation

•Weather proofed

Application Supports

Dish Diameter :

33cm/13 inch

Dimension :

420mm(H) x 410mm(D)

Weight :

5kg/11lbs

Minimum EIRP:

50dBW

Reception frequency :

Ku-band(10.7~12.75GHz)

Local Frequency:

10750,11300,9750/10600MHz(Option)

Power Requirement :

AC 100V-240V/1.5A

Operating Voltage :

DC 24V

Environment Humidity

0~95%

Static Power Consumption:

12W

Elevation Range:

0°~90°

Temperature:

-30℃~70℃

Ship’s Motion:

Roll±25°,Pitch±15°,Yaw±8°@6 sec period

Azimuth Range :

0°~690°

Turning Rate :

More than 90°/sec

RF Output :

Dual/Quad

Water Ingress :

IP56

ACU Dimensions(WxDxH) :

179 x 140 x 54mm

Polarization :

Linear or Circular
