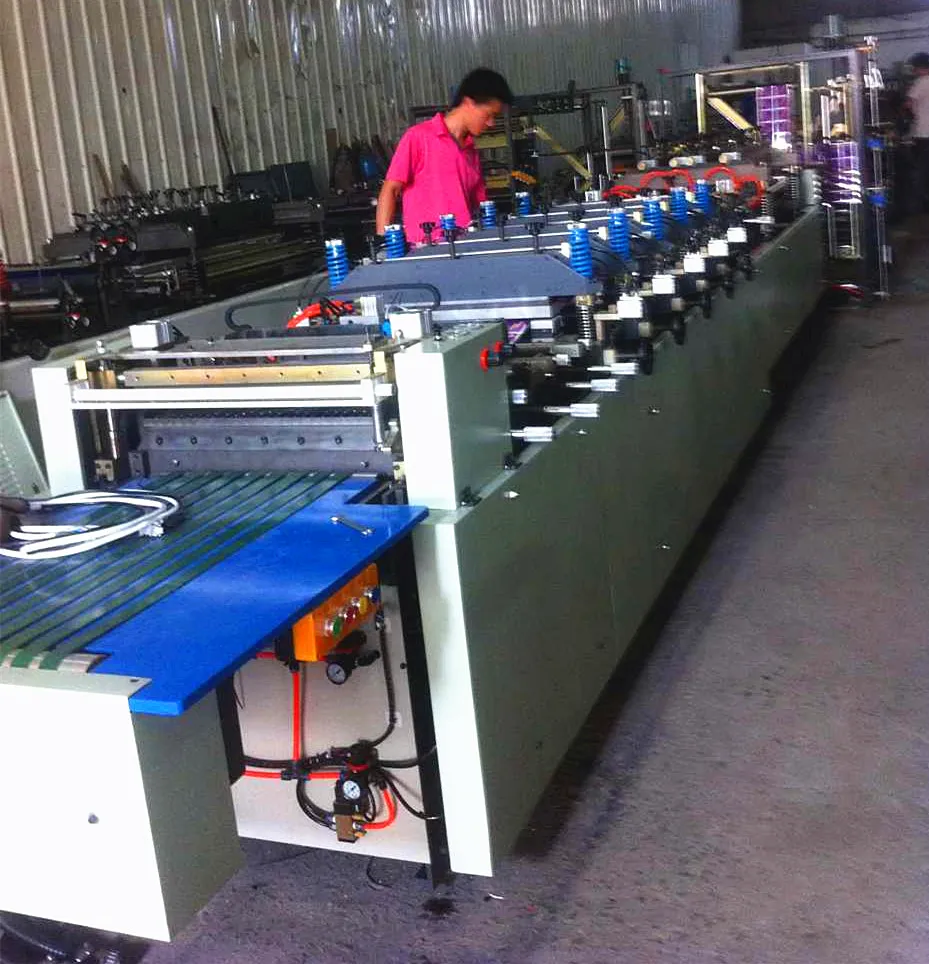

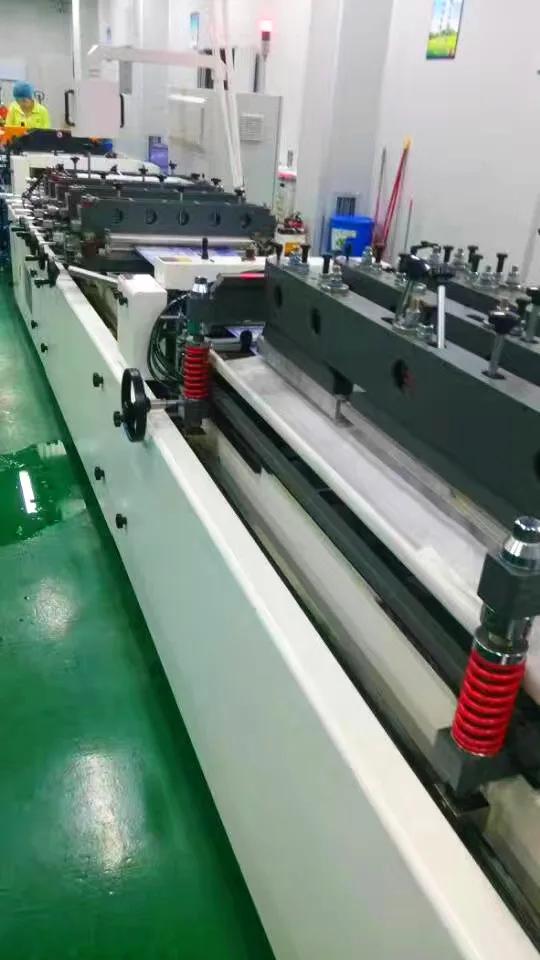

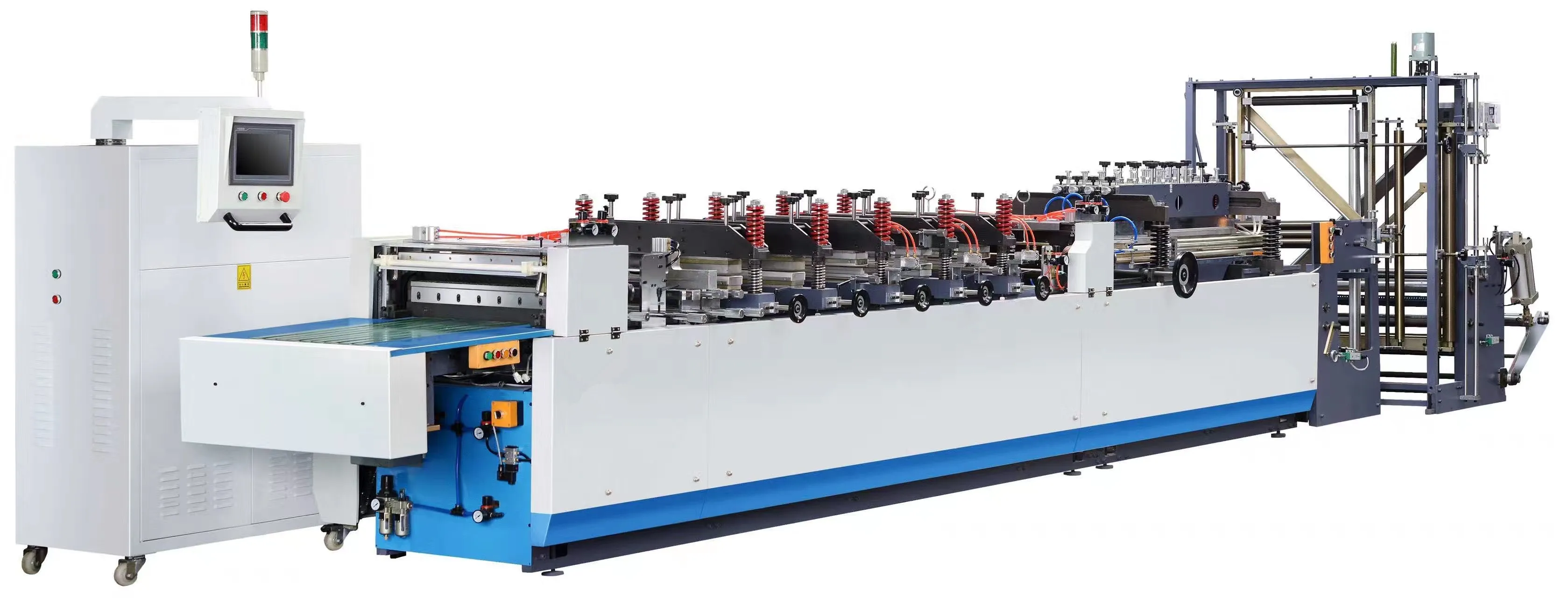

Three Side Sealing Stand up Bag, Zipper Bag Making Machine/ Model Bag

Product Overview

Description

Model No. FBD-A 400/550/600

H.S.No. 8422303090

THREE-SIDE SEALING. STAND-UP BAG, ZIPPER

BAG MAKING MACHINE





General description



1. This machine is suitable for three-side sealing , medium-sealing, fork sealing bag ,standing bag as well as embossing button etc .to produce.


2. Material Loading hem rack discharge material by double-photoelectric tracking, DC decelerating oven, transmission sensor, its main character is making discharging more stable.


3. Master delivery system: it adopts Japan Panasonic vector frequency to control decelerating motor.


4. out device of machinery transmission system and outside transmission, featuring easy to repair; fixing the pressure by increasing it; much steadier in working.


5. It adopts pneumatic tension, which is convenience of adjusting.


6. NO.10 temp-controller adopts industrial central computerized control, error ± 1^oC


7. Traction adopts pressure pattern with widthwise single control. It features in material charging wouldn’t run out of track to steady material loading.


8. Cutting blade adopts pneumatic scissoring ,which is easy to fix and adjust


9. Double ironing, double sending can reach 6 times sending in order to process extra-long bag.











  Main technical data

Type Parameter	FBD-400A	FBD-550A	FBD-600A
Speed of bag- making	400mm	550mm	600mm
Width of bag-making	700mm	700mm	700mm
Length of bag-making	30-180/min	30-180/min	30-180m/min
Width of sealing	60mm	60mm	70mm
Reel-releasing diameter	600mm	600mm	700mm
Overall dimensions	8000×1300×1650mm	8000×1400×1750mm	8000×1600×1950mm
Total power	36kw	35kw	45kw
Weight	3500kg	4000kg	5000kg





NOTE: Do no inform if the parameter changes



 Equipment

1. the reel releasing system …………………………………………………………1 set


2. photoelectric deviation device…………………………………………………….1set


3. hem-letting device………………………………………………………………….1set


4. opposite side………………………………………………………………………..1set

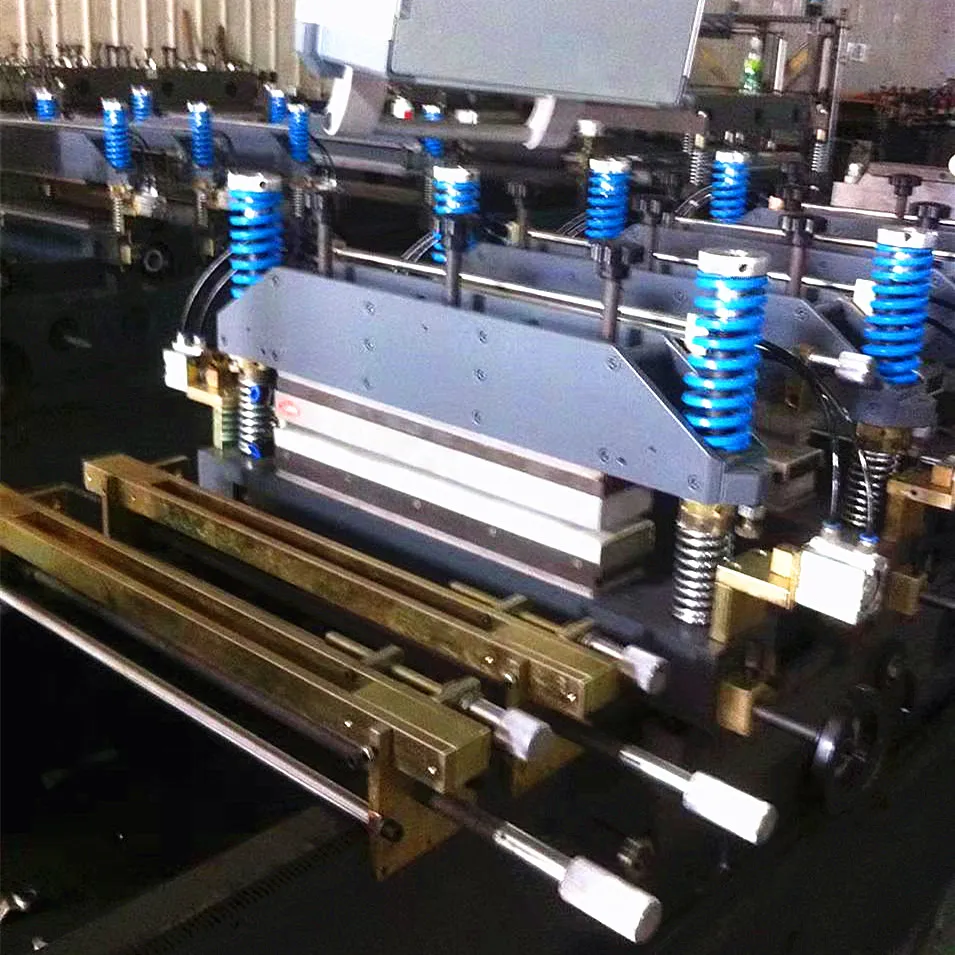

5. side-sealing …………………………………………………………………….5 groups


6.  side-cooling …………………………………………………………………..5 groups


7. fork-sealing equipment……………………………………………………………..1 set


8. medium-sealing equipment…………………………………………………………1 set


9. floating tension system ……………………………………………………………..1 set


10. overall size……………………………………………………………………...2 groups


11. segment cutting ………………………………………………………………...3 groups


12. cool segment………………………………………………………………………...1 set


13. pinhole device……………………………………………………………………...2 sets


14. electronic-photo …………………………………………………………………....1 set


15. cutting frame of V shape…………………………………………………………....1set


16. exhausting treatment system………………………………………………………...1set


17. double sending device ……………………………………………………………...1 set


18. magic eye deviation device……………………………………………………….1 piece


19. computer controlled device……………………………………………………...1 piece


20. serve motor ……………………………………………………………………..2 pieces

spare parts

1)      Hex-key wrench……………………………………………………………………1 set

2)      Universal spanner………………………………………………………………..1 piece

3)      Screwdriver (“+” and “-”)……………………………………………....1 each

4)      High-thermo cloth………………………………………………………………2 meters

5)      Open-end wrench…………………………………………………….....................1 set

6)      High-thermo fur(750×60×3)…………………………………………………..1 piece

7)      tube (Φ 8,Φ10)………………………………………………………3 meters each

8)      Pneumatic adjusting valve……………………………………………………….1 piece

9)      Packing list……………………………………………………………………….1 piece

10)   Instruction………………………………………………………………………..1 piece





Any requirements on actual equipment, please contact us for the actual offer.
