PL B текстильный станок закручивающий (браковочная машина для трикотажного полотна, ткань браковочная машина

Product Overview

Description

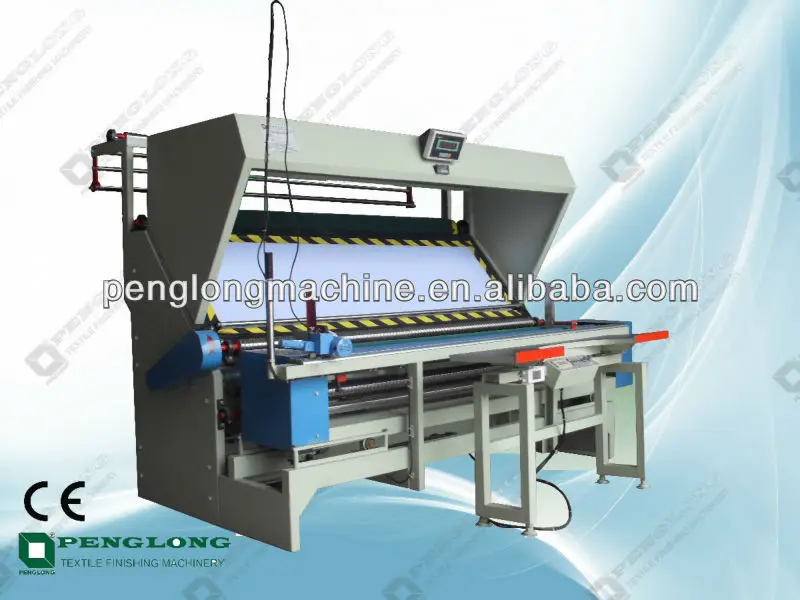

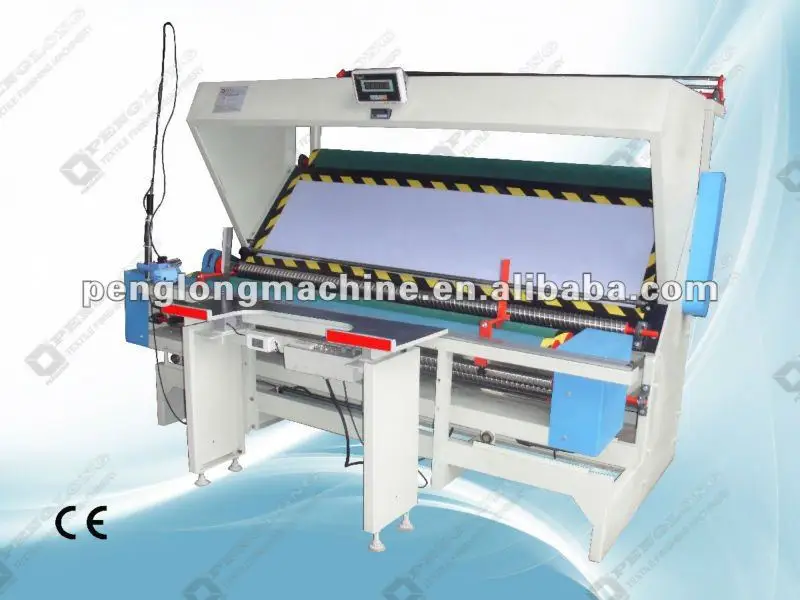

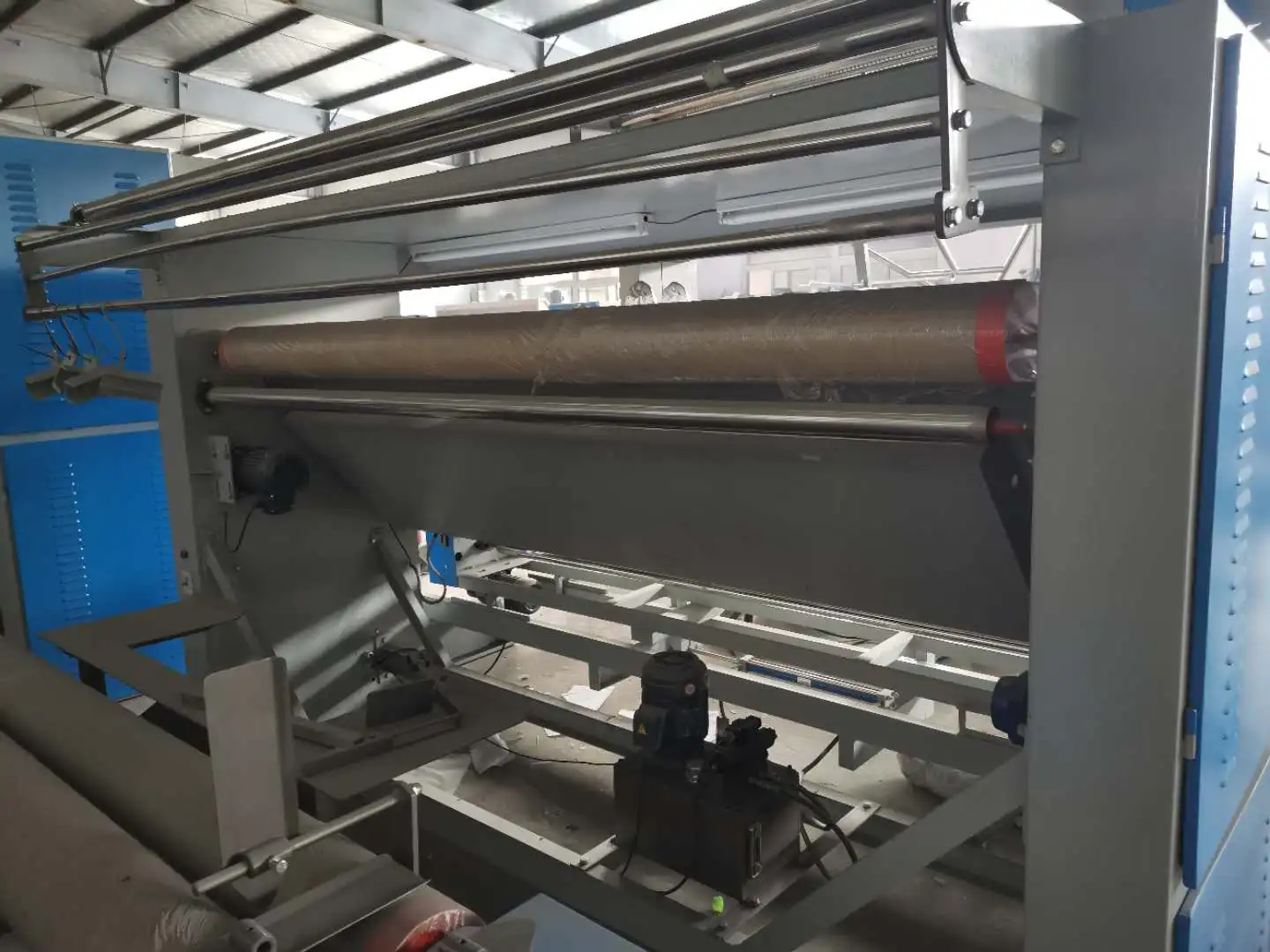

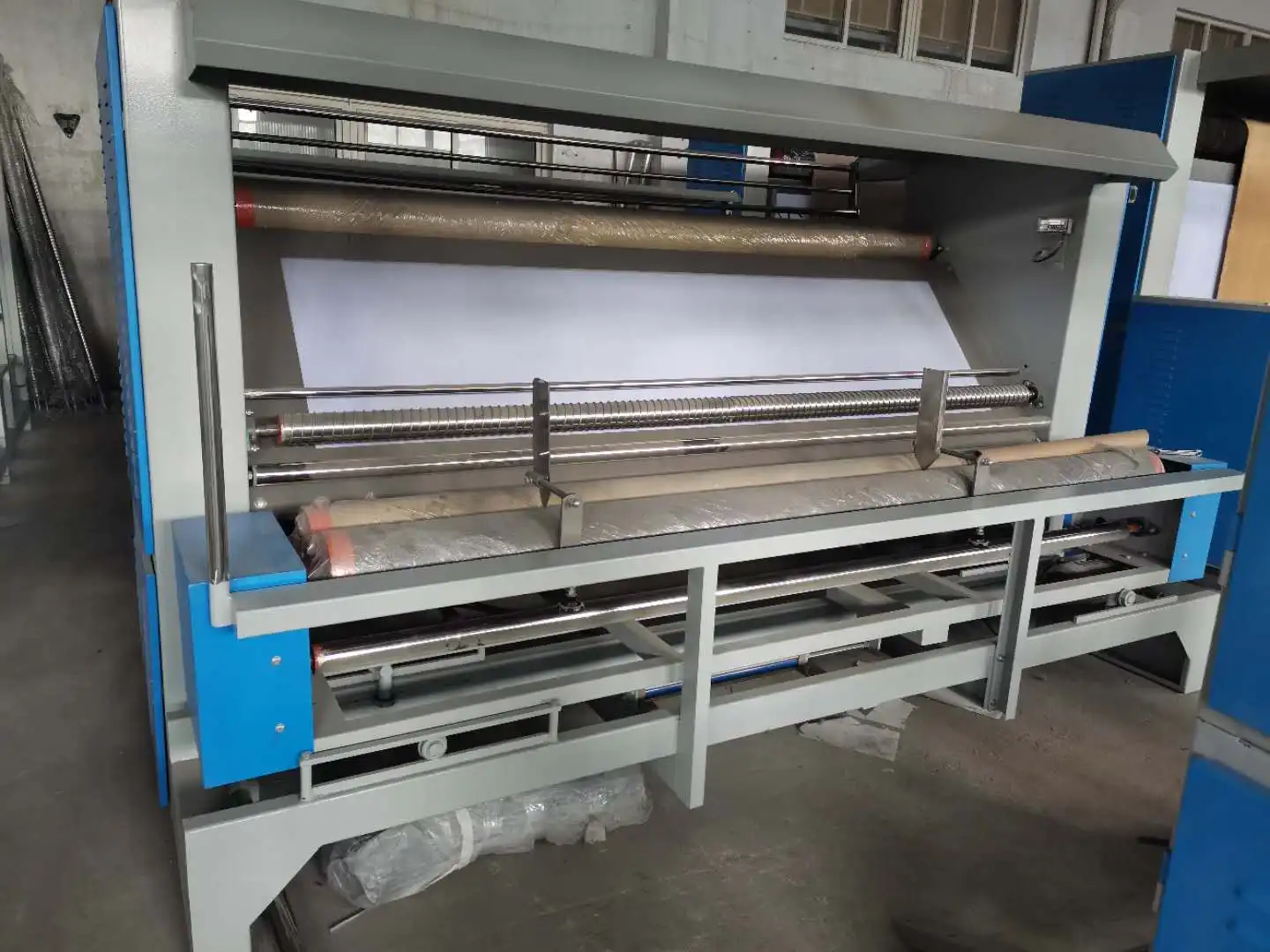

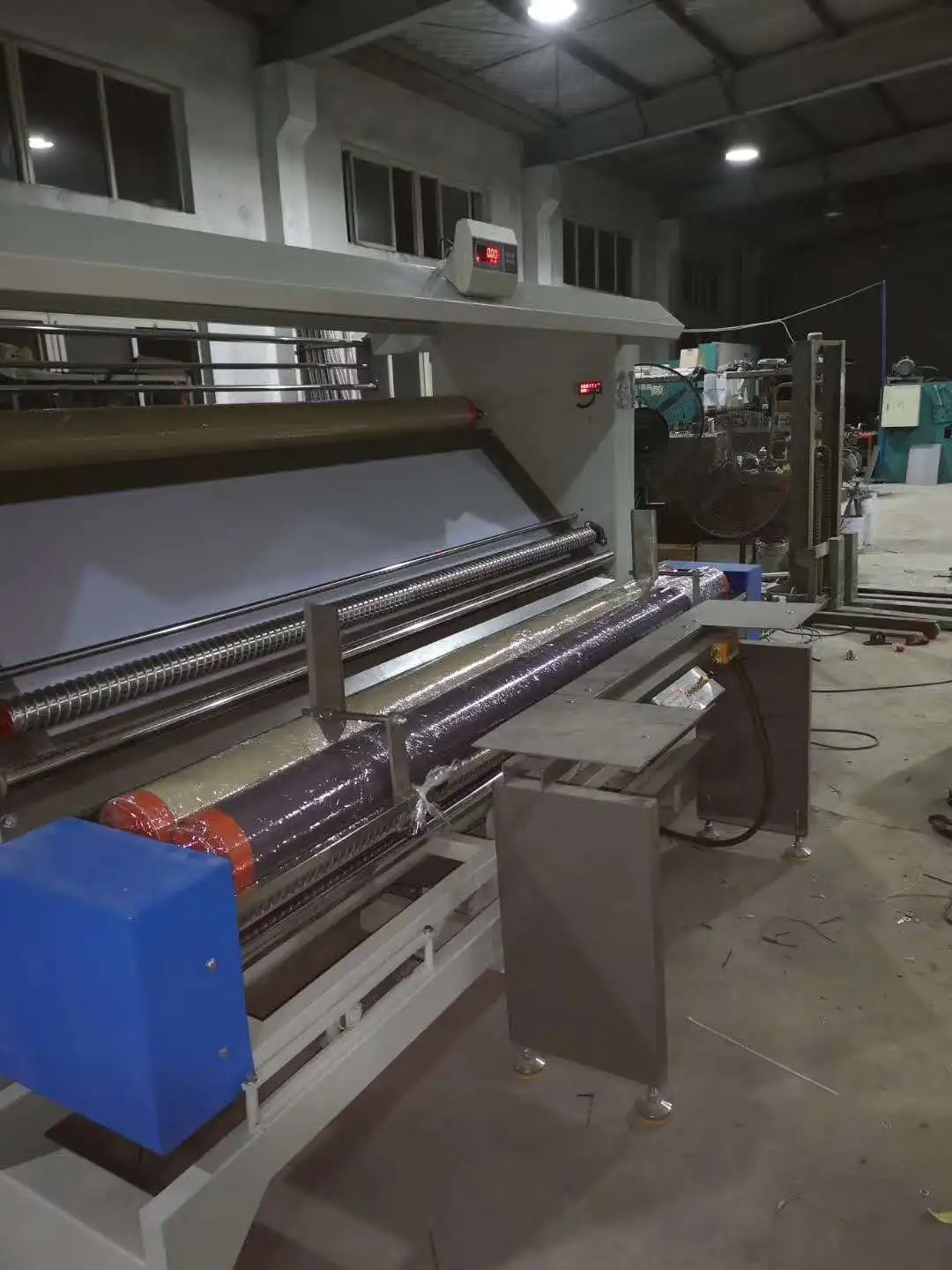

PL-B Textile Rolling Machine,Fabric Inspection Machine for Printing and Dyeing Factory

PL-B Fabric Roll Checking Machine for knitting and woven fabrics  , Fabric inspection machine, textile machine, fabric winding machine, fabric rolling machine





Specification:

1. PL-B Textile Rolling Machine,Fabric Inspection Machine,Tatting Fabric Inspecting Machine

2.spreading rollers eliminiating curled edge.

3.speed could be adjusted.

4.CE certificated





Usage:

This type of  PL-B Textile Rolling Machine,Fabric Inspection Machine, Tatting Fabric Inspecting Machine is specially designed for inspecting all kinds of cotton, knitted fabrics,woven ,printed, tricot fabrics, etc.

There're two feeding ways: 1. roll to roll 2.pile to roll , for your choice.



Technical Parameters:

1 Max Fabric Width	2000mm~3600mm
2 Diameter of Fabric Roll	600mm
3 Max Speed	80m/min
4 Main Motor	1HP×3
5 Edge-aligning Tolerance	±3mm
6 Dimension	2150mm(L)*2300mm(W)*2500mm(H)



Characteristics:

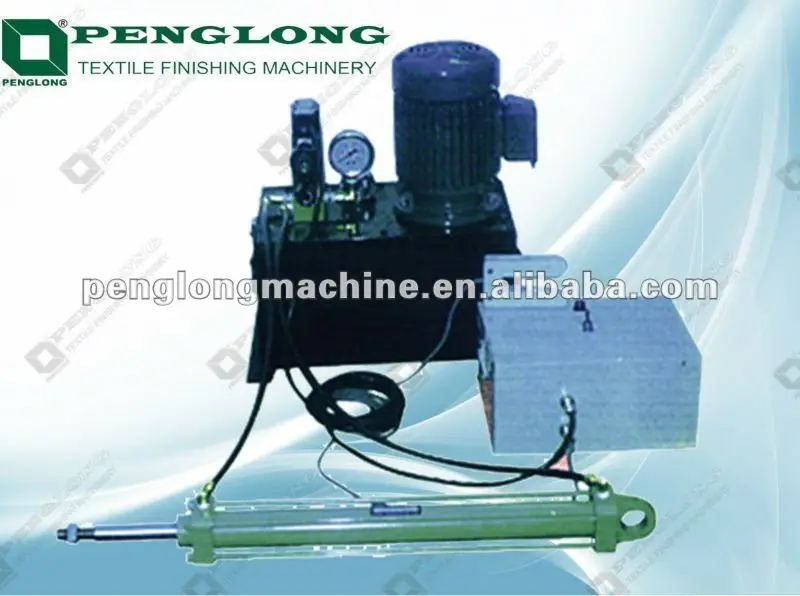

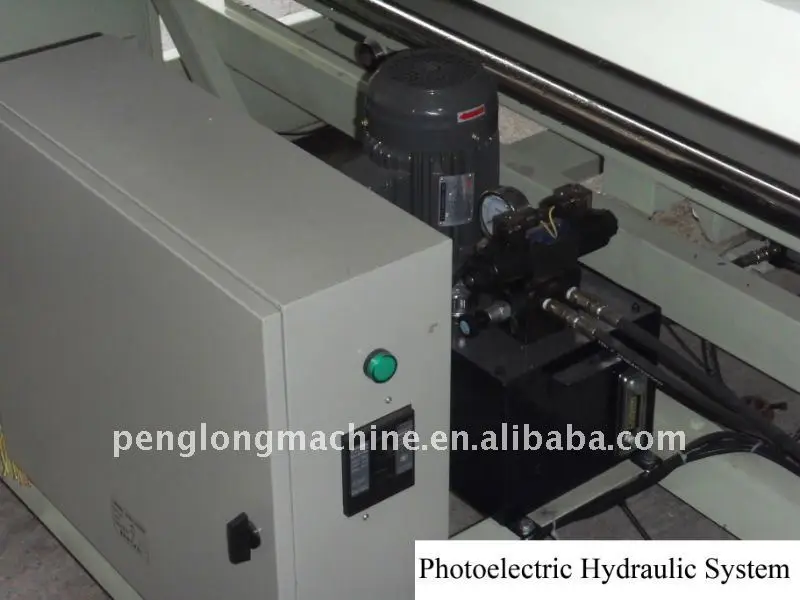

1.Photoelectric hydraulic edge-alignment system made in Taiwan is adopted in this PL-B Fabric Inspection and Winding Machine,weighing device&cutting function

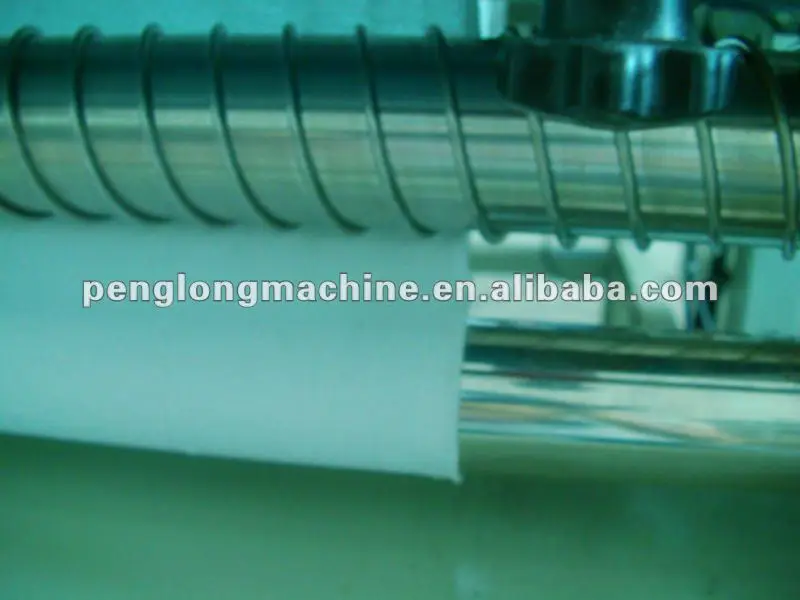

2. Equipped with expanding rollers to eliminate curled edge and avoid crease on fabrics.

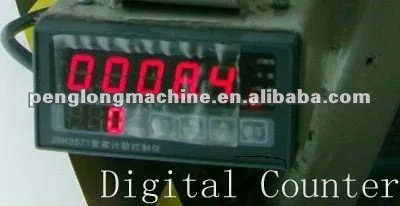

3. Length counter could make accurate measurement of length in yards or in meters which can be interchanged.



4.Winding roller and feeding roller are driven by gear motor made in Taiwan.

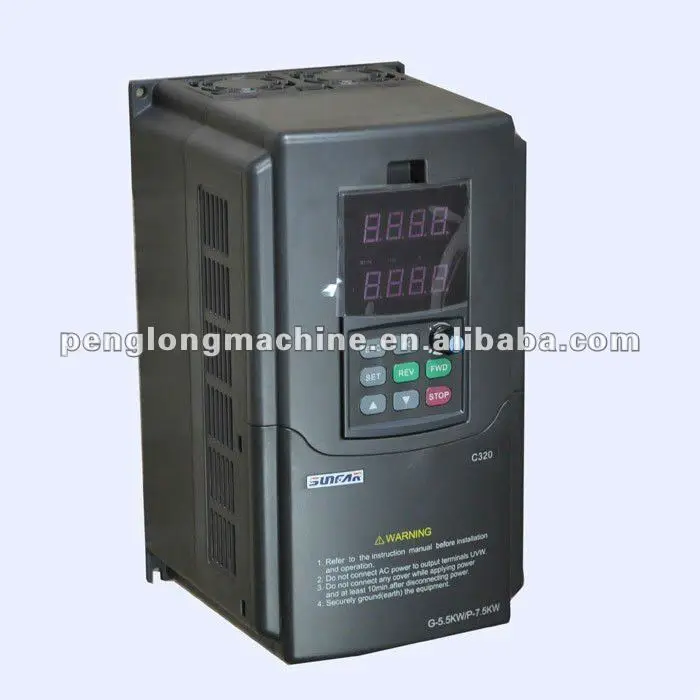

5.Fabric tension is adjusted by inverters.



6.Inspection board is made of milky color acrylic.

7.Imported special foamed roller could roll up weft knitted plush and short floss without sliding movement and untidy edge.

8.Fabric rollers are neither too tight nor too loose.

9.Stability in start, forward and reversible running and stepless speed change.

10.Cutting device is optional on this  Fabric Roll Checking Machine for knitting and woven fabrics.



11.CE approved.



Three ways of package for choice:



1. Bubble Wrapping--For Free



2. Wooden Pallet--Addtional Charge of USD250



3. Wooden Case--Additional Charge of USD500



Engineers are available to service machinery overseas.



Changshu Penglong Machinery CO., Ltd has been founded in 2000.We are specially making and designing any kinds of fabric finishing machine according to customers' different requirements.

Our machines have been exported to Australia,Agrentina,South Africa,Ukrain,Uruguay,Portland,Brazil,El Salvador,Vietnam,Thanland,France,Bangladesh,Ethiopia,Iran,Iraq,Saudi Arabia,Sri Lanka and so on.

We are never stopping developing and improving our products and service before or after these years.Hope our rich experience in fabric finishing machine and our sincerity would offer your company help and satisfied you.

PS:
Main Conventional Products:
1.Fabric inpection machine series :
We have many different types.Some will aim to all kinds of woven fabric,knitted fabric or both.Some will aim to big fabric rolls,small rolls or both.Some aim to different fabric feeding,output or both.Also you can add some other special requirements.As you like.Model:PL-B,PL-B1,PL-B2,PL-A1,PL-A2,PL-N,PL-D,PL-D2,PL-F130,PL-G150,PL-G606,PL-C.

2.Fabric Plaiting Machine Series:
We have several types of this machine which are specially designed.Model :PL-E1,PL-E2,PL-E3,PL-E4.PL-800

3.Fabric Opening Machine Series:
These machines are used to slit/open tubualr fabrics.Such as roper opener ,PL-C Fabric slitting and inspection machine,Vertical High Speed Tubular Slitting Machine

4.Other Finishing Machine Series:
Fabric Edge Sewing Machine,Fabric folding Machine,Packing Machine,Shearing Machine,Raising Machine,Softening Machine,pl-2000 Automatic Centering Machine.

5.Other Machine Series:
Industrial Drying Tumbler Series,Auto-inverter Centrifugal Hydro Extractor,Swatch Cutter,Motors,Inverters,Hydraulic Parts and spare parts.





Welcome to enquiry about our  PL-B Textile Rolling Machine,Fabric Inspection Machine,Tatting Fabric Inspecting Machine !
