12 inch touch screen monitor rugged steel chassis HD video input Raspberry Pi supported
- Category: >>>
- Supplier: Shenzhen ITD Display Equipment Co. Ltd.
Share on (1684490379):
Product Overview
Description
12 inch touch screen monitor rugged steel chassis HD video input Raspberry Pi supported
Product Description
ITD industrial monitor LCD displays are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design. ITD industrial display monitors provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. ITD industrial IP65/ NEMA 4 touch display monitors are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. ITD full-range selection is provided in screen sizes from 5” to 82”.
Features
1.Long lasting product cycle for continuity thru all phases of project rollouts and servicing
2. Exceptional quality and highly engineered industrial monitors
3.Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc
4.All steel construction designed for harsh and industrial environments
5.Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis
6.Meets NEMA 4/4x/12 and IP65 standards
7.Multiple mounting options (75*100mm VESA mount and clamps mounting)
8.Accuracy in high-use applications
9.Supports Windows, Linux OS, Android, Mac OS, etc
10.CE, FCC, RoHS, ISO9001:2008 compliance.
11.VGA, DVI, AV, S-Video, BNC etc multiple inputs/outputs optional
12. Wide operating temperature from -20 to 80 degrees optional and suppports 7/24 running
Specification
LCD Panel | |
Model Name | ITD12CMT101 |
Screen Size (diagonal) | 12.1" |
Display Resolution (pixels) | 800x600 |
Active Display Area (mm) | 245.76(H) x 184.32(V) |
Pixel Pitch(mm) | 0.240 |
Brightness (cd/m2) | 400 (typ.) |
Contrast Ratio | 700:1 (typ.) |
Viewing Angles | 80/80/70/70 |
Backlight Lifetime | 50000 |
Touch Screen | |
Type | Resistive/IR/PCAP |
Touch Connectors | USB or RS232 |
Interface | |
Signal Connector | VGA, DVI |
Optional Interface | DVI / AV |
Power | |
Power Source | DC 2.0 12V AC 100~240 V,Universal,10% |
Power Consumption | 20W |
Mechanical | |
Material | Steel housing |
Mounting | VESA or Embedded |
Certifications | |
Compliance | Meet CE,ROHS,FCC,CCC |
Order Information | |
ITD12CMT101 | 12.1"industrial chassis monitor with touch |
ITD12CMN101 | 12.1"industrial chassis monitor no touch |
Products Display

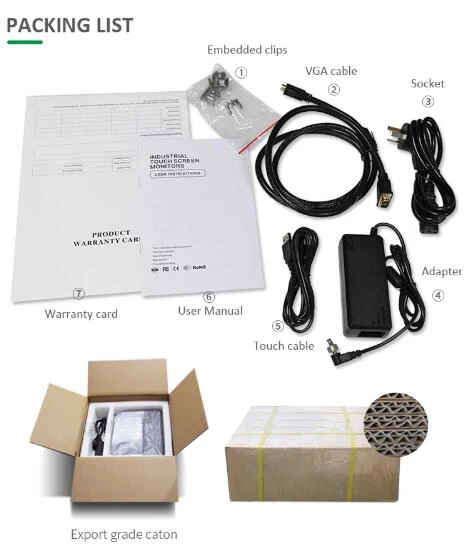

Packaging & Shipping
Our Services
All ITD products come standard with a 2-year comprehensive warranty. Additionally, our extended warranty service, offered up to 3 years, provide extra peace of mind that any problem will be solved quickly and effectively. ITD also offers tailored service contracts to meet our partners’ specific needs.
With service and support centers in Hong Kong, China mainland, Europe, we are able to respond quickly and efficiently to ensure uninterrupted productivity for our customers. We are committed to speedy turnaround times on repairs and service needs.
- DOA Service (Dead On Arrival):
To run DOA within 1 month after shipment. Goods are guaranteed to exchange when it is returned.
New product operation would be completed within 5-20 working days. Round trip shipping costs are paid by ITD. The following failures are allowed to be serviced by DOA:
A: The image cannot display normally.
B: It cannot be powered on.
C: The internal functions of monitors are out of work.
- RMA Service (Return Merchandise Authorization):
To run RMA within 24 months after shipment (TFT LCD panels come with 12months' warranty). Maintenance time lasts from 5 to 20 working days according to the difficulty and specific situation. Returning shipping cost after maintenance is paid by ITD.
Company Information
ITD is a worldwide leading industrial touch display equipment’s solutions provider with an after-service center in Netherlands combining researching, developing, manufacturing, marketing & service with an excellence in varied kinds of industrial displays and touchscreen products started from 2005 and later expanded to embedded panel PC, digital signage, rugged stainless steel/aluminum alloy IP65 industrial displays, and ultra-wide stretched bar LCD displays for industries ranging from banking, transportation and logistics, to automation, marine, railway, oil and gas, energy, healthcare, and field service.
