BP 1650 TTMC Bending Machine, Sheet Metal Pan Brake Manual Press Brake with 1270mm width
- Category: Sheet Folding Machine >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (1685389679):
Product Overview
Description
Product Overview

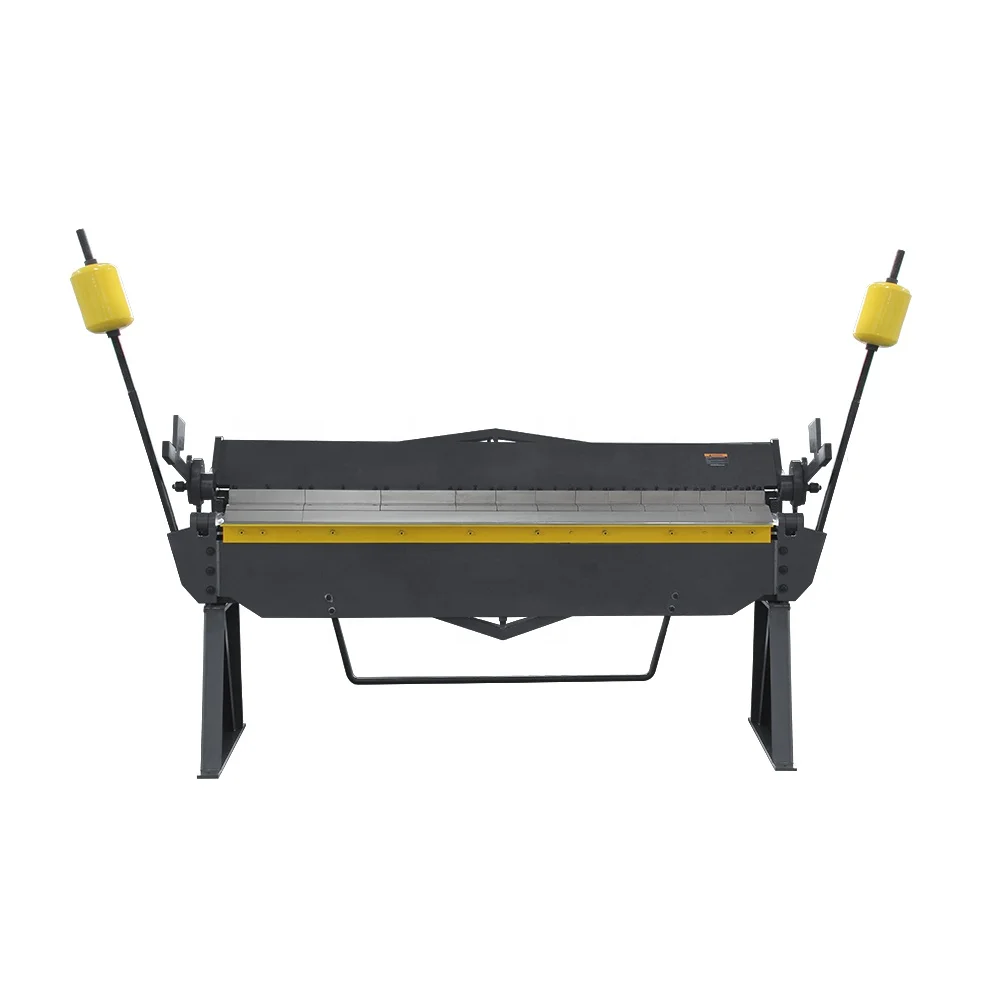

TTMC Pan Box Brake BP-1650
This segment finger box brake max. bending 50", suitable for home use, small workshop, etc.
FEATURES AT A GLANCE
Max. working width up to 1270mm
Bending 1.5mm at the full width
Box depth up to 100mm
Folding angle range from 0-135 degrees
Standard balance hammer and the enlarge handle save a lot of labor
PRODUCT SPECIFICATIONS
TTMC Pan box brake, box depth up to 100mm BP-1650 & BP-1648H
Item NO. | 373030 | 373040 |
Model | BP-1650 | BP-1648H |
Max. bending width | 1270mm / 50" | 1220mm / 48" |
Max. thickness | 1.5mm / 16Ga | 1.5mm / 16Ga |
Max. box depth | 100mm / 4" | 100mm / 4" |
Max. lift of the beam | 32mm / 1-1/4" | 32mm / 1-1/4" |
Beam adjustment | 16mm / 5/8" | 6.5mm / 1/4" |
Angle | 0-135° | 0-135° |
Packing size | 168x59x83 cm | 166x61x72 cm |
N.W./G.W. | 205/255 kg | 237/260 kg |
