Маленькая магнитная головка 4,5 мм

Product Overview

Description

Changzhou FOCAN electronic factory can be produce and provide

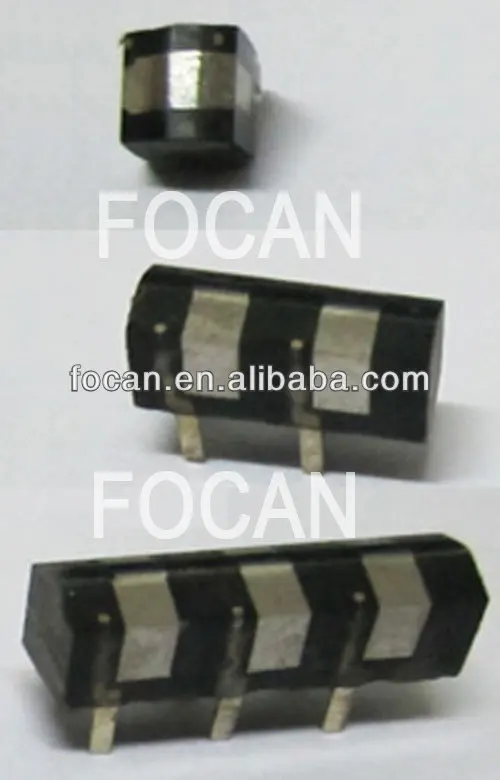

3mm Magnetic Stripe Read Heads compatible with our MSRv007, MSRv008, MSRv009 and MSRv010  MSRv013 readers.
small head;Mini magnetic head;card reader head;magnetic card head

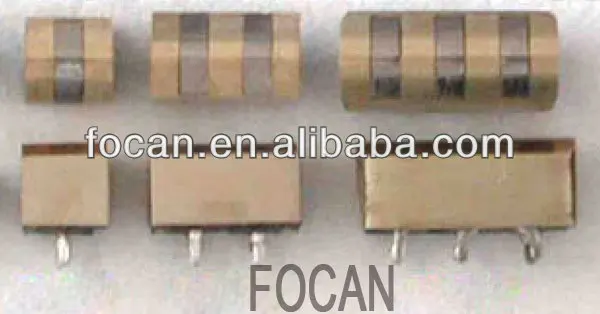

1tracks   4.5 X4.5 X4.5MM
2tracks   4.5 X4.5 X7.8MM
3tracks   4.5 X4.5  X11.8MM



Inductance	mH	55
DC Resitance	ohm	200
Recording Density	BPI	210
Tape Speed	IPS	7.5
Read Output	mVp-p	15min
Insulation	Mohm	20(100v DC)
Track Width	mm	1.5
Size	4.5mm x 4.5mm x4.5/ 7.8/11.8mm
