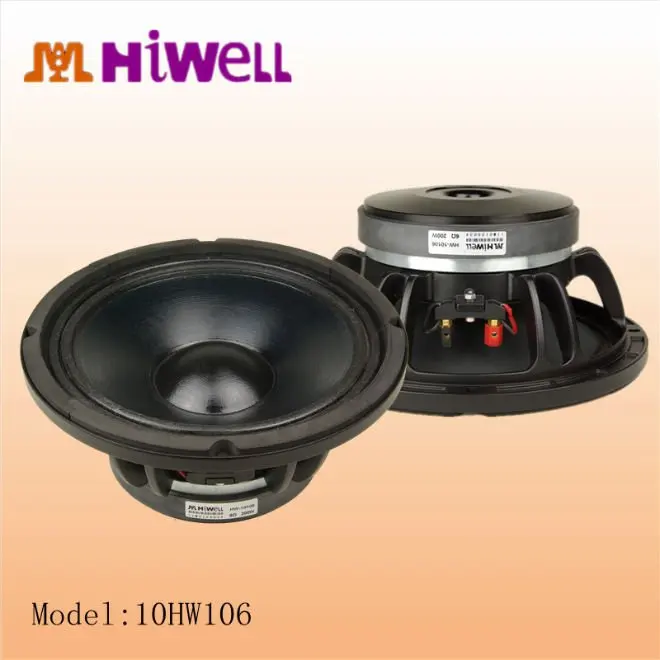

10inch pa woofer for 2 way pro audio system loud speaker

Product Overview

Description

Specifications
Nominal Diameter	262/10	mm/inch
Nominal Impedance	8	Ohm
Minimum Impedance	7.2	Ohm
Power handling
(50-500Hz)
Nominall	200	Watts
Continuous Program	400	Watts

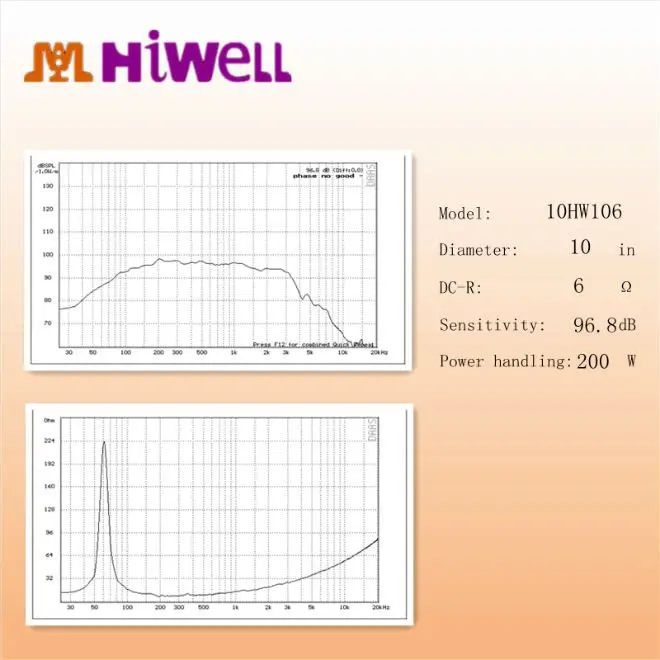

Sensitivity (1W/1m)3	96.8	dB
Frequency Range	63.2-3500	Hz
Voice Coil Diameter	65.5/2.6	mm/inch
Winding Material	Copper	outside
Former Marerial	KSV
Winding Depth	16/0.6	mm/inch
Magnetic Gap Depth	10/0.4	mm/inch
Flux density	1.2	T
Thiele-Small parameters4
Fs	63.3	Hz
Re	6	Ohm
Qes	0.36
Qms	4.96
Qts	0.33
Vas	43.8	liters
η0	2.99	%
X max	3	mm
X var	4	mm
Mms	28.8	gr
BL	13.9	N/A
Le	1.1	mH

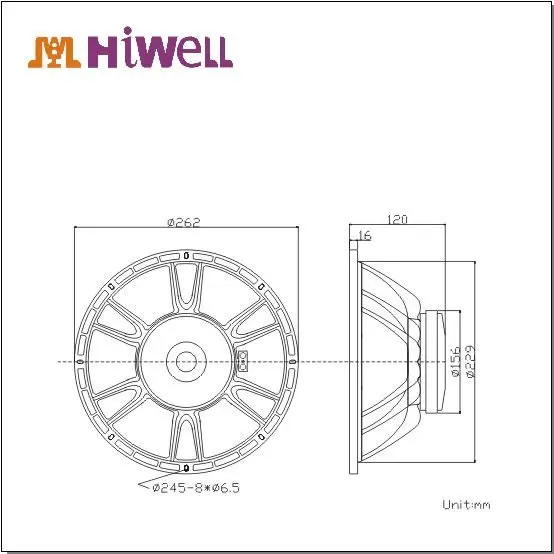

Mounting and Shipping Information
Blot Circle Diameter	245/10	mm/inch
Overall Diameter	262/10	mm/inch
Baffie Cutout Diameter	229/9	mm/inch
Depth	120/5	mm/inch
Flang and Gasket Tickness	16/0.6	mm/inch
Net Weight	4.9	Kg
Shipping Weight	5.3	Kg
Shipping BOX	275×275×140	mm
Magnet Size	156*80*20	mm
