Stainless steel Industrial Pressure thermometer

Product Overview

Description

I. Name: Stainless steel Industrial Bottom Pressure thermometer

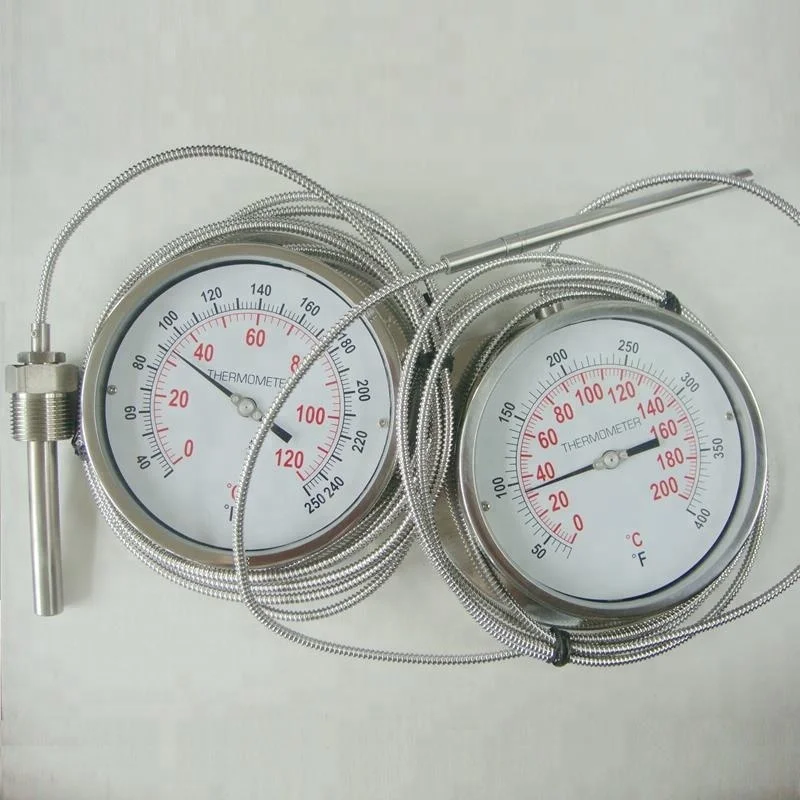

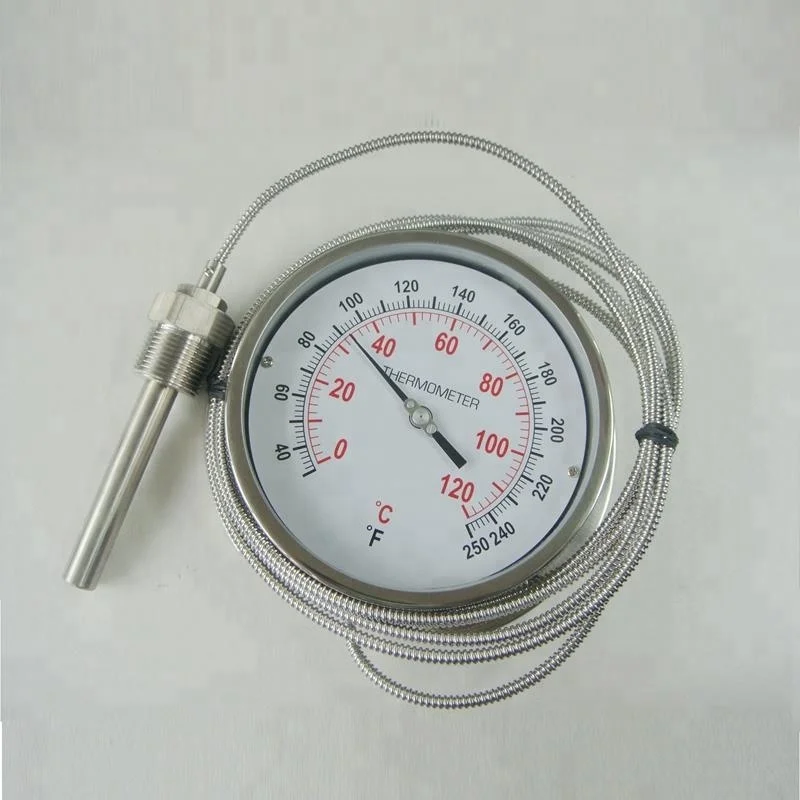

Pressure thermometer are instruments used to measure temperature from a remote source. By means of a capillary tube with a sensing probe at one end and an indicating dial on the other, temperatures can be determined from a source that is up to 30’ (9 m) away.

Remote reading thermometers are filled with either gas or vapour depending on the specification. As temperature changes, the gas or vapour expands/contracts, creating pressure that is measured by a bourdon tube.

.



II.  Capillary thermometer Main technician parameter



1) Diameter: 100mm



2) Material: Stainless steel



3) Window: Glass

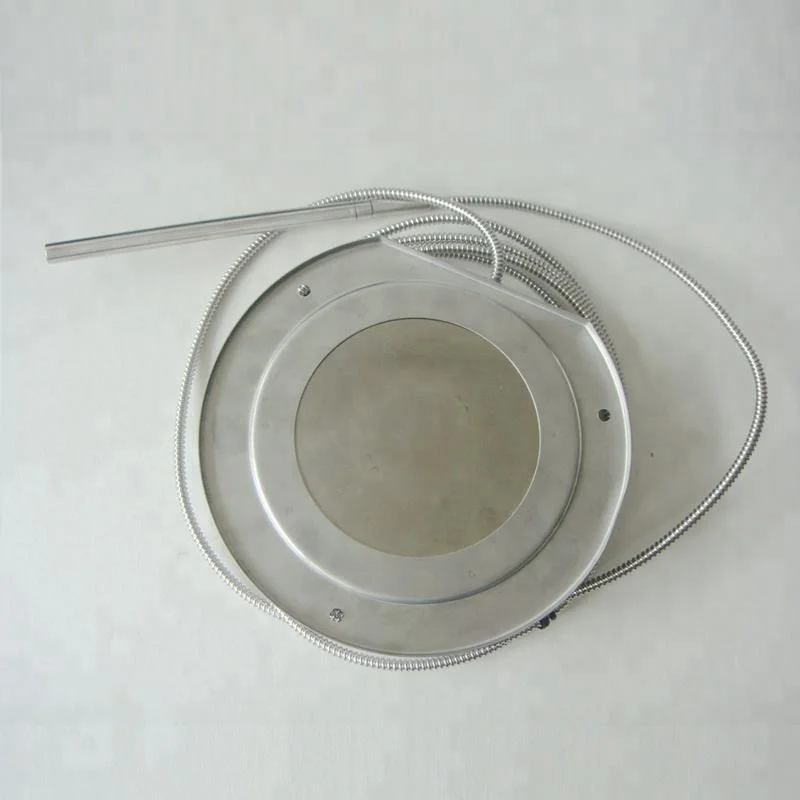

4) Connection: Bottom, back connection



6) Scales: Celsius, Fahrenheit



7) Single or dual scales (dial can be according to clients' specifications)



8) Temperature probe: Dia 14 x 60, 100, 150, 200, 250, 300mm



9) Capillary length: Less 3m



10) Accuracy: 1.5%

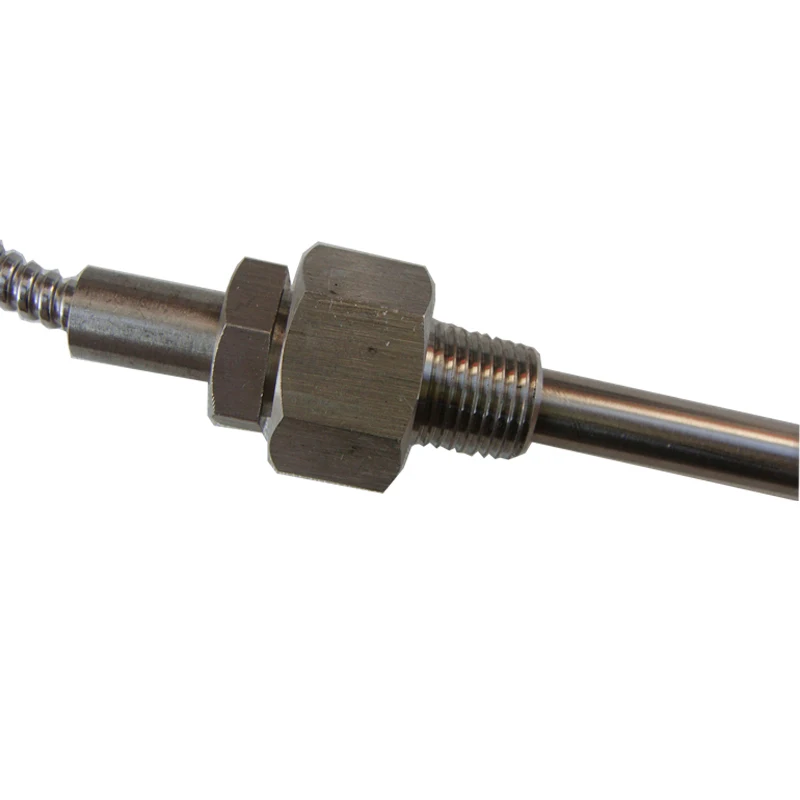

11) Inlet thread: 1/8, 1/4, 1/2, 3/8"



12) BSP, BSPT, NPT or according to customers' specifications



III. Capillary thermometer characteristic





 Pressure thermometer has been widely used in many industries, it is suitable for industry, chemical



industry, electric power, textile for temperature measurement and control of the production process. ,



has the following advantages: high reliability, good stability, long service life.





IV.  Capillary thermometer Main parameter:





measuring range	WTZ-280	-20~60,0~100,20~120,60~160
	WTQ-280	-40~60,0~50,0~120,0~160,0~200,0~250, 0~300,0~400,0~500,0~600
temp.sensing bulb insertion length(mm)	150~280(tail length≤12M)Φ8,Φ10Φ,Φ13,Φ14 stainless steel tube
temp. sensing bulb material	Φ8,Φ10Φ,Φ13,Φ14 steel tubeΦ8,Φ10Φ,Φ13,Φ14 stainless steel tube
capillary material	brass capillaryplastic coated capillarystainless steel capillary
installation	WTZ-280	M27×2 movable male screw	material: brass, iron, stainless steel
	WTQ-280	M33×2 movable male screw
tail length	1M~20M>20M special processing
parameter	accuracy:±1.5%,±2.5%,contact capacity:220V/1A(noninductive load 10VA)
mounting hole size	4"-Φ118mm6"-Φ158mm





Name	type	measuring range°C	accuracy	dial diameter(mm)	installation screw
electric contact pressure type thermometer	WTZ-288	-20~+160	1.5 or 2.5	Φ150	M27×2
	WTQ-288	-20~+600			M33×2
