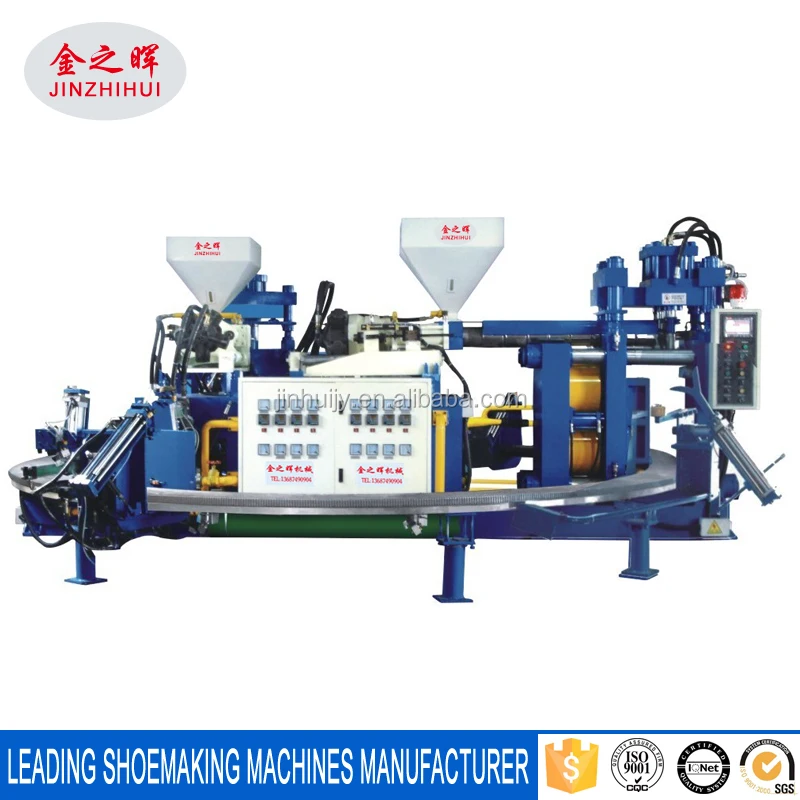

PVC rain boots machine

Product Overview

Description





  PVC Rain Boots Machine , PVC Gum Boots Machine, One/Two/Three colors Rain Boots Making Machine

Strength:

1.Competitive Price

2.High Clamping Force

3.Simple Structure

4.Ensure Quality

Specification

1.This machine is specialized in producing PVC rain boots, seeding boots ,short-height boots, children boots and adults boots and so on.

2.Manipulator adopts stepper motor; the drive system has been updated. It can save labour and improve productivity.

3.This machine has servo system for customer to choose; the oil-cooling servo motor can maintain oil temperature and lengthen service life of the machine. Servo system can save electricity and energy. Under normal circumstances, Servo system can save 20%-50%.

4. Equipped with digital  proportional controller to control mould-clamping, injection and feeding pressures at the right tme and more precise.

5.More details please feel free to contact me



Technical Parameter



Item	Unit	Measurement
Raw material	kind	PVC
Max shot capacity	cm3	1130 and 475
Rated injection pressure	mpa	8 and 6
Heater capacity	kw	10 and 7
Temperature control section number	point	4*2
Turning speed of bolt	r.p.m	0-200
Diameter of bolt	mm	80 and 55
Motor power	kw	22 and 11
Mould clamping force	kn	3000 and 800
Workstation	pcs	12and 16
Max mould size	mm	400*200*680
Machine size	mm	5200*5000*2380
Gross weigth	kg	About 19000





Certification

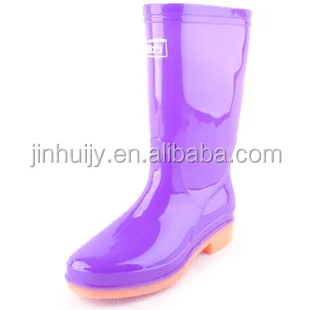

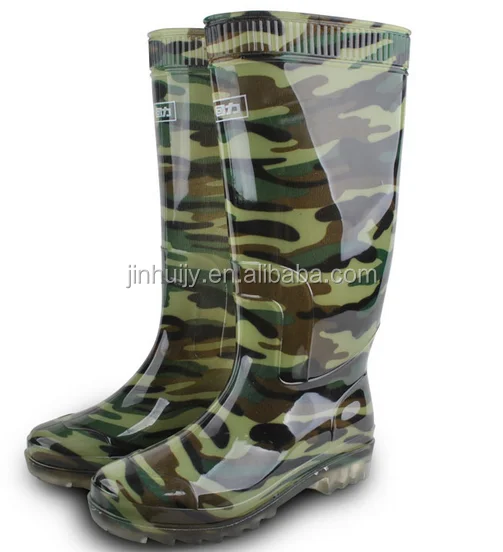

Boots sample
