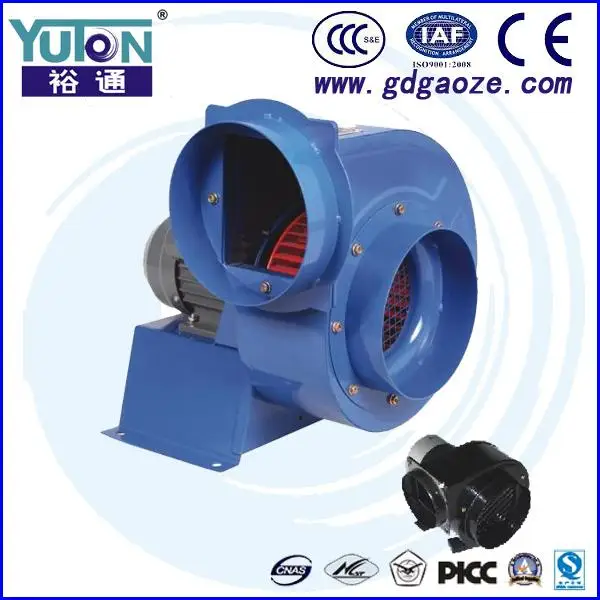

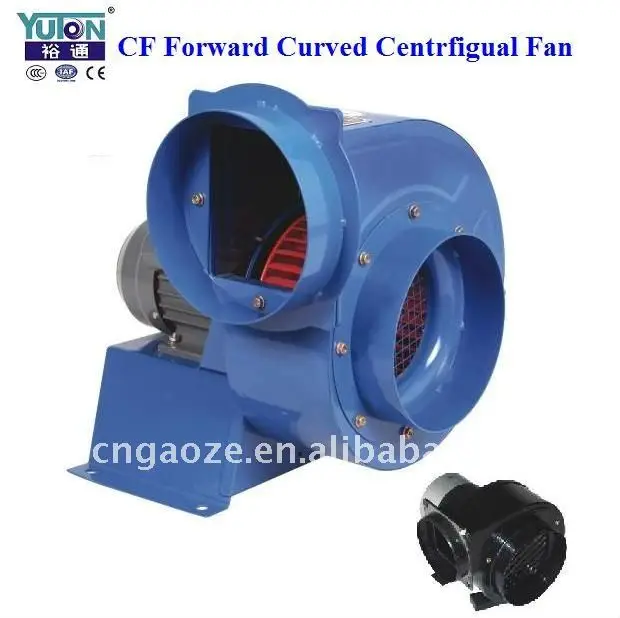

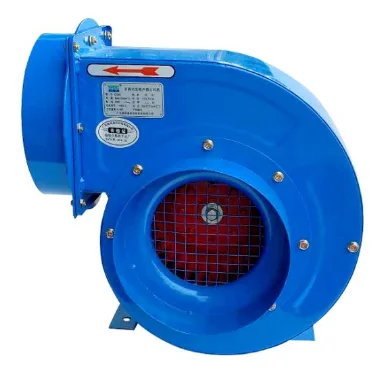

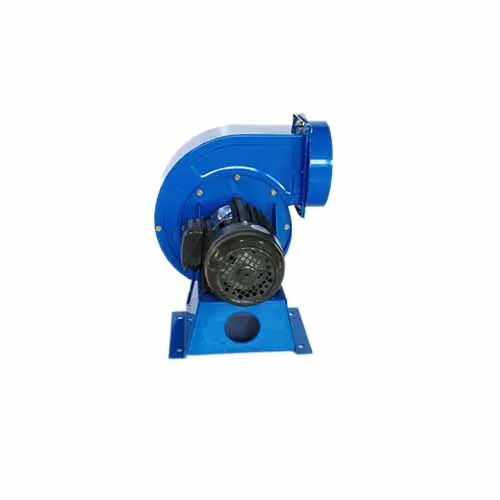

Yuton CF series Centrifugal multi blade sirocco squirrel cage Mining Ventilation fume aspirator draft cooling circulation fan
- Category: >>>
- Supplier: Guangdong Gaoze Ventilation Equipment Co. Ltd.
Share on (1690130744):
Product Overview
Description
Headers
Product Description
1. High Quality Mining Ventilation.100% copper Motor
2.Usage:Widely used for ventilation or smoke & lampblack exhausting in factories,mines enterprises,supporting products for equipment,hotel and public house etc.
3. Advantage:energy-saving,high volume,low noise,elegant appearance and enduring.
| Model (No.) | Impeller Diameter | Voltage | Power | Revolution | Air Flow | Pressure | Product Size |
| (V) | (KW) | (rpm) | (m3/h) | Pa | (cm) | ||
| CF150 | 150mm | 220/50Hz | 0.37 | 2800 | 830-1080 | 790-736 | 32X29X30 |
| 380/50Hz | 0.37 | 2800 | 830-1080 | 790-736 | 32X29X36 | ||
| CF200 | 200mm | 220/50Hz | 1.1 | 2800 | 1000-1850 | 650-980 | 42X39X45 |
| 380/50Hz | 1.1 | 2800 | 1000-1850 | 650-980 | 42X39X45 | ||
| 220/50Hz | 0.37 | 1400 | 700-1000 | 165-295 | 42X39X45 | ||
| 380/50Hz | 0.37 | 1400 | 700-1000 | 165-295 | 42X39X45 | ||
| CF250 | 250mm | 220/50Hz | 2.2 | 2800 | 850-2500 | 430-650 | 44X45X52 |
| 380/50Hz | 2.2 | 2800 | 850-2500 | 430-650 | 44X45X52 | ||
| 220/50Hz | 0.75 | 1400 | 850-2000 | 350-400 | 44X45X52 | ||
| 380/50Hz | 0.75 | 1400 | 850-2500 | 350-400 | 44X45X52 | ||
| CF300 | 300mm | 220/50Hz | 1.5 | 1400 | 2600-3600 | 500-750 | 55X55X34 |
| 380/50Hz | 1.5 | 1400 | 2600-3600 | 500-750 | 55X55X34 | ||
| CF350 | 350mm | 220/50Hz | 3 | 1400 | 3500-5000 | 910-1000 | 67X59X72 |
