ESD PCB Magazine Storage Trolley

Product Overview

Description

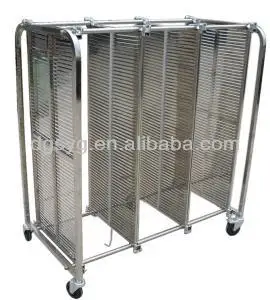

ESD PCB Magazine Storage Trolley

 Overall size: 900*550*1300mm,other size avaliable for selections

PCB Trolley

Surface resistance: 104~106 ohm Overall Size: 850*550*1300mm (Any dimensions and specifications are available on request) Can accommodate 25 pieces of PCB. Each column can accommodate 100 pieces of PCB. The capacity of whole cart is subject to customer,s demand

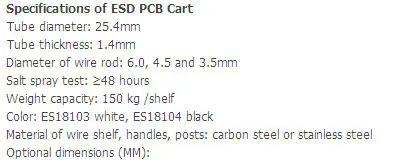

Specification: the frame made of 25*25mm tube, the pitch of the slot: 10mm, depth: 4mm, width: 3.6mm, the width between grooves: 35mm.
With 4 inches antistatic wheels, two of them with brake, the other two witout.
The ends of the side plates with aluminium alloy backsplash, which avoid wrong plate place, ensure the space between clapboards.

Surface resistance and volume resistance: 10E5~10E10 Ohm
Could accommodate 200pieces of PCBs
Packaging: Bulk packing
Widely used in workshops and factories which produce PCBs.









ESD PCB Plates Trolley ESD PCB Storage Trolley PCB Trolley

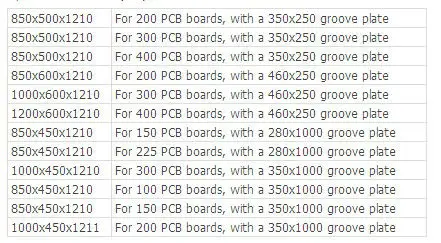

Size (L×W×H)mm	Slot of Side plate (W×H)	Width	Depth	Pitch	Slot
900×550×1300	100cm×46cm	5mm	4mm	10mm	100
1200×550×1300
Side Plate		Flapper Size
Ten Pieces Assembled		10cm×46cm
Surface Resistance	Conductive Type <1x106
	Dissipative Type 1x106~1<1011
Note	Side plate with double flashboard
	100PCS per row,keep in 200,400PCB plates

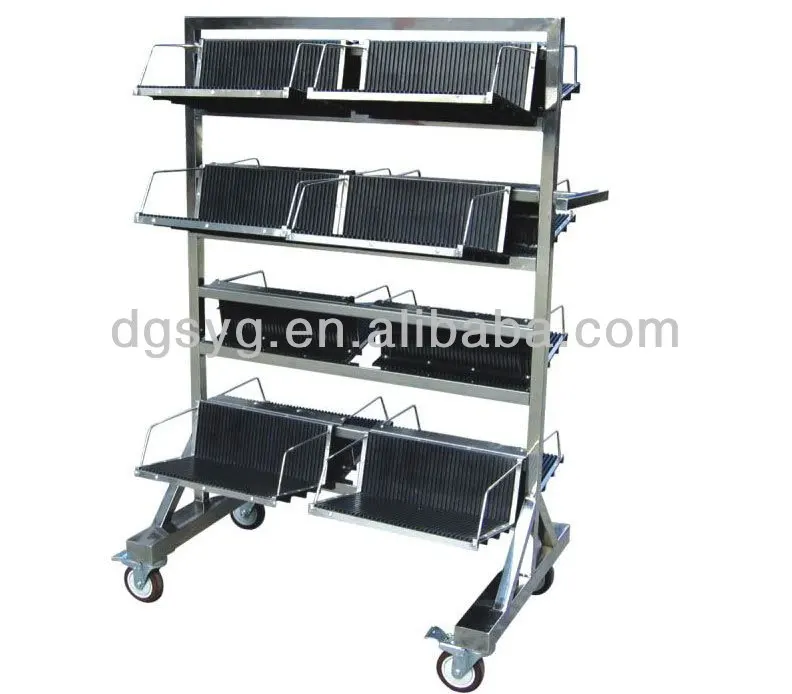

ESD PCB Plates Trolley with basket



Size :540*1100*1400mm

Materail: SS + PS

Basket QTY : 10~20 PCS

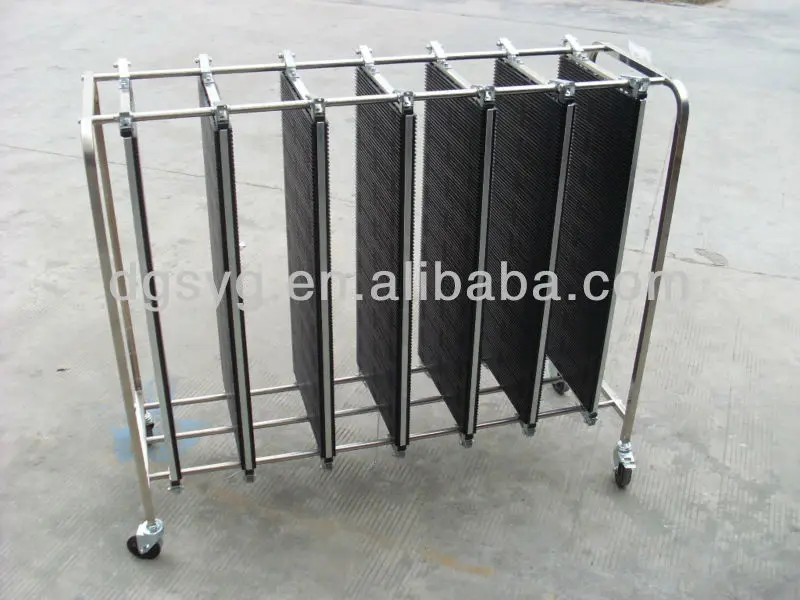

ESD PCB Magazine Storage Trolley

SD Circulation Cart, ESD PCB Trolley, PCB Cart, PCB Carrier

• Material: Stainless Steel PS + antistatic


• Tank Plate: Plastic


• Specification:


• YG-C0301A: 850*600*1300MM with 460mm*10000MM tank plate


• YG-C0301B: 850*500*1300MM with 350*1000MM tank plate


• YG-C0301C: 850*630*1300MM with 530*1000MM tank plate


• 200-600 films can be deposited PCB board


• Deep Groove: 4 mm, Width: 5 mm, from the trough: 5.5 mm


• Surface Resistivity: ‰¤ 106 Ω


• Can be customized according to customer requirements and system installation cushioning devices









♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣ ♣

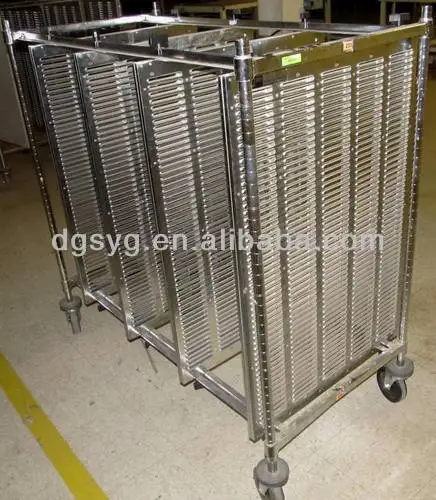

  ESD PCB Magazine Storage Trolley









antistatic trolley/esd PCB Cart/ PCB trolley

ESD PCB Magazine Storage Trolley
1) Size: 900 x 550 x 1300mm
               1150x550x1300mm
2) Surface resistance:below 10E6

antistatic trolley/esd pcb trolley
Features:
1) Size (L x W x H): 900 x 550 x 1,300mm
                                  1150*550*1300mm
2) Surface resistance: below 10E6 ohms

3) Can hold 200pcs or 400pcs plates

4) Each row can insert 100pcs pbcs.
5) Any specification available



Description: ESD PCB Magazine Storage Trolley

Size(L×W×H)mm		900×550×1300
Slot of Side plate	Width	5mm
	Pitch	10mm
Surface Resistance	below106Ω
100PCS per row,keep in 200,400PCB plates
Side plate with double flashboard



ESD PCB Magazine Storage Trolley



We combine the flexibility of individual product locations with the versatility of modular shelving to make the best reel storage system available. The entire arrangement is available in a range of sizes, is adjustable in height and has full ESD specification. No matter how limited your storage space, we will build the right rack for the job.

pcb trolley:
1.antistatic pcb trolley made of the pcb plats
2.using the injection moulding technics
3.structural durabilities



YINGGUANG chrome finish. Strong and stylish shelving. Excellent light and air circulation. Shelf loads up to 300 kgs UDL. Use castors for mobile units.

No tools, simply slots together. Shelf pitch every 25mm. No interfering uprights in corners. Uprights have extra marks every 125mm for easier positioning of shelves. Every post comes with an adjustable leveller. Heavy duty goods.
