Truck Scale BX101 series 5 40t
- Category: >>>
- Supplier: Guangdong South China Sea Electronic Measuring Technology Co. Ltd.
Share on (1690654777):
Product Overview
Description

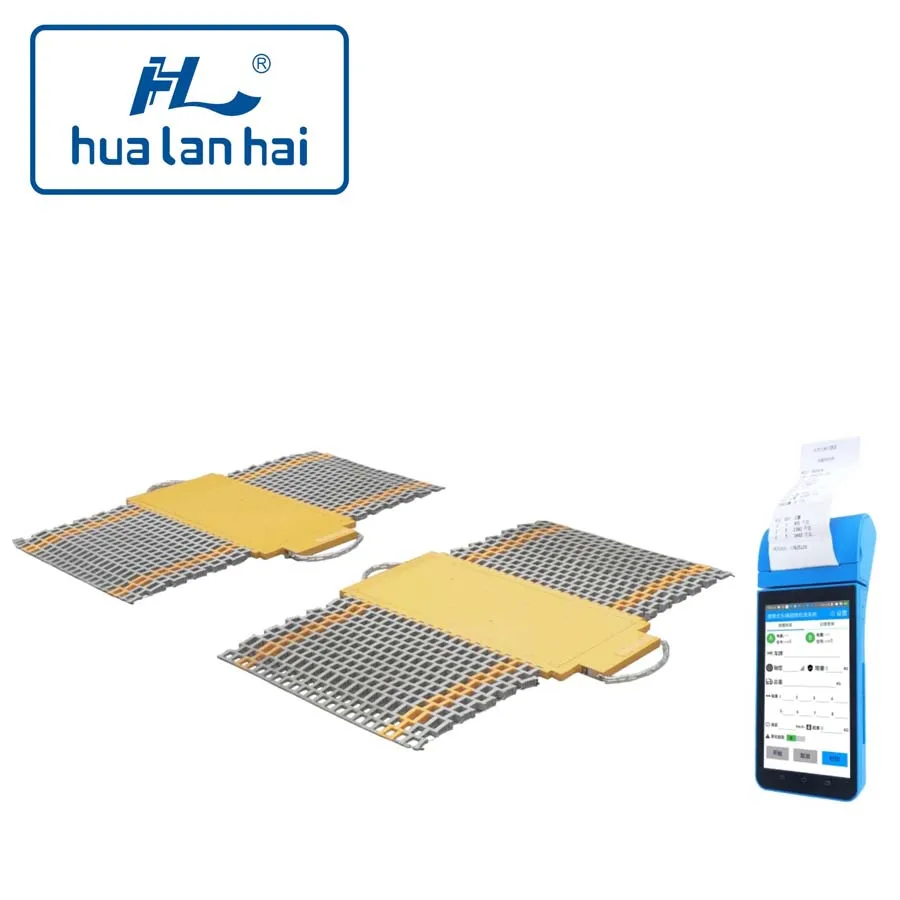

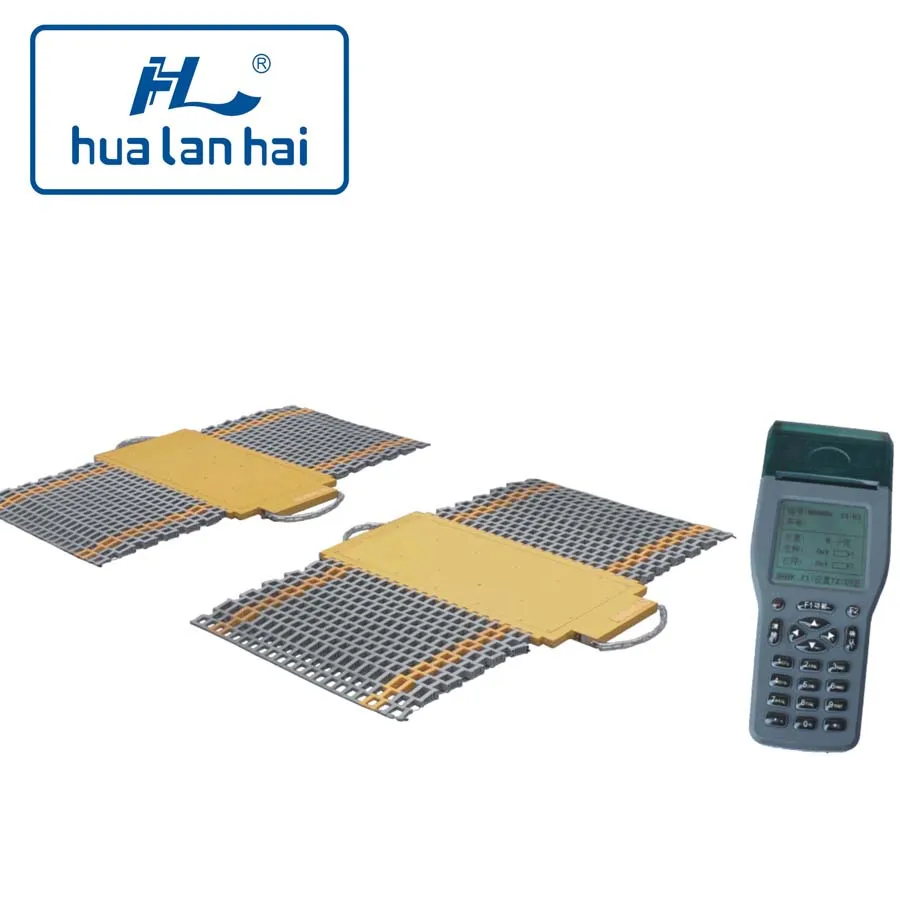

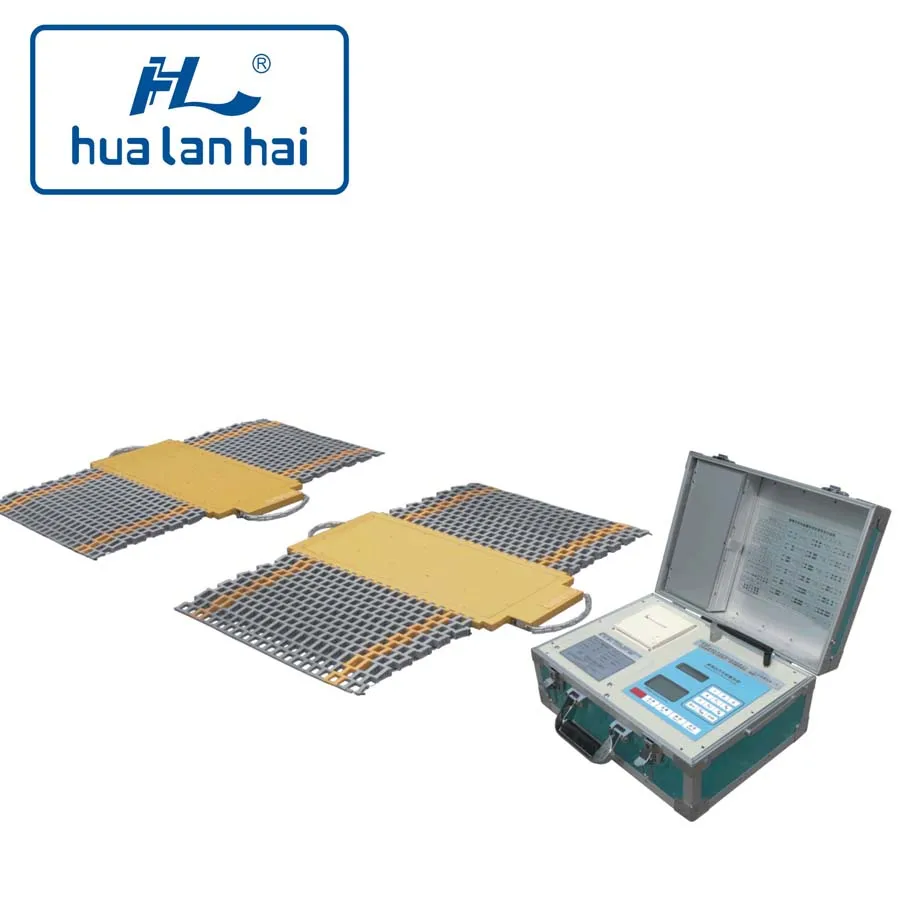

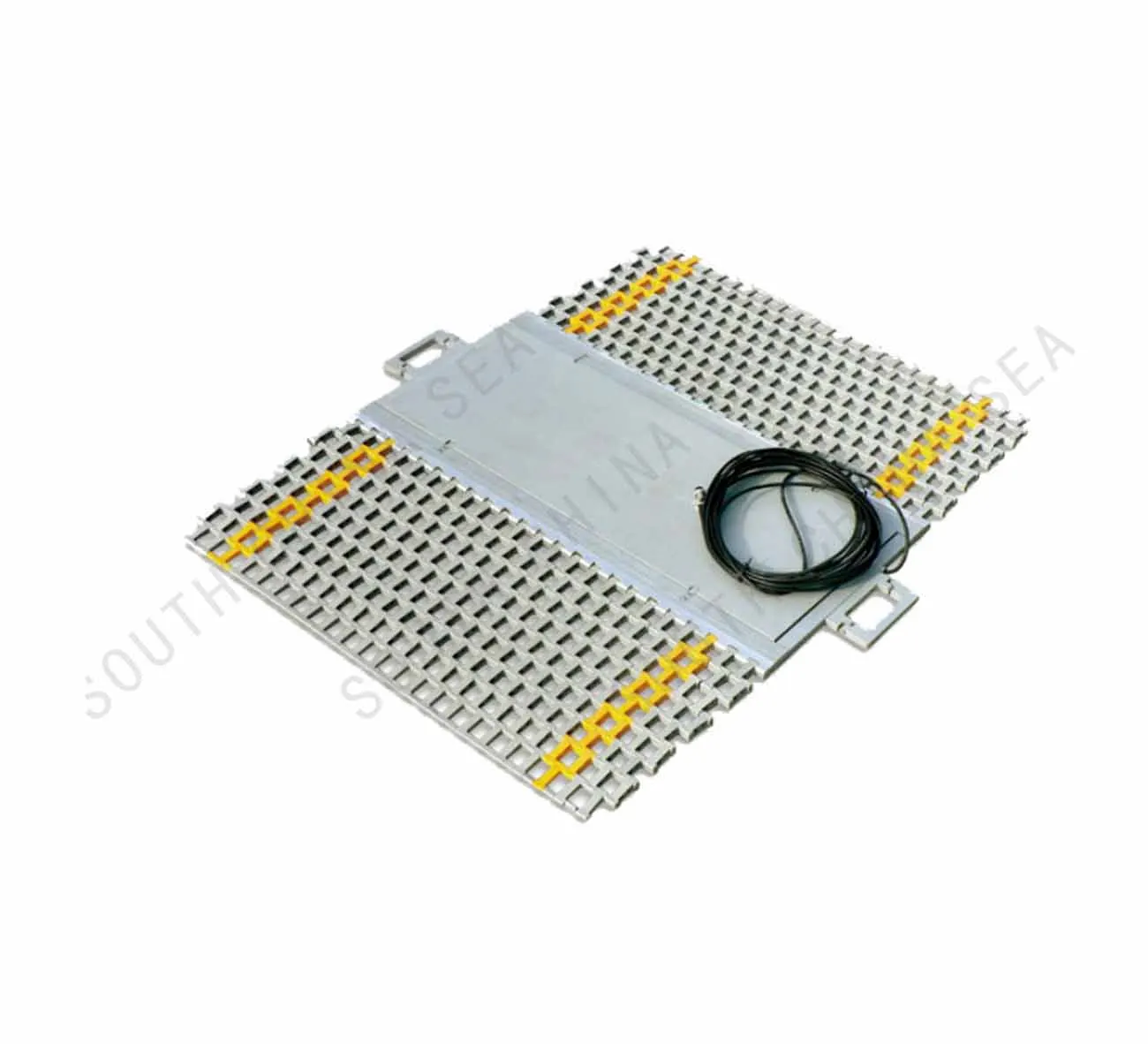

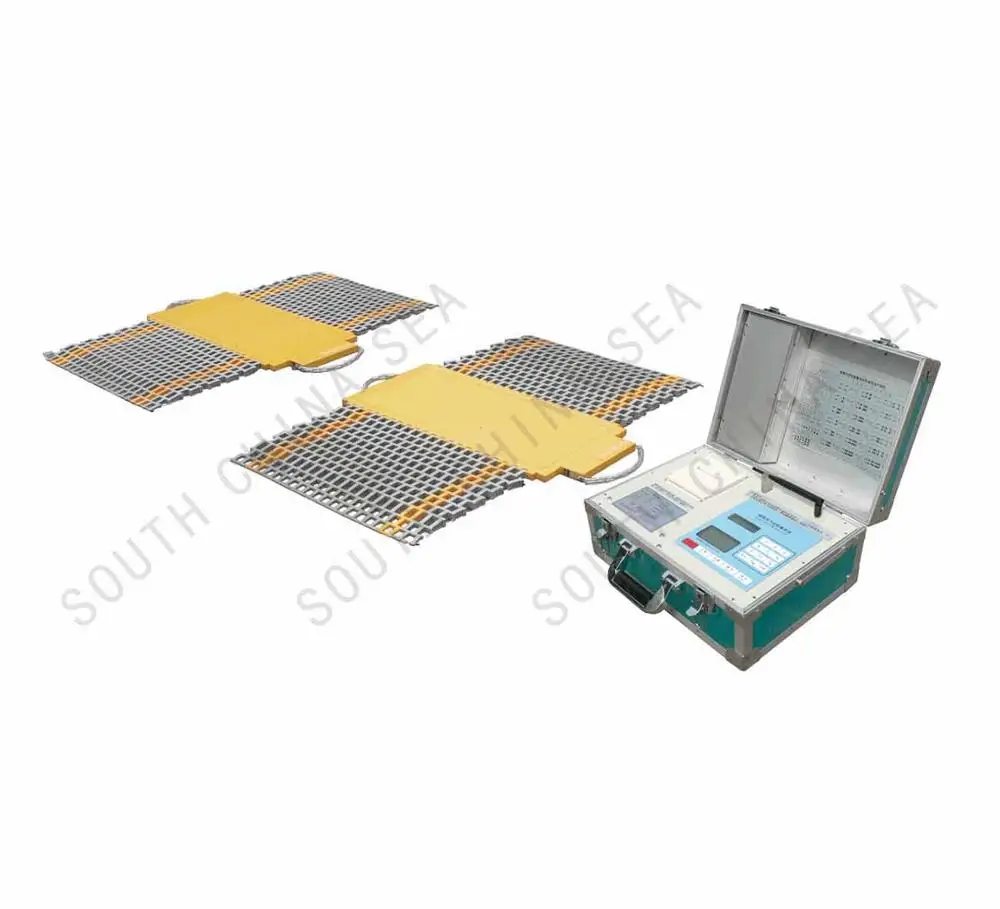

BX101 series weigh pads features:
1.extremely low profile.
2.strong overload.
3.machined from lightweight, high strength aluminum.
4.mainly used in the transport application of determining wheel loads, axle loads and vehicle total weight in motion system.
BX101 series specifications:
- Rated Load: 2, 5, 10, 20, 40 (T)
- Excitation Voltage: 9-15VDC
- Static precision: 0.5-1%FS
- Dynamic precision:1.5%FS(1-5km/h), 3-5%FS(5-10km/h)
- Operating Temperature: -20 C to 80 C
- Insulation Resistance: 5000 M ohms
- Safe Overload: 150%FS
- Cable Length: 10m
Wiring schematic diagram:
Red: Input ( + ) White: Output ( - )
Black: Input ( - ) Green: Output ( + )
Packaging & Shipping
Carton Size: 38x30x30cm
Company Information
Guangdong South China Sea Electronic Measuring Technology Co Ltd is specializing in producing resistance strain gauge, load cells, micro load cells, pressure sensors, portable dynamic axle weighing scales and other electrical measurement products.
The company has the formidable scientific research strength, improve the strict quality assurance system and excellent production equipment. The main products of strain gauge, load cell are certificated by RoHS, OIML(issued by EU.) CE etc. , the company subordinate products all technical supervision department issued by the national metrology license. In 2004 and 2005 respectively awarded by "Guangdong province private S&T enterprises " and " the Guangdong Hi-tech enterprise" title, in 2007 Dongguan intellectual property office granted "the patent pilot enterprise".
Our load cells, strain gauges, pressure transducers and portable axle weigh scales have been exported to the world for a long time and achieved a certain market share. We have representative in US, Canada, Germany, British, Russia, India, Australia, etc. By this, we push our high quality products to the world!
FAQ
About samples:
Yes, we have stock for samples.
About guarantee:
Three months for free replacement and one year for free repair.
About factory:
We are original manufacturer with 700 employees in Dongguan.
About certificates:
OIML, CE, ROHS, ISO9001, SGS
