filling co2 fire extinguisher
- Category: >>>
- Supplier: Jiangshan Fire Fighting Equipment Co. Ltd.
Share on (1691054679):
Product Overview
Description

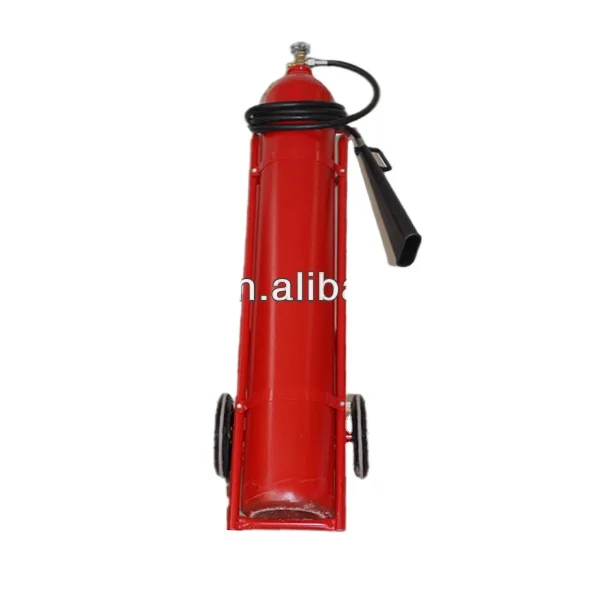

25kg CO2 Wheel Fire Extinguisher
Product Description
The trolley-type Co2 fire extinguisher is flexible to move,easily to operate,has a wide range to use. Suit to put out the fire in libraries,archives,gas station and some low-voltae eletrical equipment places.
1. Fire principle:
Fire extinguisher bottles in storage, liquid carbon dioxide, when the pressure of the pressure valves. Internal carbon dioxide and carried through by fire extinguishing agent valves to spray tube jet, that the burner area the concentration of oxygen fell rapidly when carbon dioxide concentration in enough to put out the flames will be stifled, and because the liquid carbon dioxide will quickly gasification, in a very short period of time absorb a lot of heat, so to play a role in the air cooling, also help to put out the fire.
Carbon dioxide is choking gases, harmful to human body, when using, should pay attention to safety. In the fire, continuous injection, prevent the ember to again. As in outdoor, cannot use against the wind.
2. Specification
Capacity: | 25±2%Kg |
Extinguisher agent: | co2 |
Width: | 554mm |
Height: | 1330mm |
Diameter: | ¢219mm |
Temperature Range: | - 30°C~60°C |
Work Pressure: | 175Bar |
Test Pressure: | 225Bar |
Min. Wall-thickness: | 5mm |
Packing Size: | 102*48*122mm |
4. Other types of CO2 fire extinguishers: MT/2, MT/3, MT/5, MT/6, MT/7.
Other CO2 Fire Extinguisher Types:
NAME/TYPE | POWDER WEIGHT(kg) | VALID SPRAY(S) | PRESSURE(Mpa) | FIRE LEVEL |
MT/2 | 2±5% | ≥8 | 17.5-22.5 | 21B |
MT/3 | 3±5% | ≥8 | 17.5-22.5 | 21B |
MT/5 | 5±5% | ≥8 | 17.5-22.5 | 34B |
MT/7 | 7±5% | ≥9 | 17.5-22.5 | 55B |
MTT/24 | 25±2% | ≥20 | 17.5-22.5 | 70B |
Packaging & Shipping
Packaging:
Packed in strong cartons.
Shipping:
About 15 to 25 days after finishing following two matters.
1. Receiving the deposit.
2. Confirmation of label and cartons' marking.
Company Information
Jiangshan Fire Fighting Equipment Co., Ltd. is an enterprise integrate with design ,production and marketing (independet import-export)of all kinds of fire fighting equipments.The company has for more than 20 years producing experience and have many customers and friends in and out of country.
Our main prouducts :
1) Portable stored-pressure powder series extinguishers: 1kg-12kg, etc
2) Transportable powder series extinguishers: 25kg, 35kg, 50kg, 75kg, etc
3) Automatic suspension type powder series extinguishers: 4kg, 6kg, 8kg,10kg,12kg, etc
4) Portable stainless steel fire extinguisher: 0.5kg,1kg, etc
5) CO2 extinguisher ,Carbon dioxide fire extinguisher: 2kg, 3kg, 5kg, 24kg, etc
6) Foam and Water-based fire extinguisher: 3L, 6L, 9L, etc
7) Pressure gauges
8) Extinguisher accessory:
Extinguisher cylinder, Co2 fire extinguisher cylinder, Powder, Fire escape mask, Fire blanket, Fire suit, DCP extinguisher valve, Sucker, Spray tube, PVC fire hose, Hose reel, Plastic rack etc.
Contact:
Name: Andy Su
Trademanager ID: cn1510683654
Email: jsfirefightingathotmail.com
MSN: firecommerceathotmail.com
Skype ID: suercai
QQ: 281694730
Mobile: 008613511415827
