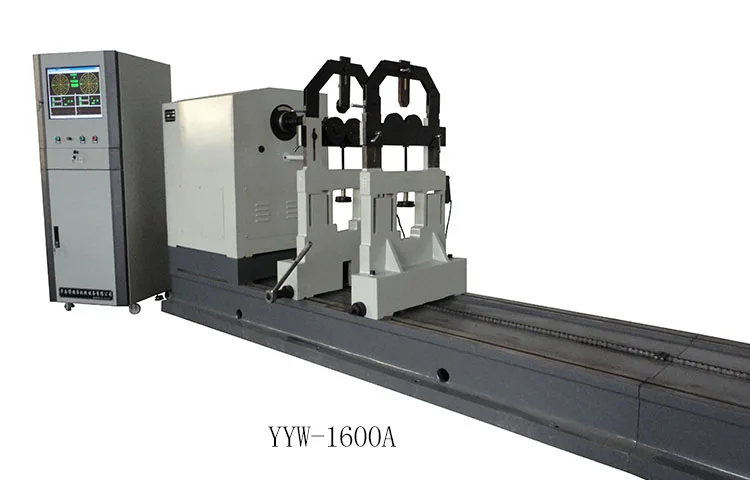

dynamic balancing machine YYW 1600A
- Category: >>>
- Supplier: Jinan Bodihao Mechanical Equipment Co. Ltd.
Share on (1691858747):
Product Overview
Description

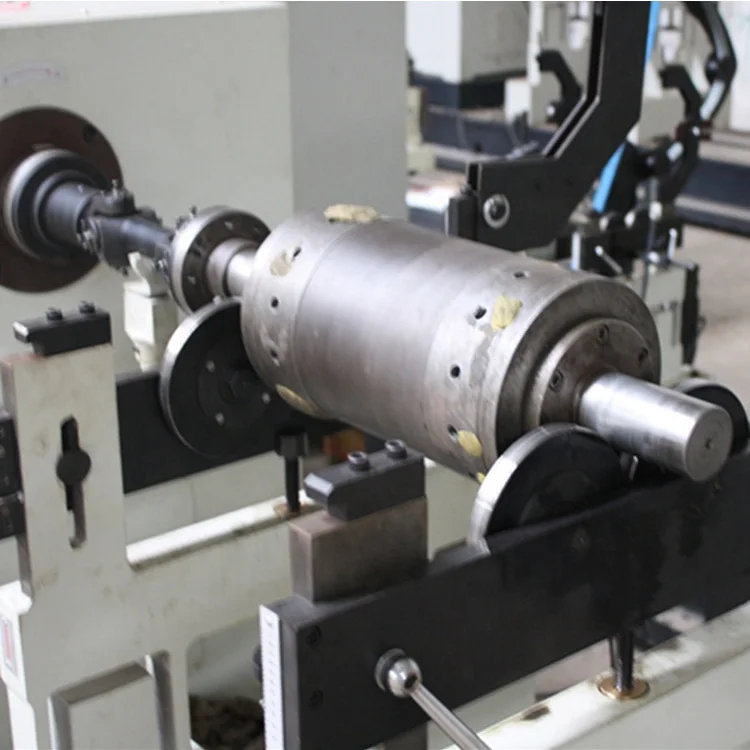

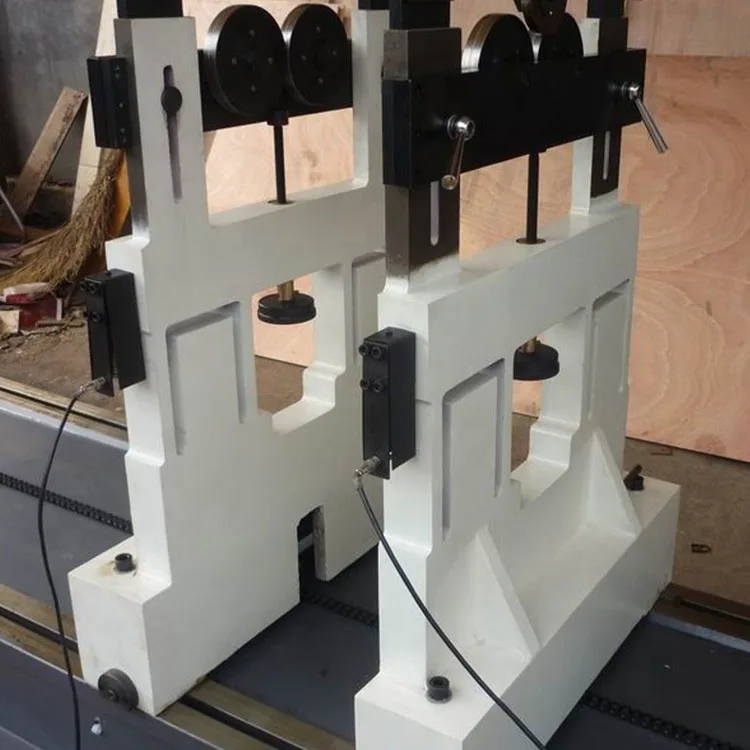

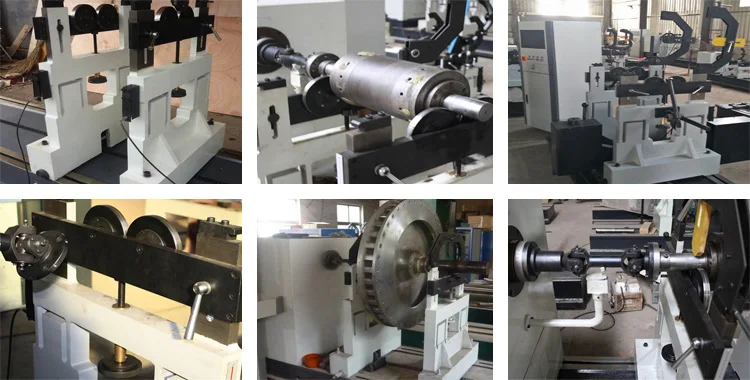

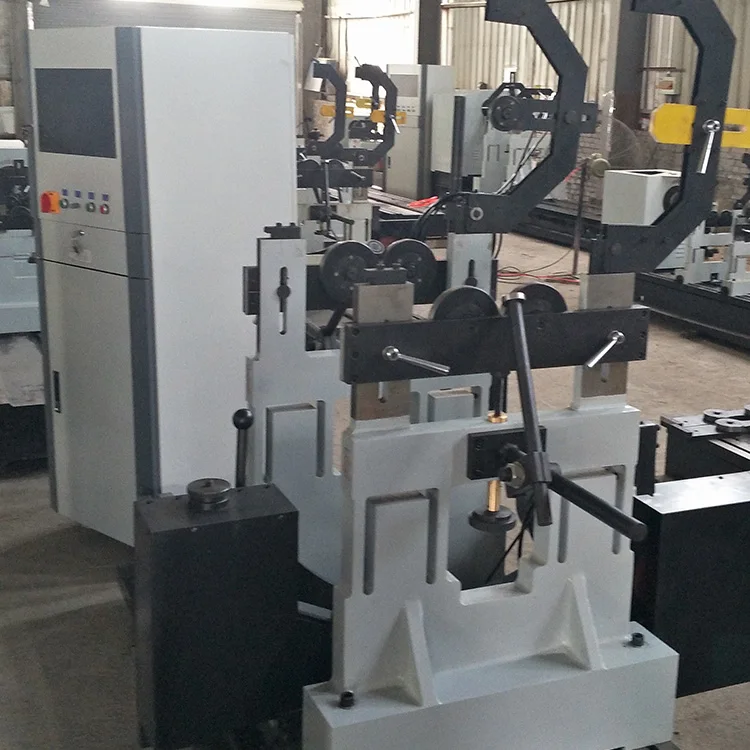

dynamic balancing machine YYW-1600A
The measuring unit employs GB-2000 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 19-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

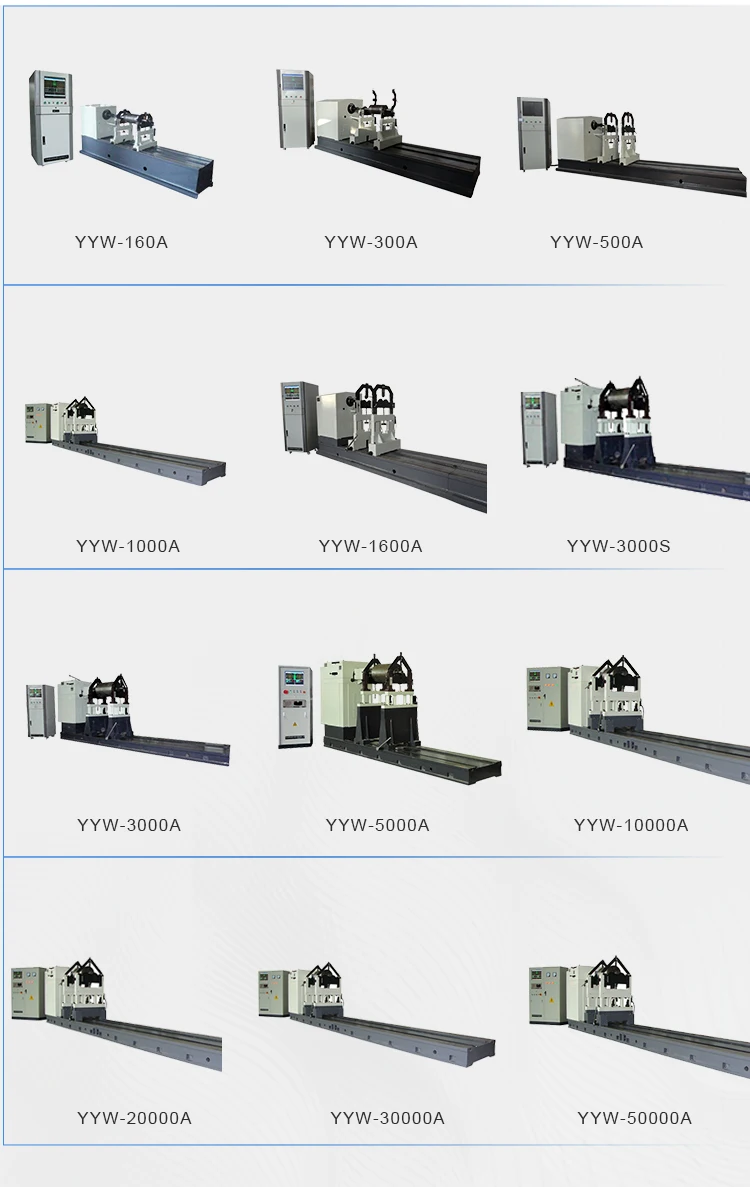

Series product
| Model | YYW-160A | YYW-300A | YYW-500A | YYW-1000A | YYW-1600A | YYW-3000S |
| Work piece quality range (kg) | 5-160 | 10-300 | 20-500 | 20-1000 | 30-1600 | 50-3000 |
| Max.diameter of workpiece(mm) | Φ950 | Φ1200 | Φ1500 | Φ1500 | Φ1800 | Φ2000 |
| Two support distance (mm) | 60-1420 | 60-1700 | 70-1600 | 70-2300 | 100-2300 | 300-3000 |
| Journal (mm) | Φ10-90 | Φ10-90 | Φ20-120 | Φ20-120 | Φ20-120 | Φ20-120 |
| Min. achievableresidualun balance(g.mm/kg) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Unbvalance reduction ratio(%) | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 |
| Drive power(kw) | 2.2 | 5.5 | 5.5 | 7.5 | 11 | 11 |
| Model | YYW-3000A | YYW-5000A | YYW-10000A | YYW-20000A | YYW-30000A | YYW-50000A |
| Work piece quality range (kg) | 100-1600 | 200-5000 | 300-10000 | 500-20000 | 800-30000 | 1200-50000 |
| Max.diameter of workpiece(mm) | Φ2400 | Φ2400 | Φ2400 | Φ2400 | Φ3000 | Φ3200 |
| Two support distance (mm) | 300-3000 | 340-2960 | 240-5100 | 300-5100 | 400-6500 | 500-6500 |
| Journal (mm) | Φ40-180 | Φ40-180 | Φ50-200 | Φ50-200 | Φ50-200 | Φ60-220 |
| Min. achievableresidualun balance(g.mm/kg) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Unbvalance reduction ratio(%) | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 |
| Drive power(kw) | 11 | 18.5 | 45 | 55 | 75 | 90 |
Product application

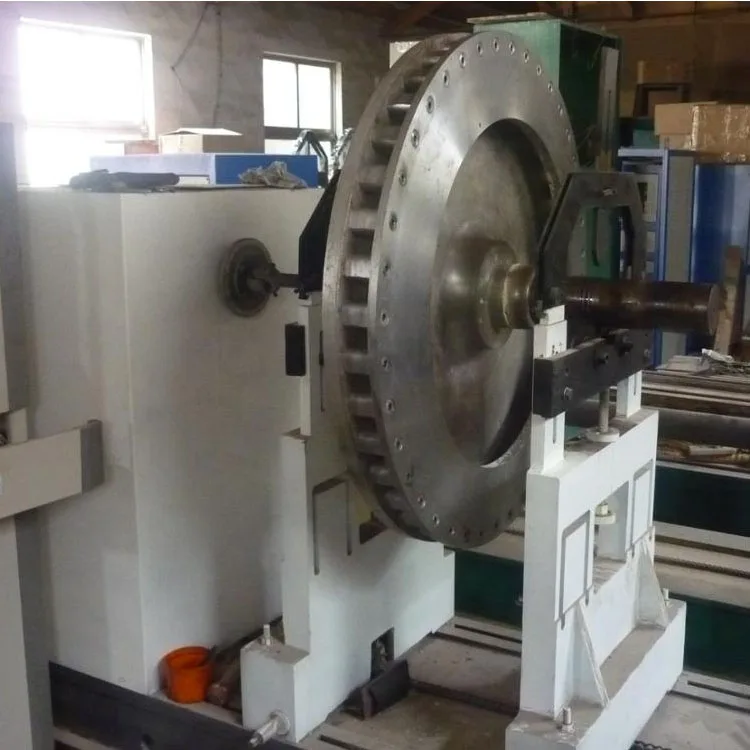

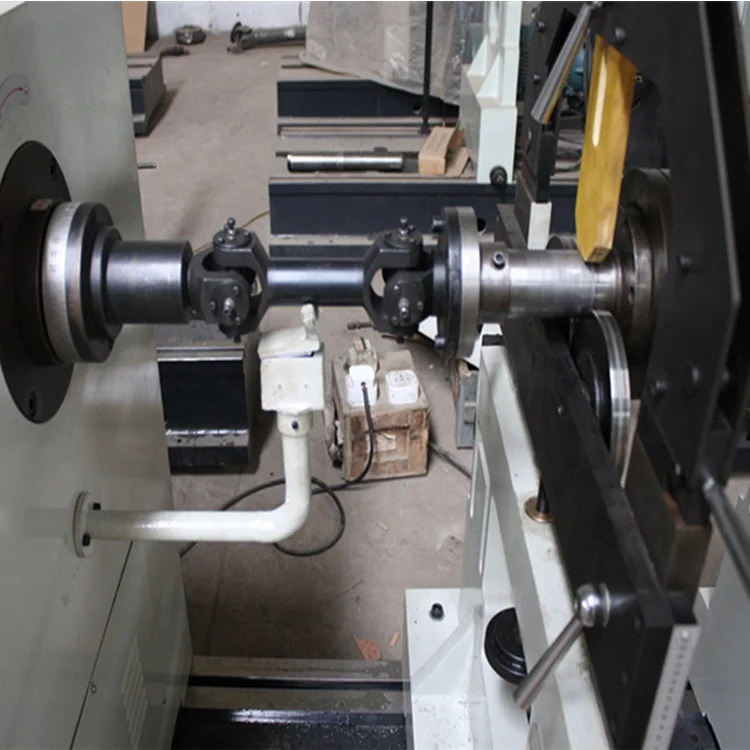

This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc

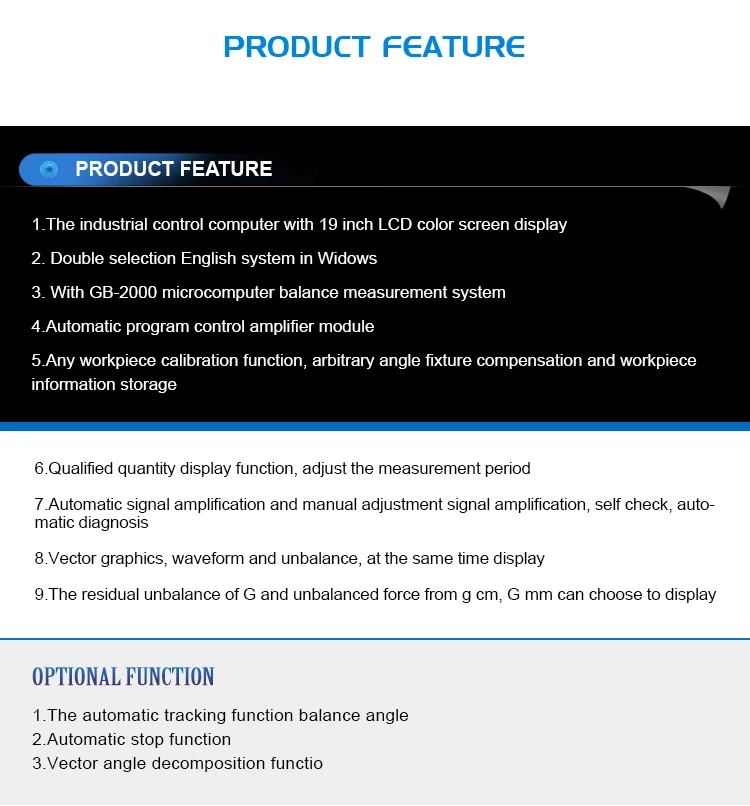

Product feature

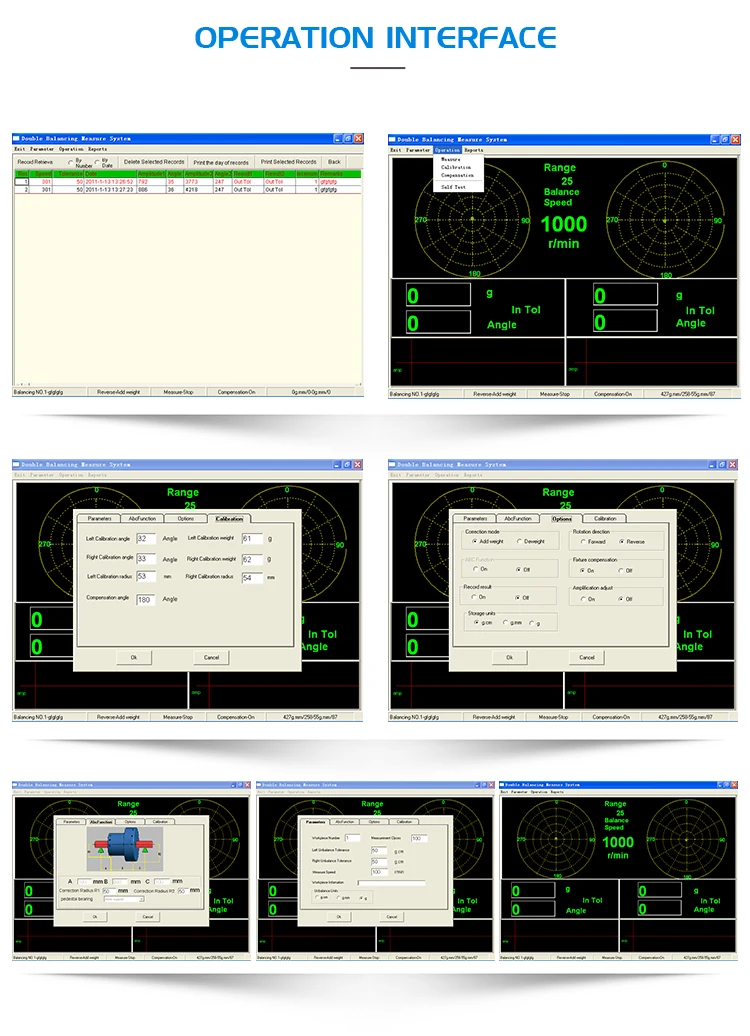

Operation interface

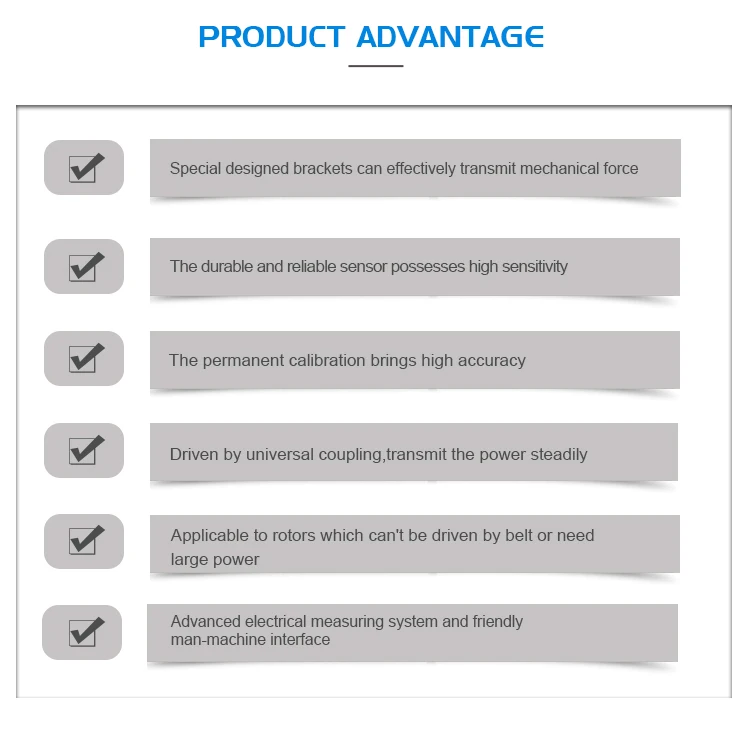

Product advantage
Packaging & Shipping
Company Information

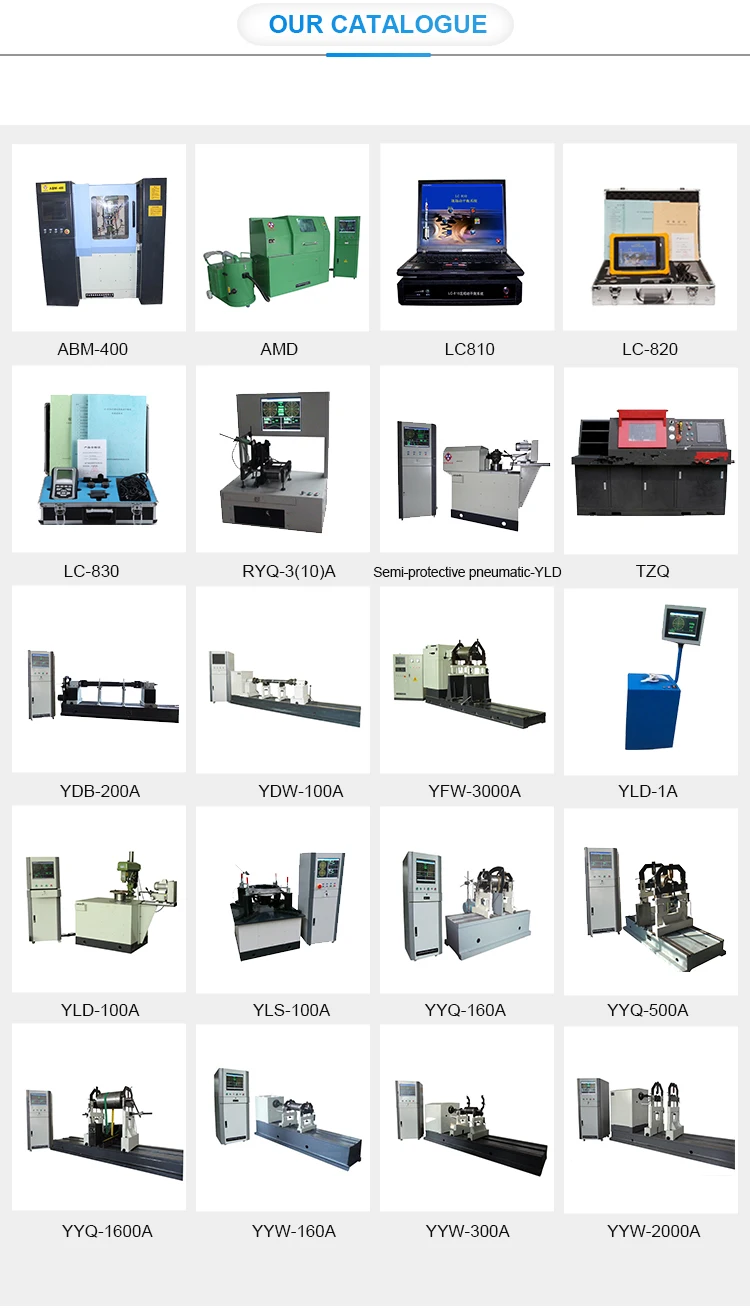

Our catalogue
