Product Overview

Description



Product Description













 HN-120SX .png

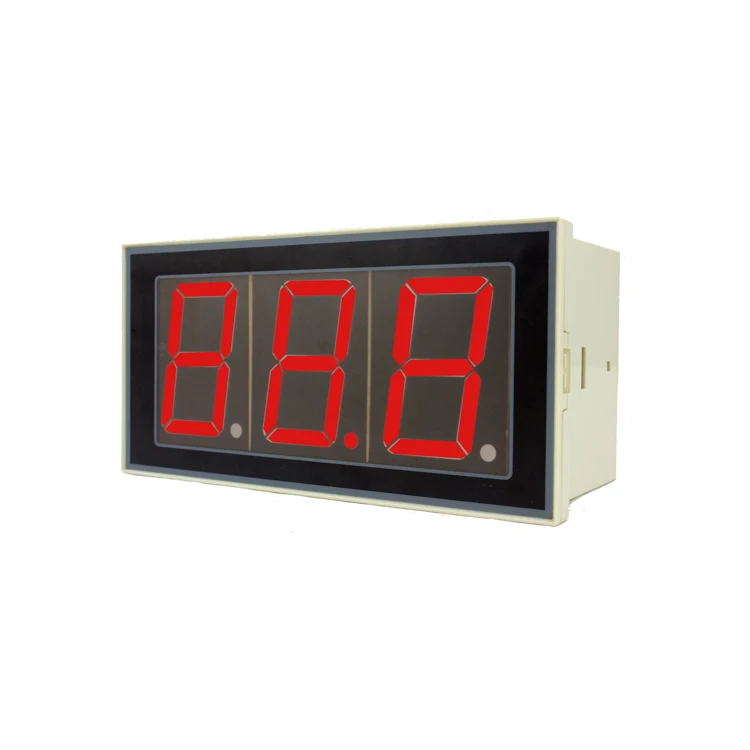

Series Name: HN-120SX


Display: signal row, three and half  BIG LED digital  tube display (3inch)


Measure Precision: ±0.5% ±1Word


Working power supply: AC220V(85%~110%)  50/60Hz (other voltage customized)


Power Loss: <3.5W


Environment temperature: -10°C~+50°C


Relative Humidity: <85%





















































Type As Model
(not label name)		Description
DC AmmeterHN-120SX-DCA

≤DC5A direct input ,


>5A need extra shunt connection


AC AmmeterHN-120SX-ACA≤ AC5A direct input ,
> AC5A need extra current transformer 5A connection
DC VoltmeterHN-120SX-DCV≤DC600V direct input,
>DC600V need extra resistor divider connection
AC VoltmeterHN-120SX-ACV≤AC600V direct input,
>AC600V need extra voltage negative sensor connection
RPM MeterHN-120SX-RPMinput signal DC0-10V, DC0-20mA, DC4-20mA ect,
max display value 1999
Hz MeterHN-120SX-Hzinput signal the same as above
M/min MeterHN-120SX-M/mininput signal the same as above
Mpa MeterHN-120SX-Mpainput signal the same as above



 HN-120SX .png

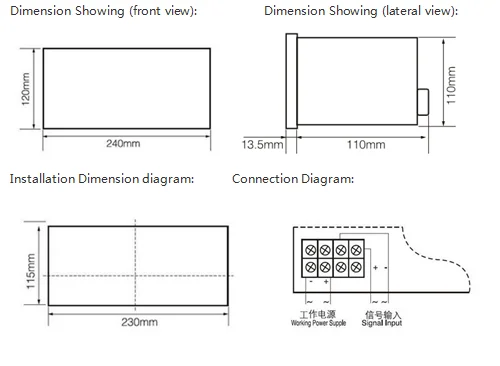

  digital meter size



Application





digital meter application






  1. a. Electrical and electronics industry,semiconductors,power plants

  2. b. Machinery,opto-electronics,process automation control

  3. c. Oil & gas,petrochemicals,mining,iron and steel,cement

  4. d. Environmental protection,water & waste water treatment

  5. e. Food & beverages,agriculture and feed stocks
