temperature controller for husky hot runners

Product Overview

Description

temperature controller for husky hot runners

IBS DXC-TC Hot runner temperature controller product features:

1, Technical patent

1. A.            Heater short protection
2. B.            Male position of heater and thermocouple
3. C.            380V input protection

2, Auot-turning+phase angle fire wiring, to control precisely.

3, Soft start function for smoothly start-ups

4,Mold doctor(troubleshoot hot runner mold)

5, all standard size design, 1-12 zones cabinet are available.

2. IBS DXC-TC Hot runner temperature controllers specification:

1)       Ambient temp:32°F to 131°F(0°C to 55°C)

2)       Relative humidity:10%-95%

3)       Transmit temp:-40°F to 158°F(-40°C to 70°C)

4)       System grounding insulation Voltage:1200VDC.

5)       Supply power: AC185V-245V,50/60HZ

6)       Sensor type :J type or K type

7)       Temp unit:°C or °F

8)       Temp control :45°C to 550°C

9)       Temp test Precision:+1%

10)   Repeat test precision:+0.1%

11)   Temp stability:+0.5%

12)   T/C cold junction compensation:Dynamic tracking

13)   Noise rejection:CMMRR>100DB,

14)   Sampling frequency:10HZ(100mS)

15)   1 Point Load:15A,3500W/220V or 1650W/110V

16)   F1,F2:250V-15A(Special fuse)

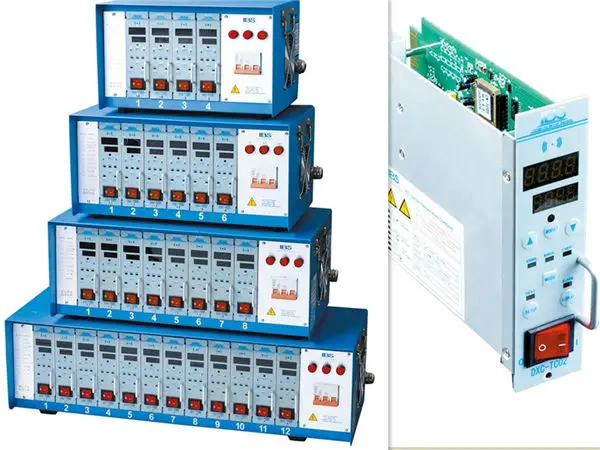

3. IBS DXC-TC Hot runner temperature controllers details of picture:

4. IBS DXC-TC Hot runner temperature controllers Accessories:

5. IBS DXC-TC Hot runner temperature controllers Packing details:

6.  IBS Certificate:



7, Our sales team:

Chinaplas Fair

8. Our service;

1: 24 online service, email will get back in 24 hours.

2: After sale service available.

3:Have professional R&D group, all your technical requirement will be customized.

4, Research and develop state of the art hot runner controllers.

Welcome to contact us, we’re sure any of your inquiry will get prompt reply
