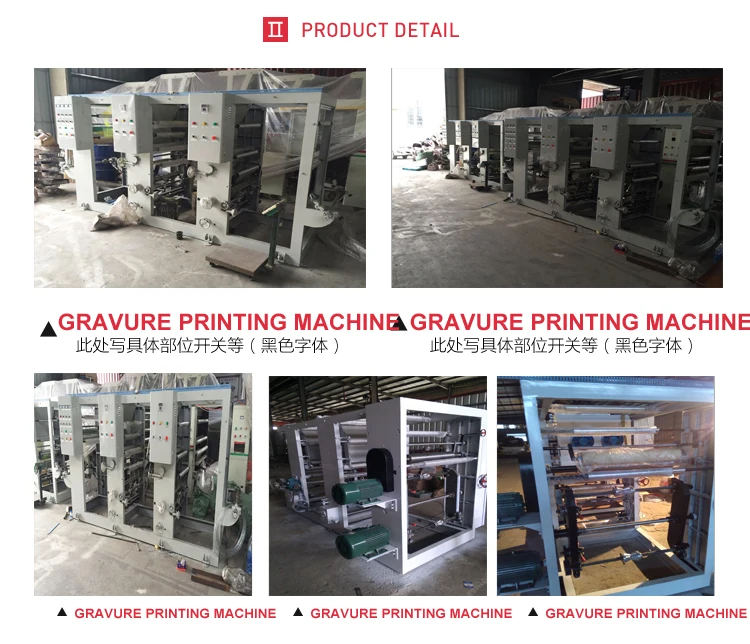

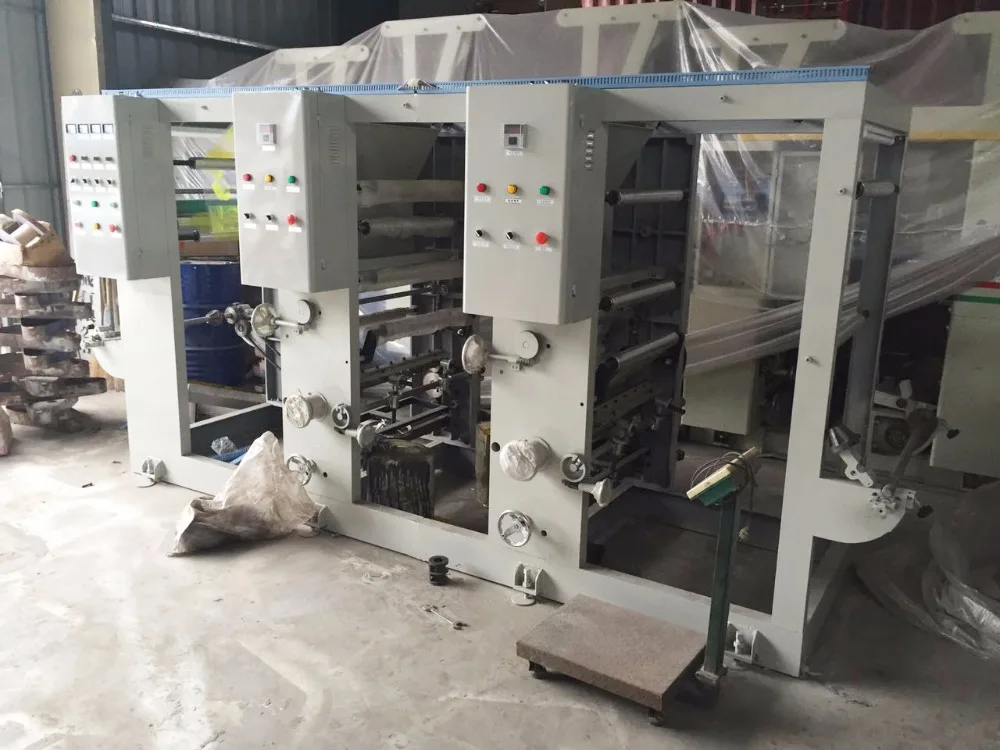

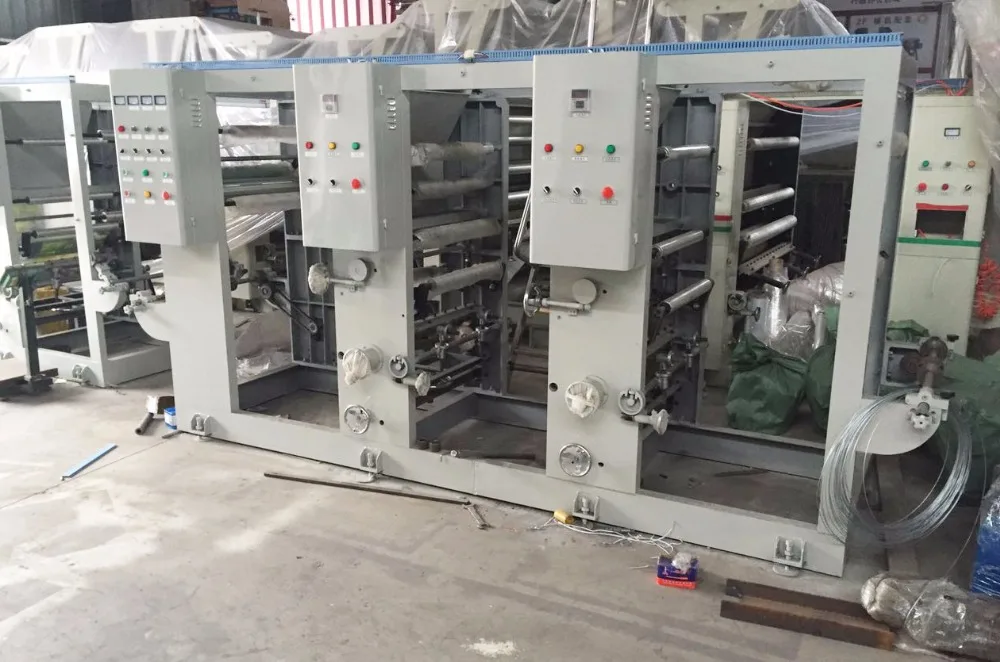

ASY 50mm Model 2 color rotogravure printing machinery

Product Overview

Description





Advantages:

1.All machines before shipment, we will examin and test it.(if customer come, we will waiting for you coming).

2.Our after-sale service is perfect. We have some engineer to test machine in foreign all over year. If you need engineer to test, we can arrange it.

3.Prompt Reply Within 12 Hours.

4.Production quantity about 200-300sets each year.

1. It’s suitable for BOPP, PET, PVC, PE and combined film and paper with the same properties, its printing speed is 50m/min, while the mechanical speed is 60/min.

2. The main transmission system adopts speed-adjusting motor to control the speed .

3. It can realize printing in single-side, dual-side, muti-colors, and has function of meter counting.

4. The material receiving , the traction of material receiving and feeding adopt moment motor, while material feeding adopts magnetic powder braker.

5. The ink circulates automatically with the ink pump.

6. The dry system adopts dual oven tunnel.  The up-and down oven of each printing unit adopts centrifugal blower to bring in the air. It is of cast iron chassis and to dry the materials 50 per minute.  The temperature of oven can be adjusted and controlled automatically.

7. the position of ink scraper can be adjusted freely up and down, pre and post. And it adopts horizontal movement repeatedly.

8. The material receiving and material feeding device adopt reversal dual station to realize feeding and receiving materials without stopping the machine.

9. The rubber roller adopts manual pressure.

10. Printing cylinder correcting adopts differential transmission device. The printing cylinder can be adjusted in 360 degrees vertically freely. Its horizontal adjustment scope is 30mm.

The technical basis on 6 color



Main technical parameter:

Type	ASY-600	ASY-800	ASY-1000
Printing Width	600mm	800mm	1000mm
Printing Length	240-850mm	240-850mm	240-850mm
Max.Printing Speed	60m/min	60m/min	60m/min
Format Precision	0.25mm	0.25mm	0.25mm
Power of main motor	4kw	4kw	4kw
Fan Power	0.19kw/suit	0.19kw/suit	0.19kw/suit
Heating Power	3.2kw	3.2kw	3.2kw
Overall Dimension	3000x1200x1700mm	300x1400x1700mm	300x1600x1700mm



Payment	TT, LC at sight
Mini order	1 Set
Delivery time	20-60 days after receive the deposit (different machine has different produce time).
Packing and Marking	By standard export packing. If have Mark, please tell us before shipment.
Installation	If need our engineer go to your country to install, please repare the material and bulid machine firstly. Also buyer should take charge the tickets go and back, live, food and salary of our engineer.
Guarantee	One year, machine trouble is caused by nature not by human force from delivery time . Easily wear parts also is one year. after sale service for all life.
