2 colors Consumer electronics products logo tampo printing machine with sealed ink cup

Product Overview

Description

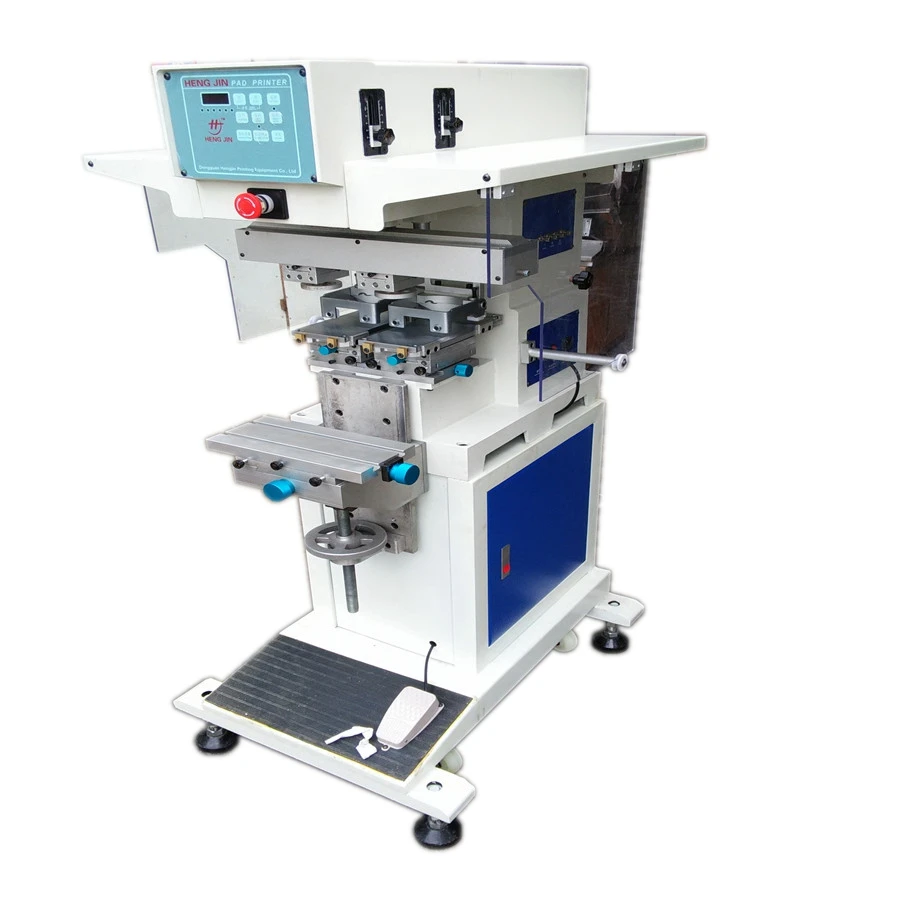

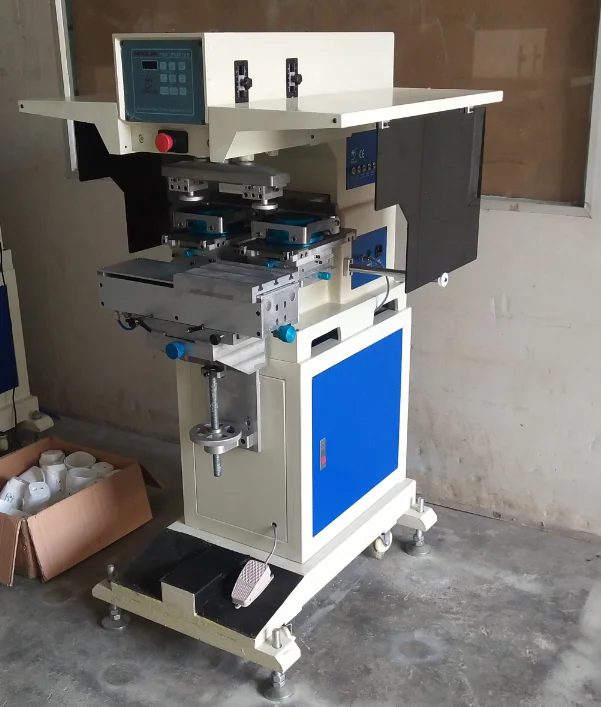

HP-160BY  2 folors  logo pad printing machine with sealed ink cup





Pad printing machine key Features:

1 The printing speed of shuttle pad printer is slower than turntable machine, but which suituble to bigger products. Per time printing 4 colors;

2 There are two cylinders in the worktable which both together exchange controll the position, then Fixing position is precise and stable;

3 This is machine is Semi-automatic, having automatic counter for 4 digits;

4 The machine can do your any printing requested, and per location is adjustable, such as, left/ right, up/ down, delay printing, dip ink etc;

5 The cylinder of Machine is Imported Germany FESTO. The thickness of the screw we used 8.75 Degree. Which have more usage about 20 years;

6 The body is Alloy Cast Aluminium, then it is lighter and durable.

7 The machine is running agile, steady and low voice.

8 Indie printing head can print on big size article



Pad printing machine Parameter:

Major Technical Specification
Printing Colors	2
Max. Steel Plate Size (mm)	100*250 (4inches X8inches)
Printing Area (mm)	80*80mm
Max. printing Capacity (pcs/hr)	1200pcs/h
Max printing height (mm)	350
Ink Mode	Sealed ink cup size dia 90mm
measurement(L*W*H)mm:	770*850*1600
Net Weight(kg):	180KGS
Power	110V or 220V 50/60Hz

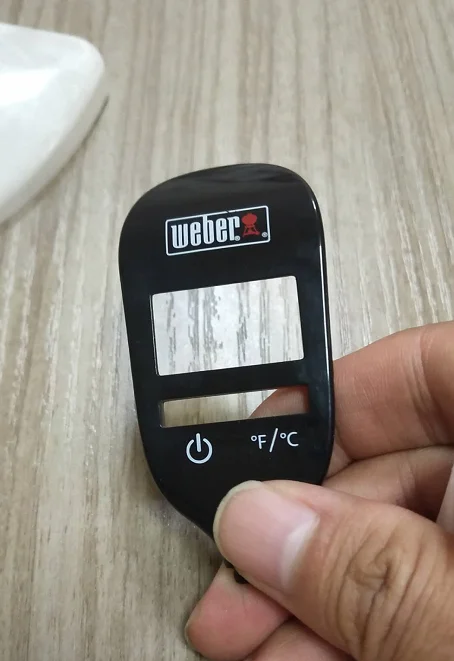

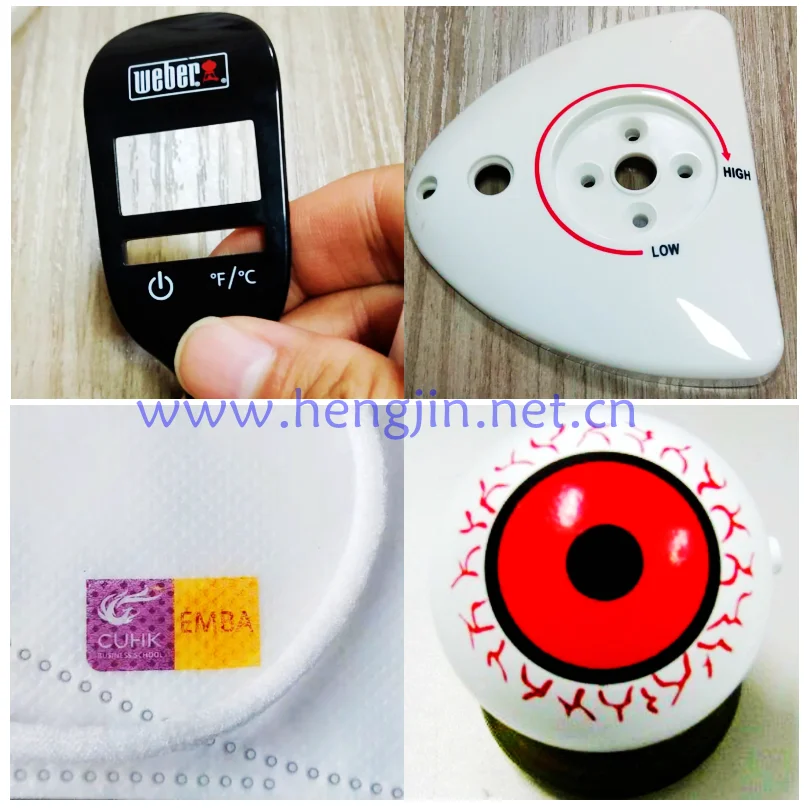

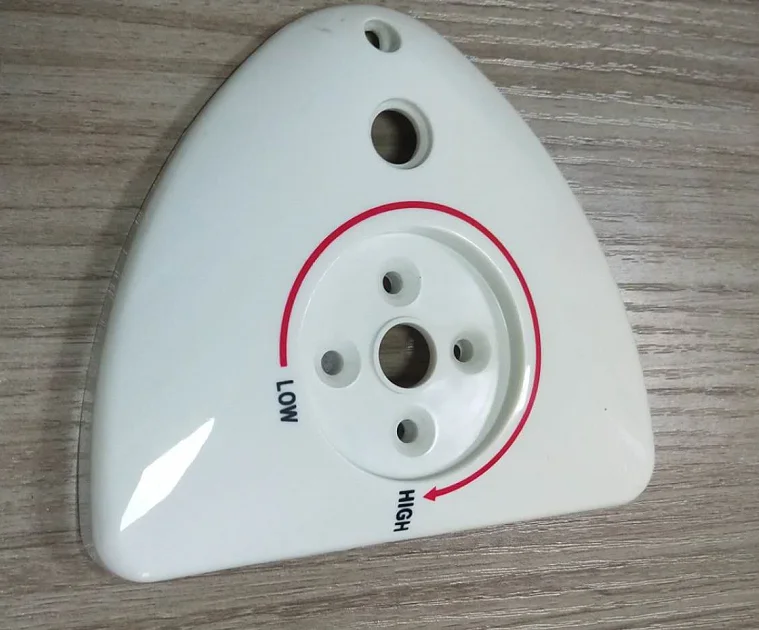

Pad printing samples as reference:

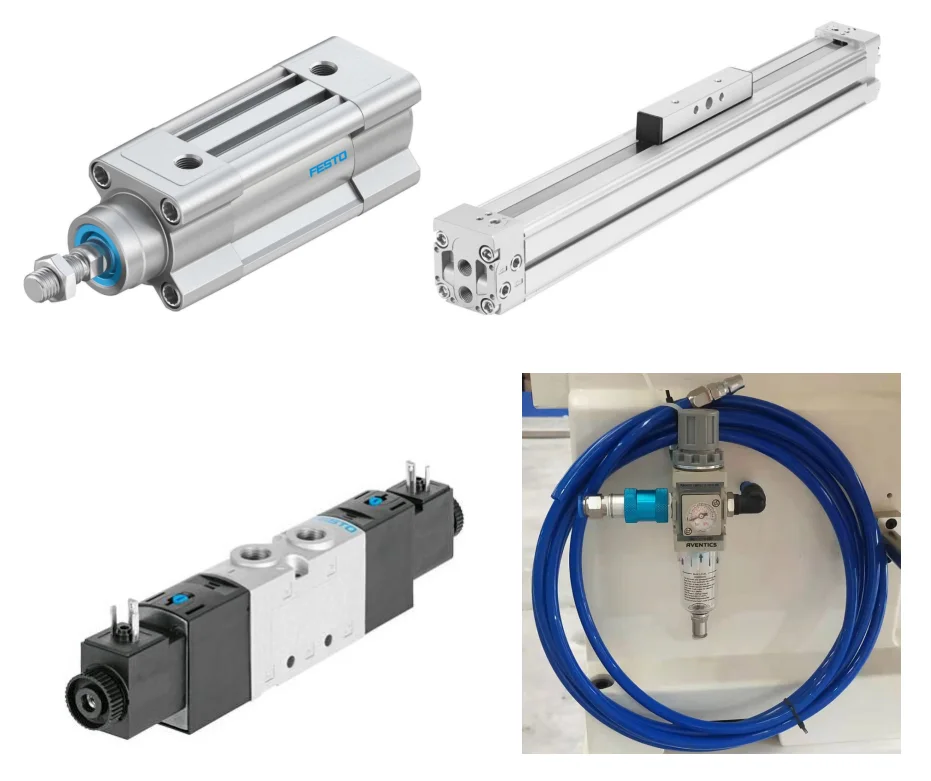

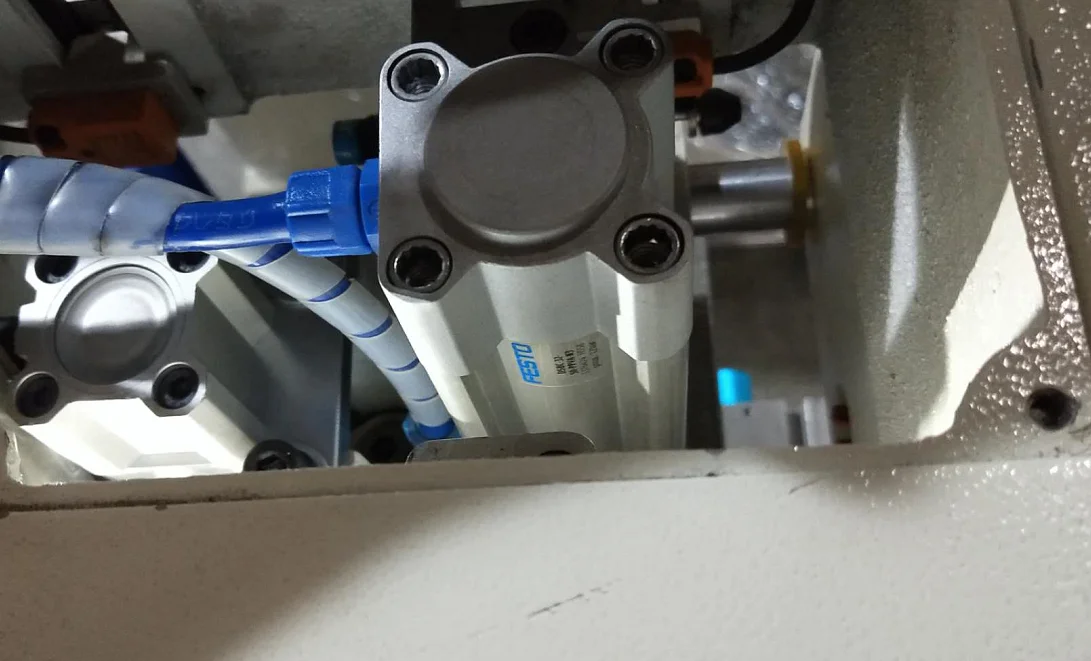

Top quality machine part:





Workshop view:
