Position Sensor for Plastic Injection Machine

Share on:


Price:RUB 2,300.26 - RUB 3,833.77
Price in USD:Details

Quantity:


Product Overview

Description

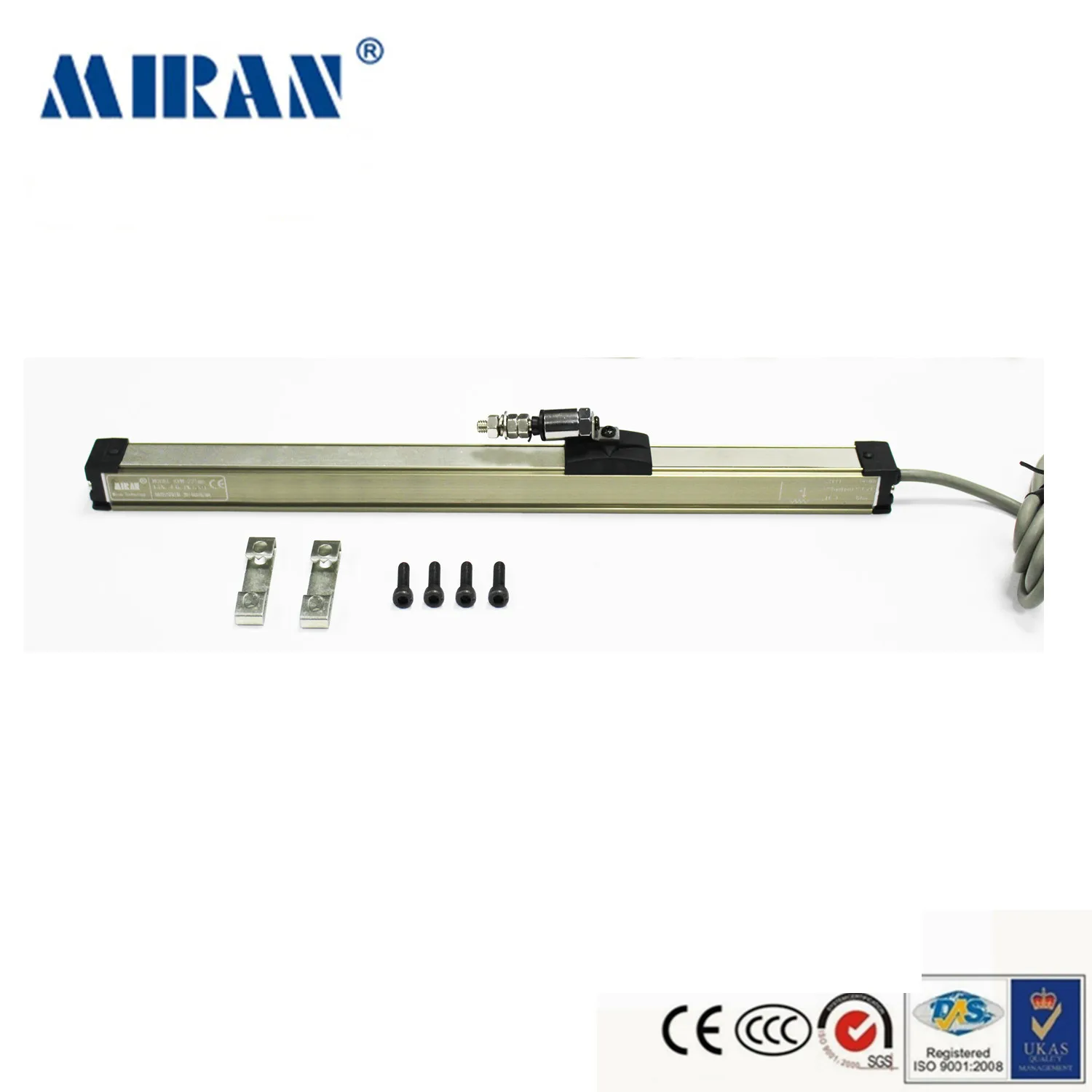

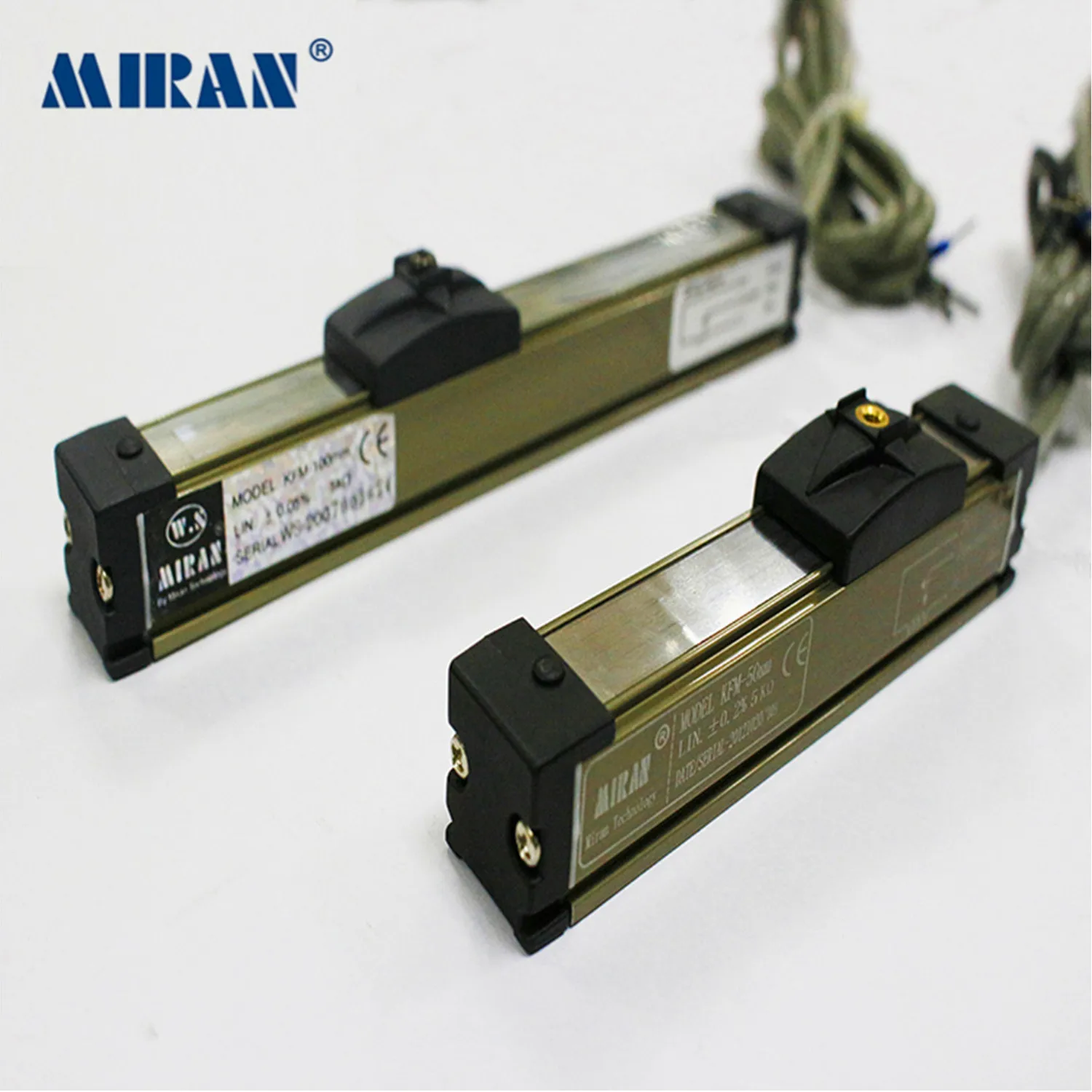

Linear Motion Position Slide Potentiometer / Position Sensor for Plastic Injection Machine (brand MIRAN / LinecSKI / MAX )


Product Description
KFM Plastic Injection Machine Sensor10mm15mm25mm50~75mm100~300mmMeasuring Range
(mm)
10   15   25
50   75 100
125 150 175
200 225 250
275 300
Linear Precision (±%FS)±1.0%±0.8%±0.5%±0.2%±0.1%
Resistance (±10%)1ΚΩ5ΚΩ
Effective Stroke   range+3mm
Resolution   Infinite
Repeatability Precision   0.01mm
Max Speed   5m/S
Recommended Current   1mA
Temperature Range   -60°C~+150°C
Content Type   0~100% × input voltage (change with the movement of the draw bar)
Sensitivity   1
Temperature Drift   infinitesimal

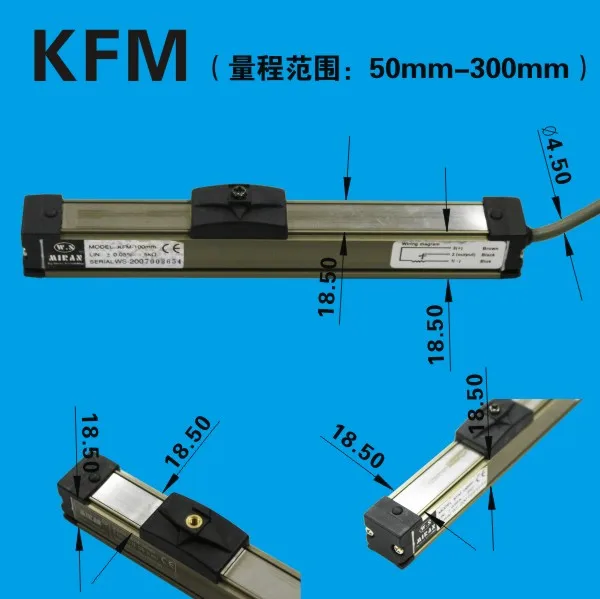

Plastic Injection Machine Sensor Installation Size (mm) :




Applications: KFM is a minitype Plastic Injection Machine Sensor, suitable for small spaces, such like: medical equipments, automatic doors, light industry machines and so on.



Packaging & Shipping

Each piece of Plastic Injection Machine Sensor in cardboard tube;

Below is our packed in-stock products in our ShenZhen warehouse.


Company Information

Shenzhen Miran Technology Co., Ltd.

http://www.miran-tech.com
http://www.mirantech.com
ADD:West Side of Floor 5, Building A, Hongmanting Redwood Culture Town, Minsheng Road, Gongming Street, Guangming New District, Shenzhen, China





Our advantages:

  1. 12 years of business experiences, strong capability in R&D. We are the first company to use scraping technique on the board of electronic ruler, to make precision linear. After having mastered the “potentiometer” technology, our company developed magnetostrictive motion position sensor, linear wire potentiometer, and angle sensor. All our products have patent, and we are a leading company in China.
  2. Strict testing to assure high quality, every product will go through vibration test, Low and high temperature test, electromagnetic interference regulatory test, endurance test, and explosion proof test.
  3. Strong production capacity, we have two factories both in ShenZhen and HuBei Province, and also a lot in-stock products in warehouses. Can meet large demands from our customers, and always deliver the orders on time.
  4. Excellent sales & after-sales service, our headquarter is conveniently located in ShenZhen, and have branches all over China. We guarantee 3 years warranty for our products.



Our main products are:

potentiometer / resistor type linear position sensor (electronic ruler), scale sensor(linear electronic ruler), Plastic Injection Machine Sensor, motion position sensors (non-contact magnetic electronic ruler), slide ohm potentiometer (liquidmeter measurement and control system), angle transducer (angle ruler), and related accessories such as V/A converter, display controller.
