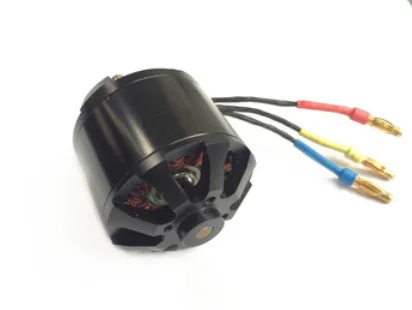

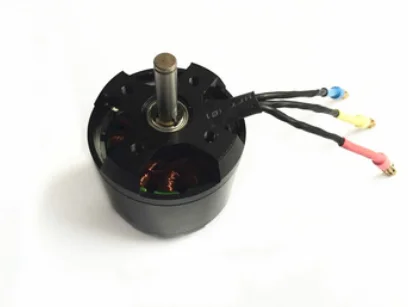

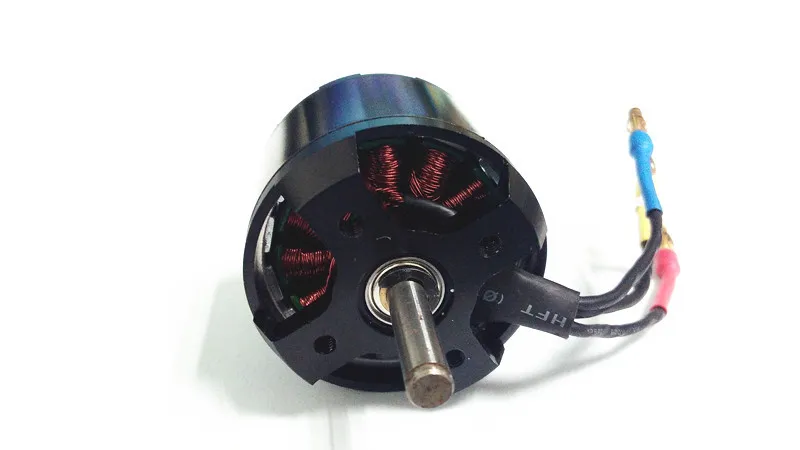

ST 4120 rc brushless model hobby motor for giant scale rc airplane

Product Overview

Description

ST 4120 rc brushless model hobby motor for giant scale rc airplane

Specifications

A.  ST 4120 rc brushless model hobby motor for giant scale rc airplane

B. Manual winding, High performance 90% .

C.CE / RoHS approved

D.We specialize in manufacturing brushless motor, and supply other rc accessories, such as ESC applied to model car, model ship, model plane.



Specifications



                         ST 4120rc brushless model hobby motor for giant scale rc airplane

                                                                ST4120 brushless motor for rc airplane

                                                        Welcome large and small order

                                                        OEM also are welcomed



Production features :



1 The first choice to ST motor series 4120 perfect suitable for RC airplane



2 The ST motor series 4120 are required run fast, sensitive reaction and stability.



3 ST racing motor Janpan imported bearing, high quality magnetic, quality assurance!

4 The technology and index of our products conforming toenvironmental protection (ROHS) and CE



Introduction(rc motor)



We could customize our motors according to your own section and requirments ,such as the color,appearance,as well as the KV rating and structure design,in a word,all kinds of OEM&ODM orders are welcome.





Honesty and Trust are the basis of everything!



Quality first



Intergrity based



Your satisfaction is our pursuit

Technical parameters:

Ltem	KV	Shaft	Max A	Max W	Efficiency	Thrust/g	Propeller	ESC/A	weight/g	Li-Po	Shaft Length/mm
ST5055C(4120)	400	6	57	1650	85%	2000~4000	16’‘/17’‘/18’‘	HV-80A	295	4~8	22mm
	580		66	1950	84%	2000~4500	14’‘15’‘/16’‘
	700		74	2200	84%	2000~5000	13’‘/14’‘15’‘





Installation:



 Application:



RC  airplane ; Electric Skateboard



Package







Certificate:
