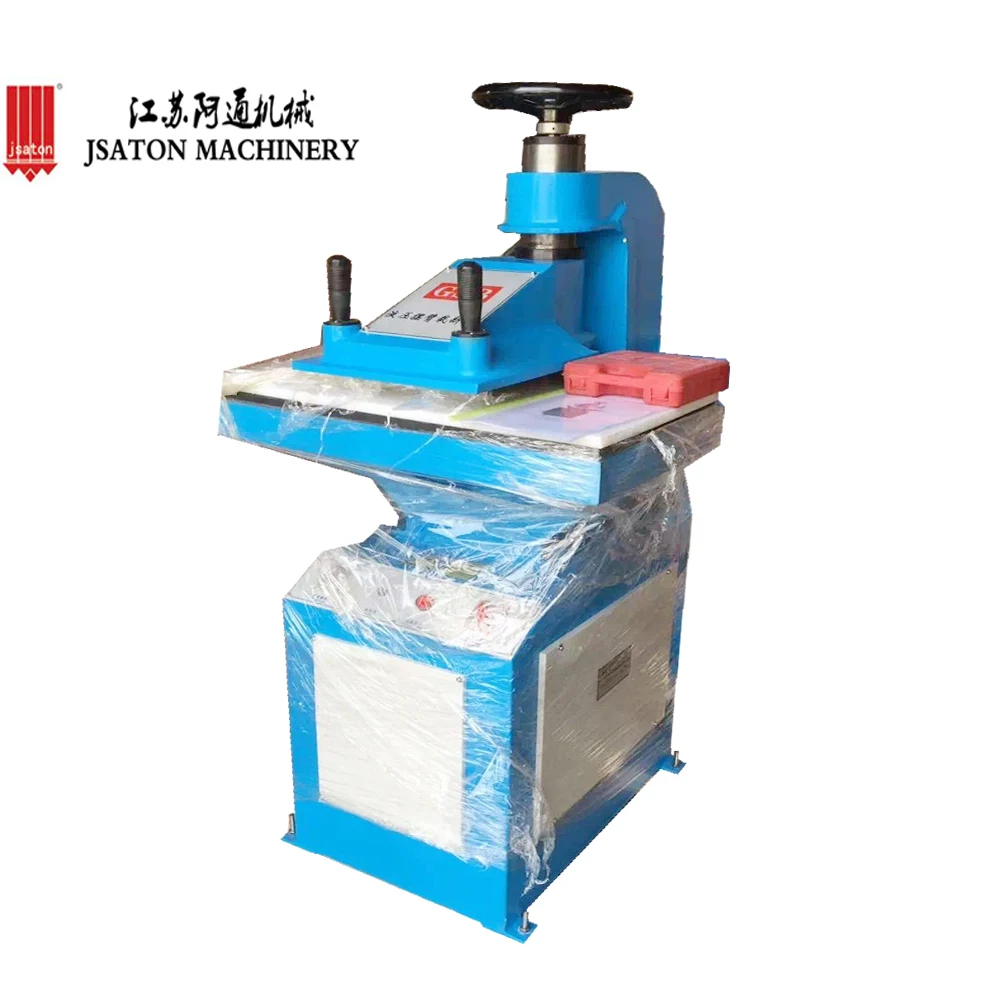

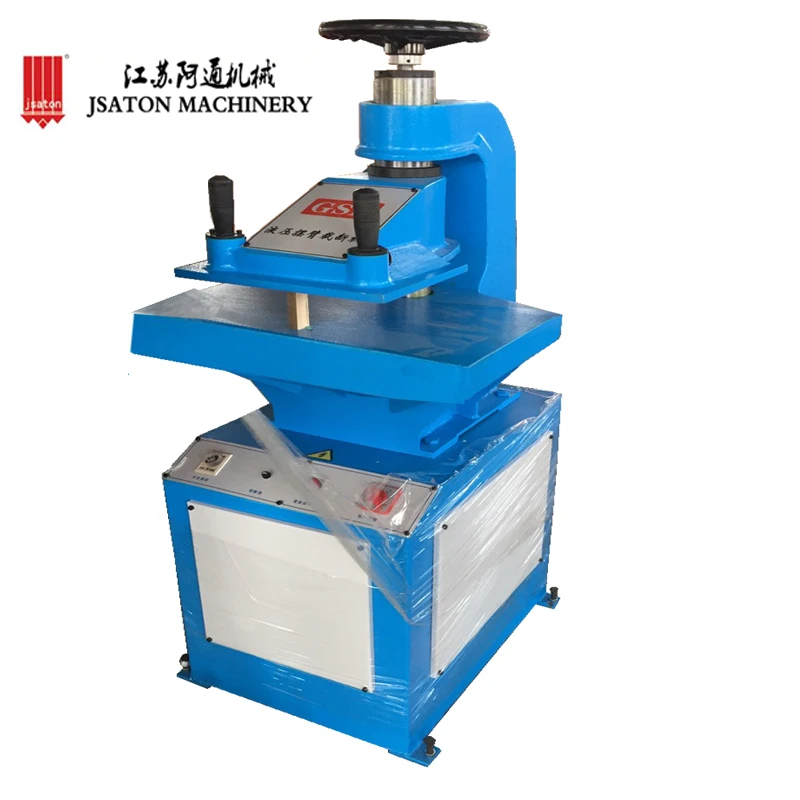

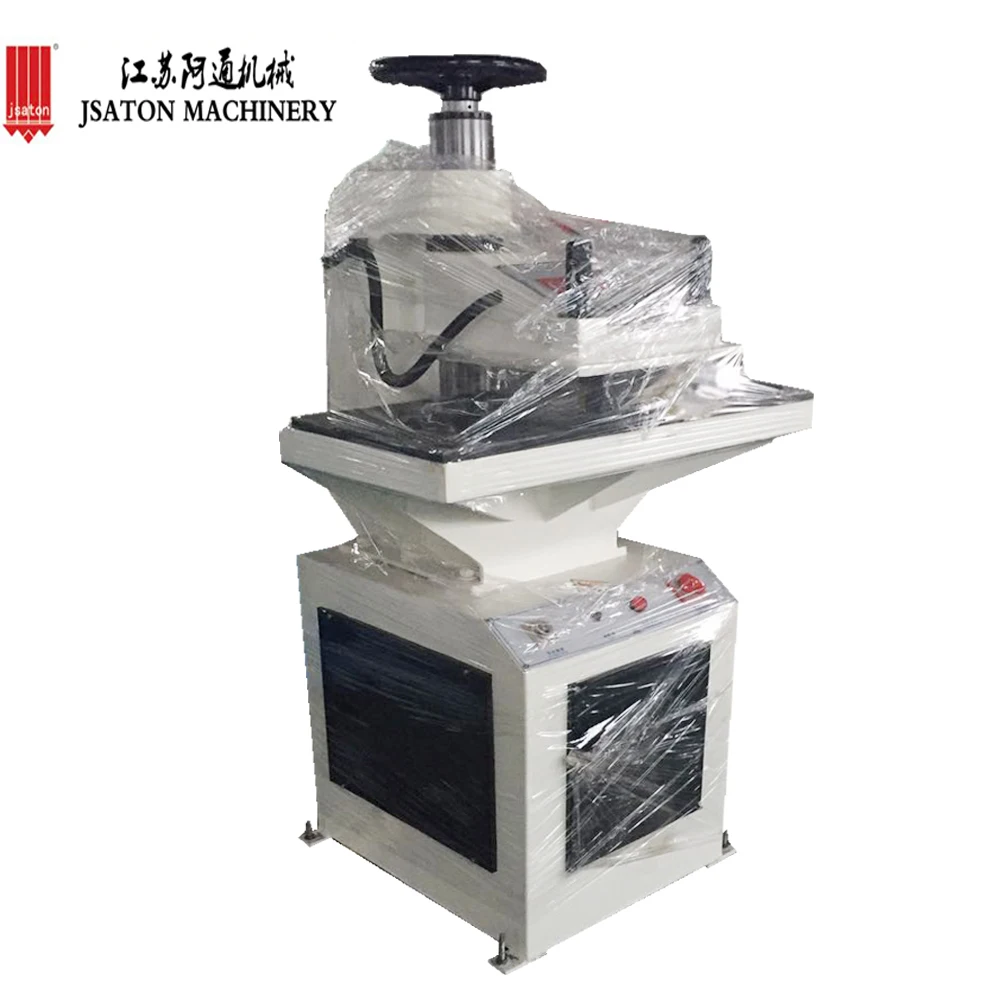

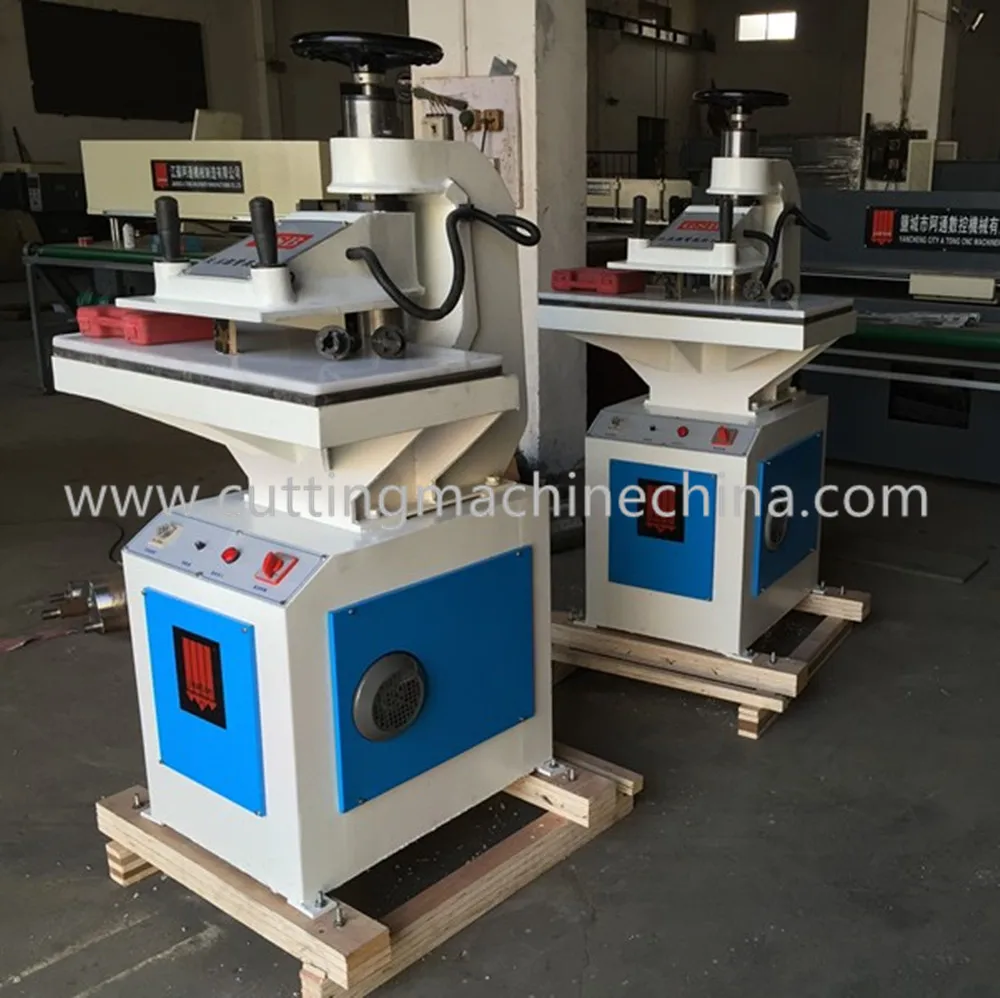

rocker hydraulic press cutting machine/Leather machinery

Product Overview

Description



Suitable for cutting all kinds of uppers, soles, leather , rubber, chemical fiber, cardboard and cotton .



1. has a rotatable arm , easy operation and material selection

2. Using high-quality seamless steel tube column in town , with two holes down to support , to ensure that the strike plate on the rotating flexible , good reliability.

3. Using both hands to operate the switch , to ensure the safety of operating staff .

4. High and low position of the swing arm upper end by a hand wheel adjustment machine , punching stroke the timer adjustment , which can be easily cut to get the best position to improve work efficiency and prolong the service life of the cutting die and the backing plate .

5. Using the inertia of the flywheel energy storage, energy saving



Maximum cutting force	10T	12T	14T
Stroke adjustment range	0-70mm	0-70mm	0-70mm
Effective cutting area	650*350mm	800*400mm	900*400mm
Main motor power	0.75kw	0.75kw
