Concrete conveyor belt,industrial conveyor belt,conveyor belt for construction

Product Overview

Description

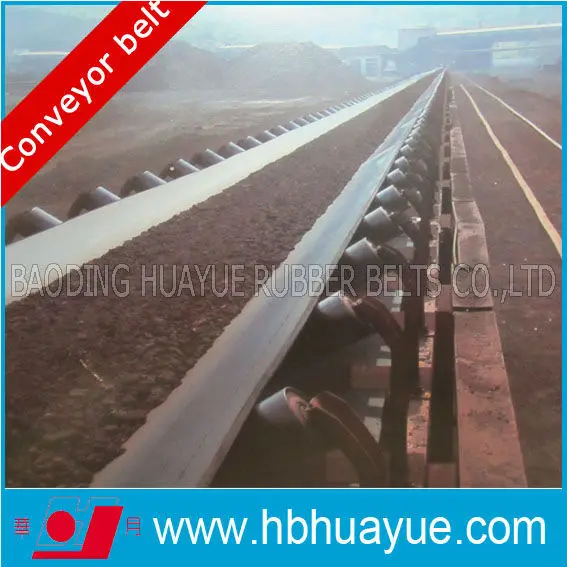

Concrete conveyor belt,industrial conveyor belt,conveyor belt for construction

Huayue is the Top 5 manufacturers and exporters of Mining ep polyester rubber Conveyor Belt in China. Our range of conveyor belts are highly appreciated by our clients due to its Abrasion resistant feature and availability in various sizes and designs. These are dimensionally accurate as per international standards.



Top 5 conveyor belt manufacture in china

 Huayue Conveyor Belt Competitive Advantage

 l Plies: 1-10ply

 l width (BW): 400-2200mm

 l Thickness: 4-30mm

 l Type: EP100,EP125,EP150,EP200,EP250,EP300,EP400, EP500, EP600.

 l We can add reinforced layer (1-2)

 l Abrasion resistant & High Tensile Strength

 l ISO9001:2008, Bureau Veritas Certificate.

 l More Than 30 years professional experience.(Since 1982)

 l International Standard:  DIN, BS, AS, RMA, AS, JISK, SABS etc



Our best quality based on :



• Manufacturer
• Experience in Cooperate with Fortune 500 Companies
• Professional Engineering Capability
• Stable Quality
• Reasonable Price
• Small Orders Accepted
• Continuous Improvements
• High Product Performance
• Prompt Delivery
• Professional Service

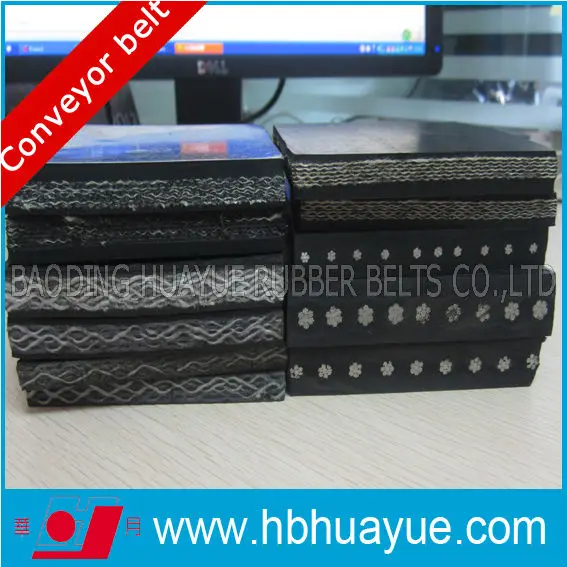

Huayue Company are manufacturers and exporters of rubber conveyor belts in China. “Huayue” industrial conveyor belts constitute nylon/nylon (NN), polyester/nylon (EP), cotton/nylon (NN),  It has carcass with straight ply, stepped ply, reverse stepped ply, breaker ply and "edge-lock” where required.


A. Nylon/Nylon (NN) Carcass

• Lower longitudinal elongation
• Higher tensile strength
• Good flexibility and troughability
• Good resistance to mildew, moisture and rotting
• Good resistance to edge wear
• Excellent impact resistance
• Unaffected by alkalies and weak acids
• Suitable for conveying material over long distances

B. Polyester/Nylon (EP) Carcass

• Besides having the advantages as listed for NN carcass belts, EP belts have the additional advantage of lower longitudinal elongation.

Variety:

According to the performance of covered-colloid products can be classified into designated crack-resistant, designated wear-resistant, general, and resistance to acid-base, and anti-burning.

Features:

polyester rubber conveyor belt used by the multi-layer polyester (or to the polyester, polyester weft for amine) bond canvas with a certain way, up and down the high-strength plastic cover, good wear-resistant flexible rubber.



Structure:

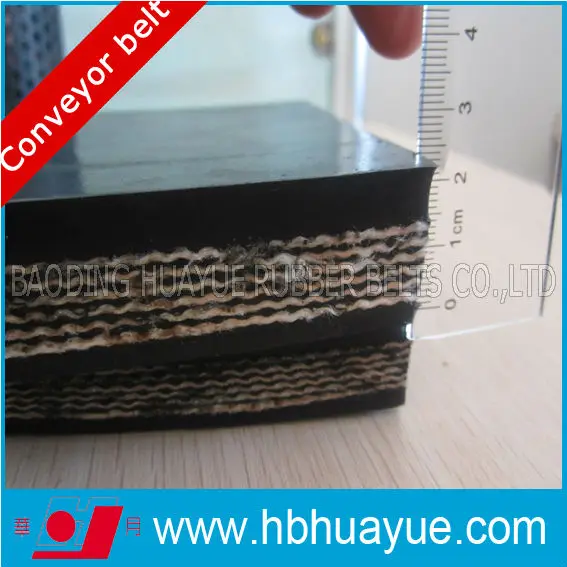

EP/polyester rubber conveyor belt uses polyester canvas as carcass, its structure is the same as General Conveyor Belt.
Standards:

GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.

Types:
General EP Belt, Fire-retardant type, Cold-resistant type, Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type, High-grade type and etc.

Models:

Ep80  Ep100   Ep125   Ep200  Ep250  Ep300   Ep400  Ep500 Ep600



Index Description	Strength between layers	Cover layer and fabric layer
		Thickness of cover layer≤1.5mm	Thickness of cover layer >1.5mm
Sample average value	4.5N/mm	3.2N/mm	3.5N/mm



Fabric Material	Fabric structure		Fabric code	No.of fabric plies	Width mm	Length m	Cover thickness mm
	Warp	Weft
							Top	Bottom
Polyester canvas	Polyester	Nylon of Polyester	EP100	2-10	350-2000	10-400	2-12	1-5
			EP150	2-10	350-2000	10-400	2-12	1-5
			EP200	2-10	350-2000	10-400	2-12	1-5
			EP250	2-10	350-2000	10-400	2-12	1-5
			EP300	2-6	350-2000	10-400	2-12	1-5
			EP400	2-6	350-2000	10-400	2-12	1-5
			EP500	2-6	350-2000	10-400	2-12	1-5
			EP600	2-4	350-2000	10-400	2-12



Quality control

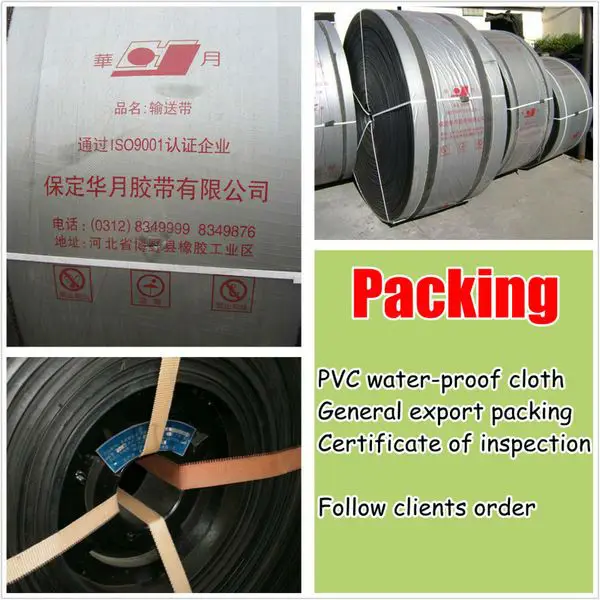

Package



Concrete conveyor belt,industrial conveyor belt,conveyor belt for construction For more details,please inquiry us!
