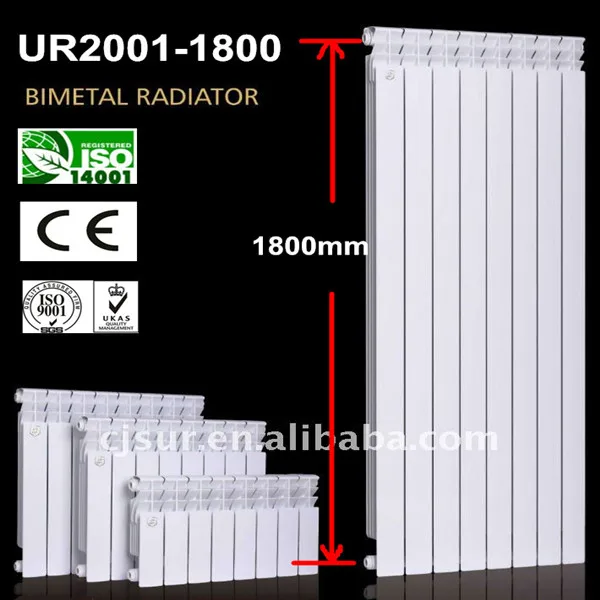

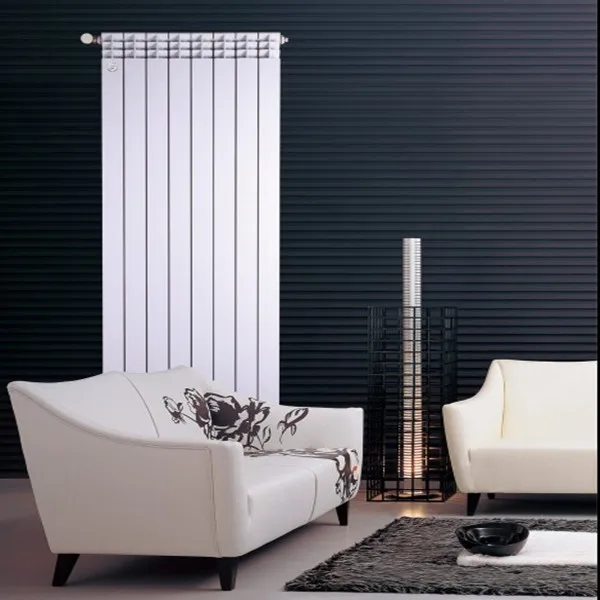

room water heating system flat stainless bimetallic radiator 1800mm

Product Overview

Description

Flat Panel Stainless Steel Tube Bimetallic Radiator



Technical data of UR2001-1800 water heating radiator:



Model	Dimension per Piece (L*D*H mm)	Intercentral Distance (mm)	Water Capacity per Piece (L)	Heat Output T=64.5°C (W)
UR2001-300	80*85*366	300	0.26	132
UR2001-600	80*85*666	600	0.39	185
UR2001-800	80*85*866	800	0.43	250
UR2001-1000	80*85*1066	1000	0.59	279
UR2001-1600	80*85*1666	1600	0.79	403
UR2001-1800	80*85*1866	1800	0.85	454





Advantages of UR2001 series bimetallic radiators:

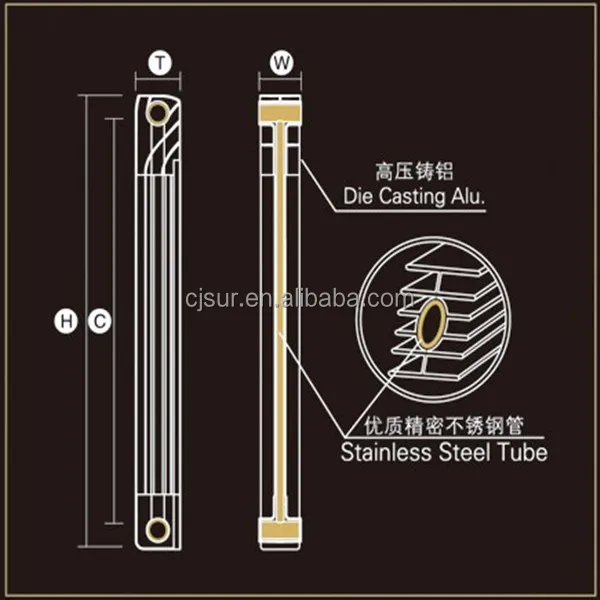

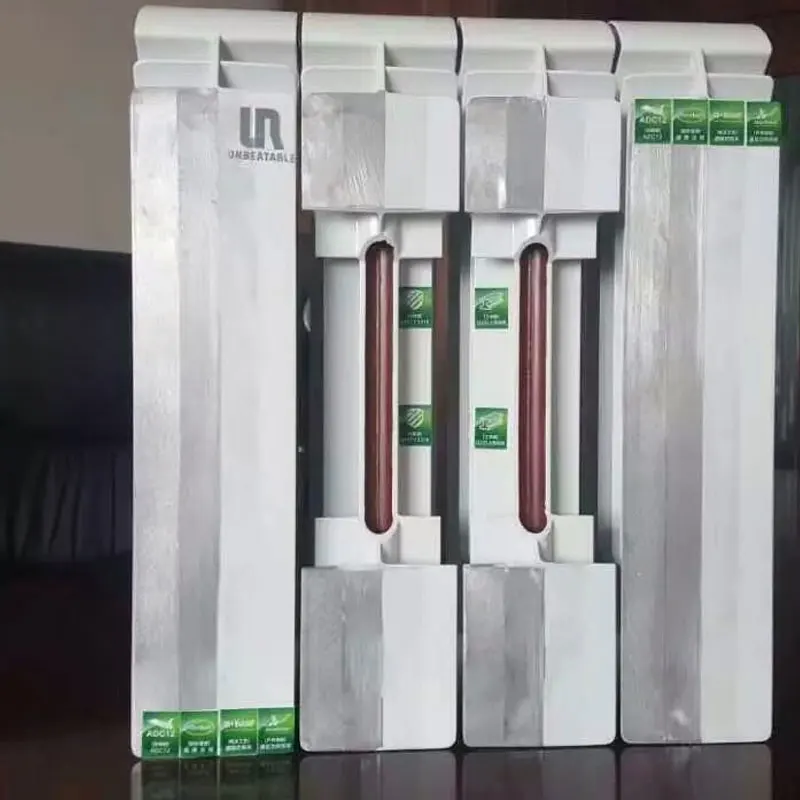

(1) Anti-corrosion ADC12 die casting aluminum surface body material and high quality stainless steel inner

water tube(channel) supply double quality guarantee.



(2) Hidden water channel prevents children from being hurt. Bimetal radiators from 800-1600mm.we adopt

the advanced plug-in techonology.



(3) Easy to adjust the element quantity for different room size and temperature request.



(4) Thanks to automatic pretreatment procedure,electrophoresis painting line and advanced roast facility,

color on surface is perfect.



(5) Efficient heating and high thermal output helps energy saving and environmental protection.



(6) No risk of excess pressure. Thickness of steel tube is no less than 1.8mm, which guaranteed the

radiators able to withstand higher pressure.The testing pressure of our products is 24 bars of three times.

Working pressure is 20 bars and the Max pressure is more than 38 bars.
