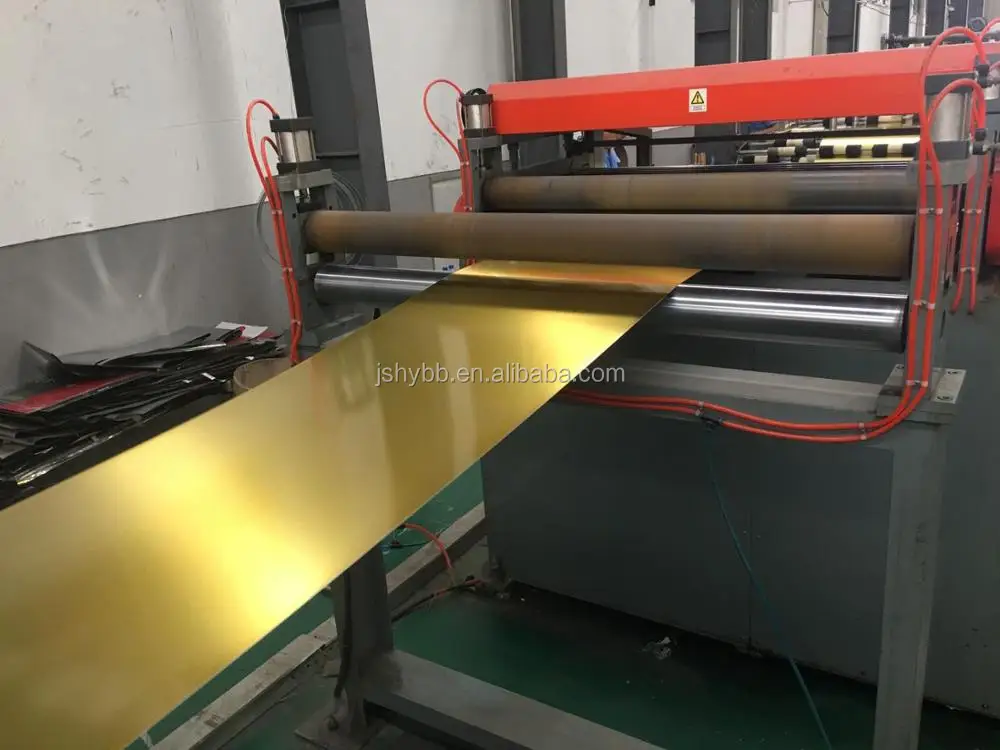

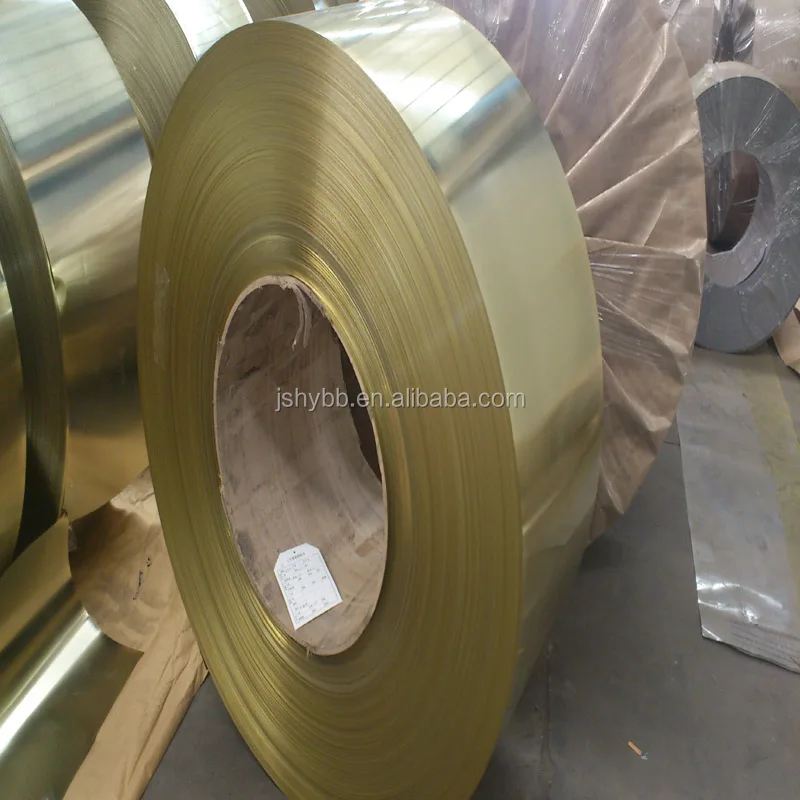

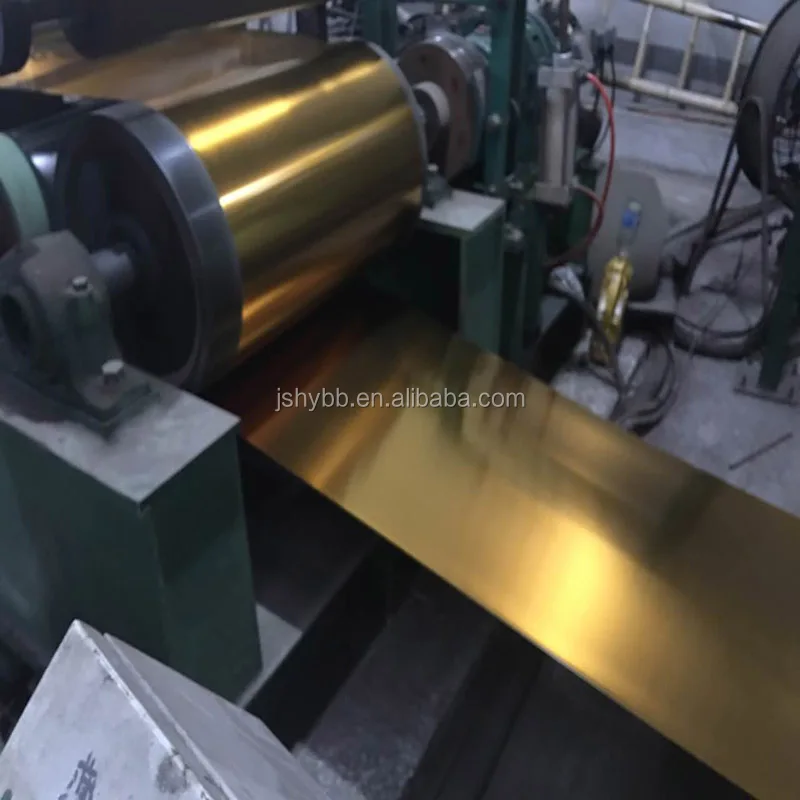

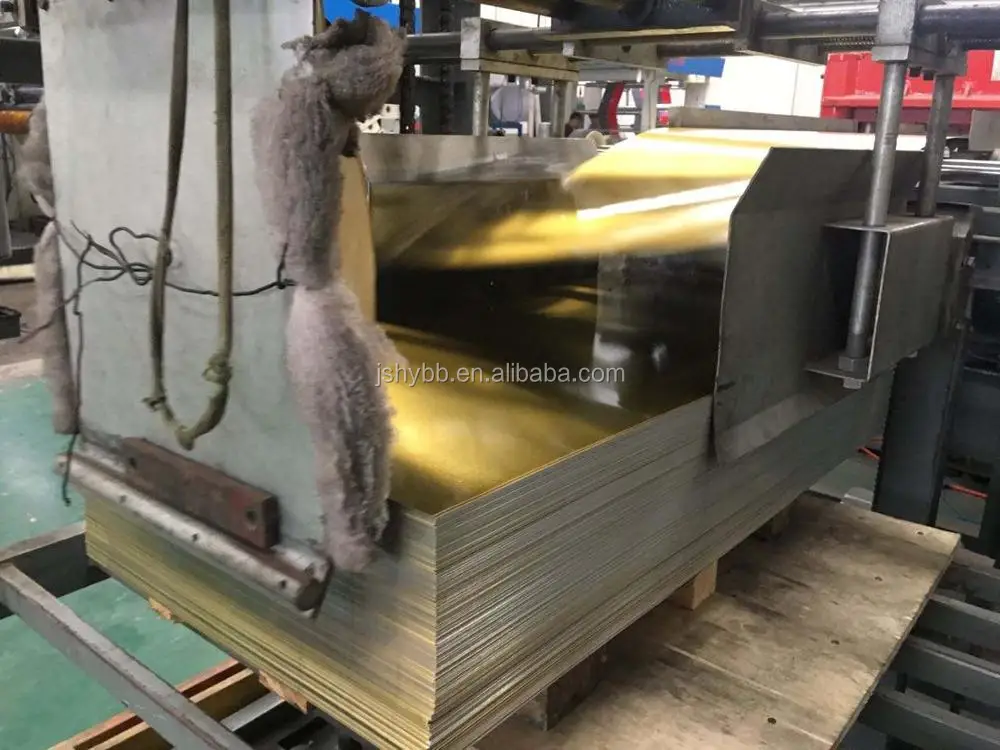

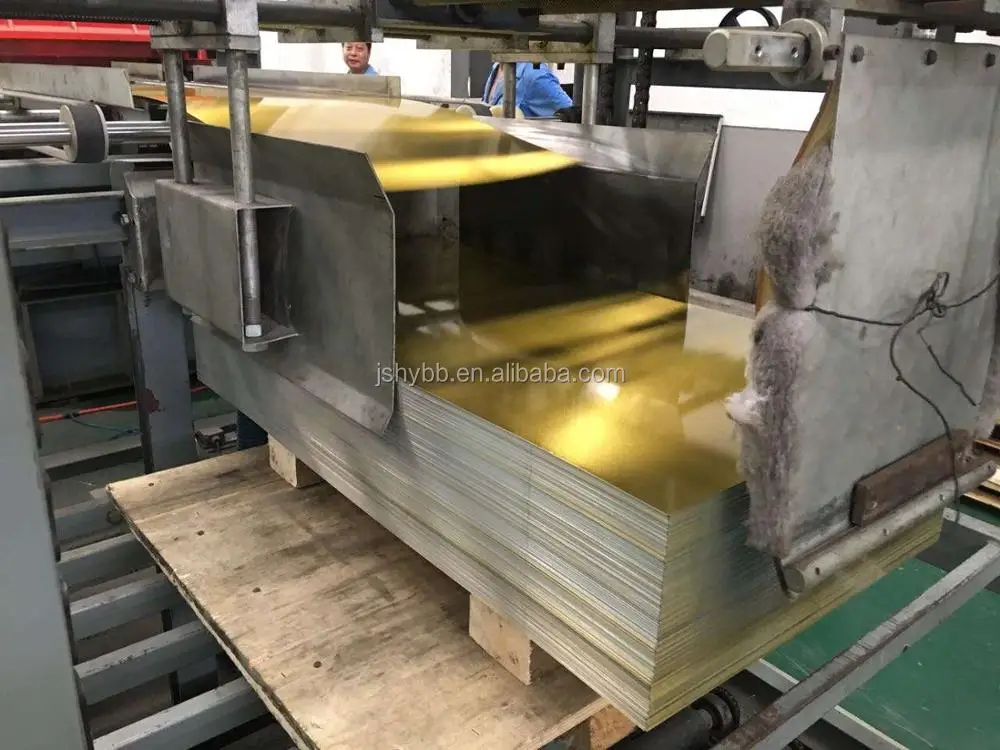

Gold tin plate coil and tinplate sheet, gold lacquer Tin plate good price

Product Overview

Description

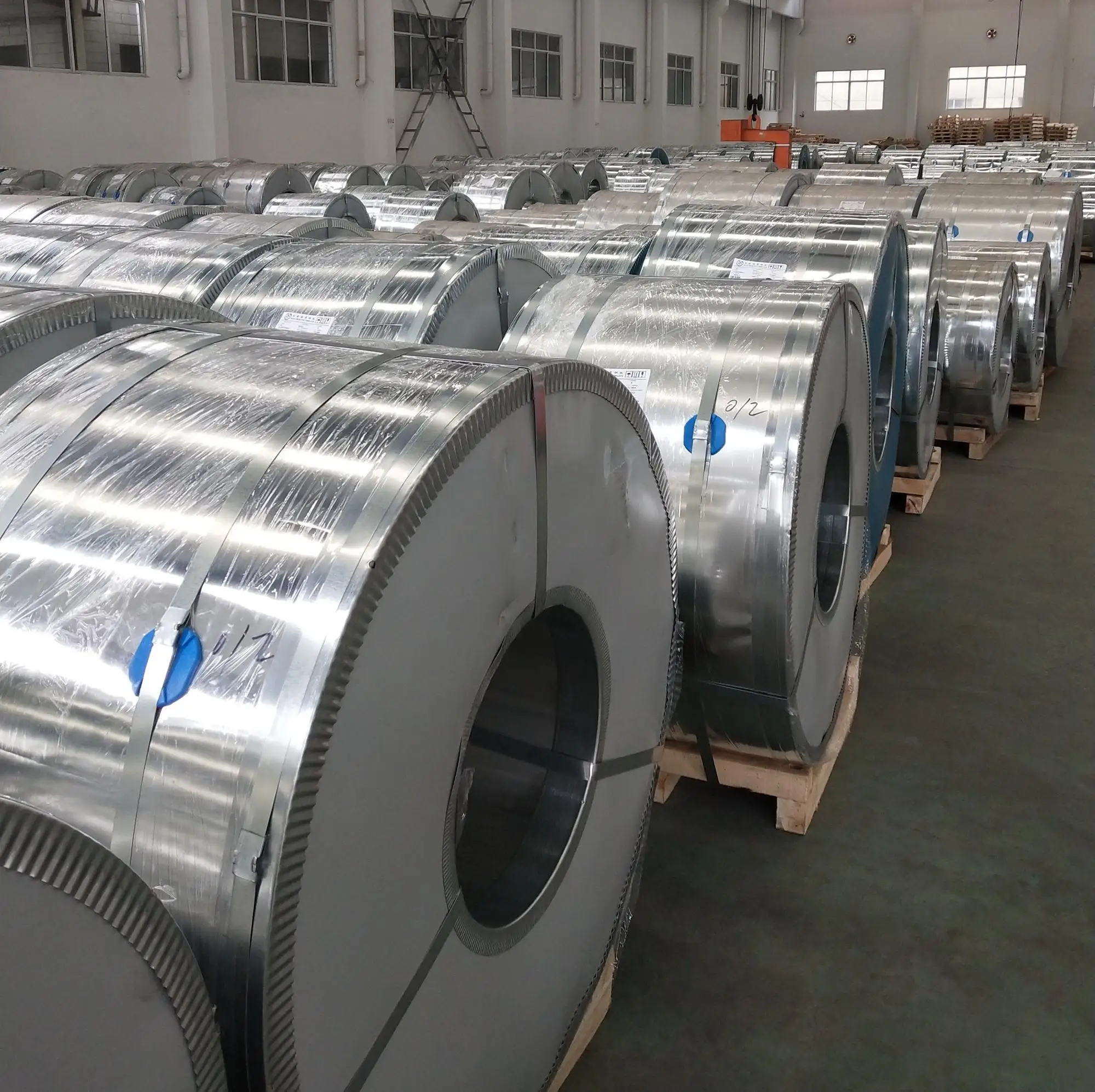

Tinlate sheet

1, Reference standard: GB2520-88, JIS G3303-1997 and DIN EN10203-91
2, Material: MR, SPCC,
3, Thickness available:  0.15mm to 0.45mm
4, Width available:  300-1050mm
5, Temper grade: T2 - T5 DR7  DR8  DR9
6, Tin coating: ordinary 2.8g/2.8g, 5.6g/5.6g, We also can produce according to customers'requests

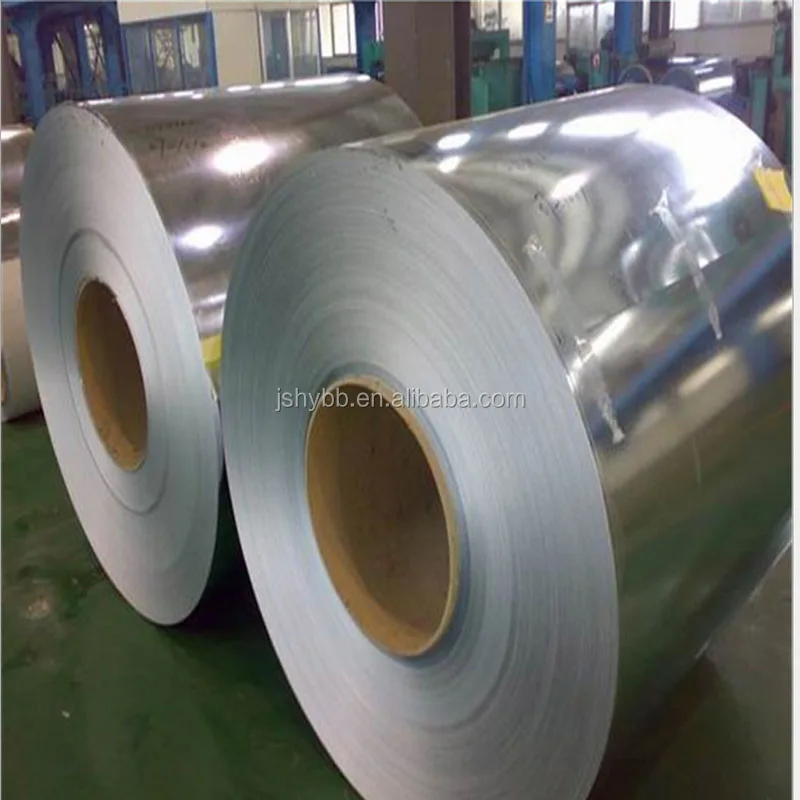

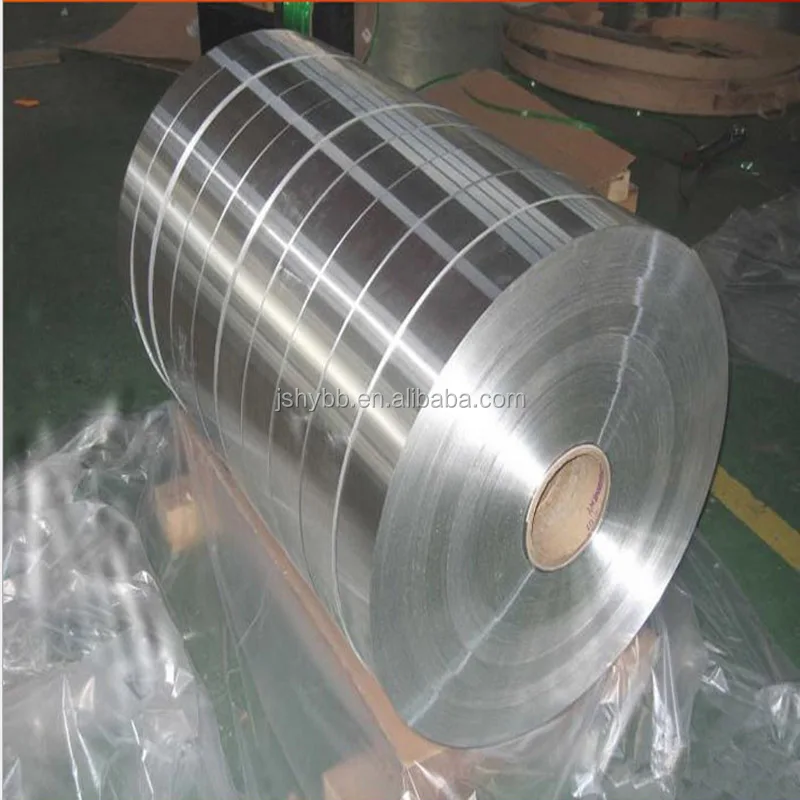

7,Coil diameter: ID 508mm, OD from 1,000 to 1,250mm

8,Package: Anti-rust paper,corner protected. by sheet or coils according customer's require.

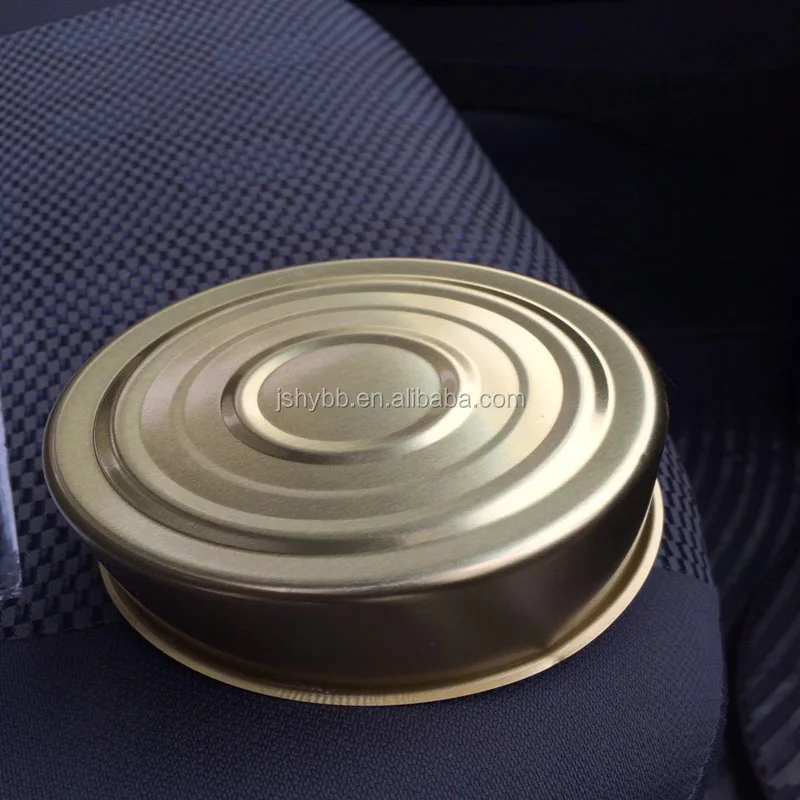

9, Applications: paint, chemical can and other usage can making, battery,electric cable and    otherindustries



with pinhole detector.

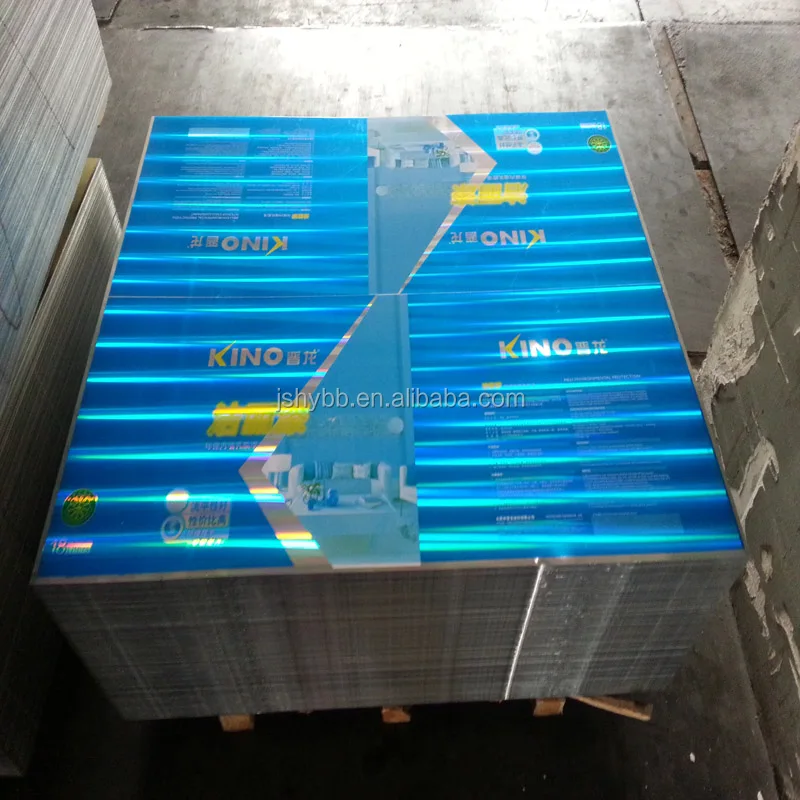

Tinplate Sheet

We are the professional company who can produce the high quality and competive  price tinplate ,Our tinplate

sheet details as follows:

1. Technical standard: BS EN 10202, DIN EN 10203, GB/T2520 , JIS G3303

2. Steel type: MR, SPCC

3. Thickness: 0.15 - 0.45 mm

4. Roll width: 300 - 1050 mm

Coil ID: 508 mm

5. Cut length: as customer requirement

6. Tin coating weight:2.8/2.8, 2.8/5.6, 5.6/5.6 gr/m² or according to your requirement.

7. Temper: T2-T5, DR7 DR8 DR9

8. Surface: Bright/Stone/Silver finish with passivation treatment; DOS oil

9. Packaging detail:

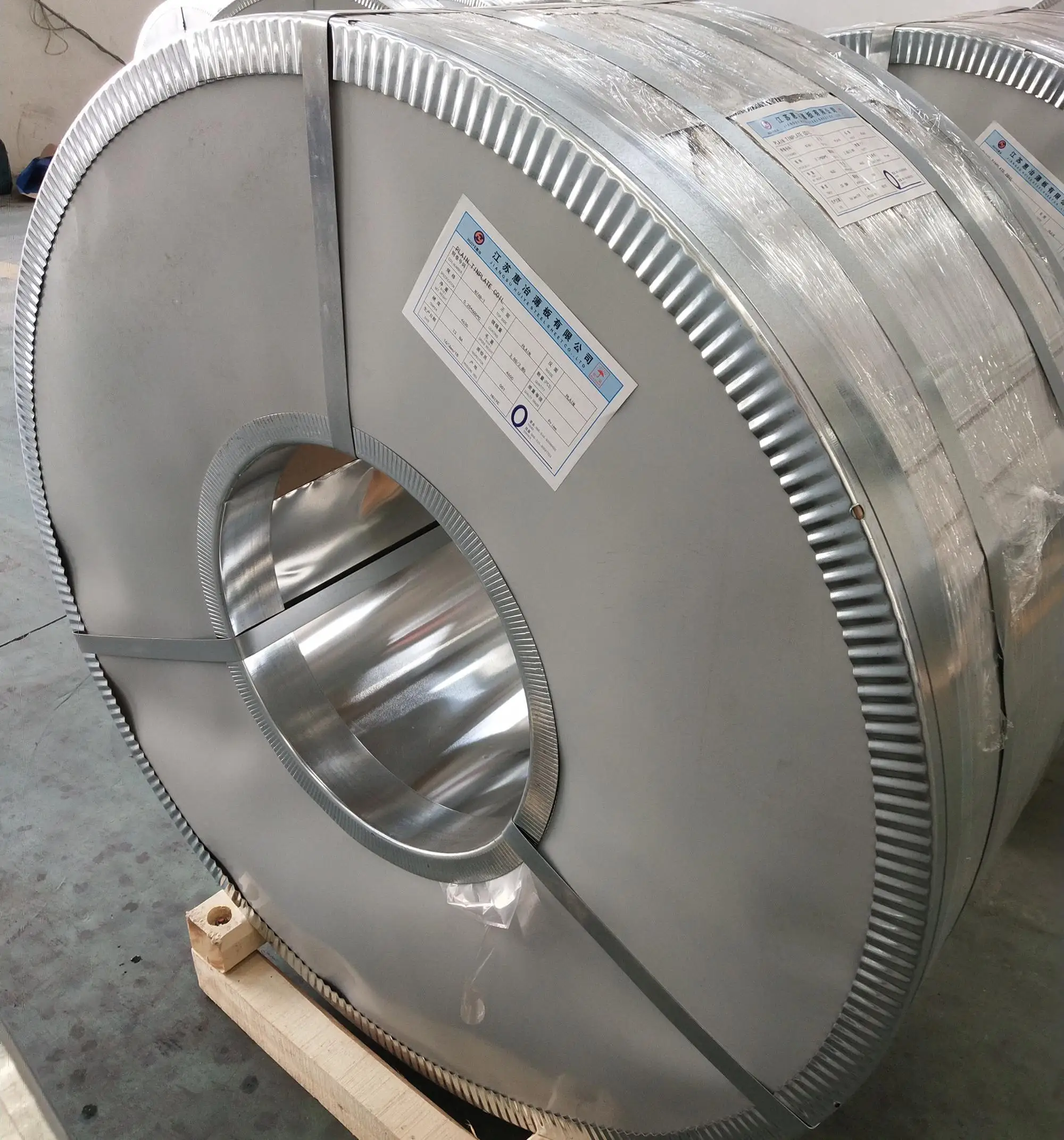

Thin plastic film, rust-proof paper, metal cover, metal corner, metal band, wooden skid.

Standard for Temper

code	Chinese  Stardard	Japaness  Standard	American  Standard	European  Standard	International  Standard
	GB/T 2520-2000	JIS G3303-2002	ASTM A623M-2002	DIN EN 10203-1991	ISO 11949-1995
T-2	TH52+SE	T-2	T-2(53)	T52	TH52+SE
T-2.5	TH55+SE	T-2.5			TH55+SE
T-3	TH57+SE	T-3	T-3(T57)	T57	TH57+SE
T-3.5
T-4	TH61+SE	T-4	T-4(T61)	T61	TH61+SE
T-5	TH65+SE	T-5	T-5(T65)	T65	TH65+SE
DR-7M			DR-7.5
DR-8	TH550+SE	DR-8	DR-8	DR550	TH550+SE



Temper	HR30T	Applications
T1	49±3	Nozzles, spouts, closures, and deep drawing.
T2	52±3	Rings and plugs, pie pans, closures, shallow drawn and specialized can parts.
T2.5	55±3	Battery can bodies, small can ends and bodies.

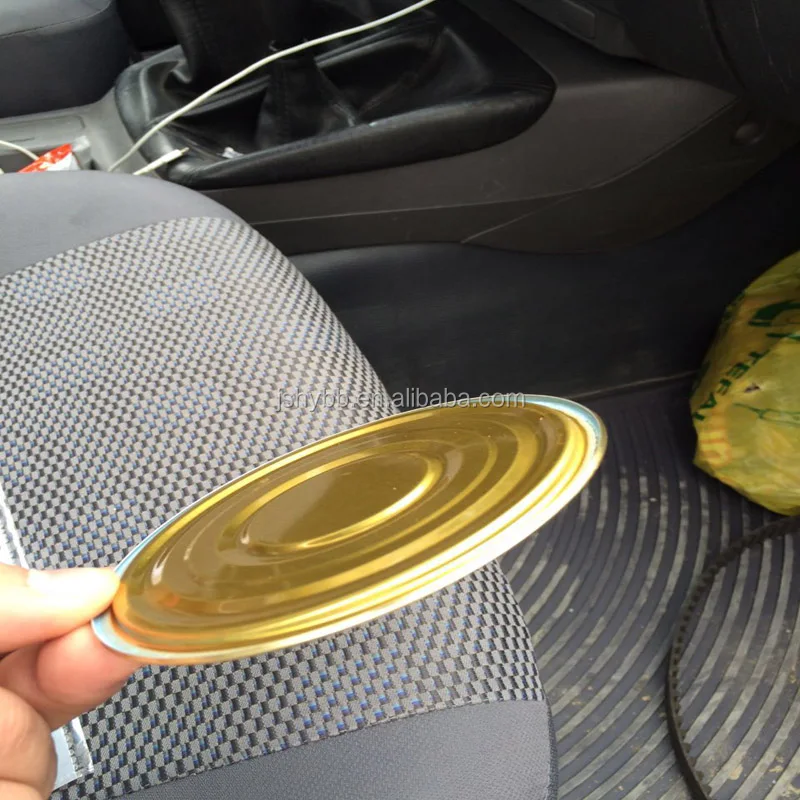

T3	57±3	Can ends and bodies, large diameter closures, crown caps.
T4	61±3	Can ends and bodies, crown caps and small screw closures.
T5	65±3	Can ends and bodies for non corrosive products.
DR-8	73 ± 3	small diameter round can bodies and ends

Coating weight

Classification	Designation of  tin coating weight	Nominal  tin coating weight(g/m2)	Min average  tin coating weight(g/m2)
Equal tin coating(E)	1.1/1.1	1.1/1.1	1.8
	2.2/2.2	2.2/2.2	4.0
	2.8/2.8	2.8/2.8	5.0
	5.6/5.6	5.6/5.6	10.5
Differential tin coating(D or A)	2.2/1.1	2.2/1.1	2.0/0.9
	2.8/1.1	2.8/1.1	2.25/0.9
	5.6/1.1	5.6/1.1	5.05/0.9
	2.8/2.2	2.8/2.2	2.25/2.0
	5.6/2.2	5.6/2.2	5.05/2.0
	5.6/2.8	5.6/2.8	5.05/2.25
