40mm 24v long life slotless inner runner with hall electrical dc brushless small bldc motor
- Category: >>>
- Supplier: Constar Micromotor Co. Ltd.
Share on (1698293187):
Product Overview
Description
40mm 24v long life slotless inner runner with hall electrical dc brushless small bldc motor
| CONSTAR MICROMOTOR | ||
 |  |  |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
 |  |  |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1. Applications:Medical equipment, industrial equipment, navigation models, electricaltools and mini household appliances
2. Operating Environment:-40~+100°C
3. Characteristics :
The following are our standard products, we also provide customized products and service.
| Characteristics | |||
| -2-24.0 | |||
| 1 | Voltage | V | 24 |
| 2 | Terminal resistance | Ω | 2 |
| 3 | No-load speed | rpm | 42000 |
| 4 | No-load current | A | 0.17 |
| 5 | Stall torque | mNm | 64 |
| 6 | Stall current | A | 12 |
| 7 | Nominal torque | mNm | 7.3 |
| 8 | Nominal speed | rpm | 37200 |
| 9 | Nominal current | A | 1.5 |
| 10 | Max. output power | W | 70 |
| 11 | Max. efficiency | % | 78 |
4. Options:Lead wires length, shaft length, special coils, gearheads,bearing type, driver,encoder

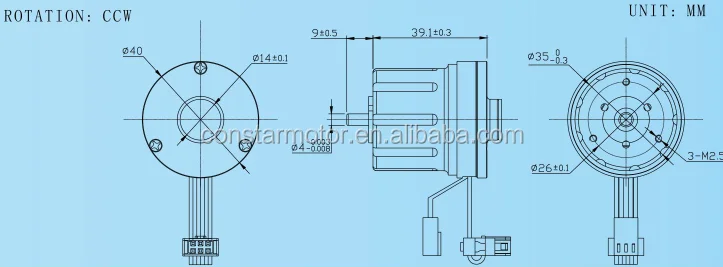

5,Outline Drawing:
6,Customized Motor:
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!

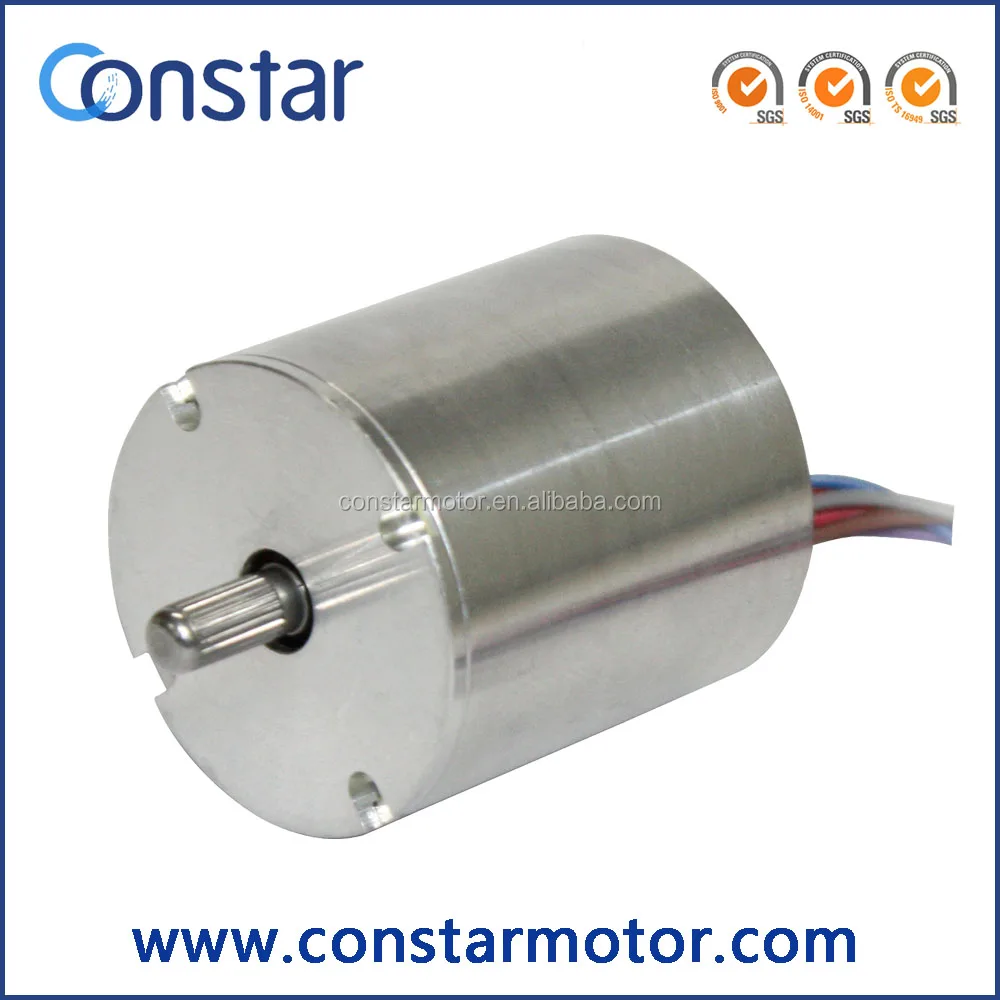

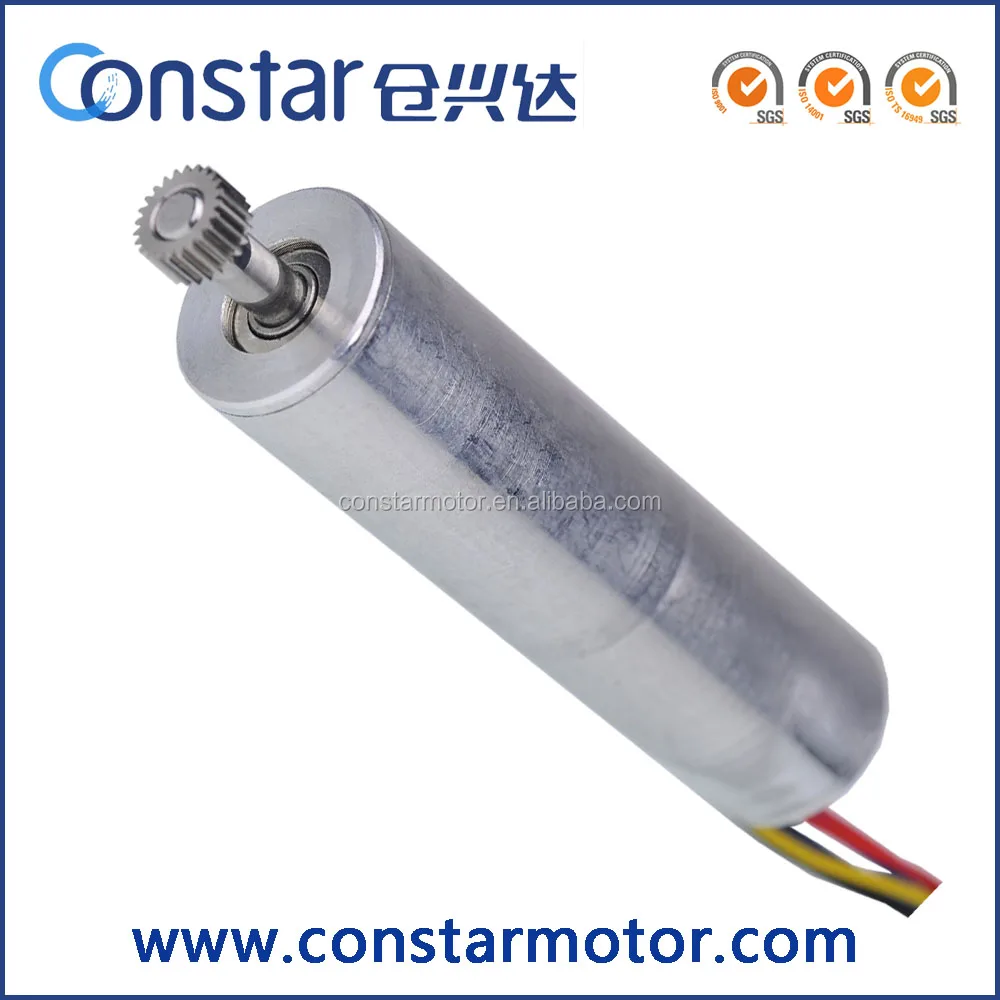

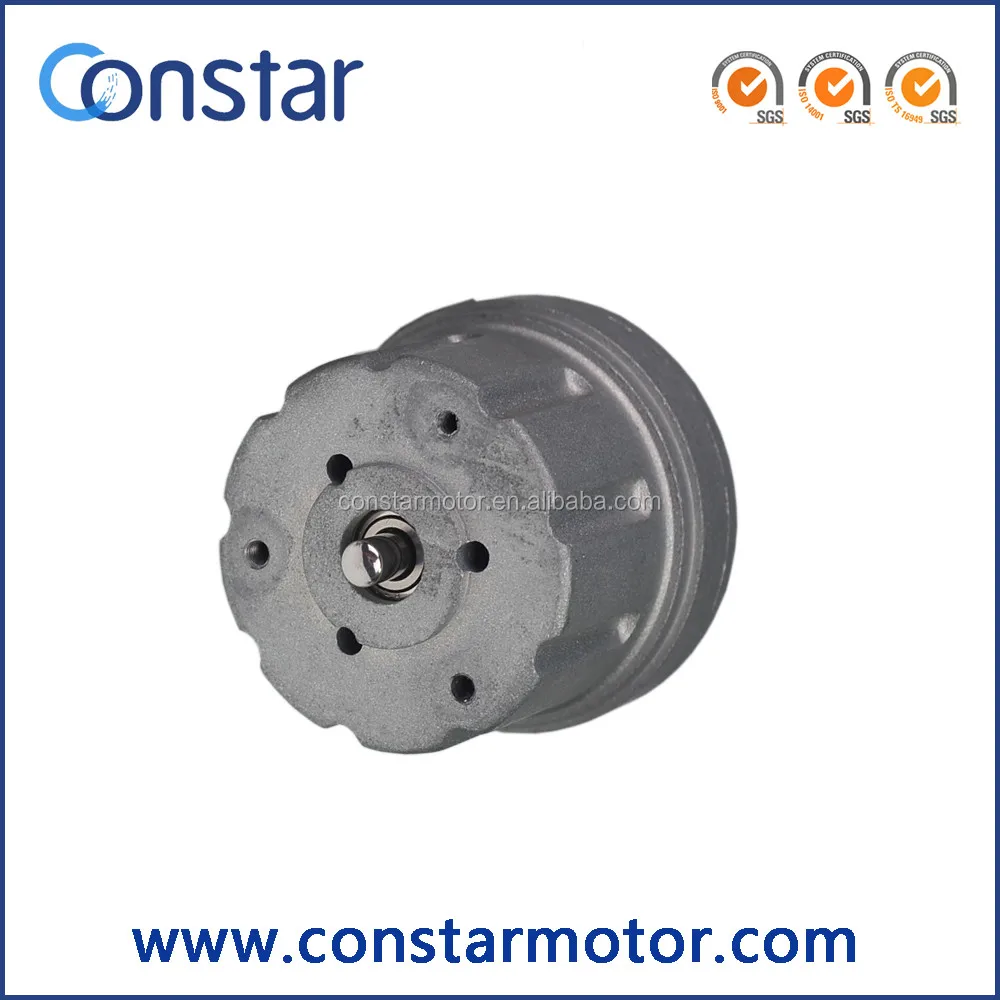

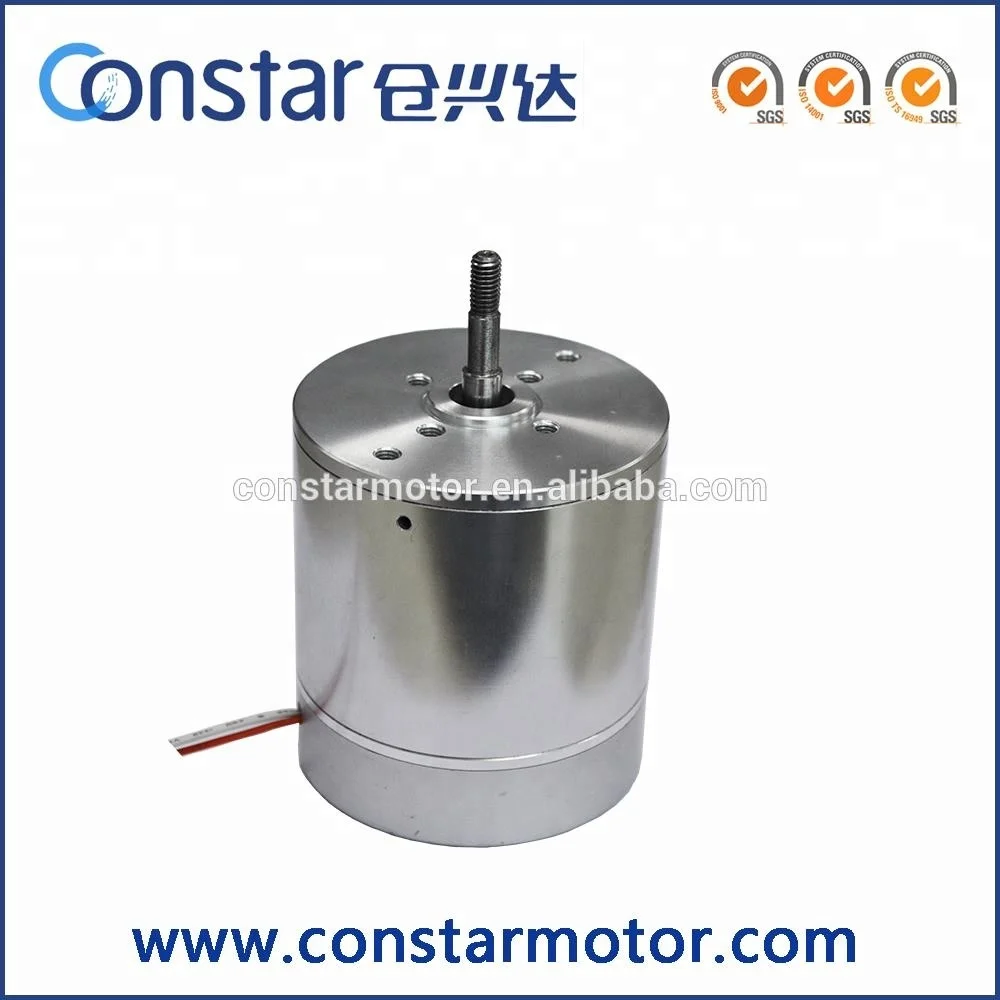

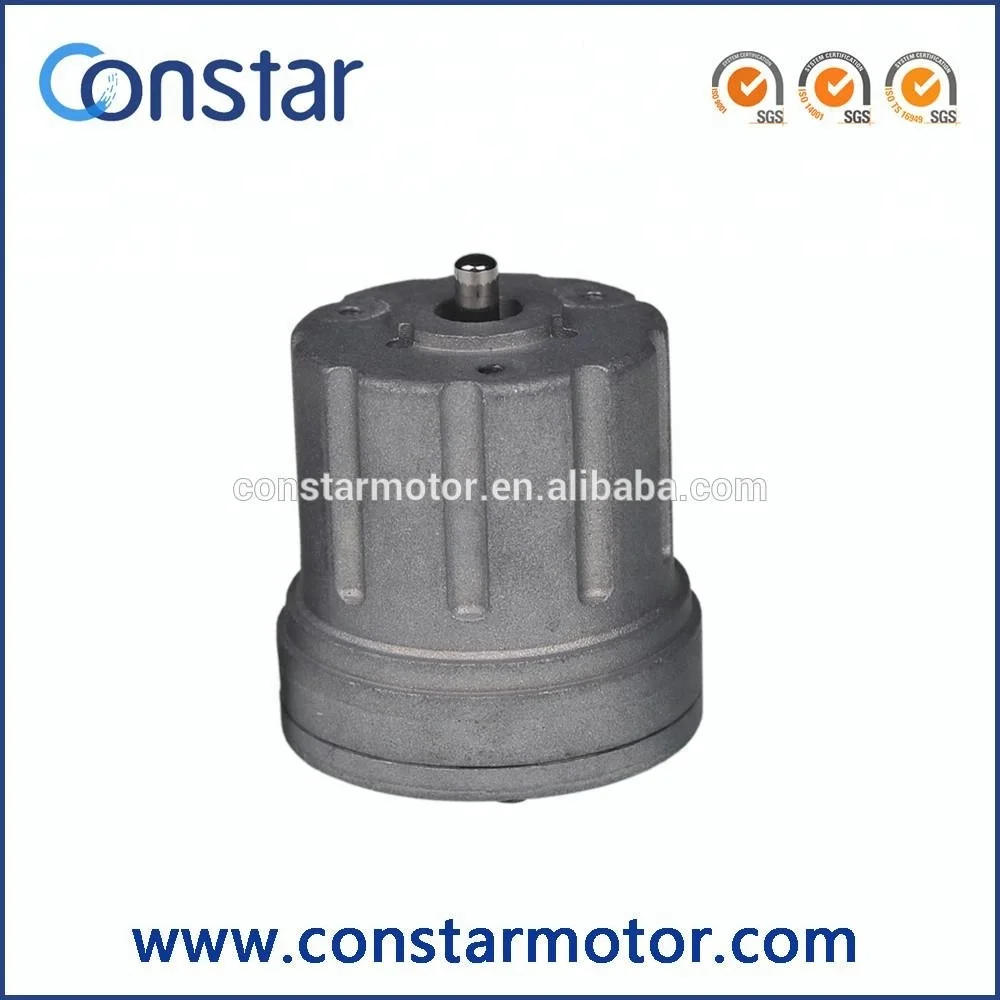

7,Photo:
8,Other Item:
| Series | Dimension | Voltage | Termanal resistence | No-load Speed | No-Load Current | Torque Constant |
| (mm) | (V) | (Ω) | (rpm) | (mA) | (mNm/A) | |
| 1215ZWWN | Φ12*15 | 3.6 | 35000 | 300 | 9720 | 0.93 |
| Φ12*15 | 4.5 | 14500 | 100 | 3220 | 2.62 | |
| Φ12*15 | 7.4 | 42500 | 200 | 5740 | 1.55 | |
| 1220ZWWN | Φ12*20 | 5 | 17500 | 210 | 3500 | 2.5 |
| Φ12*20 | 6 | 17200 | 150 | 2900 | 3 | |
| Φ12*20 | 7.4 | 23000 | 100 | 3100 | 2.9 | |
| 1230ZWWN | Φ12*30 | 3.7 | 18000 | 230 | 4860 | 1.9 |
| Φ12*30 | 9 | 18000 | 150 | 2000 | 4.6 | |
| Φ12*30 | 12 | 11500 | 50 | 960 | 9.6 | |
| 1329ZWWN | Φ13*29 | 12 | 25000 | 100 | 2100 | 4.3 |
| 1635ZWWN | Φ16*35 | 12 | 45000 | 350 | 3750 | 2.5 |
| 2030ZWWN | Φ20*30 | 12 | 43300 | 370 | 3600 | 2.6 |
| Φ20*30 | 12 | 7000 | 100 | 580 | 14.9 | |
| Φ20*30 | 12 | 9200 | 250 | 770 | 11 | |
| 2040ZWWN | Φ20*40 | 9 | 6700 | 200 | 745 | 12.1 |
| Φ20*40 | 12 | 15000 | 250 | 1250 | 7.5 | |
| Φ20*40 | 12 | 8000 | 360 | 670 | 13.4 | |
| 2050ZWWN | Φ20*50 | 12 | 6000 | 160 | 500 | 18 |
