Product Overview
Description

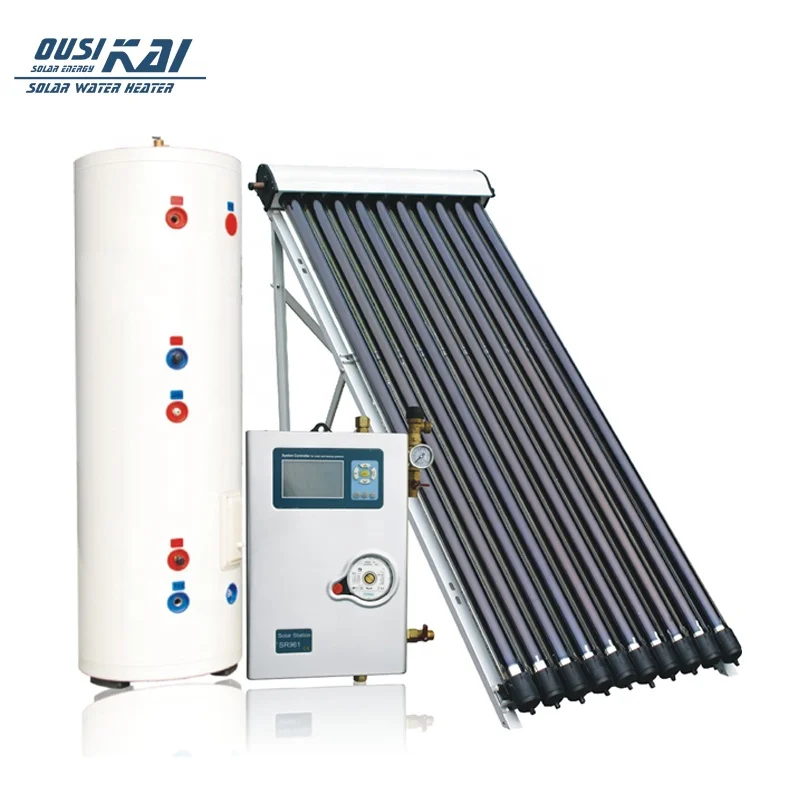

Apartment Split Solar Water Heater, Solar water heating system

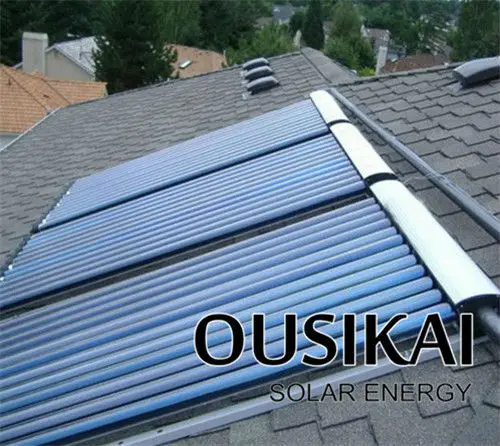

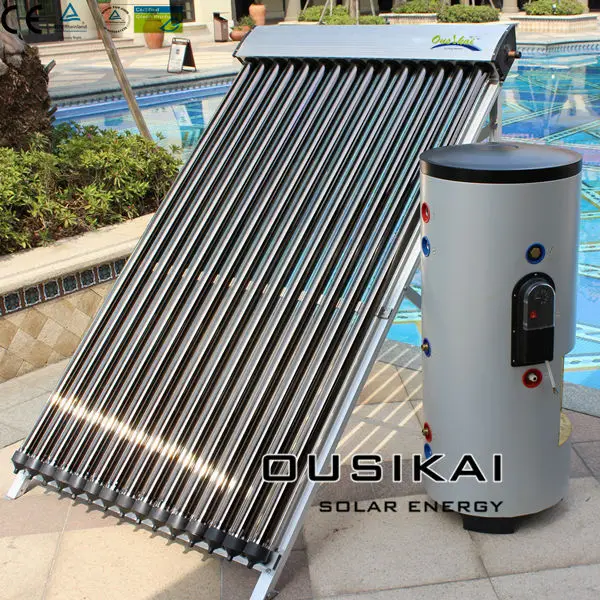

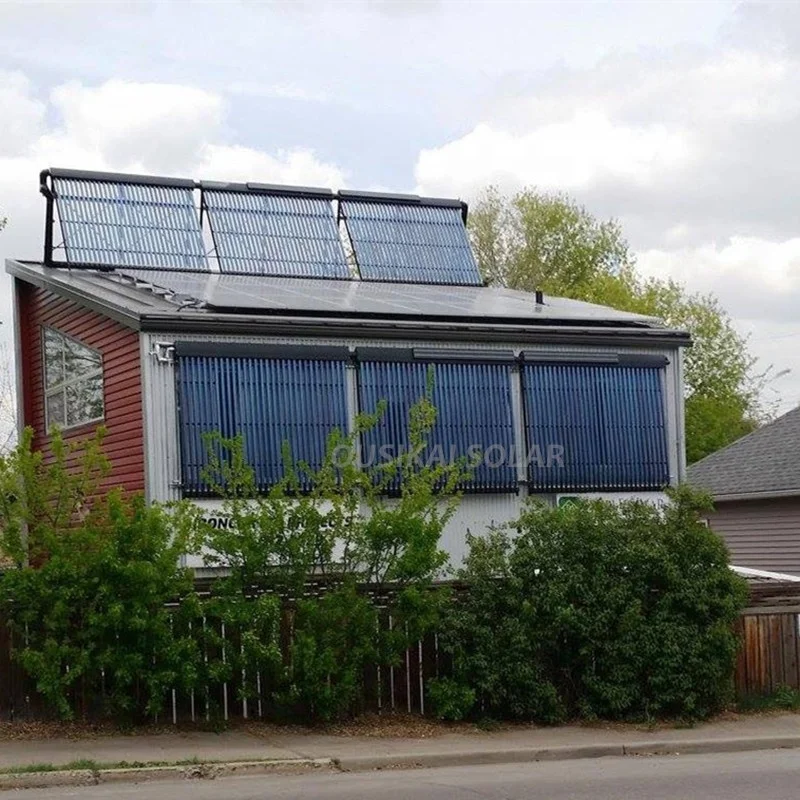

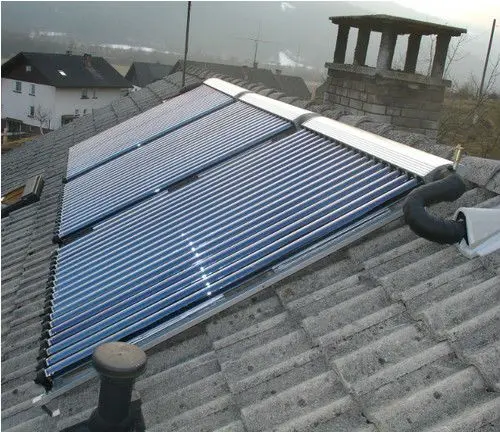

1. Picture
2. Production description
Features of pressurized solar water heating system :
1 Strong hydraulic pressure makes your bathe more comfortable
2 module design, arbitrary combination, harmonious with the building perfectly
3 Intelligent controlling and multiple functions
4 Arbitrary combination with structure of your beautiful constructions
5 Separate installation conveniently
6 workable at anytime and enjoyable.
7 Working with assistant resource
8 Full set of original equipment, the life time will be much longer to ensure better using.
Split presssurized solar water heating system working principle
1. The collector absorbs solar energy and transmits it to the water tank through circulation .
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically.
3. The circulation pump makes heat-conducting liquid circulate automatically.
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and tank doesn't reach the set value, the circulation pump will be shut automatically .
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically.
1. The collector absorbs solar energy and transmits it to the water tank through circulation .
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically.
3. The circulation pump makes heat-conducting liquid circulate automatically.
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and tank doesn't reach the set value, the circulation pump will be shut automatically .
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically.
| OS-SP series Techinical Specifications: | |
| Material of out manifold | 0.31-0.4mm thickness color steel/ fluorine carbon steel |

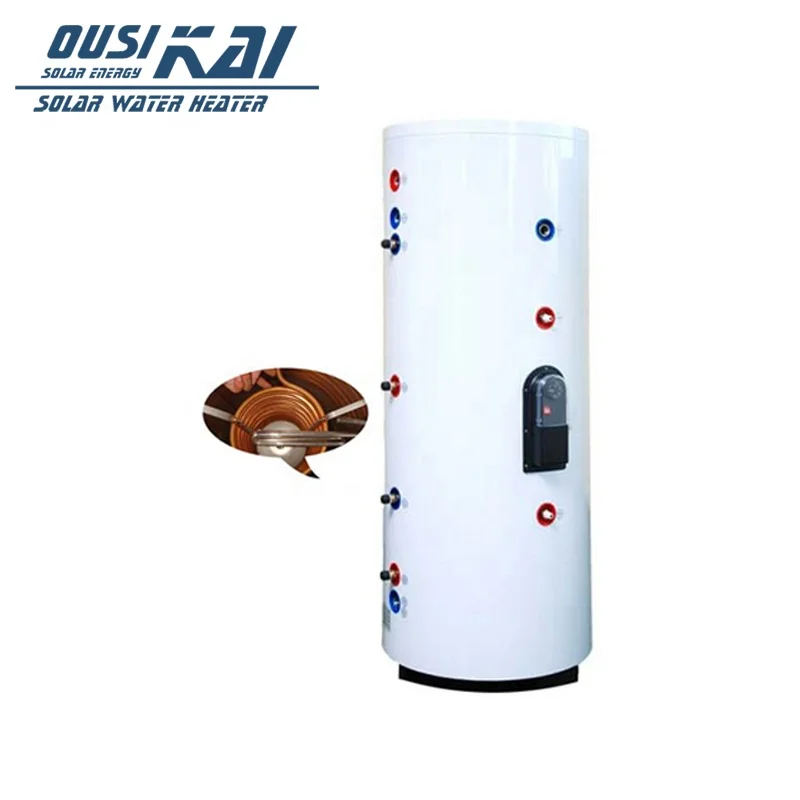

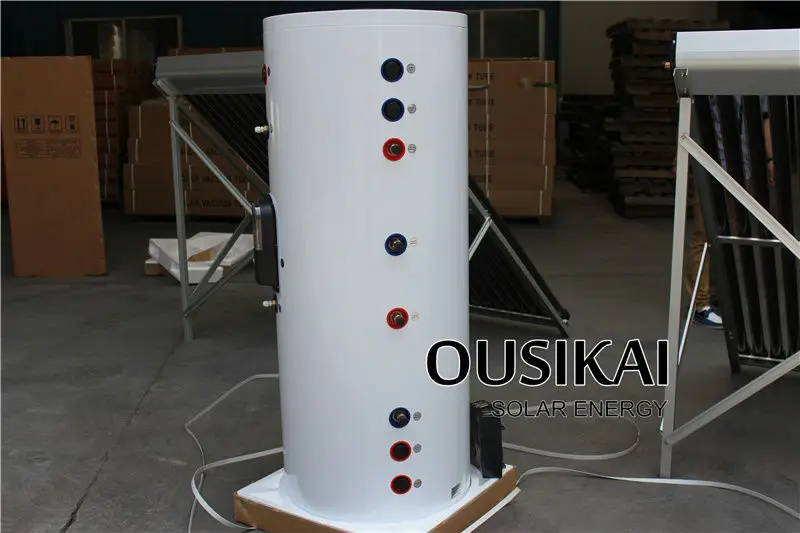

| Material of inner tank | Food grade 1.0-2.0 mm thickness SUS304 stainless steel |
| Material of outer tank | colour steel or stainless steel |
| Inlet and outlet hole | Male G3/4 |
| Max pressure | 0.6 Mpa |

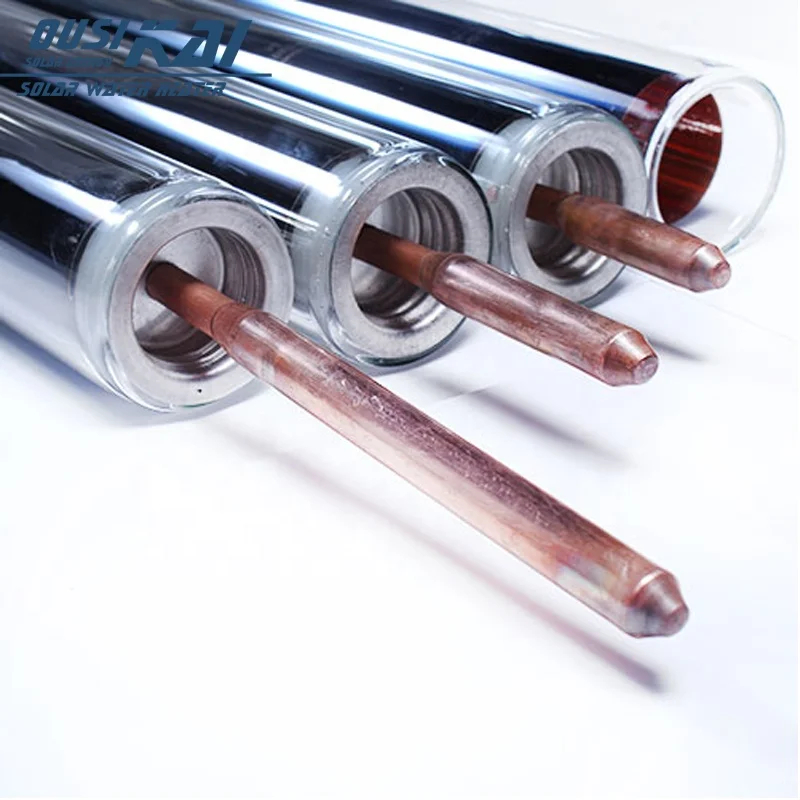

| Solar collector tube | 3.3 Borosilicate glass with SS-ALN(L)/ALNor CU/SS/ALN coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P≤0.005 Pa |
| Absorption | as=0.93-0.96(AM1.5) |
| Emission ratio | εh=0.04-0.06(80C±5C) |
| Idle sunning property parameters | Y=220~260m2.C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
| Bracket: | 2.0mm thickness aluminum alloy |
| Welding: | Argon arc welding |
| Fastening pieces: | Made of stainless steel screw |
| Tank capacity | 100L,150l,200L,300L,500L,800L,1000L |

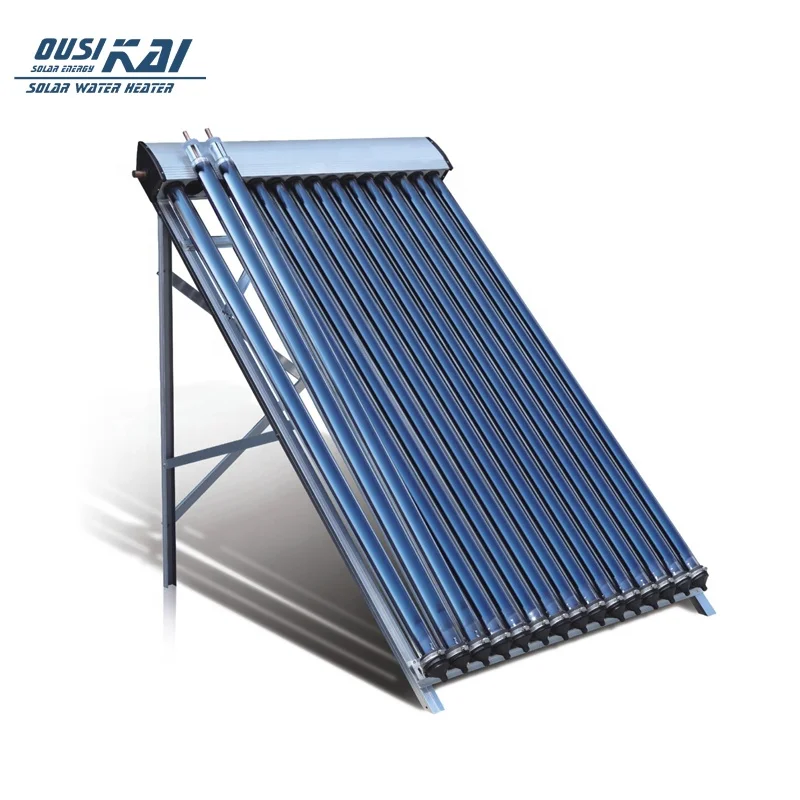

| Solar collector | 10/12/15/18/20/24/30 tubes |
| OEM | Provide |
| Working station | SP116,SP228 |
| Heat exchanger length | 10m, 12m,15m, 25m, 35m |
3. Payment
1) T/T
2) L/C at sight
3) 30% Deposit in advance and balance should be paid before shipment based on you nominate the forwarder
4. Our advantage
We promise:
- Your reply will be replied within 12 hours.
- We offer you professional service in fluent English.
- Keep the mass production as the sample in high quality
- Freight forwarder: faster, safer, and convenient.
- Quality: we have QC on each process.
| Company Overview | Ousikai Industrial &Trading Co.Ltd. |
| Owns a factory covering an area of 9,000 square meters | |
| Certificates | CE/TUV rheinland |
| Capability | Total annual sales volume reaches above US$150,000.00 |
| Able to source across multiple industries | |
| OEM&ODM service for Sunlux/ Sol sen/ G energia and so on. | |
| Techniques | Professional in most kinds of solar water heaters and accessories |
| Service | Strongly support our clients in sourcing, sample development, merchandising follow up, shipping handling, etc. |
