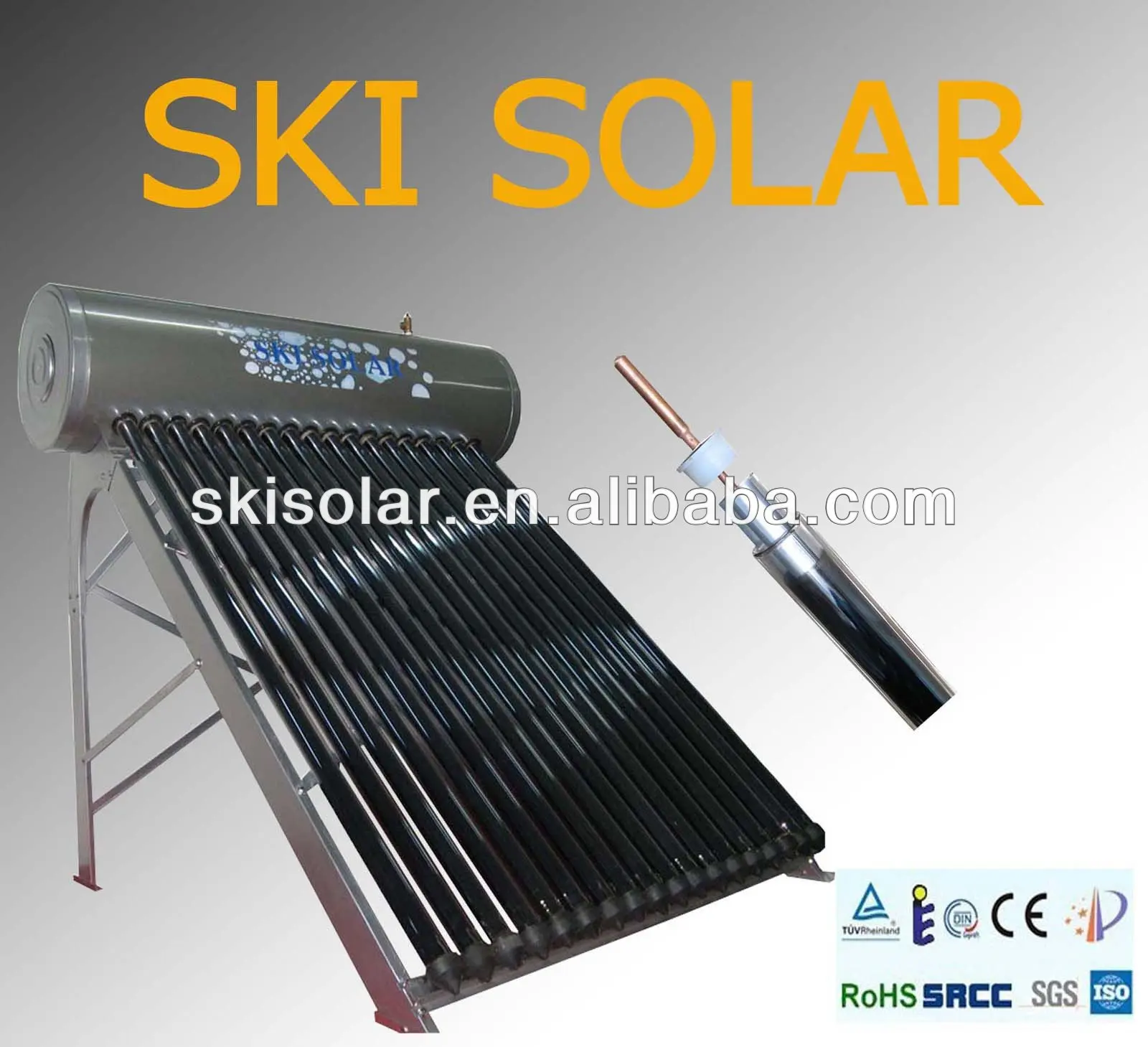

Pressurized solar water heating system (enamel tank),good performance

Product Overview

Description

 pressurized solar water heating system



Specification:



1) Tank:

Tank material (exterior): Colored Steel Sheet  (thickness: 0.5 mm)

Tank material (interior): Titanium Steel and Enamel Coating 2.5MM

(Titanium Steel thickness: 2 mm, Enamel Coating thickness: 0.5 mm)

Tank Capacity: 145 L to 265 L

Outer Tank Diameter: 480 mm

Tank Include: 1.5kw Electric Heating Element, T&P Valve, Mg Anode

2) Vacuum Tube : Heat Pipe

Diameter: 58 mm   Length: 1800 mm

3) Support: Galvanized Steel  (thickness:1.5 mm)

4) Accessories: Without Reflector

5) Packing: carton

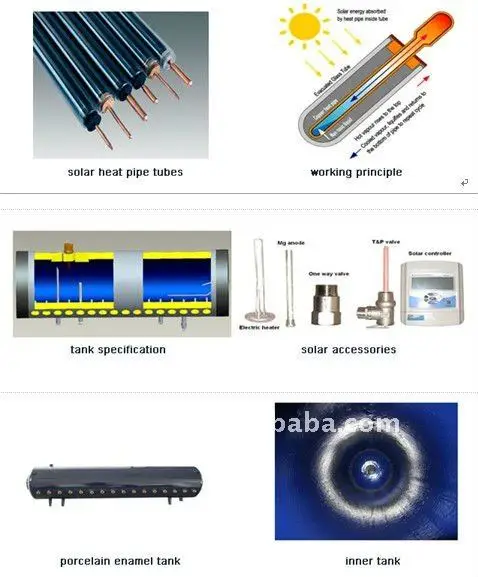

Advantage Of Porcelain Enamel Tank



No contacting point, no leakage, long life, It is manufactured by choosing special qualified porcelain enamel steel plate and integrated stretching one time molding process and no wire automatic plasma welding. Meanwhile being introduced recent technology from Germany, it melts special silicon compound after baking at 900*Cdegree and inner flask steel wall and forms special Blue -Gold Titanium Steel inner vessel. It features no corrosion forever, no leakage forever, no scale forever, no shrunken by pumping, no broken by pressing, etc. It is unique special inner flask in China .Particularly it is suitable for salina, seawater, deep well at different region. Its operation life will be over 15 years.

Model	Absorbing area(square)	Heat Pipe			Tank Capacity	Qty.(Sets)
		Diameter	Length	Number		20"	40HQ
SKI-PP 460-16	2.21	Φ 58mm	1800mm	16	145 L	44	98
SKI-PP 460-18	2.49	Φ 58mm	1800mm	18	160 L	40	90
SKI-PP 460-20	2.76	Φ 58mm	1800mm	20	175 L	35	73
SKI-PP 460-24	3.32	Φ 58mm	1800mm	24	208 L	30	68
SKI-PP 460-30	4.15	Φ 58mm	1800mm	30	256 L	25	55
