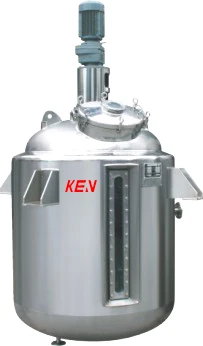

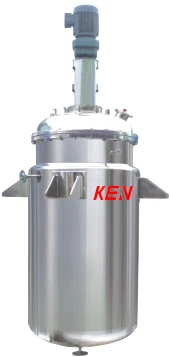

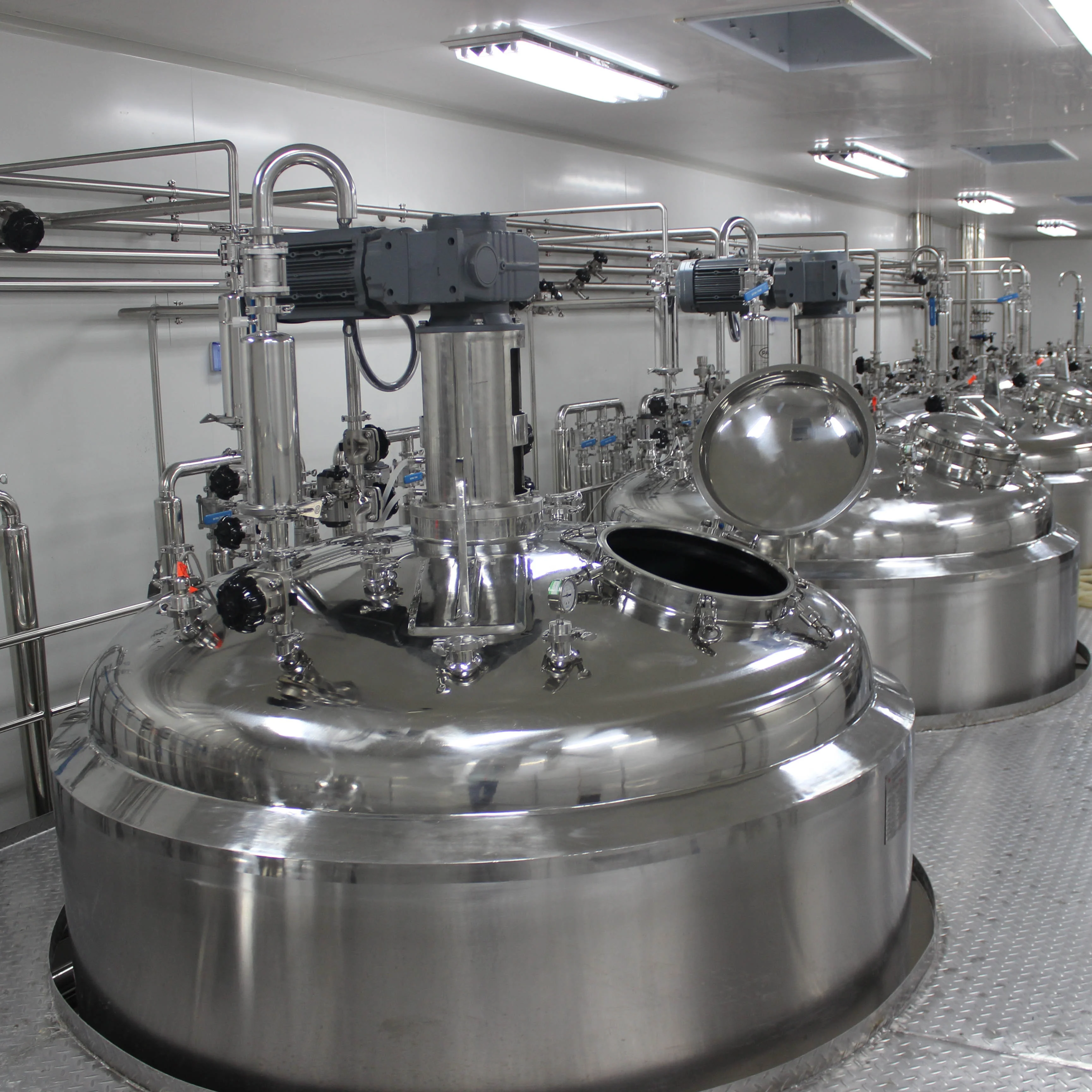

8000L Stainless Steel 304/316 Customised Pharmaceutical High Pressure chemical Reactor

NO.

Name

Stainless Steel Pharmaceutical Sanitary Reaction Mixing Tank with Low Price

1

Nominal volume

50L ~ 50,000L

2

Material

304/316L/2507/2205 stainless steel

3

Design pressure

-0.1 ~ 1.0MPa

4

Design
temperature

-30~300ºC

5

Mixing speed

0~400r/min

6

Motor power

0.25- 15kw

9

Heating type

Electrical heating, electromagnetic heating, microwave heating,
heat conduction oil heating, steam circulation heating

10

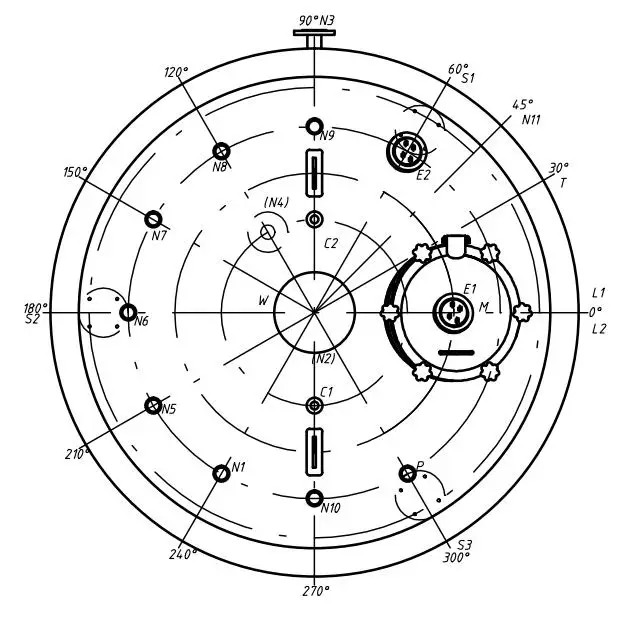

Connection ports
on the reactor

Gas phase port with needle valve, liquid phase port, solid phase port,
temperature measurement and control with platinum resistance,
pressure gauge safety blasting with pressure gauge, safety
explosion-proof device, reactor cooling coil inlet and outlet,
electric heating... as customer's Technology requirement.

11

Mixing type

Paddle type, anchor type, impeller type, enclosed turbine impeller,
or choose other types according the reaction condition

12

Mixing shaft

Adopt self-lubricating wear-resisting bushings, suitable for various
media agitation.

13

Seal type

mechanical seal

14

Discharging type

Upward discharging or downward discharging

15

PID Control box

Temperature display and control, control accuracy±1ºC; mixing speed display and stepless speed, heating power control and keep
automatic constant temperature.

16

Other
configurations

According to different requirements on the top cover, reactor body,
inner mixing paddles or add additional devices(Such as condensation
reflux device, constant pressure feed tank, receiving device,
condenser, etc.)
