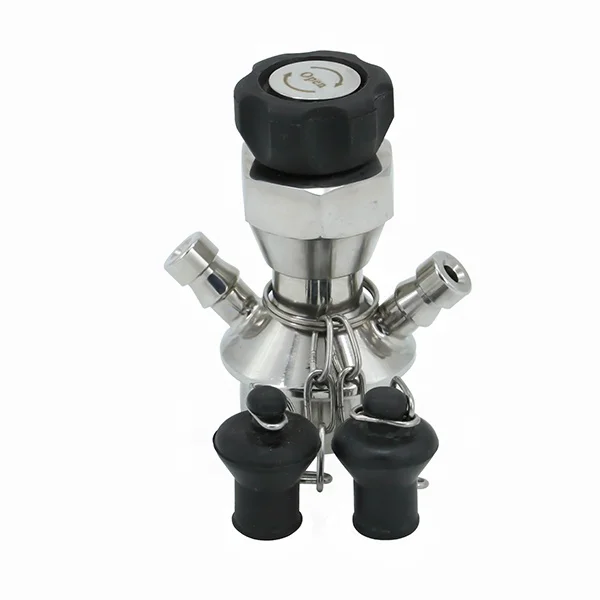

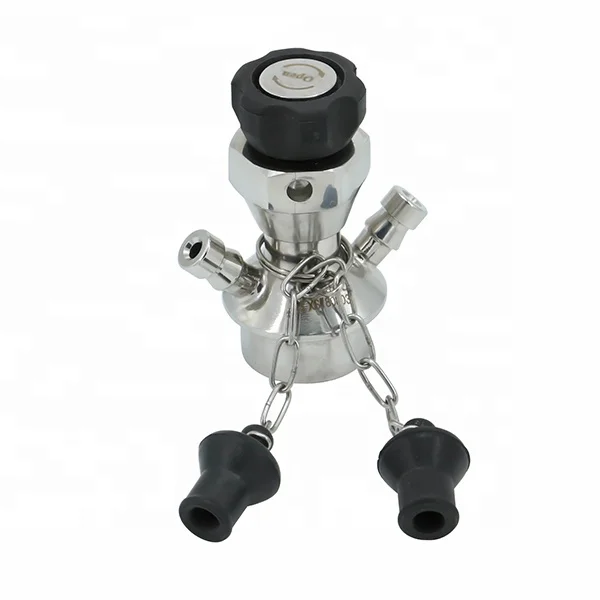

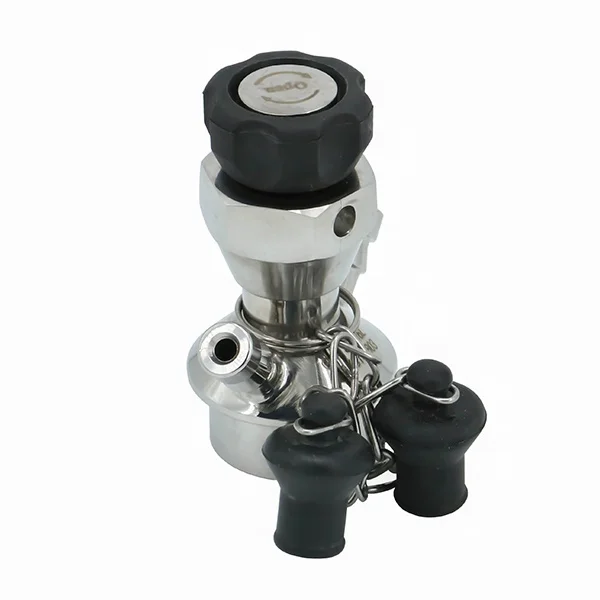

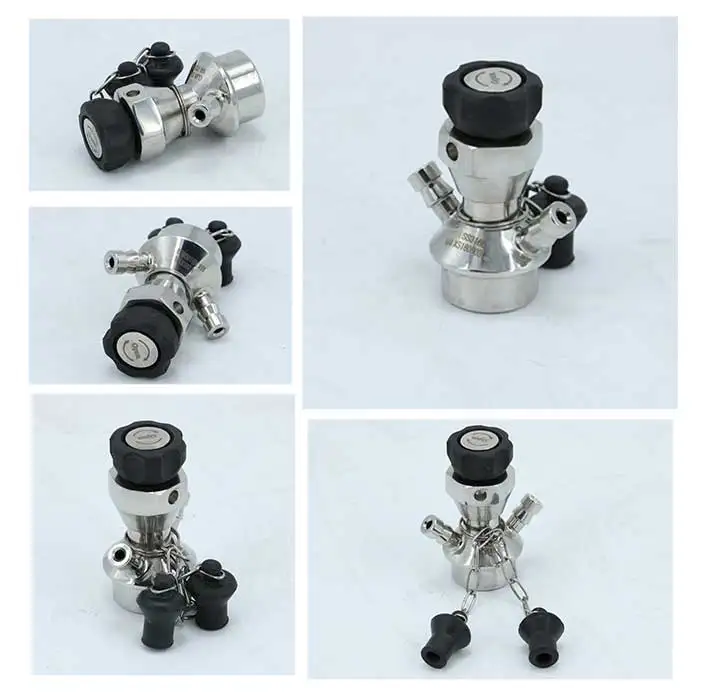

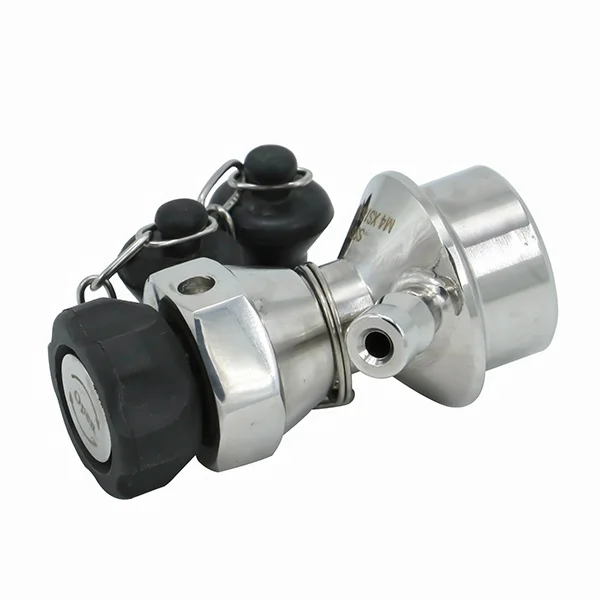

3A SMS DIN Hygienic Stainless Steel Stainless Steel mini 25.4mm Double Inlet/Outlet Bush Aseptic Sampling Valve

3A SMS DIN Hygienic Stainless Steel Stainless Steel mini 25.4mm Double Inlet/Outlet Bush Aseptic Sampling Valve

Category: >>>
Supplier: Wenzhou Compass Machinery Co. Ltd.Wenzhou Ltd.

Price:$60.00-65.00

Quantity:

Product Overview

Description

_01

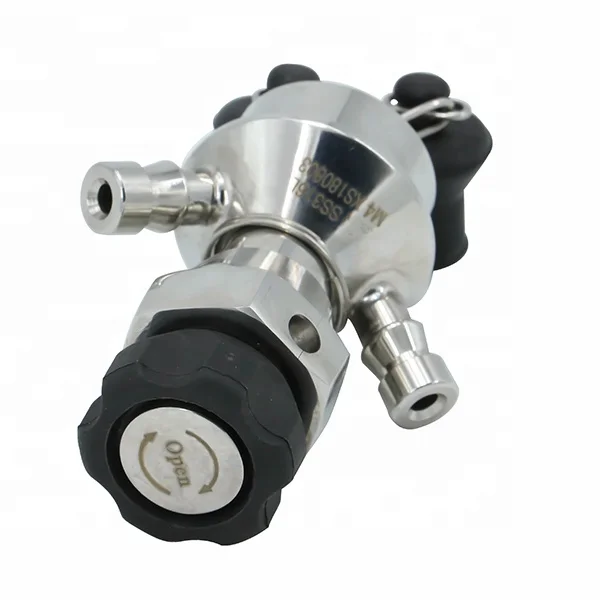

3A SMS DIN Hygienic Stainless Steel Stainless Steel mini 25.4mm Double Inlet/Outlet Bush Aseptic Sampling Valve


Feature:
1. 304 stainless steel,316L stainless steel
2. Silicone O-ring plus plunger to assure a leak proof connection
3. Surface finish polish to sanitary standards
4. Recommended usage in wineries
5. End connections available: clamp and NPT
6. Sizes available: 1" clamp and 3/8" NPT

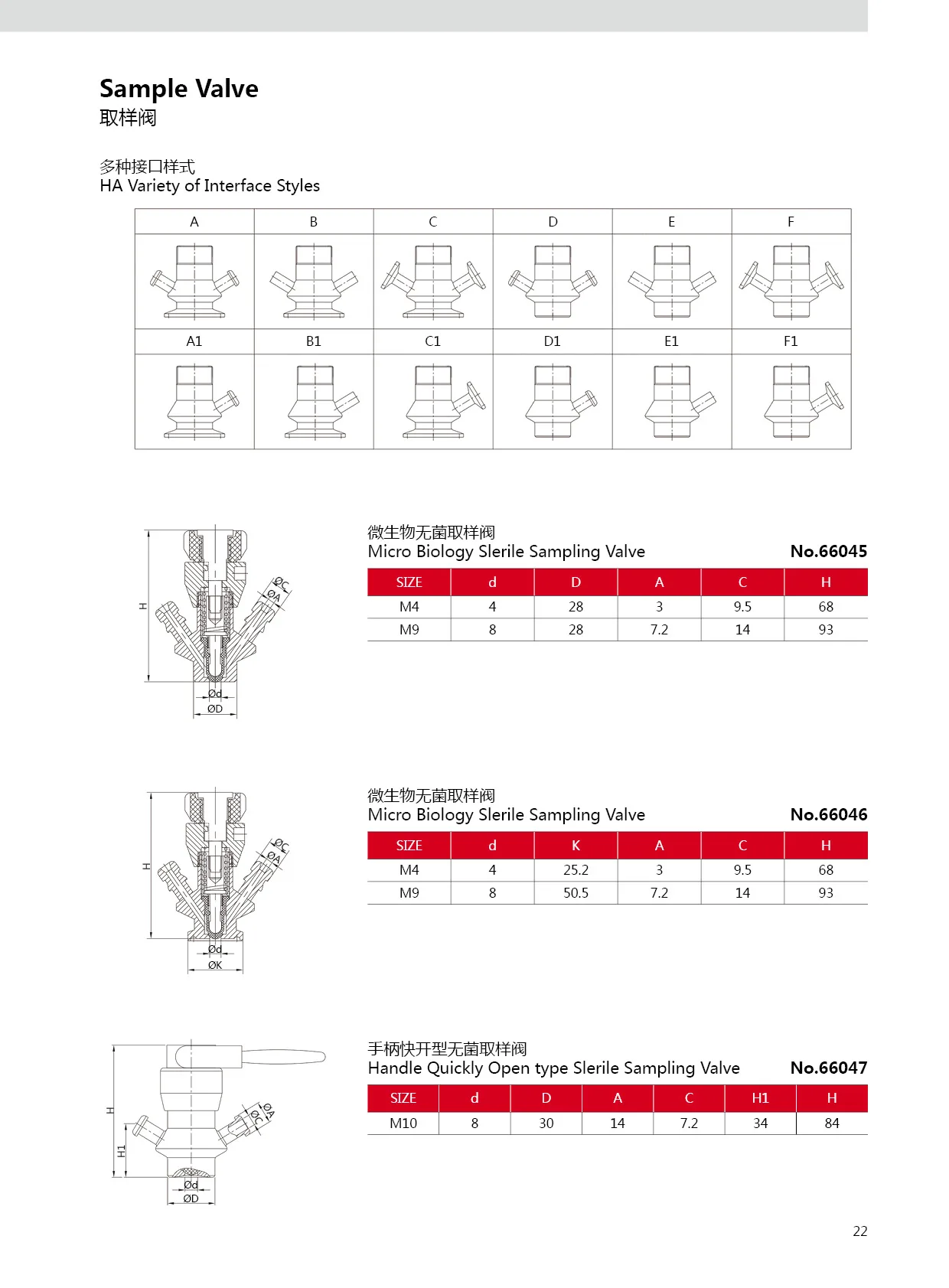

Technical specification:

Material of Product Wetted	316L (DIN-1.4404)
Material of Non-product Wetted	304 (DIN-1.4301)
Seal material	PTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2)
Seal material	All seal materials comply with 177.2600.
Continuous working temperature	-20C +135C (EPDM)
Sterilization temperature	150oC (Max 20min)
Working pressure	0~10bar
Internal surface	Ra0.8μm
External surface	Shot blasting
Size	DN6,DN8,DN15

Application:
Its mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.

It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment.

Aseptic sampling valve has two configurations:
1. Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective and easy to operate.
2. Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling.

It is operated by plastic hand wheel, and both angle and straight type structures are available.
We specialize in sanitary valves,pipe fittings and pumps,which is applied for milk,food,beer,pharmaceutical and other fields.

We can quote you favourable price&high quality&best after-sale services.Welcome to visit our factory.

Wenzhou Compass Machinery Co.,Ltd is one of the manufactures which are capable of producing high precision stainless steel sanitary equipment and pipeline connection parts.We are a modern enterprise which integrates scientific research and production.

Compass can provide a variety of products,such as sample valve,divert valve, mix proof valve,pressure relief valve, manual and pneumatic butterfly valve, check valve, diaphragm valve , ball valve, pipe fitting, manhole cover, pump, tube/pipe and other related products. All products can be made according to different materials and industrial standard, such as SMS, DIN. 3A, ISO, RJT, DF, BS, DS and BPE.

Our products are widely applied to dairy, food, beer, beverage, chemical industrial of equipment, and cosmetic industries. All technical aspects have reached the international leading levels and are in conformance with GMP requirements.

Provide process design, machinery manufacturing,installation,technical training.

Compass applies the most advanced CNC machine from Japan for processing,cutting machines, automatic equipment,complete inspection equipment,excellent quality control system, an after-sale service center and strong production capacity. It makes each products go to forefront of our line and shortens the quality gap between imported equipment as well as accessories.

We persist in the principle of "Quality First,Customer Satisfaction" and will create more excellent liquid fittings to meet customers' requirement by full passion and first-class service.Moreover,we can also design according to your drawing and samples.

We believe that sincere service and good quality will let you cooperate with us and achieve mutual benefits,we welcome worldwide friends to give us more supports and suggestions!!

_07

Q1. Are you a trading company or factory?

We are a manufacturing factory.

Q2. Do you have certificate for the materials?

is very important for the food processing machines.

Q3. May I have free sample before ordering?

Yes,our company is very pleased to send to you free sample for quality test as long as freight cost being paid by buyers themselves.

Q4. What’s the payment terms?

For small testing orders,we accept Paypal,Western Union,T/T and credit Card.

For mass orders,we accept T/T and L/C.

Q5.How do you control the quality?

Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.We only have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.

Q6.If there is any quality problem,how do you solve it?

We are proud that we never let one customer leave us.We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the beginning,so we need less time for quality problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we keep our customers with us.

Q7.How long is your delivery time?

For normal production in 7-10days.For bulk order in 15-25days.

Q8.Warranty

One year warranty for all of our stainless steel products.Gaskets are not included due to the different application for customers.
